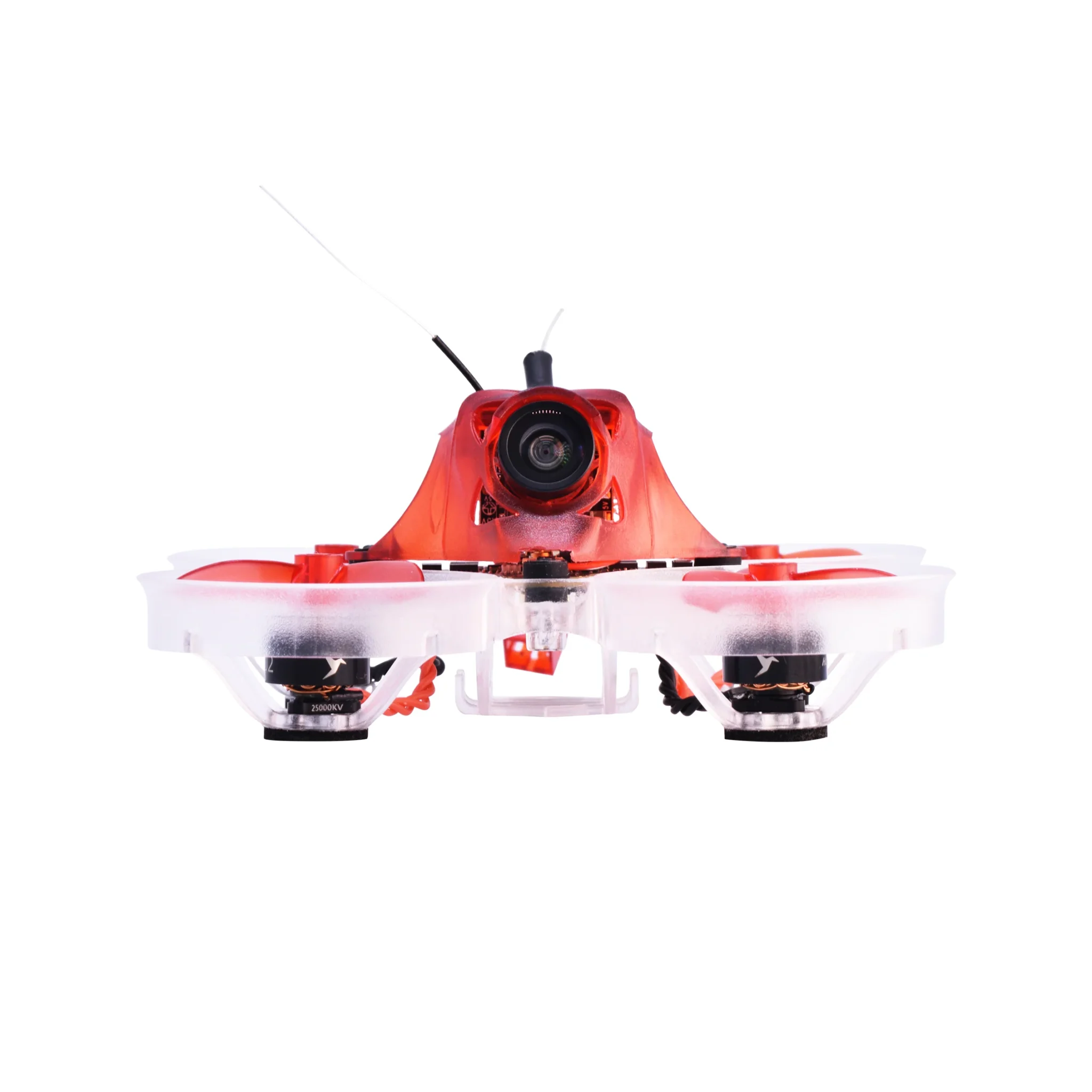

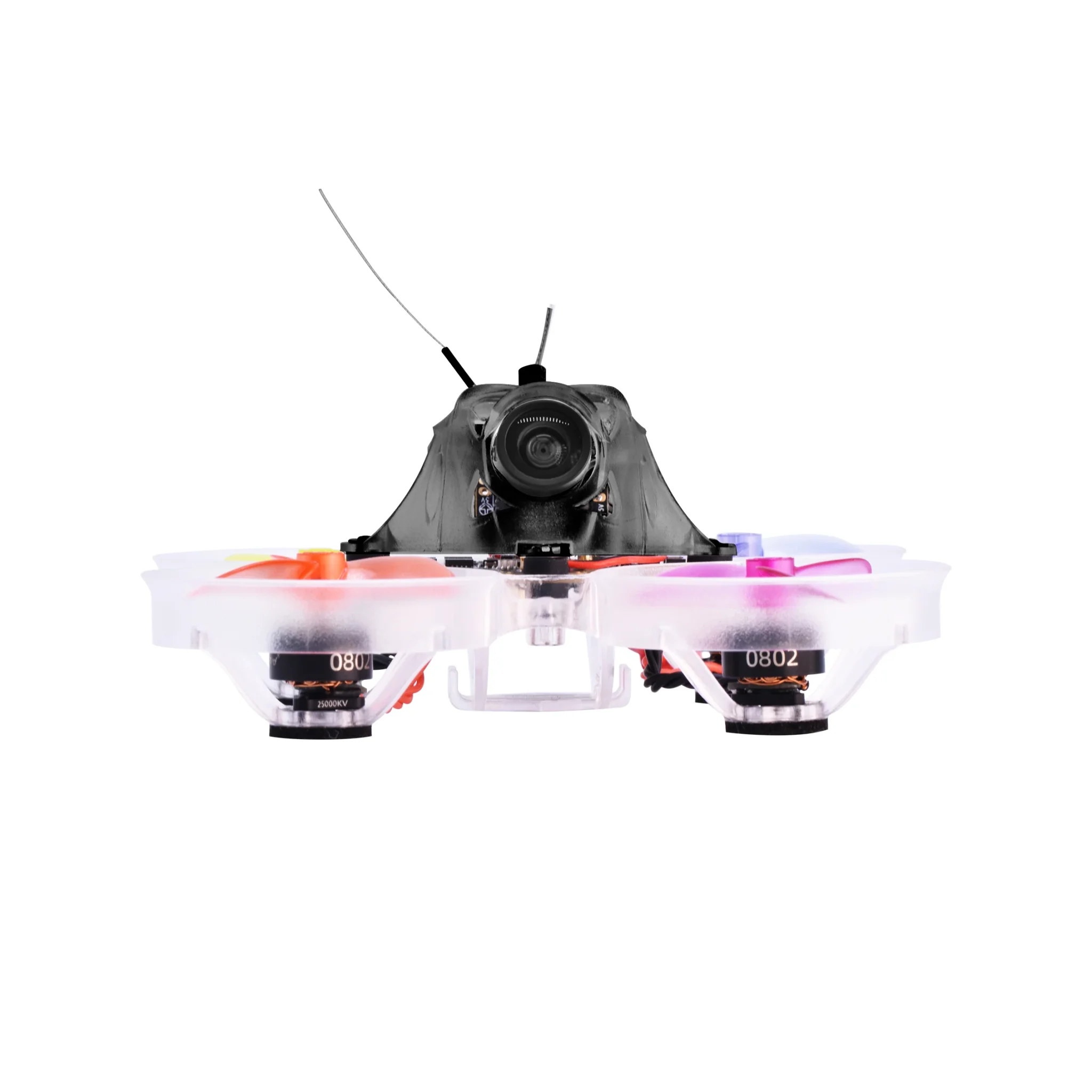

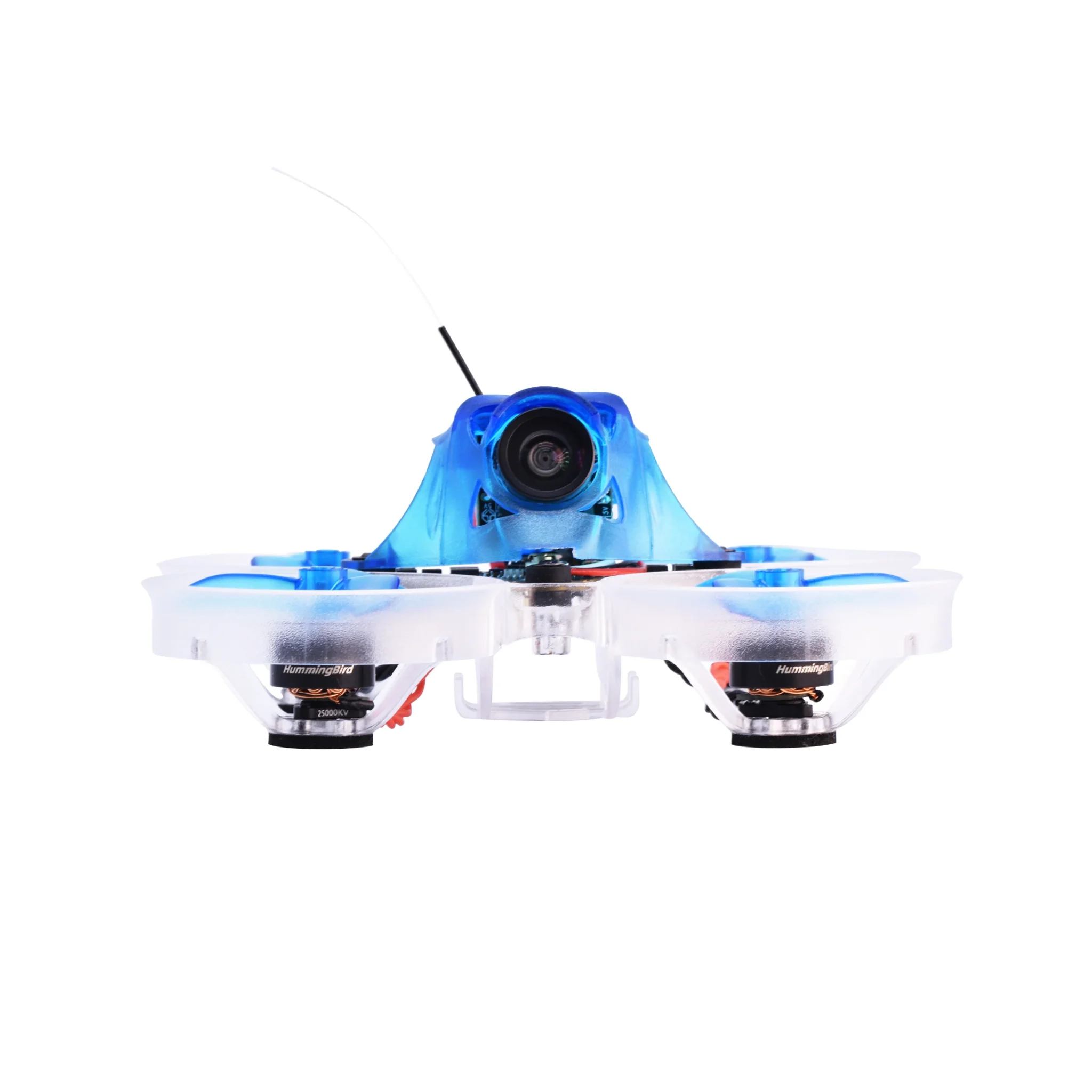

NewBeeDrone Hummingbird V3 BNF FPV Whoop Drone

Introducing the NewBeeDrone Hummingbird V3 BNF FPV Whoop Drone, equipped with the latest in drone technology to ensure a high-performance flying experience. This drone is perfectly tailored for those who demand agility and precision in their FPV flying, making it ideal for both racing and freestyle maneuvers.

Core Features of the Hummingbird V3:

• Advanced Flight Controller: The Hummingbird V3 comes with an ELRS AIO flight controller featuring an STM32F411 MCU for reliable and fast processing, paired with a BMI270 gyro for superior stability.
• Integrated VTX and Antenna: Includes a 25mw VTX with a BeeTX 5.8Ghz antenna, offering clear and consistent video transmission.
• High-Performance ESCs: Equipped with 12A BLHeliS ESCs pre-flashed with Bluejay 0.19.2 firmware, supporting up to 48kHz for responsive and smooth motor control.
• Lightweight Design: The flight controller weighs only 4.57g including antennas and battery connectors, designed to keep the drone agile and responsive.
• Compatibility with Betaflight OSD: Features an NBD7456 graphical OSD, fully compatible with Betaflight, to provide real-time flight data and adjustments.

Specifications:

• Receiver: 2.4G Antenna with MHF3 connector ensures a strong and stable connection.
• Battery Compatibility: Designed for 1S batteries, optimizing power and flight time without compromising performance.
• Connectivity: Includes free UART1 and UART2 ports for additional customizations and peripheral device connections.
• Mounting and Dimensions: The flight controller has outer dimensions of 29x29x7.6mm and mounting holes spaced at 25.5×25.5mm, making installation straightforward in various frames.
• Power Connector: Utilizes a Nectar Connector Gold Plated PH2.0 Solid Pin for reliable power delivery.

Binding Instructions: The drone features an SPI ELRS3.0 receiver for advanced control. To bind, power on the drone and press the bind button on the flight controller to activate bind mode. Ensure your remote control firmware is updated to ELRS 3.0 or higher as Betaflight 4.4 does not support earlier versions.

Package Includes:

• 1x Hummingbird V3 ELRS 65 BNF equipped with 25000kv motors, ready to fly out of the box.

The NewBeeDrone Hummingbird V3 is a testament to sophisticated engineering, combining lightweight components with robust features to deliver unmatched flight performance. Whether you are practicing tight maneuvers indoors or competing in FPV races, the Hummingbird V3 is built to exceed expectations and push the limits of what a micro FPV drone can achieve.
