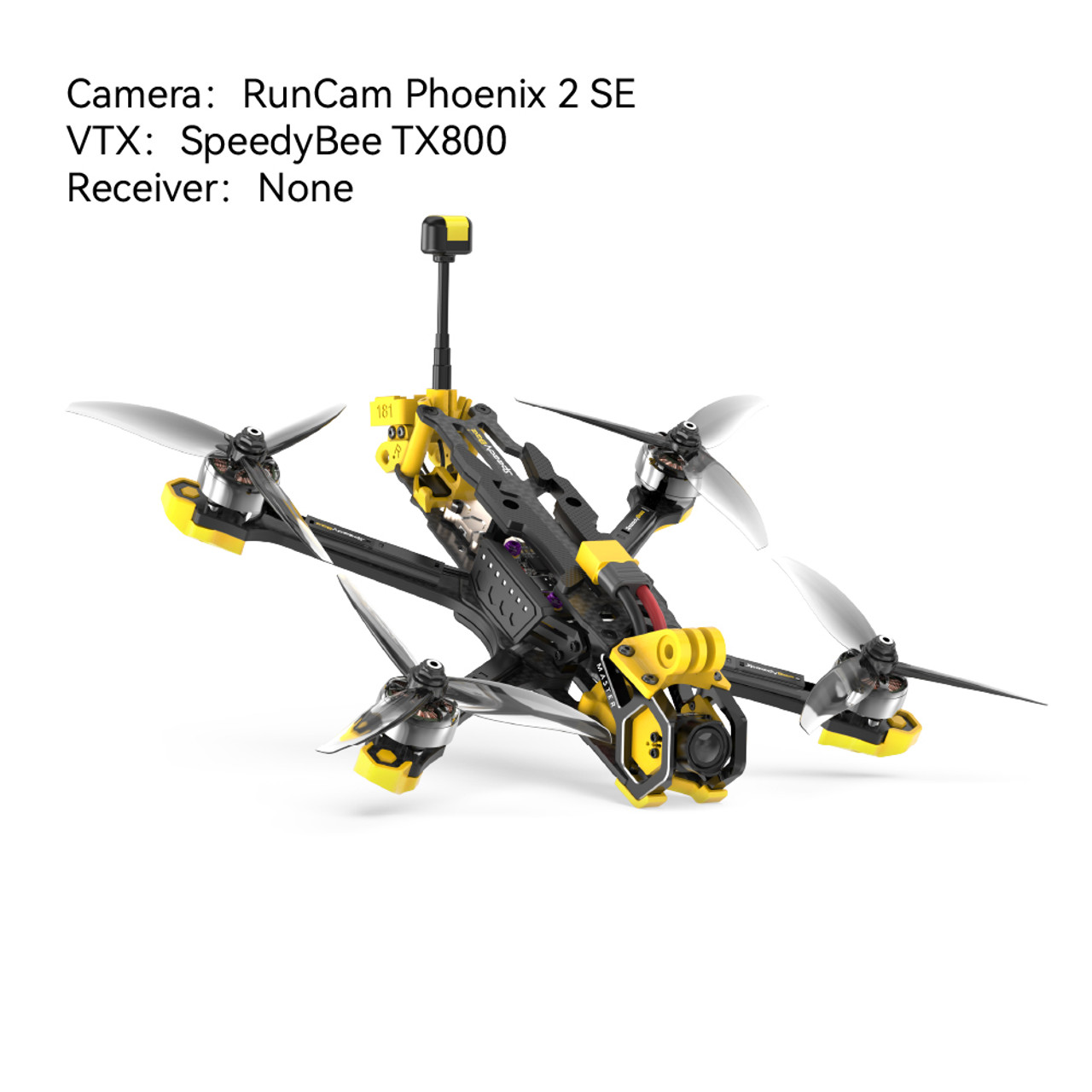

SpeedyBee Master 5 V2 Analog Freestyle Drone
Check out all of our SpeedyBee Products!
Fly More Smoothly and Farther!
A Deadcat frame with innovative design, placing flight controller close to the center of the drone, offers you the better flying experience with precise control.
The side protection plates that are embedded with programable RBG LED stripes, the Master 5 V2 provides you with protection and also fashion. You could change different colors and effects by simply pressing the BOOT. Long pressing BOOT button to swtich to BF control mode, and with SpeedyBee App, more colors and effects can be modified wirelessly. Press to switch the On&Off of LED has been set by default.
Here to Start a Steady Flight
Via the innovative anti-vibration stack design, let’s fly more
steadily and safely. And with the already tuned PID,
you can fly easily when receive.
steadily and safely. And with the already tuned PID,
you can fly easily when receive.
Customized VTX Heat Sink
Overheating is a serious challenge for VTX. We customize a
heat sink made of aluminum alloy, providing better cooling effect and
improving the operation stability.
heat sink made of aluminum alloy, providing better cooling effect and
improving the operation stability.
Arms With Quick Release Structure
Arms with quick-release structure, the amount of screws averages 1.5 per arm. Thanks to the use of the flight stack shock-absorbing installing structure, the fixing screws of the arms are not associated with the flight stack, reducing the impact on the installation of the flight stack during disassembly and assembly of the arms.
All Considered, All Prepared
Wireless And Simple Configuration
WBuilt with SpeedyBee F7 V3 stack, connecting the drone to the App via Bluetooth to modify configurations easily. Additionally, LED effect could be changed as you like, and flight time could be recorded automatically. Elevating your experience with more possibilities.
To Infinity and Beyond
Equipped with SpeedyBee BL32 50A 4-in-1 ESC and 2306 1900KV motors, outputting up to 200A max. and thrust reaching 1.9kg per motor, is massively powerful and more fluent flight performance.
Specifications
| Frame | Master 5 V2 | ||
| Arms | 5mm | ||
| wheelbase | 226mm | ||
| Micro contoller | STM32F722 | ||
| IMU | BMI270 | ||
| Bluetooth BLE | Supported, for flight controller configuration | ||
| OSD chip | AT7456E | ||
| ESC | 50A 41N1 BL32 4-6S ESC | ||
| Motor | 2306-1900KV (6S) | ||
| LED | Underneath and side | ||
| Blackbox | 500MB onboard memory(Type: SD_CARD) | ||
| Propellers | 1 set of GEMFAN 51466 (Notice: 5.1”) | ||
| Buzzer | TMB12A05 | ||
| Power input | 6S Lipo 25.2V (recommended: 1050mAh – 1500mAh) | ||
| Receiver | TBS Nano/ELRS/PNP (4-pin connector reserved) | ||
|
|||
| HD Recording |
|
||
| VTX |
|
||
| Camera |
|
||
| Weight (without battery) |
|
