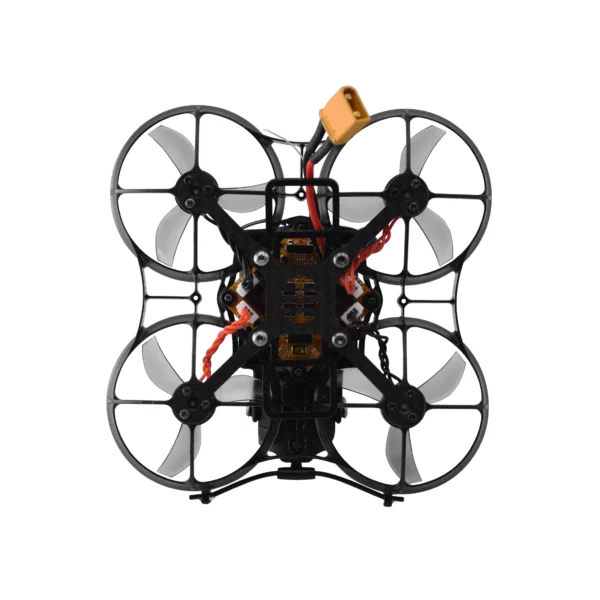

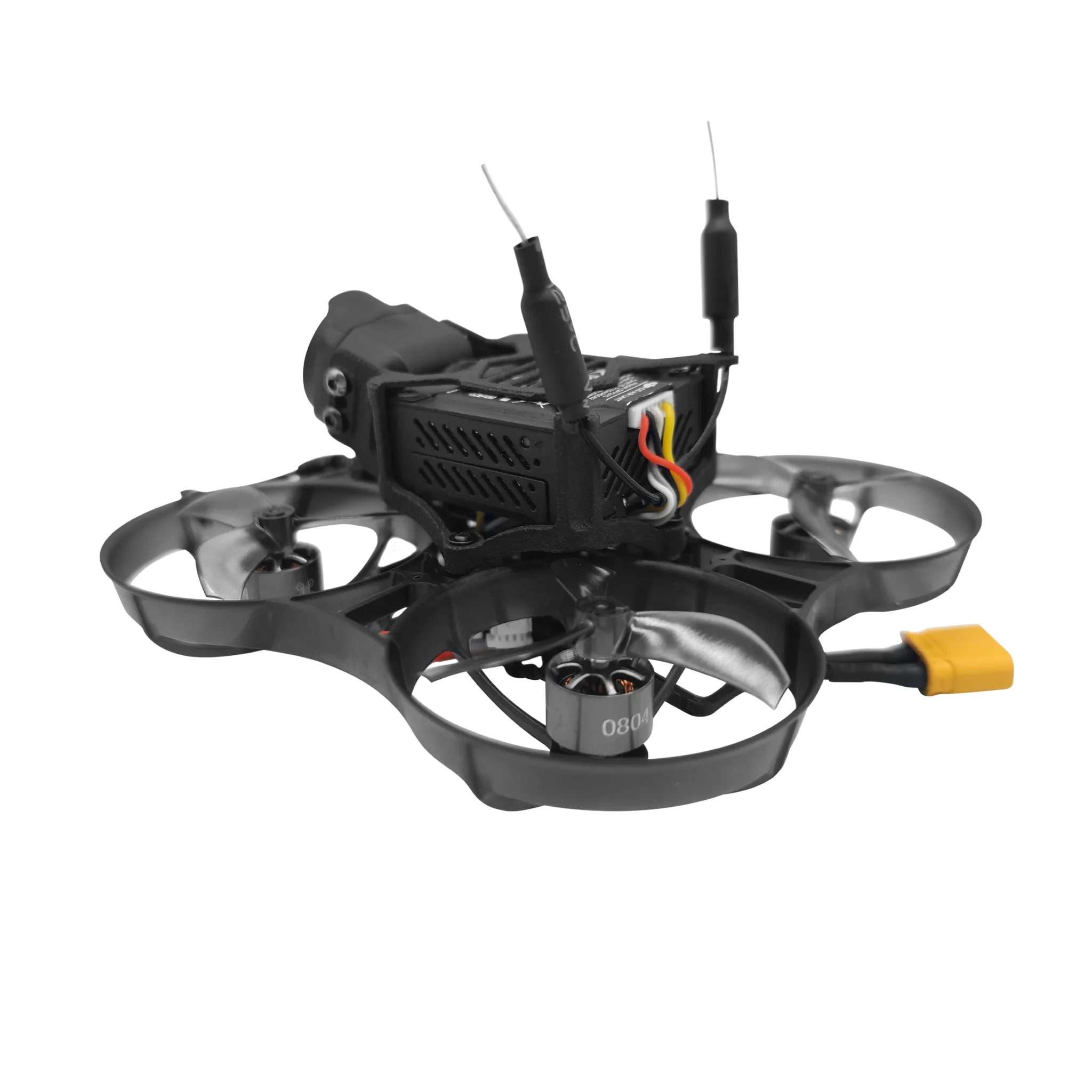

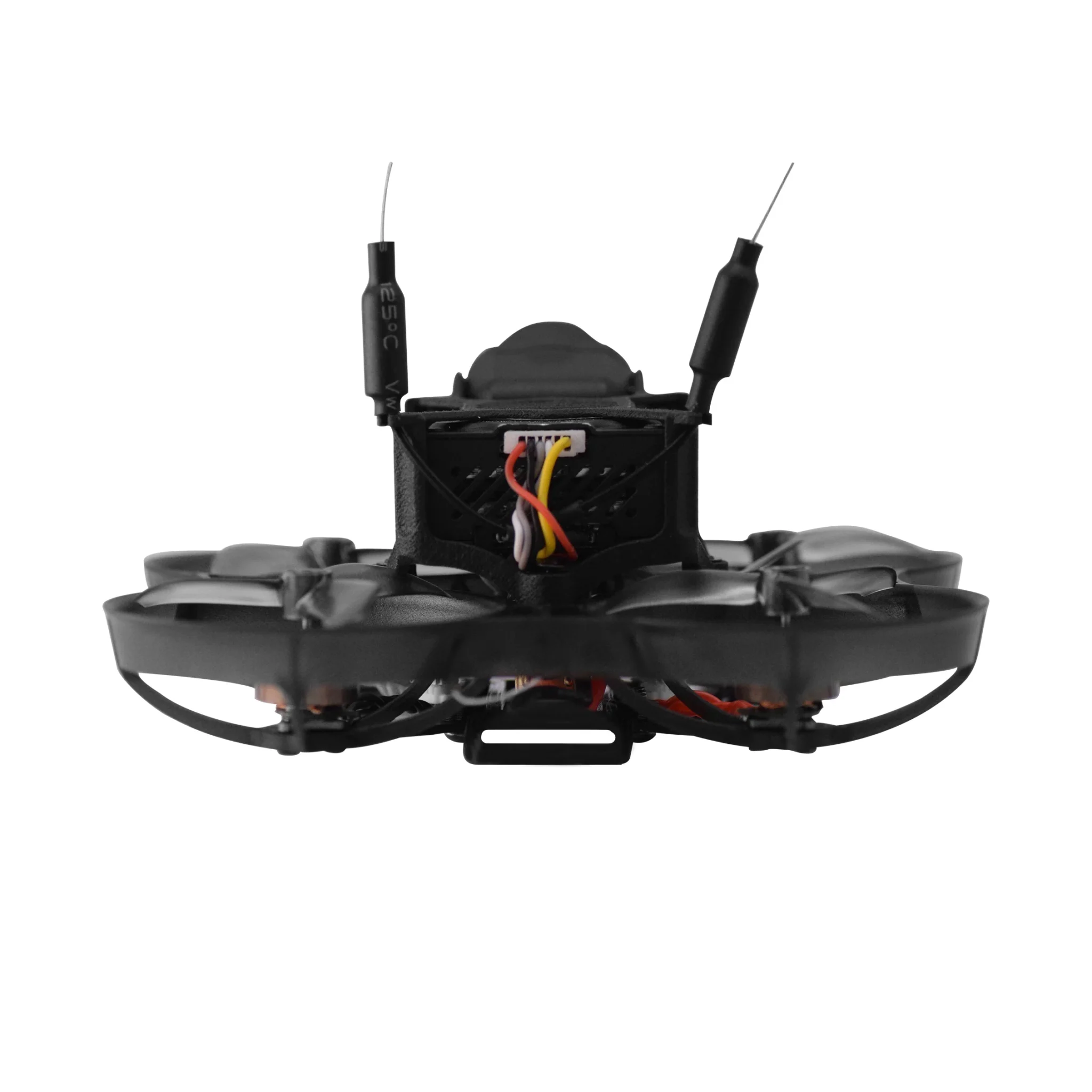

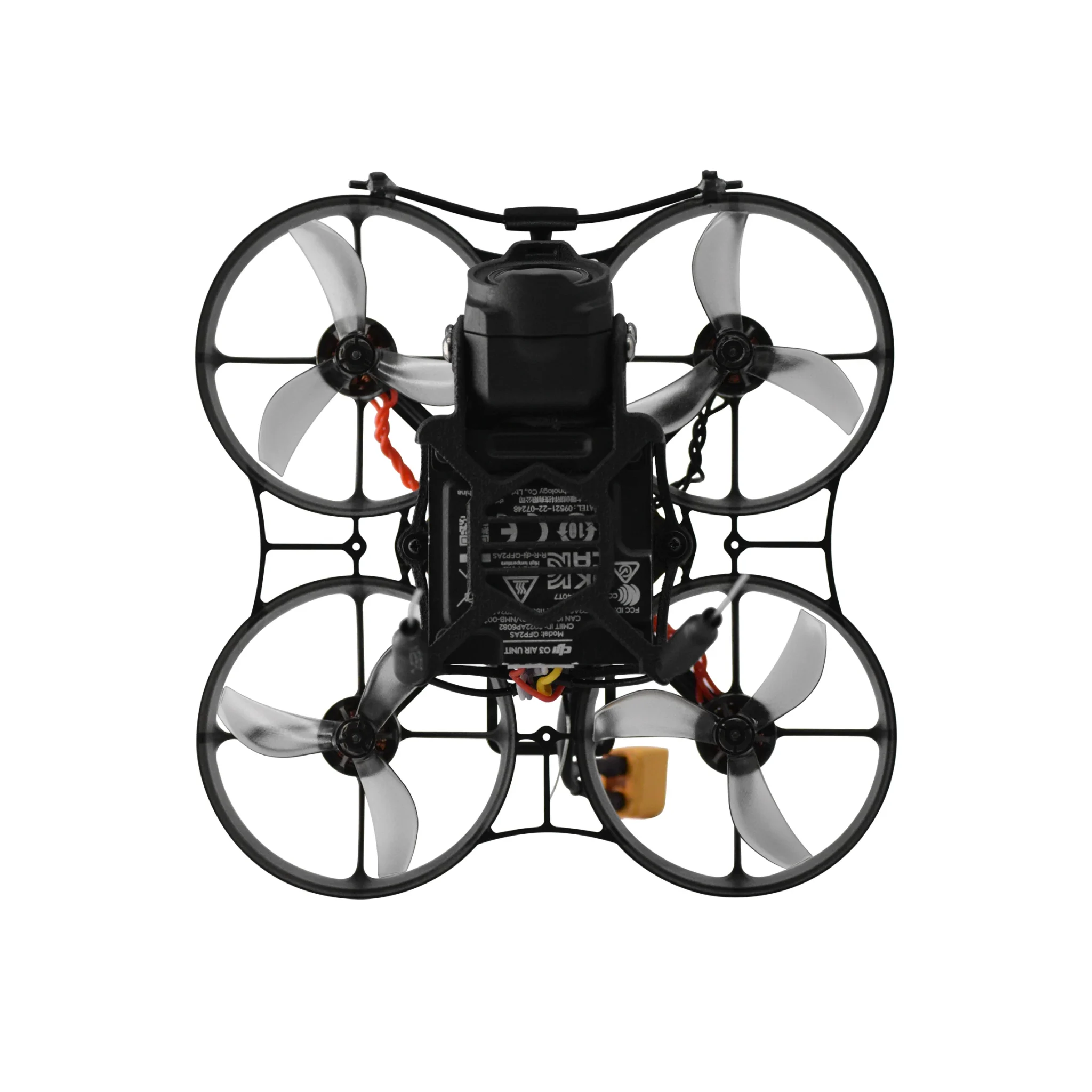

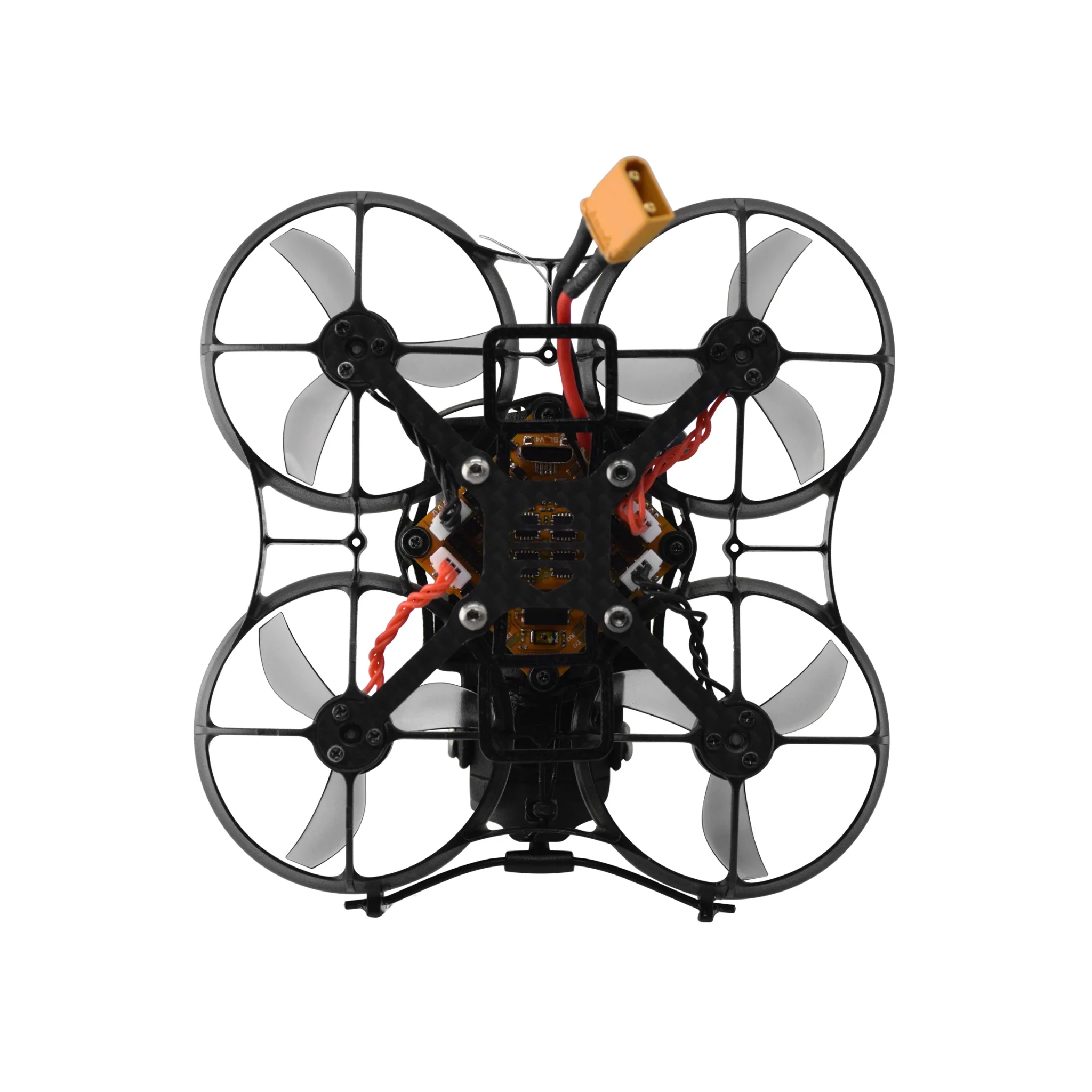

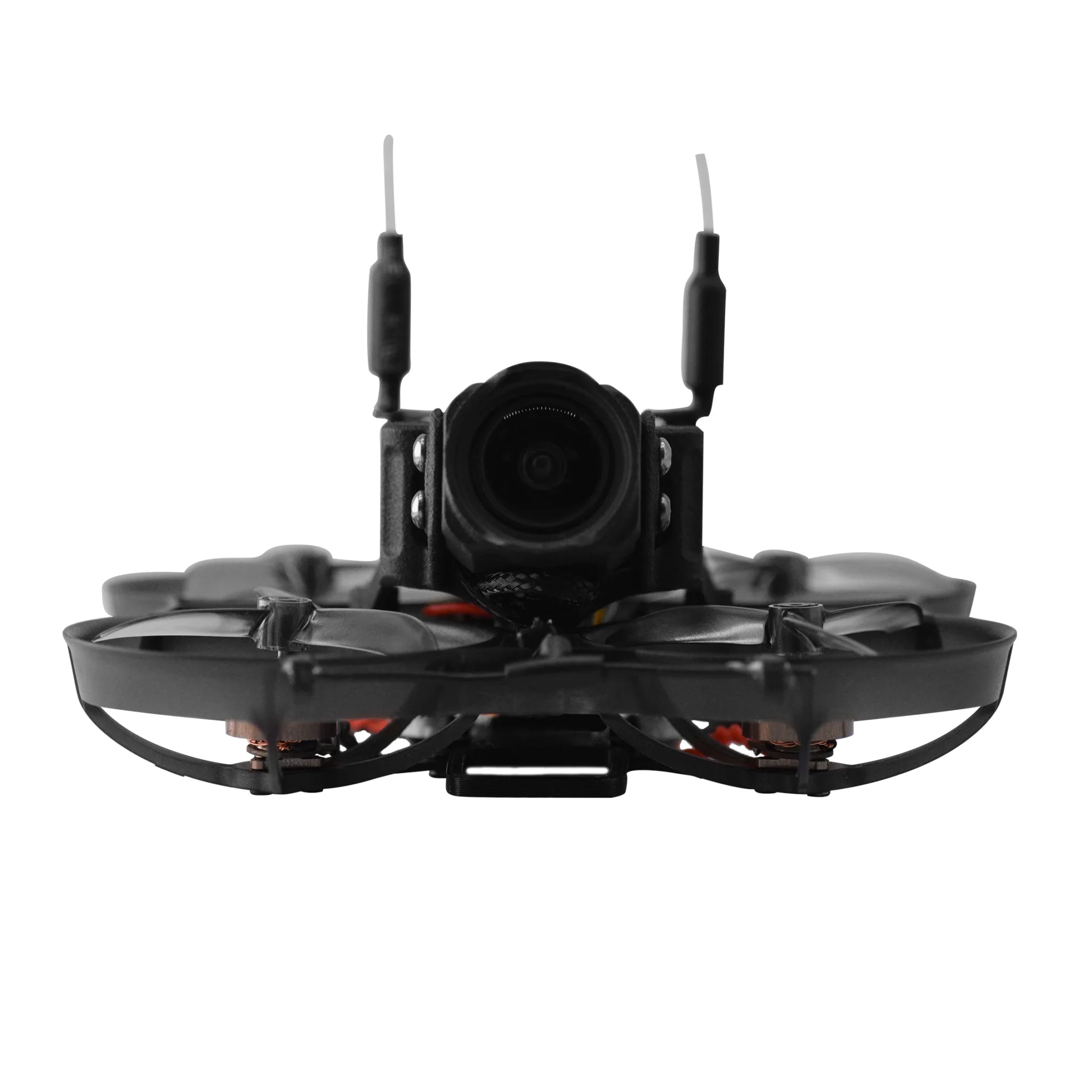

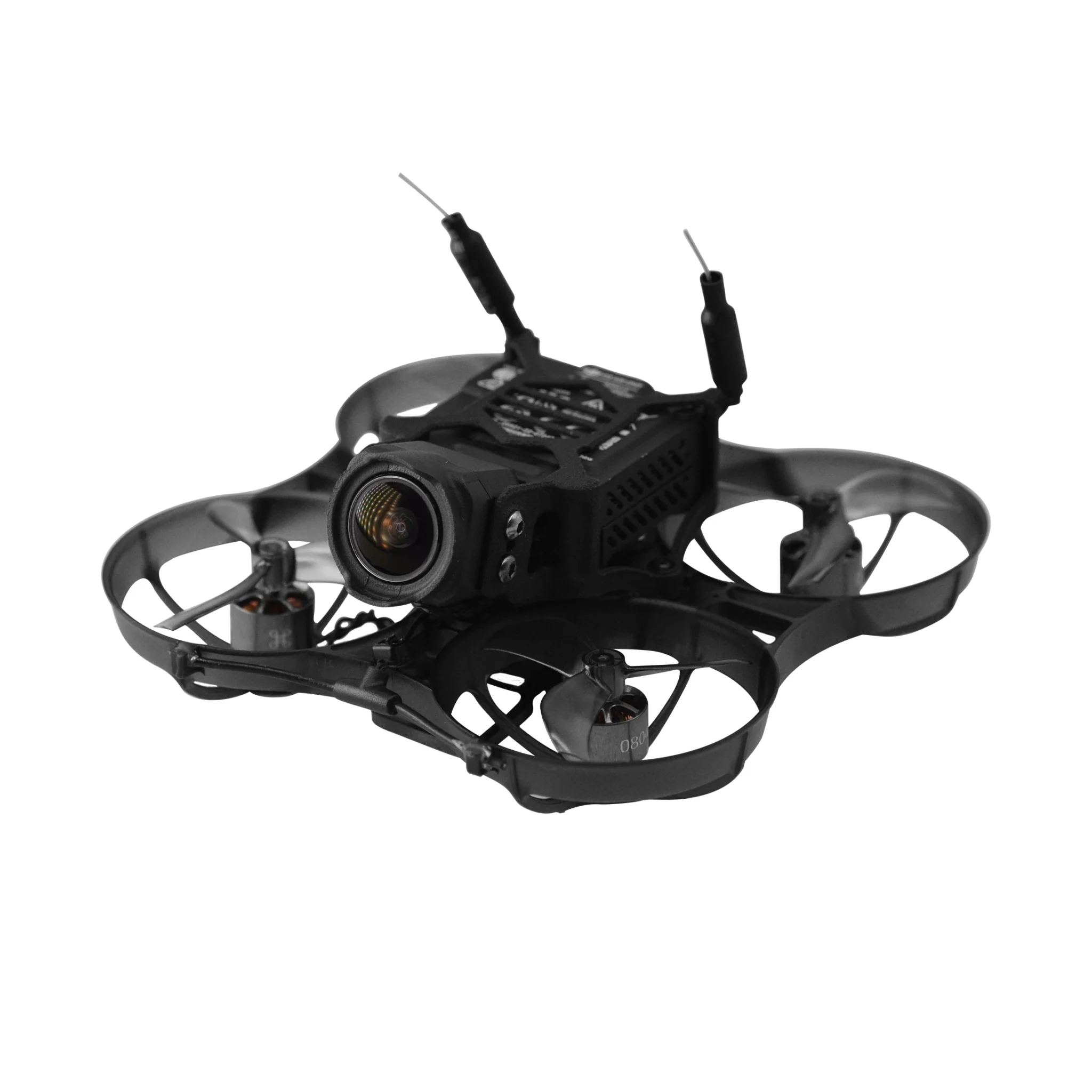

NewBeeDrone AcroBee75 HD O3 BNF ELRS FPV Drone
Experience the future of indoor FPV flying with the NewBeeDrone AcroBee75 HD O3 BNF FPV Drone, the pinnacle of compact, high-definition drone technology. Designed as the smallest and lightest HD whoop with a complete DJI O3 unit and ELRS Receiver, this drone delivers unparalleled agility and a robust flight time of nearly 3.5 minutes, perfectly suited for seamless indoor filming in both self-level and acro modes.
Key Features:
- G4 Flight Controller with Built-In ELRS2.4 Receiver: Ensures flawless compatibility with Dshot600 and bi-directional Dshot, providing precise and responsive control.
- Ultra-Light Design: Weighs just 70.19g without the battery, ensuring nimble movement and prolonged flight times.
- DJI O3 Air Unit: Offers crystal-clear HD video transmission, with the option to enable DJI RockSteady for stabilized footage.
- Optimized Performance: Expertly tuned for indoor use, with settings ideal for tight spaces and detailed filming.
Drone Specifications:
- Size: 75mm
- Frame: Cockroach75 Brushless Frame
- Motors: Flow 0804 12000kv Double Ball Bearing Brushless Motor
- Propellers: Azi Tri-Blade Micro Propellers 40mm – 1.0mm Shaft
- Camera and VTX: Integrated DJI O3 Air Unit
- Canopy: Custom NewBeeDrone Acrobee75 HD O3 Canopy
- Total Weight with Battery: Approximately 98.24g – 99g
Flight Controller Details:
- MCU: STM32G474 for high-speed processing
- ESC Firmware: Z-H-40 – Bluejay 0.19.2 at 48kHz
- ESC Specifications: 1 channel 20A
- Receiver: NBD ExpressLRS 3.0 Diversity
- Antennas: 1x BeeT-Antenna, 1x 2.4G receiver antenna
- Dimensions: 29 x 29 x 7.6 mm
- Mounting Holes: 25.5 x 25.5 mm
- Battery Input: 1-2S with dedicated BECs for power supply
Recommendations for Best Performance:
- Battery Options: Tattu 450mAh 7.6V High Voltage 95C 2S1P Lipo Battery Pack with XT30 Plug or Tattu R-Line 550mAh 7.4V 95C 2S1P Lipo Battery Pack, also with XT30.
Included in the Package:
- 1x NewBeeDrone AcroBee75 HD DJI O3 BNF Drone
- 2x Extra HD Canopies for customization
- 1x Extra Battery Strap for varying battery sizes
- 4x Azi 40mm Propellers for replacements or adjustments
This drone is designed to be used primarily indoors and in calm conditions to optimize its HD recording capabilities and flight performance. Note that using non-compatible parts or modifying the drone could lead to technical issues, for which users should assume full responsibility.
