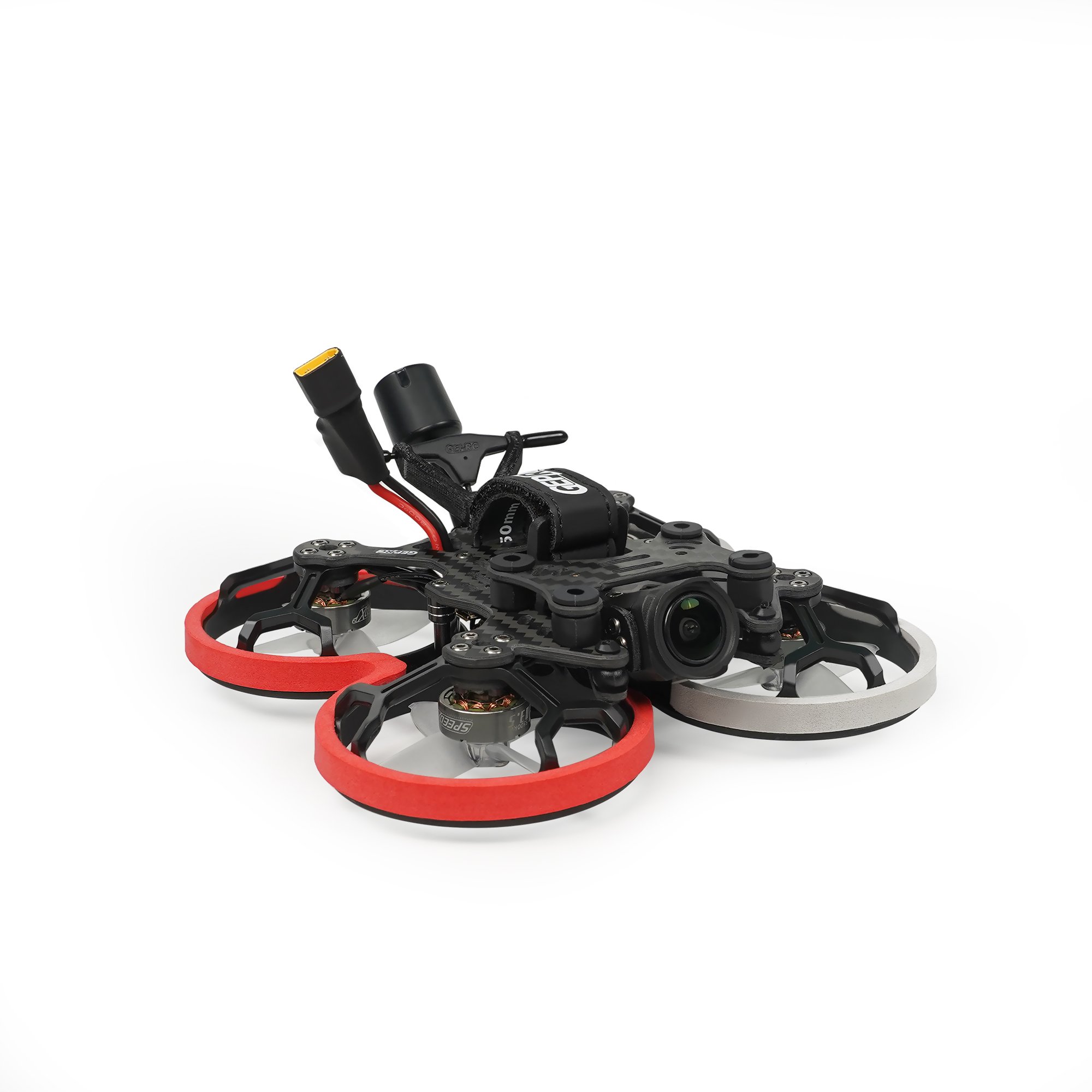

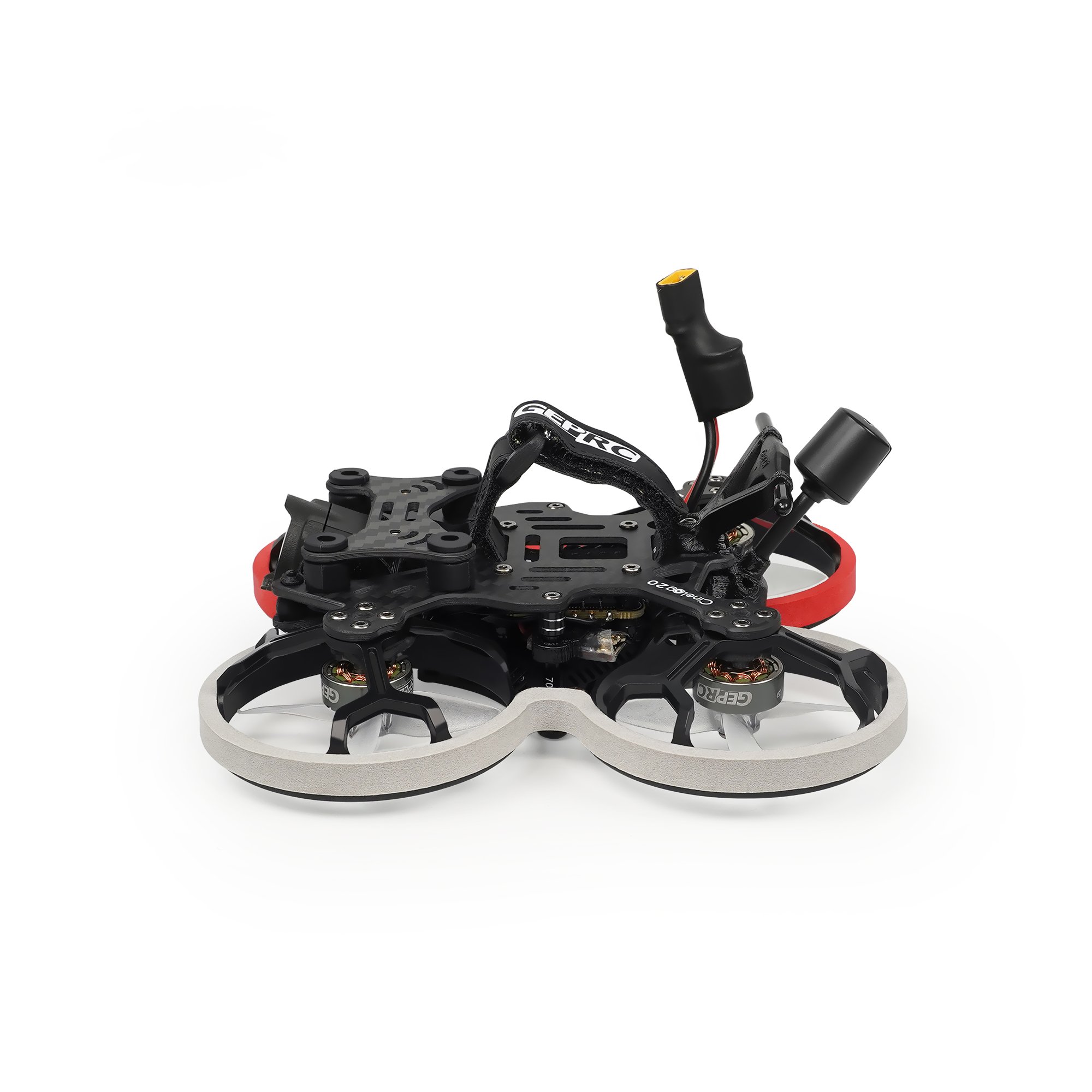

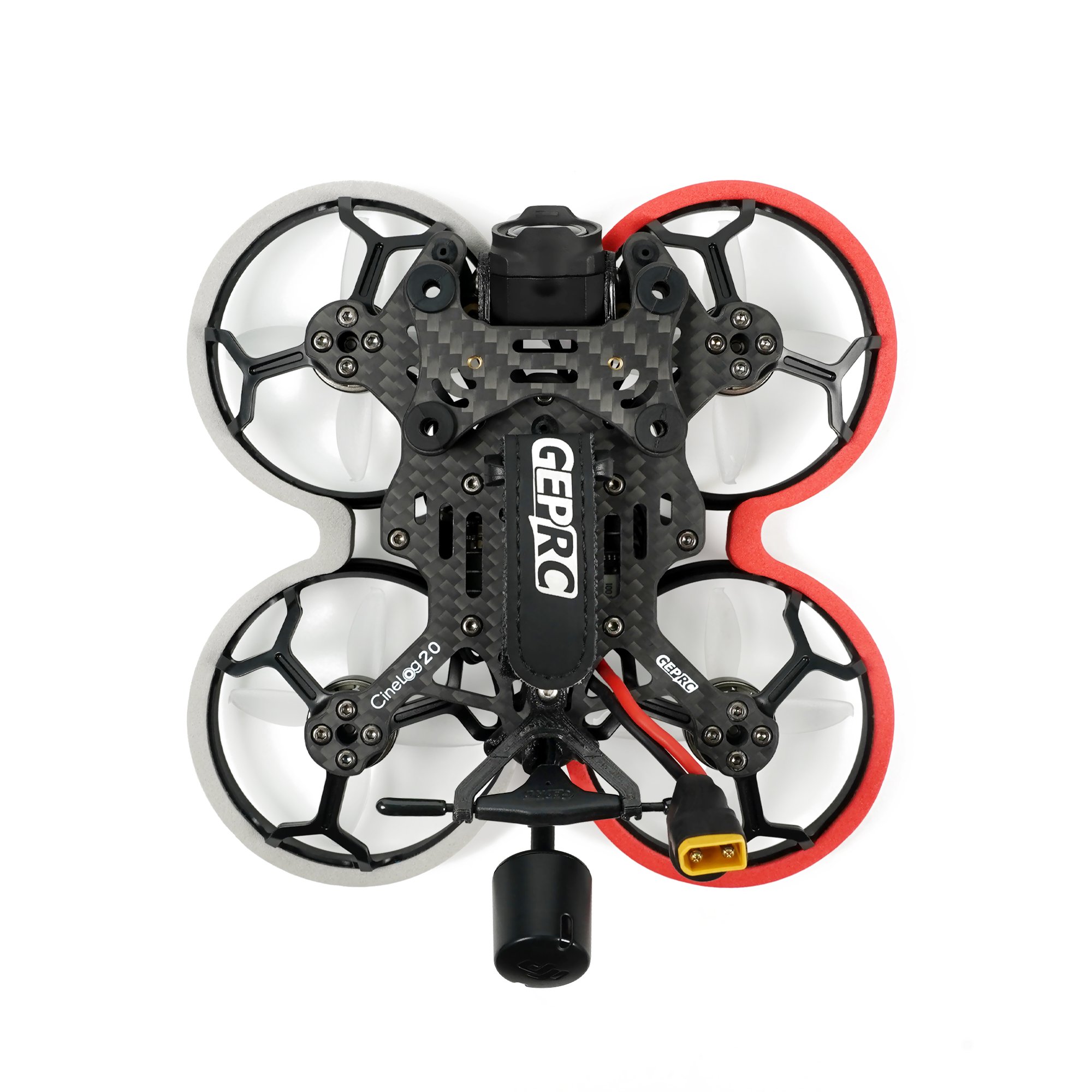

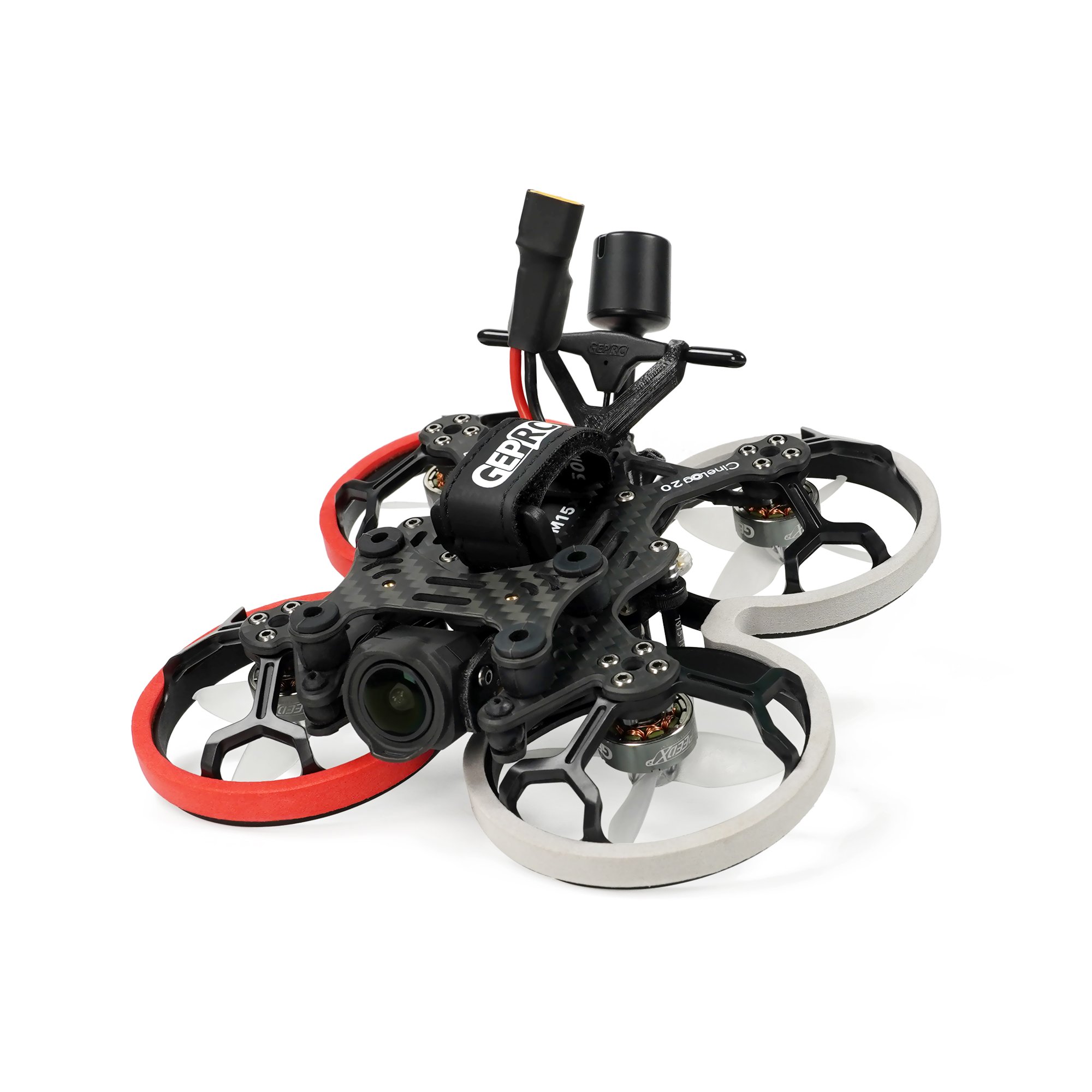

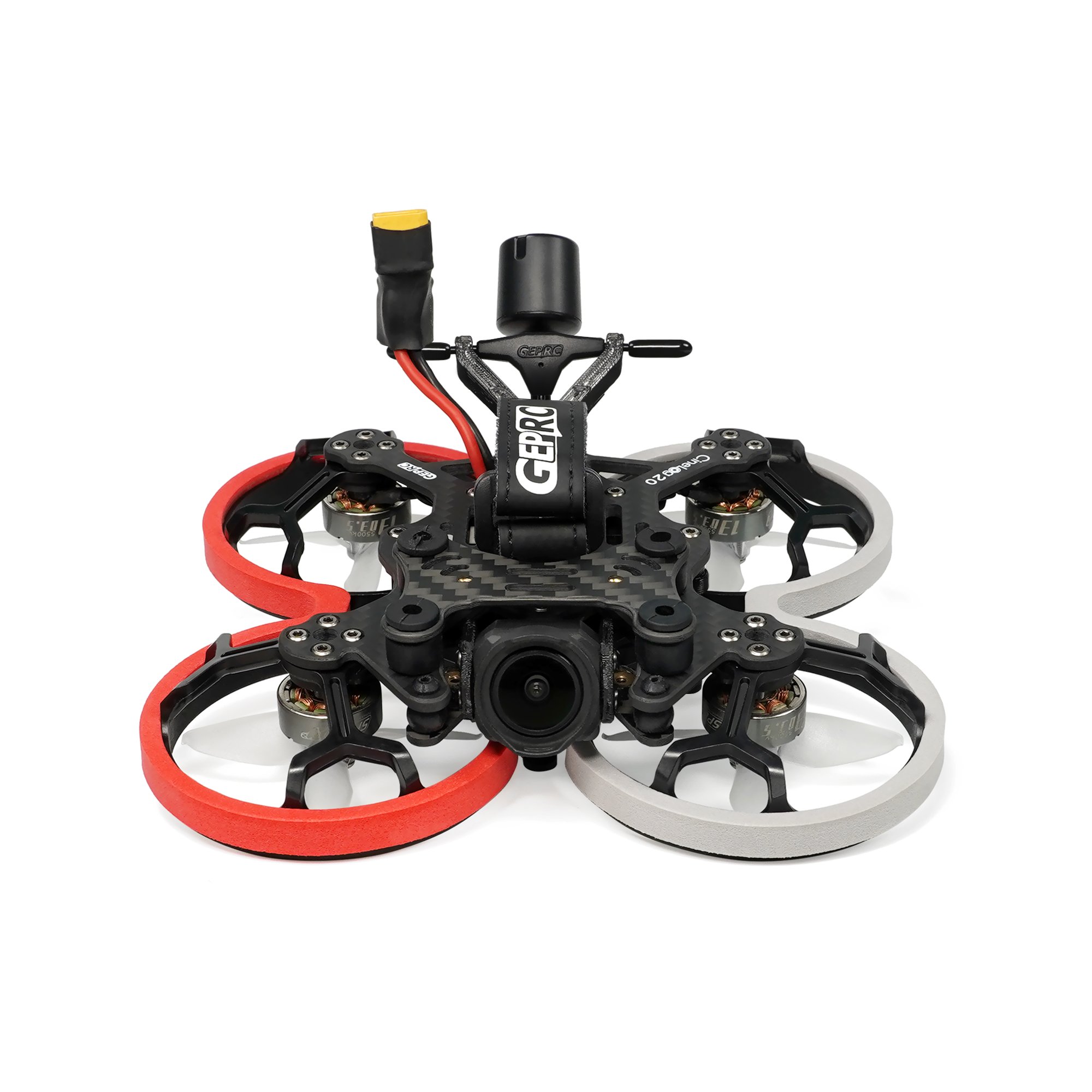

GEPRC Cinelog20 DJI O3 FPV Whoop

Check out all of our GEPRC Products!

Summary
GEPRC has unveiled the CineLog20, a 2-inch Cinewhoop designed for complex indoor filming. It comes in Link Wasp, O3 AIR Unit, Walksnail, and Analog versions.

Continuing the CineLog series, the CineLog20 features a lightweight pusher design and an improved camera gimbal for effective anti-shake performance. The O3 AIR Unit version offers 4K 120fps video capability without an additional camera, providing lighter weight and extended battery life.

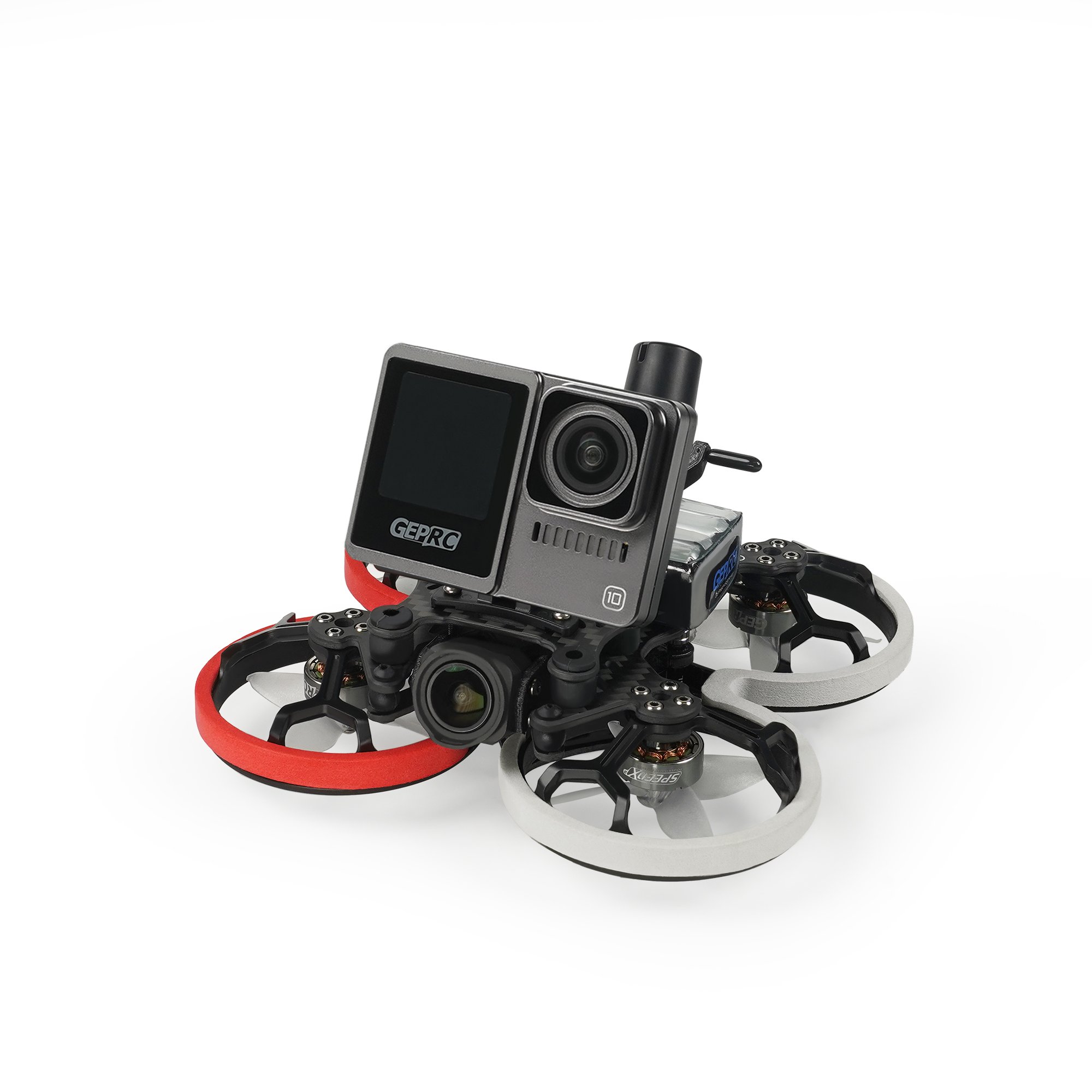

Equipped with a GEPRC SPEEDX2 1303.5 5500KV motor and GEP-F411-35A AIO, and Emax 4-blade propellers, the CineLog20 ensures quiet, efficient flight with long battery life. It includes a one-piece camera mount for quick installation of various small action cameras like the GoPro 8/9/10/11, Action2, Insta360 Go2, and Peanut.

Features

• Shock-absorbing gimbal reduces FPV image jello.
• Options for Link Wasp, O3 AIR Unit, and Walksnail HD video transmission.
• 2-inch pusher design ideal for tight, complex spaces.
• SPEEDX2 1303.5 5500KV motor with Emax 4-blade propellers for smooth flight.
• Advanced vibration dampening to eliminate image jello.
• Delicate and flexible flight experience due to precise tuning.

Specifications

• Model: CineLog20 HD O3
• Frame: GEP-CL20
• Wheelbase: 100mm
• Gimbal Plate: 2.0mm
• Top Plate: 2.5mm
• Bottom Plate: 1.5mm
• FC System: GEP-F411-35A AIO
• MCU: STM32F411CEU6
• Gyro: ICM 42688-P
• OSD: Betaflight OSD w/AT7456E chip
• ESC: 8Bit 35A
• VTX: O3 AIR Unit
• Camera: O3 Camera
• Antenna: 5.8G & 2.4G
• Motor: GR1303.5 5500KV
• Propeller: EMAX Avan Micro 2×2.4×4

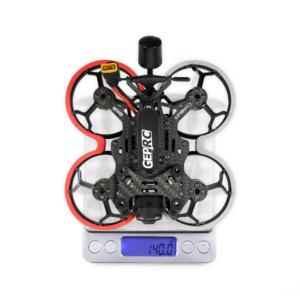

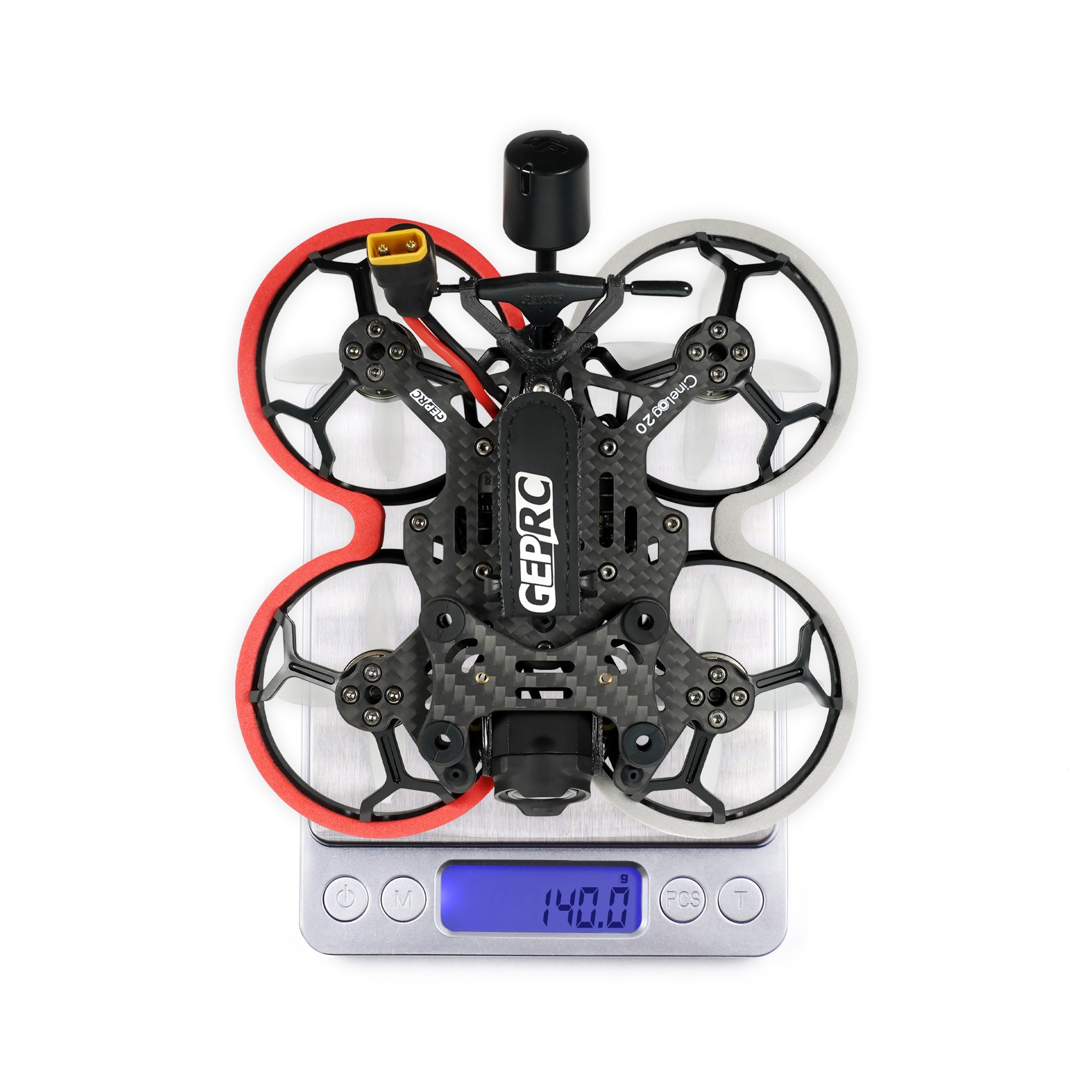

• Weight: 140g
• Receiver: PNP (built-in DJI receiver), ELRS 2.4G, TBS Nano RX/RXSR
• Recommended Battery: LiHv 4S 450mAh-660mAh
• Flight Time: 4-6 minutes

Includes

• 1 x CineLog20 HD O3
• 2 x 2-inch propeller pairs
• 1 x Naked GoPro Base
• 2 x M15*150mm battery straps
• 2 x Battery Silicone Pads
• 2 x EVA landing Pads
• 1 x Set of screws
• 1 x L-shaped screwdriver (1.5mm)
• 1 x Antenna fixed tube
• 1 x 4S Naked GoPro power cable (with balanced terminal head)
• 2 x EVA damping rings of guards
• 1 x TBS Antenna mount (Vertical Type)
• 1 x TBS Antenna mount (Horizontal Type)
• 1 x TBS Antenna printed parts
• Screw package includes various screws and nuts
