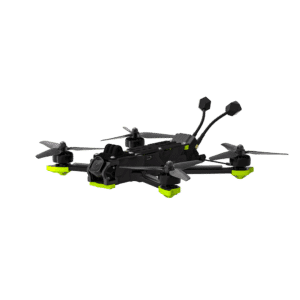

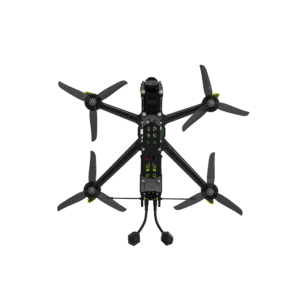

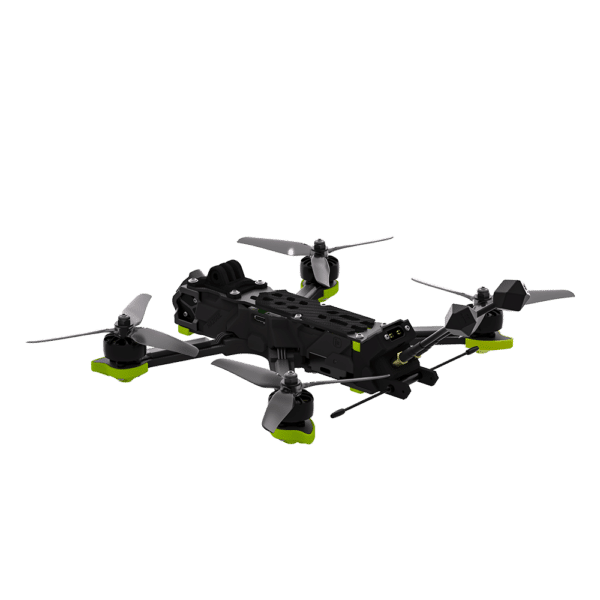

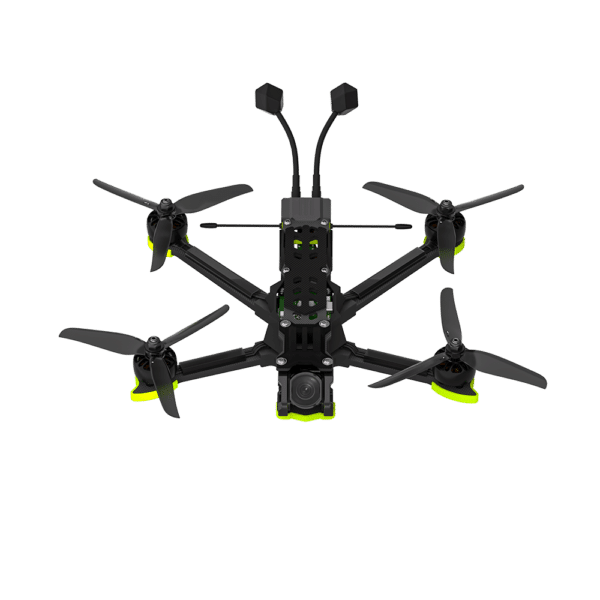

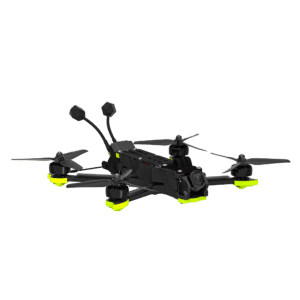

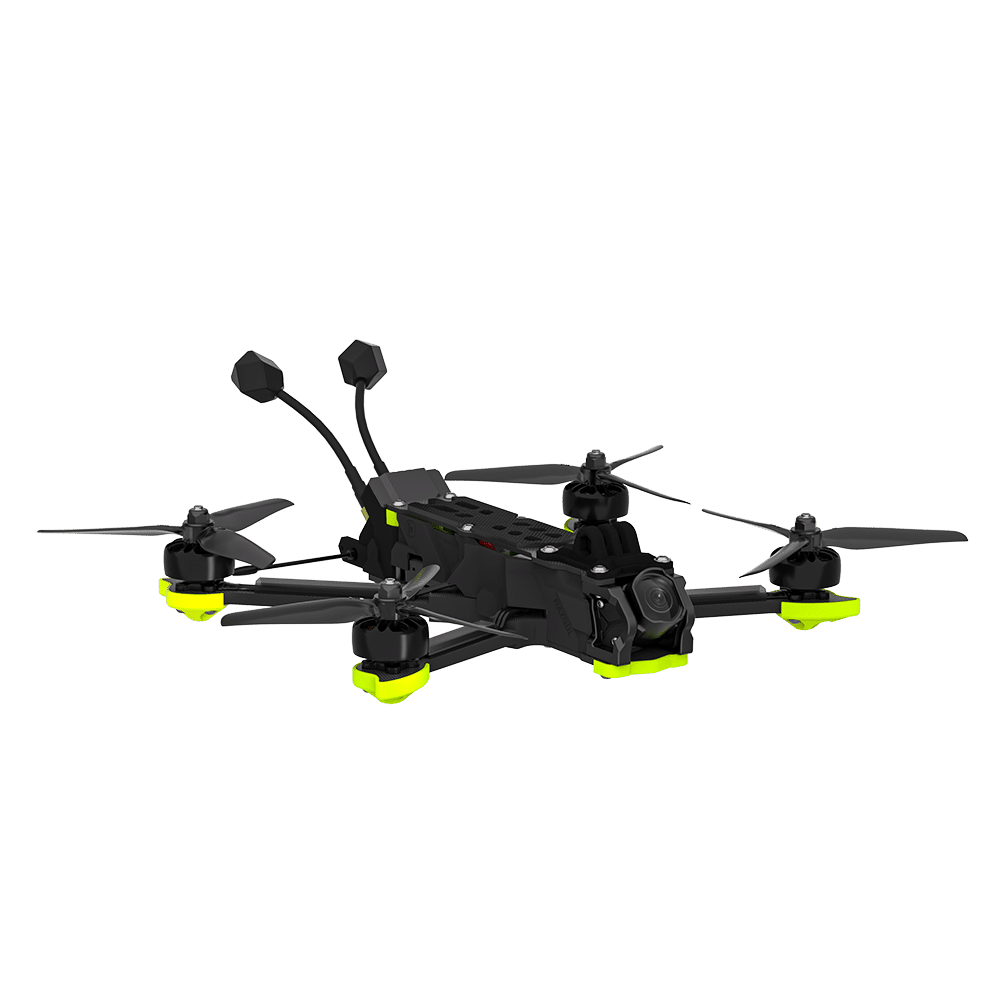

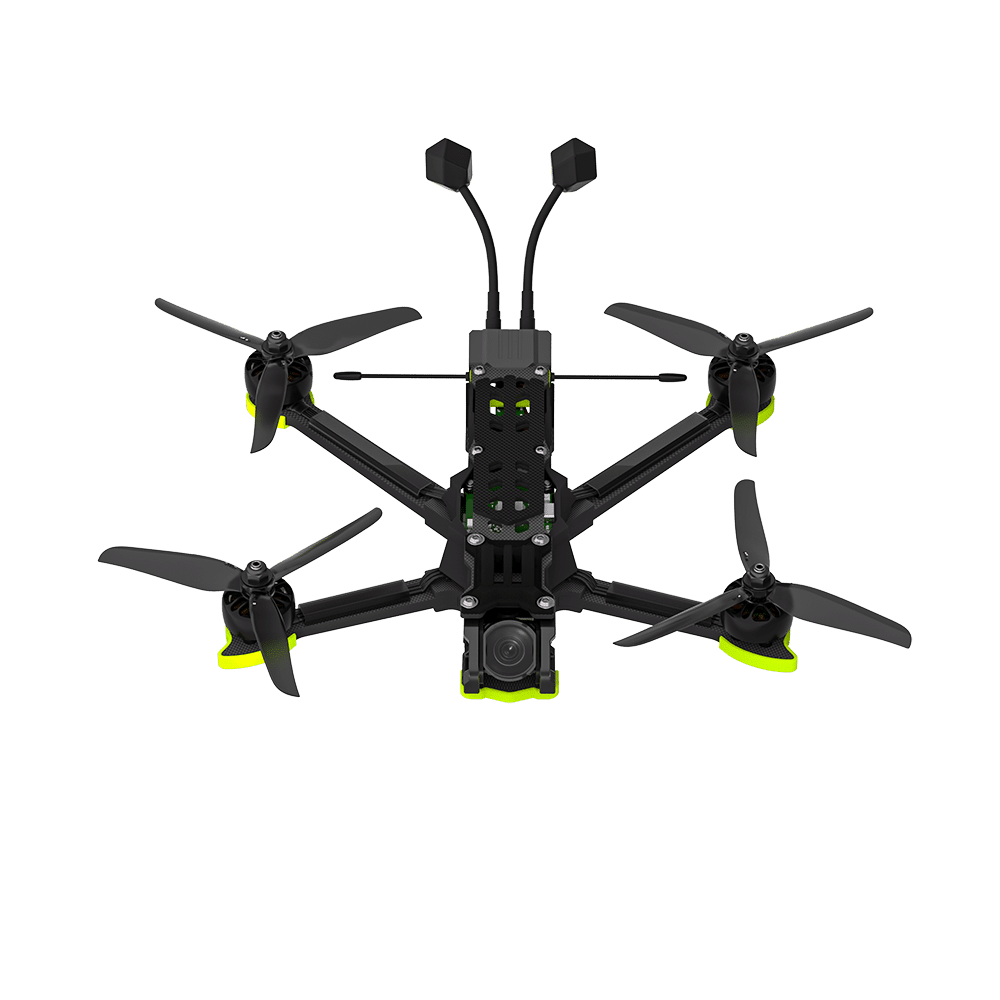

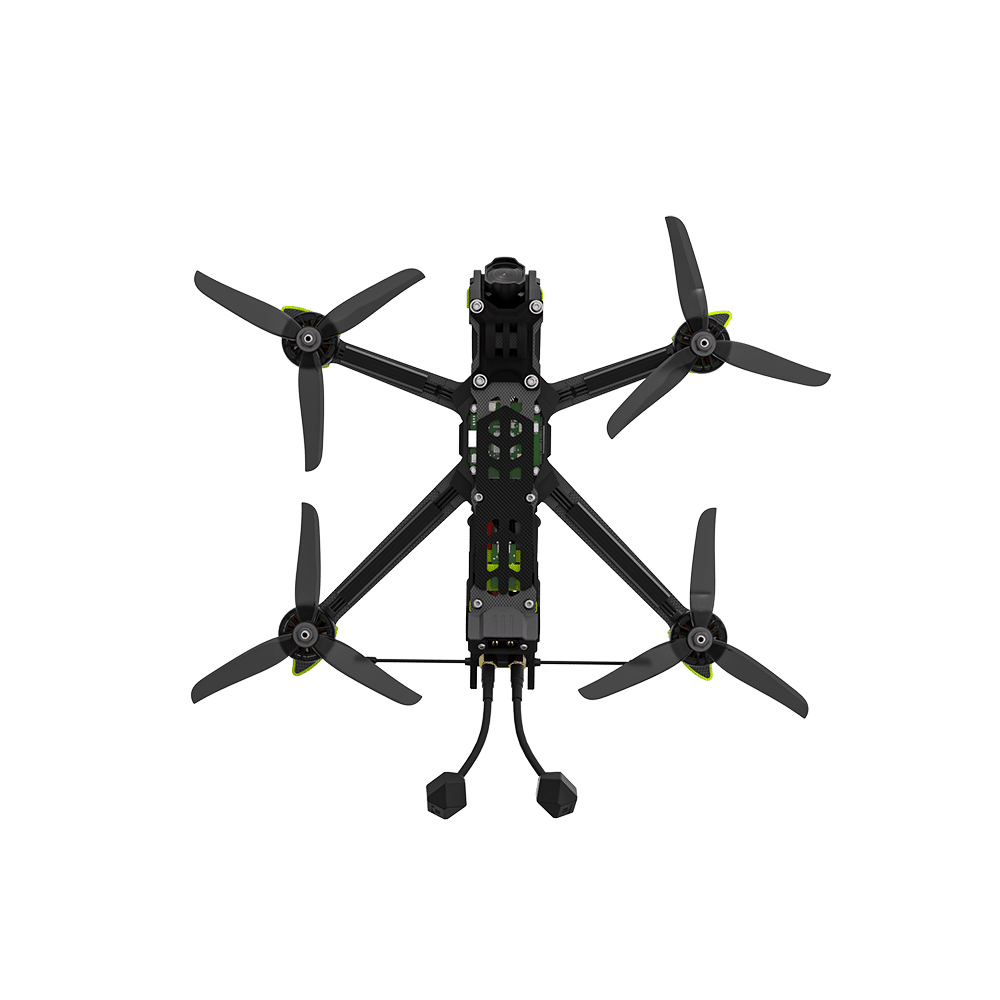

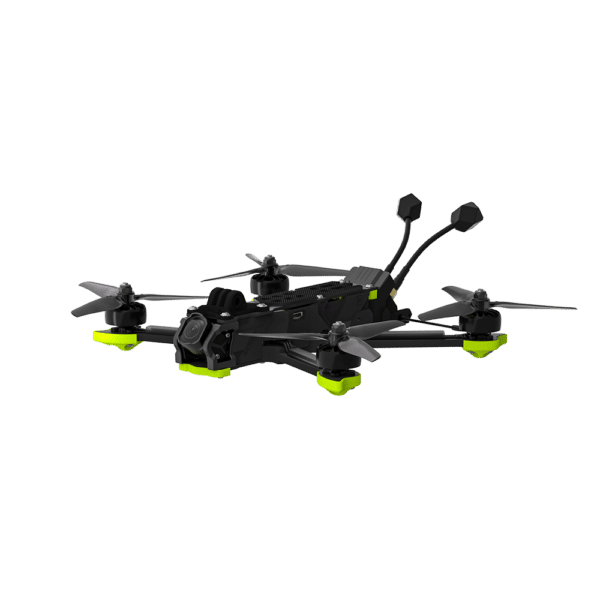

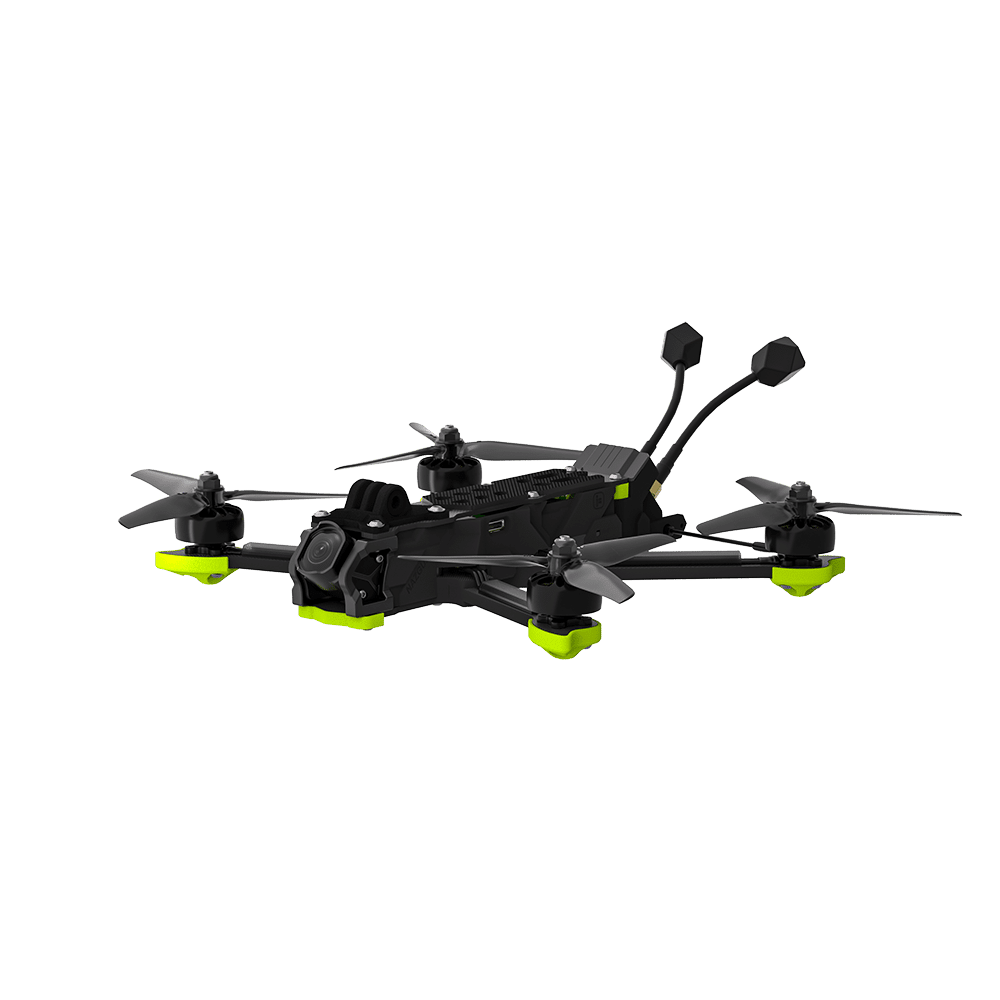

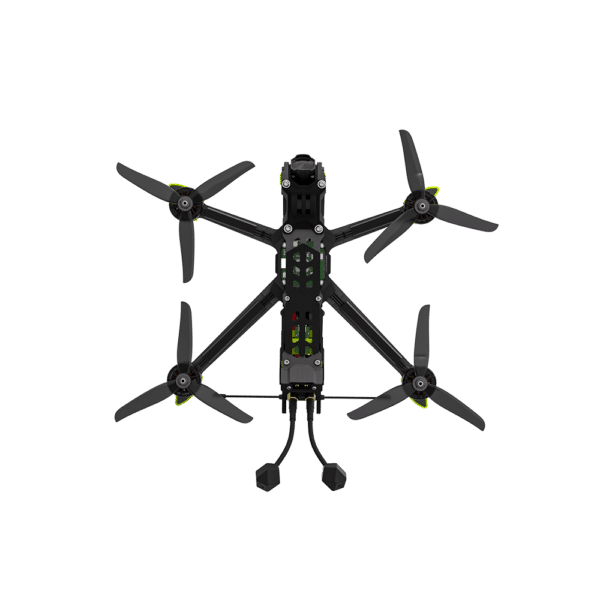

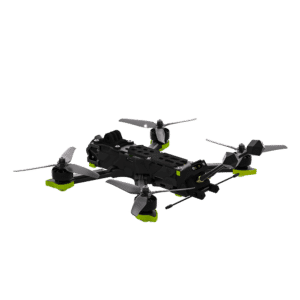

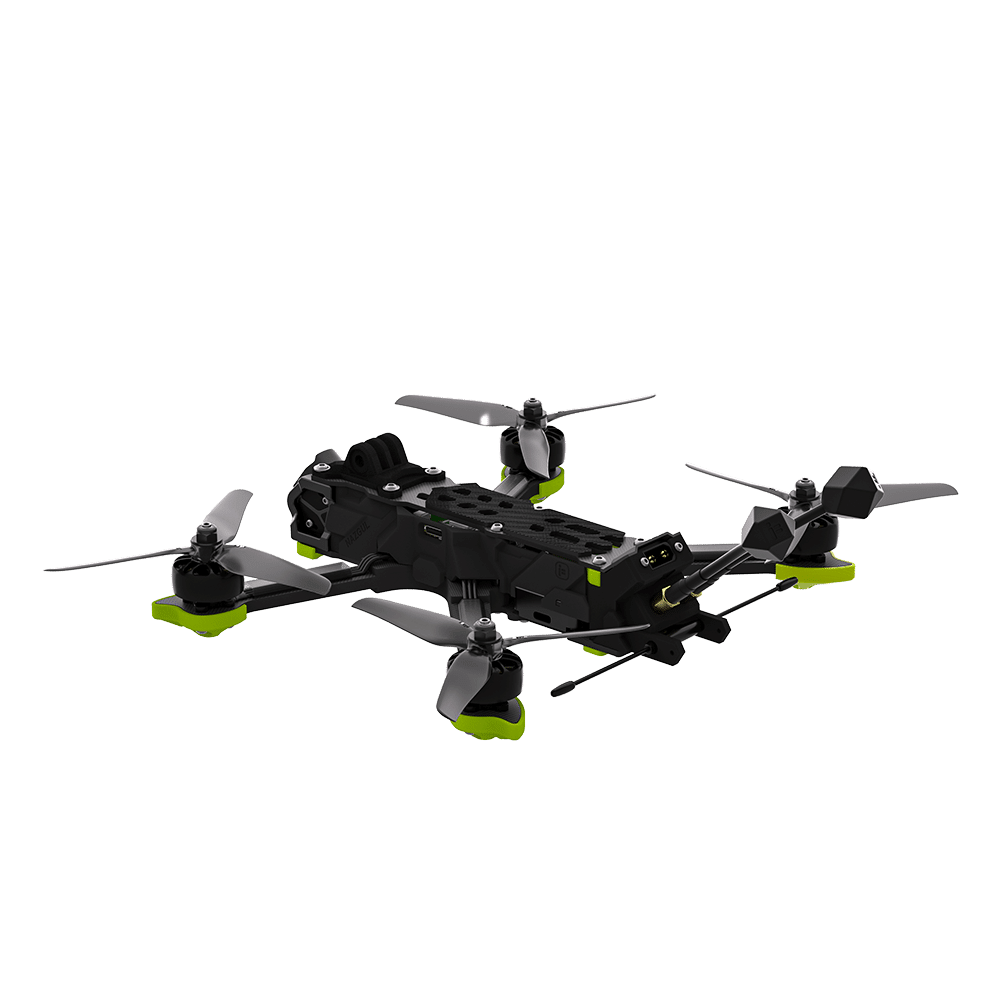

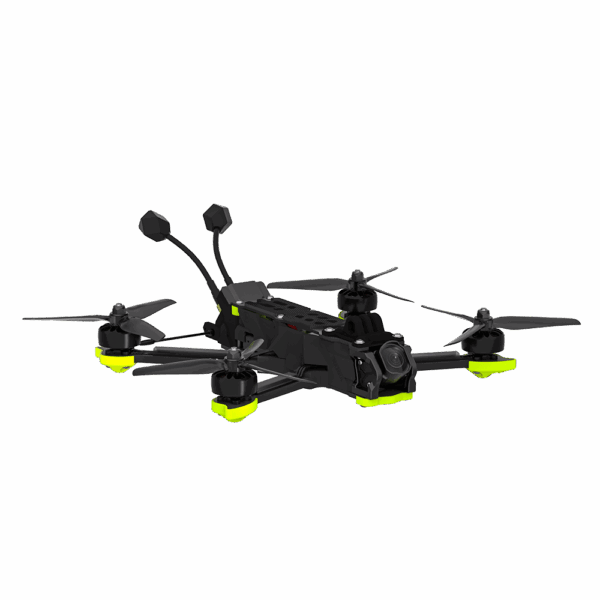

iFlight Nazgul DC5 O4 Pro 6s HD

Nazgul DC5 ECO – a 5-inch freestyle drone that redefines performance and value. Equipped with DJI’s O4 Digital HD System for a clear, propeller-free video feed featuring a 1.1/1.3-inch sensor for stunning 4K stabilized video, even in low light. Its carbon fiber frame with an aluminum camera mount ensures durability while remaining lightweight, and the included GoPro mount adds versatility. Powered by the ATF435 flight controller and BLITZ E55S ESC, it delivers reliable performance.

Highlights

• Lightweight and DurableA combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view, enhancing the aesthetic quality of your aerial footage.Anti-Spark FilterPlugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

  DJI O4  HD Air Unit, Enhanced Perception

  DJI O4 video transmission’s enhanced stability lets you fully immerse yourself in each flight and provides greater safety. It boasts up to 13 km of maximum video transmission distance, a transmission latency as low as 24 ms, 1080p/100fps high-definition image quality, and a maximum transmission bitrate of 60Mbps. (Source DJI)

  4K Stabilized Video with 155° Ultra-Wide Angle

  Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

  Enhance user experience and streamline maintenance

  Equipped with a built-in buzzer and receiver mount, this feature makes it convenient maintenance and adjustments to the receiver.

Specification

• Product Name: Nazgul DC5 ECO 6S O4 HD

  Geometry: DC (DeadCat)

  FC: BLITZ ATF435 Flight Controller

  ESC: BLITZ E55S 4-IN-1 ESC

  Video Transmission: DJI O4 Air Unit Pro

  Frame: 240mm wheelbase

  Motor: XING-E Pro 2207 1800KV motors

  Prop: Nazgul F5 propellers

  Weight: 450g±5g

  Takeoff Weight: Approx. 675g±5g (With 6S 1480mAh battery)

  Dimensions (L×W×H): 193×144×34 mm

  Max Speed: 190 km/h

  Maximum Takeoff Altitude: 7000 m

  Max Hover Time: Approx. 7.5 mins (No Load with 6S 1480mAh)

  Max Wind Speed Resistance: Level 7

  Operating Temperature Range: -10° to 40° C (14° to 104° F)

  Antennas: Dual Antenna

  GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)

  Video Transmission

  Product Name: DJI O4 Air Unit Pro

  Image Sensor: 1/1.3-inch

  Lens: FOV: 155°

  ISO: 100-25600

  Video Resolution: 1080p/100fps H.265

  Video Format: MP4, Max Video Bitrate: 130Mbps

  Color Mode: Normal Mode/D-Log M

  Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

  Live View Quality: 1080P@100fps

  Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz

  Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

  Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

  Communication Bandwidth: Max 60 MHz

  Antenna: Dual antennas

  Built-in Storage: 4GB

  Supported SD cards: microSD (up to 512GB)

  Operating Temperature: -10° to 40° C

  Weight: Air Unit (camera module included): Approx. 32 g

  Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

  Packing List

  1 x Nazgul DC5 ECO V1.1 6S O4 HD BNF

  2 x Antennas

  2 x Battery pads

  2 x Prop(Pairs)
