TBS Source Micro v0.2

The SOURCE MICRO is a micro-sized frame designed for micro-scale brushless DIY projects, by Dalton Ray Schulze from BARD. It is built to withstand crashes and abuse. Priced as cheaply as possible to simplify the entry into this hobby.

About the project

The SOURCE MICRO project is a collaborative FPV frame project initiated by BARD. The frame is donated to the community to empower creators and makers and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them to compete in an increasingly predatory marketplace.

The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.

Get involved!

• Project discussion: https://discordapp.com/invite/ZJGkHwF
• Project files: https://github.com/ps915/source_micro
• 3D Printed files on Thingiverse: https://www.thingiverse.com/tag:sourcemicro
• 3D Printed Parts (STL) also avaialble on github!

Package contains:

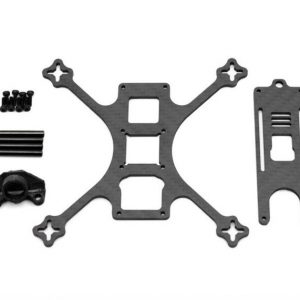

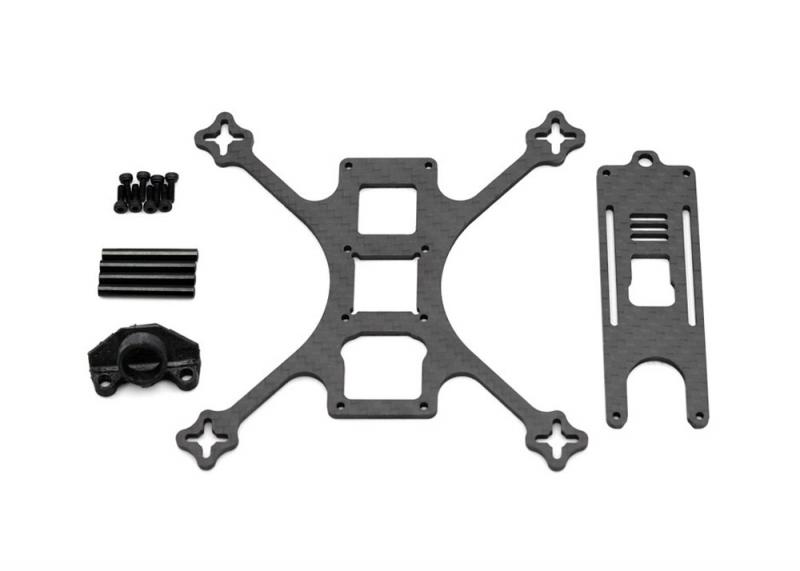

• 1x Frame (Top, Bottom plate)
• 1x Screw & Standoff set

Technical specifications:

• Wheelbase: 125mmm
• Top Plate:  2.5mm
• Bottom Plate: 2.5mm
• Standoff height: 20mm
• Stack Mounting: 20 x 20mm & 16 x 16mm
• Frame weight: 19g

Hardware:

• 4x M2 20mm standoff
• 2.5mm Carbon Fiber Top Plate
• 2.5mm Carbon Fiber Bottom Plate
• M2 x 8mm Button Head Screws
• TBS TINY CAM Unify Combo Mount
