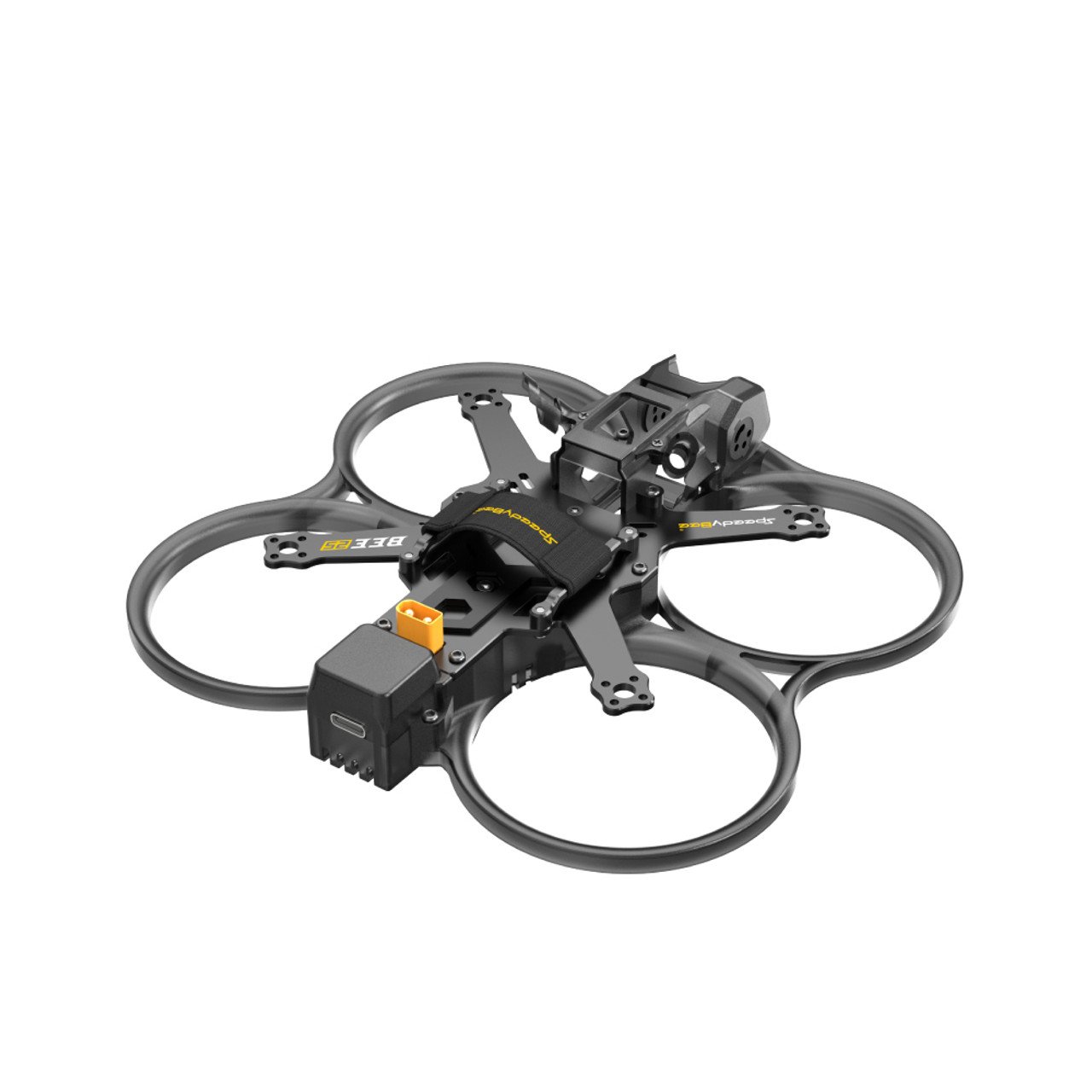

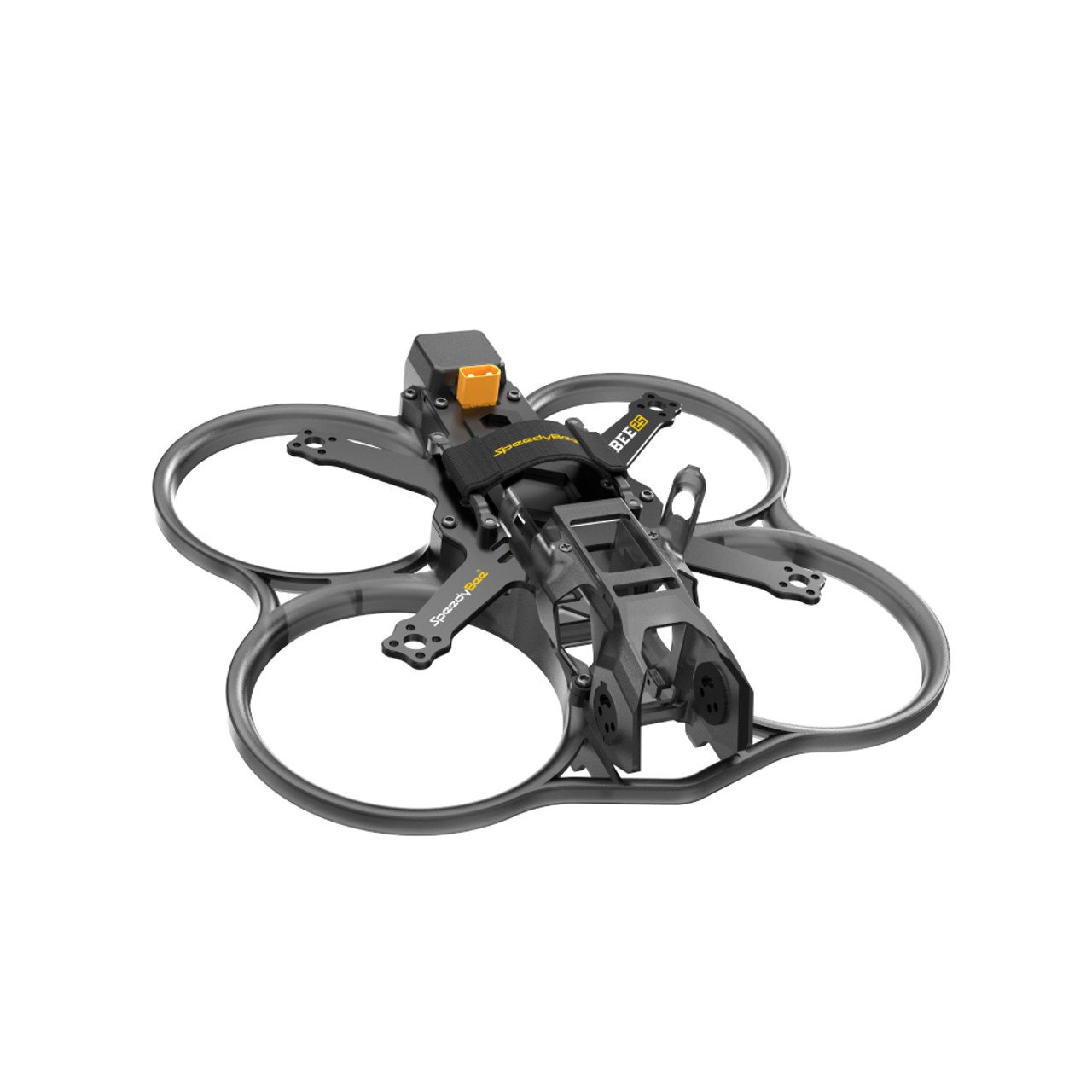

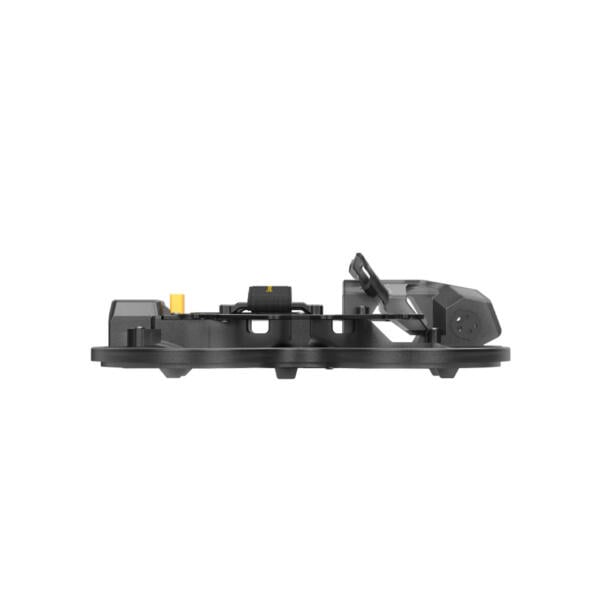

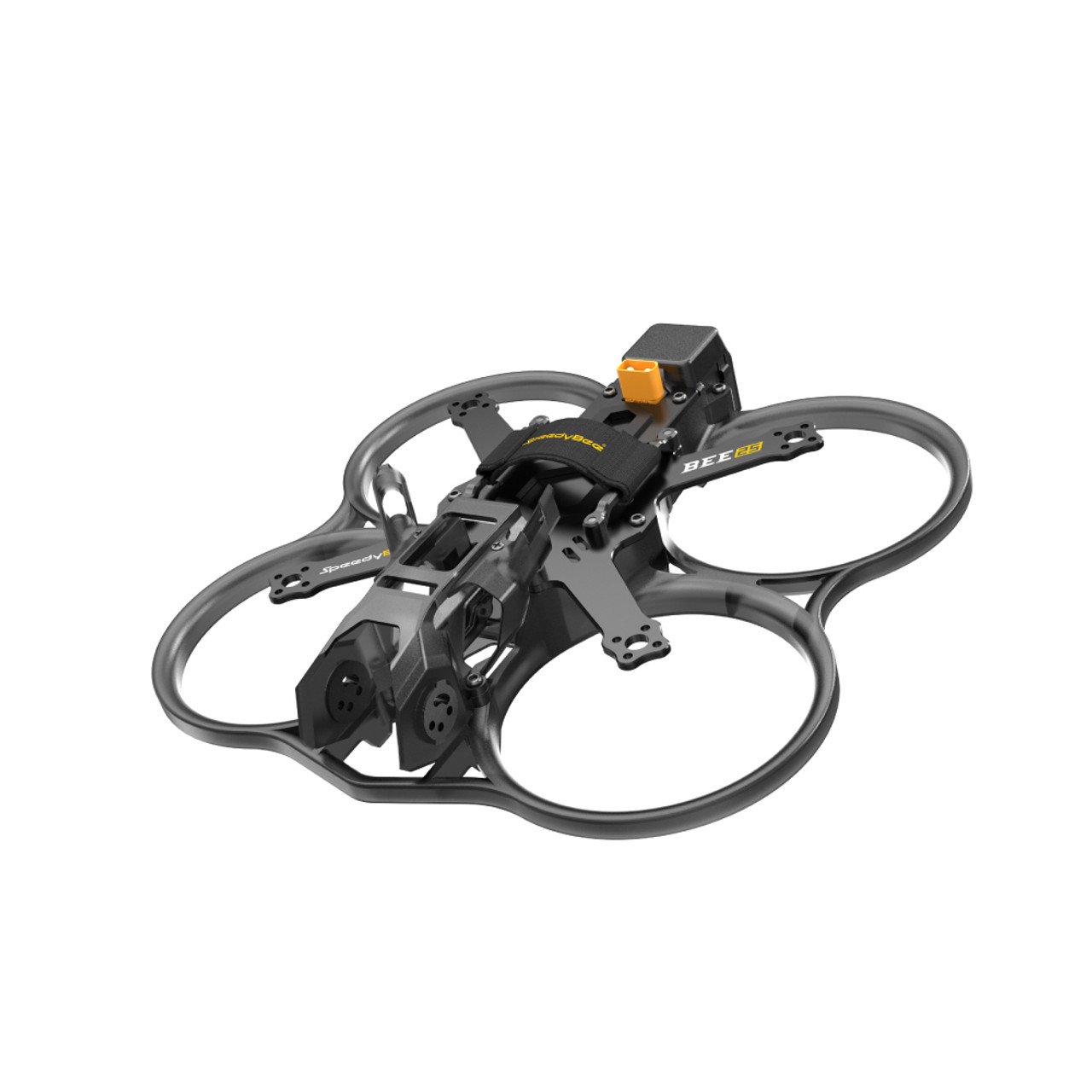

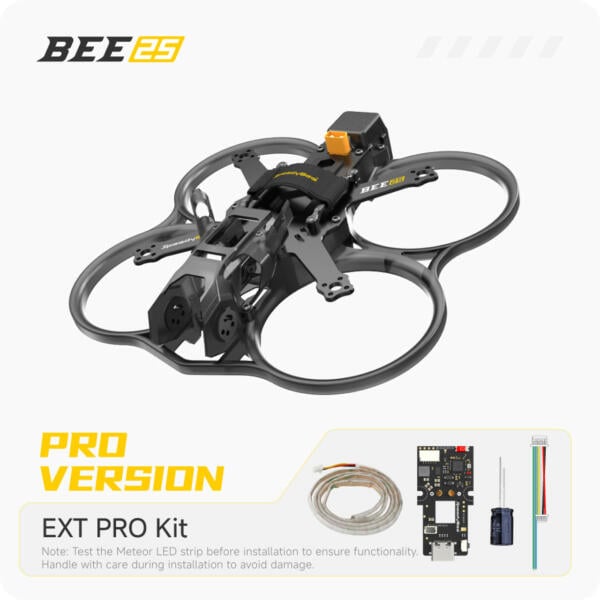

SpeedyBee Bee25 2.5″ Frame Pro

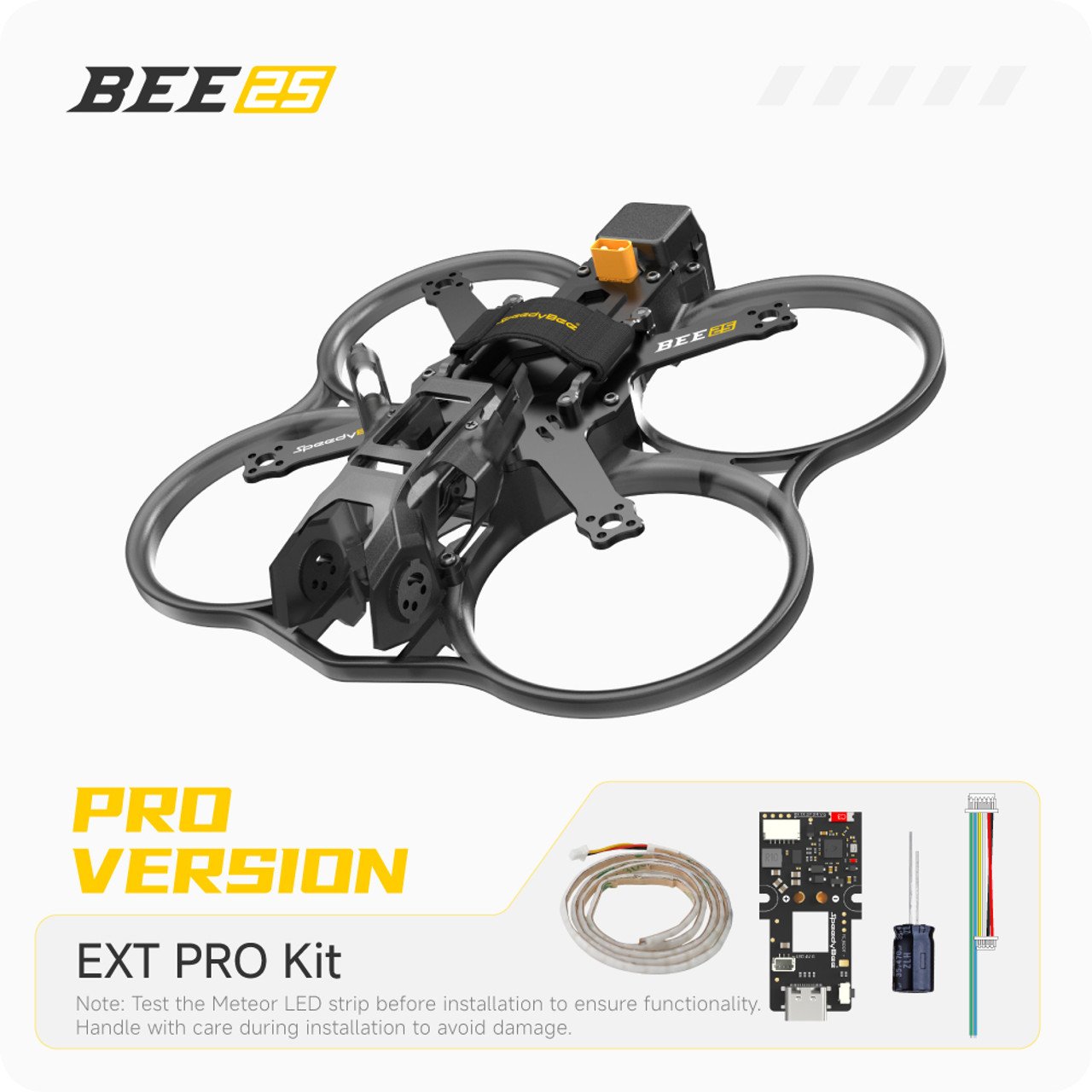

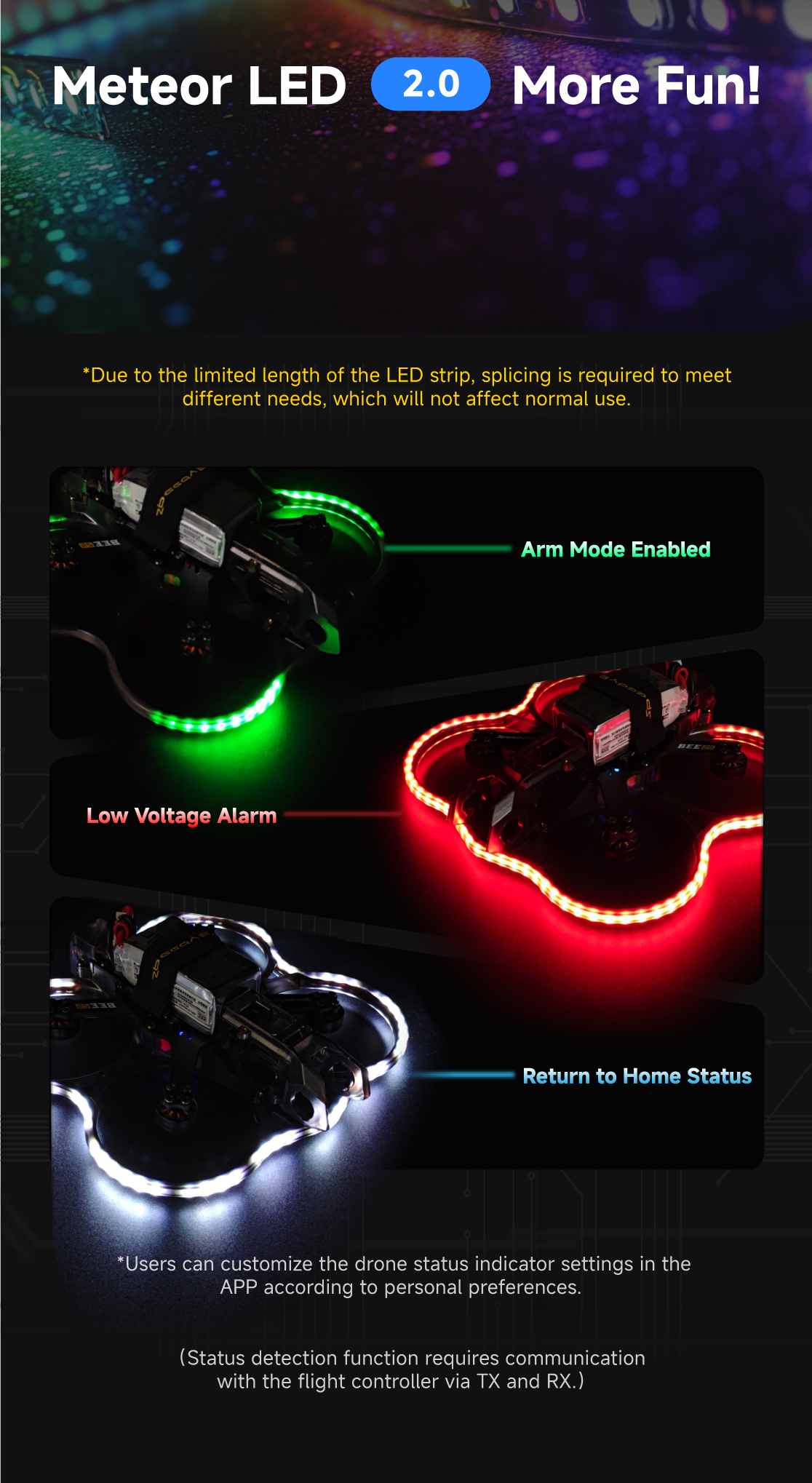

The smart Meteor LED is not only cool but also practical. During visual
flight, you can easily observe the status of the drone.
It automatically detects the drone’s status and provides LED
indications, Including Error Alerts, Return-to-Home Status,
Low Voltage Alerts, Lost Drone Alerts, etc.
flight, you can easily observe the status of the drone.
It automatically detects the drone’s status and provides LED
indications, Including Error Alerts, Return-to-Home Status,
Low Voltage Alerts, Lost Drone Alerts, etc.

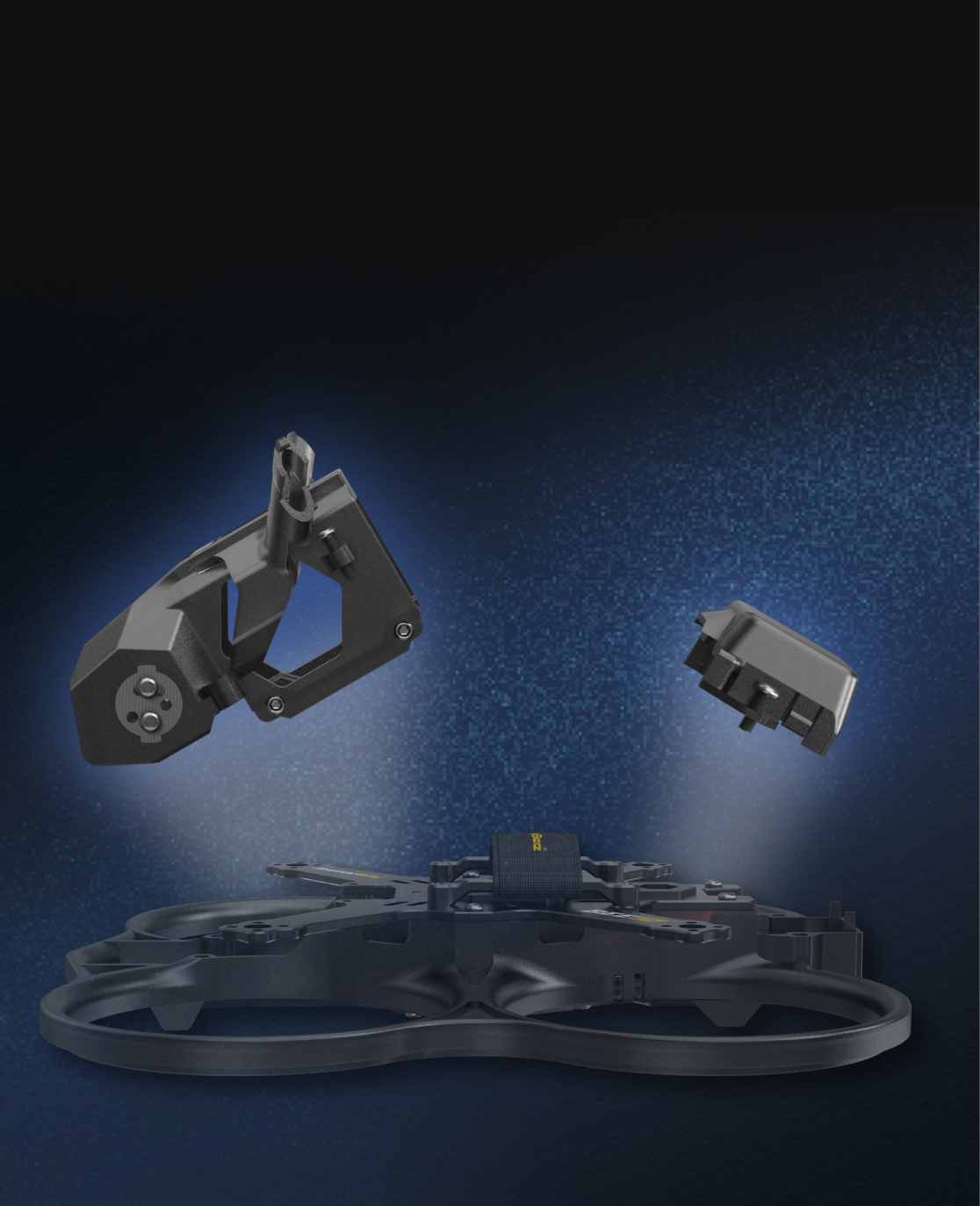

Modular design,
A cost-Effective Choice.
A cost-Effective Choice.
The entire VTX and head can be independently installed and
removed, making it versatile, flexible, and free to customize!
removed, making it versatile, flexible, and free to customize!
No Complex
Disassembly Needed
Disassembly Needed

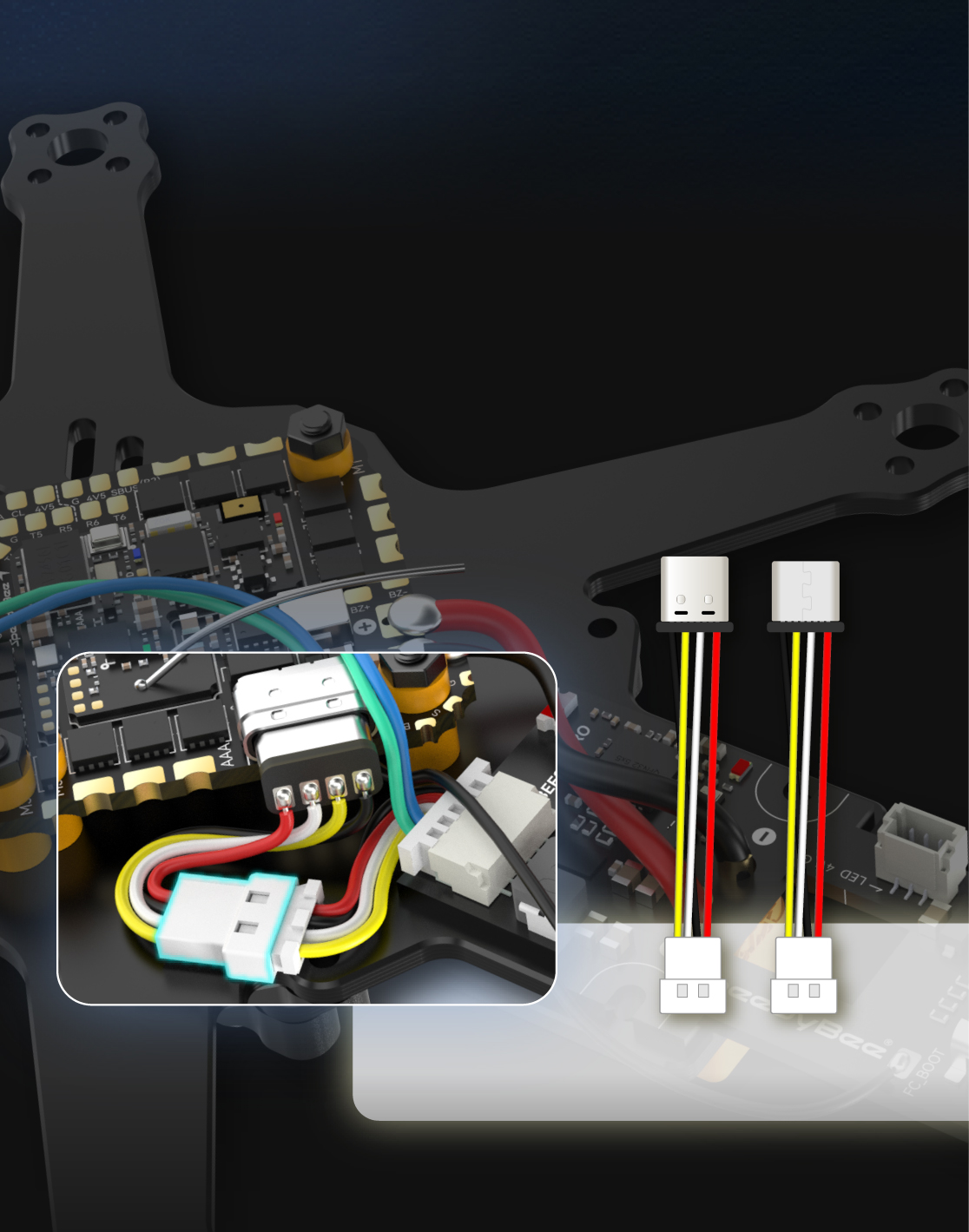

Compatible with Type-C and Micro interfaces.
Plug and play to avoid the hassle of frequent disassembly.
Plug and play to avoid the hassle of frequent disassembly.

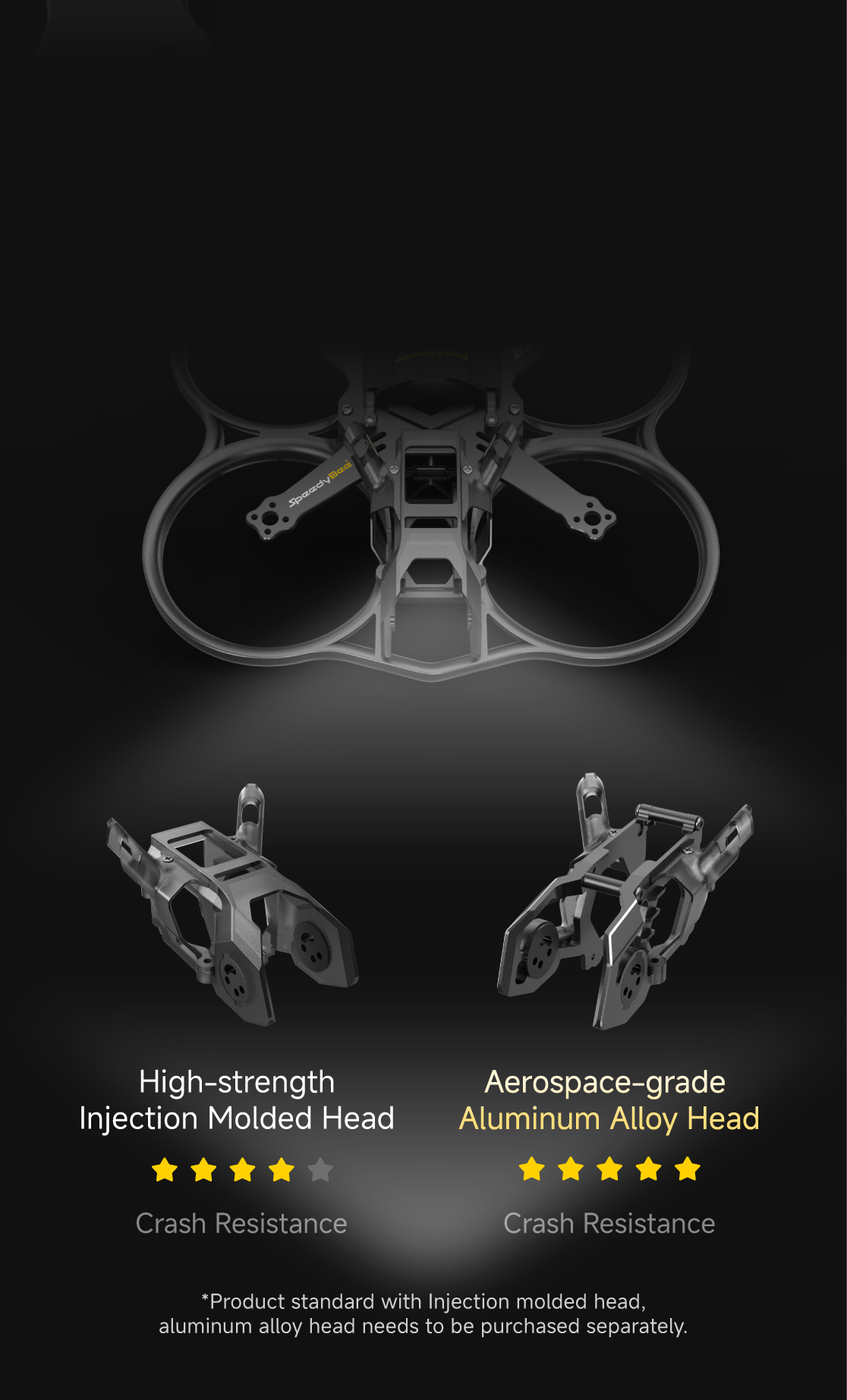

Durable and
Shock-Resistant Head
Shock-Resistant Head
Reinforced injection-molded head design ensures your frame is
damage-resistant in flight. Upgrade to an aviation-grade
aluminum head for additional protection.
damage-resistant in flight. Upgrade to an aviation-grade
aluminum head for additional protection.

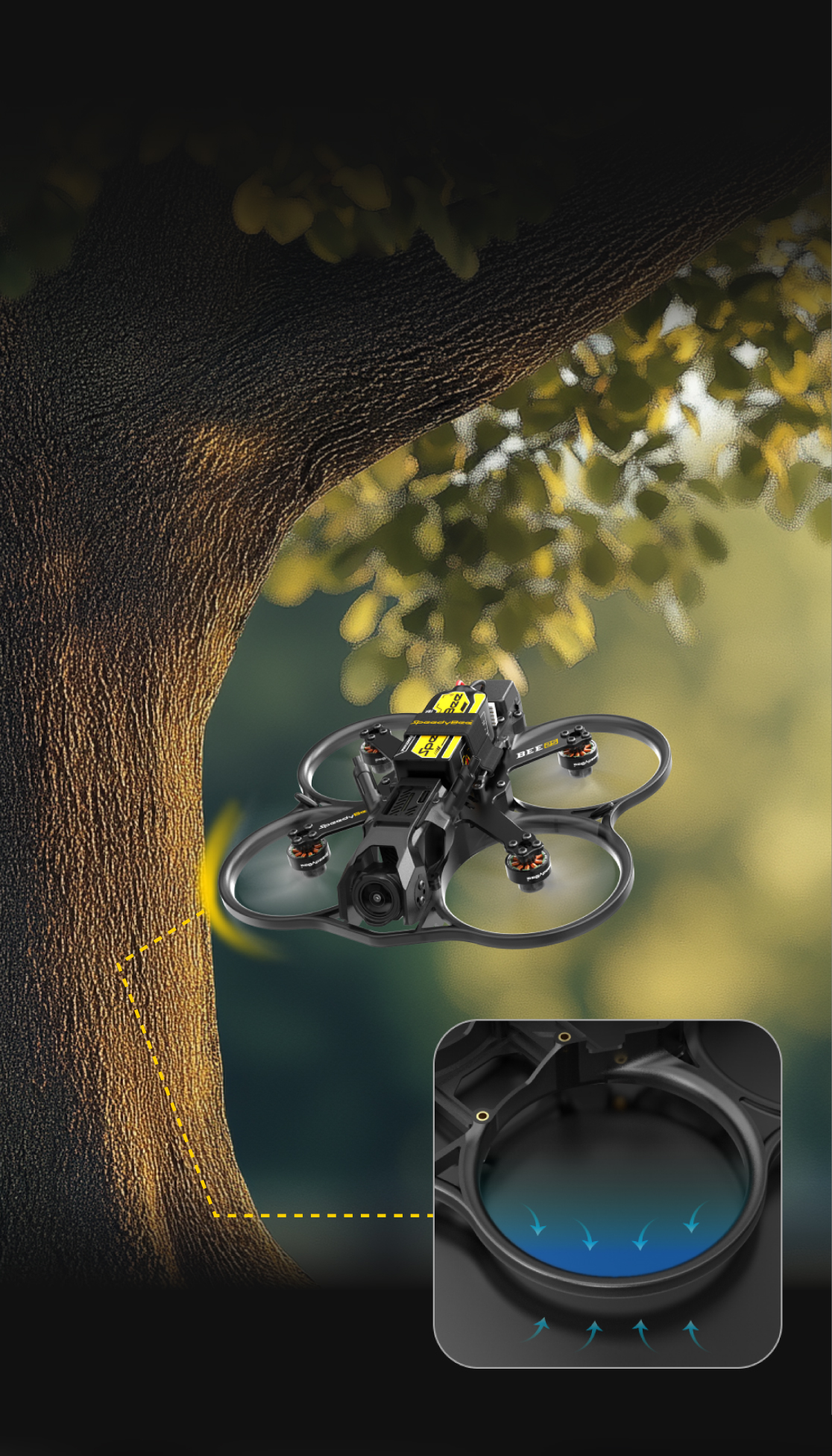

Integrated Shock-Resistant
Protection Ring
Protection Ring
Crafted using high-strength materials with a one-piece molding
technique, it offers exceptional impact resistance, effectively
reducing damage and extending the lifespan of your flights.
technique, it offers exceptional impact resistance, effectively
reducing damage and extending the lifespan of your flights.

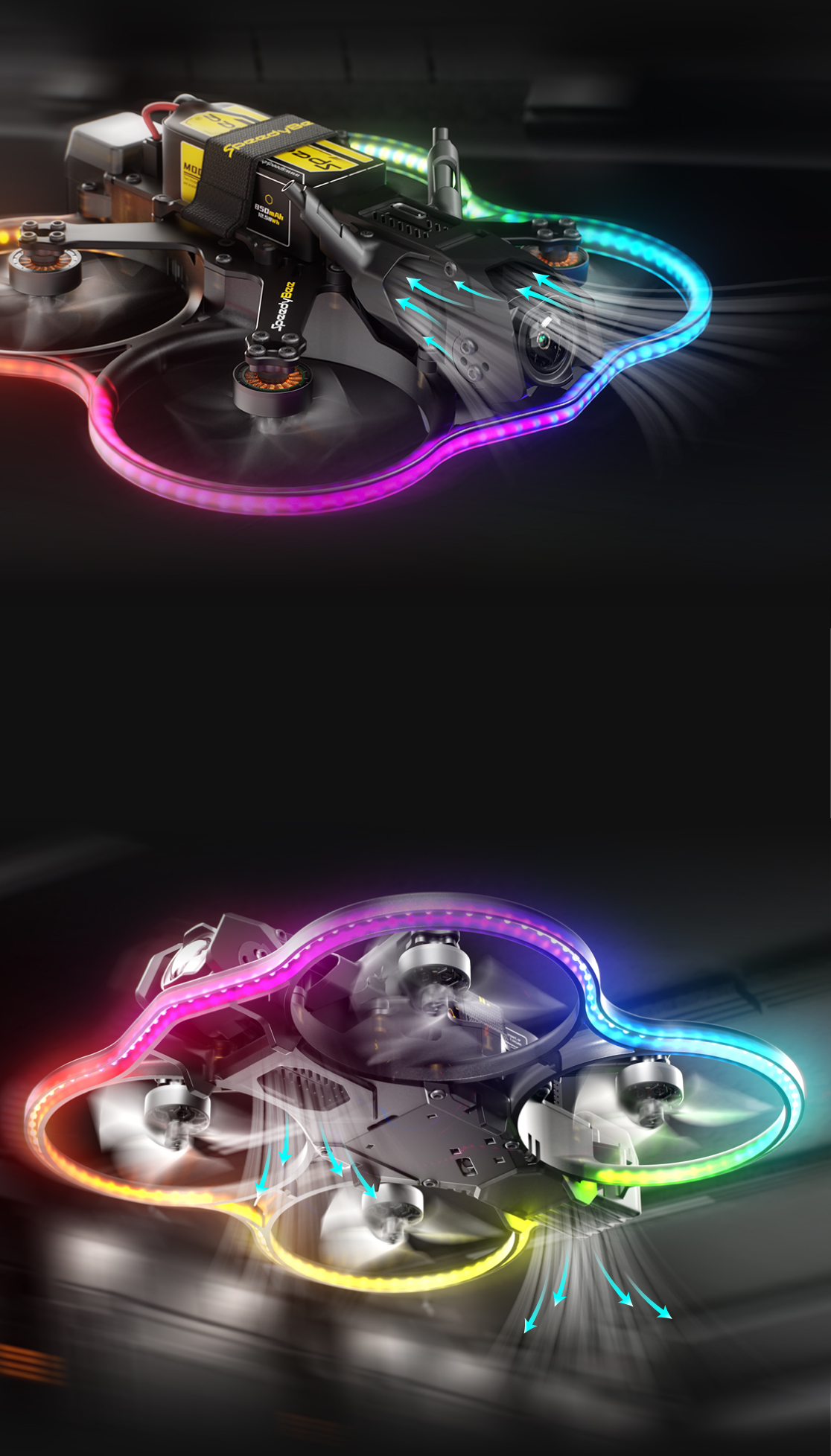

Efficient Cooling Design
Side air inlets allow a large volume of air to flow through,
effectively cooling internal electronics during flights.
effectively cooling internal electronics during flights.

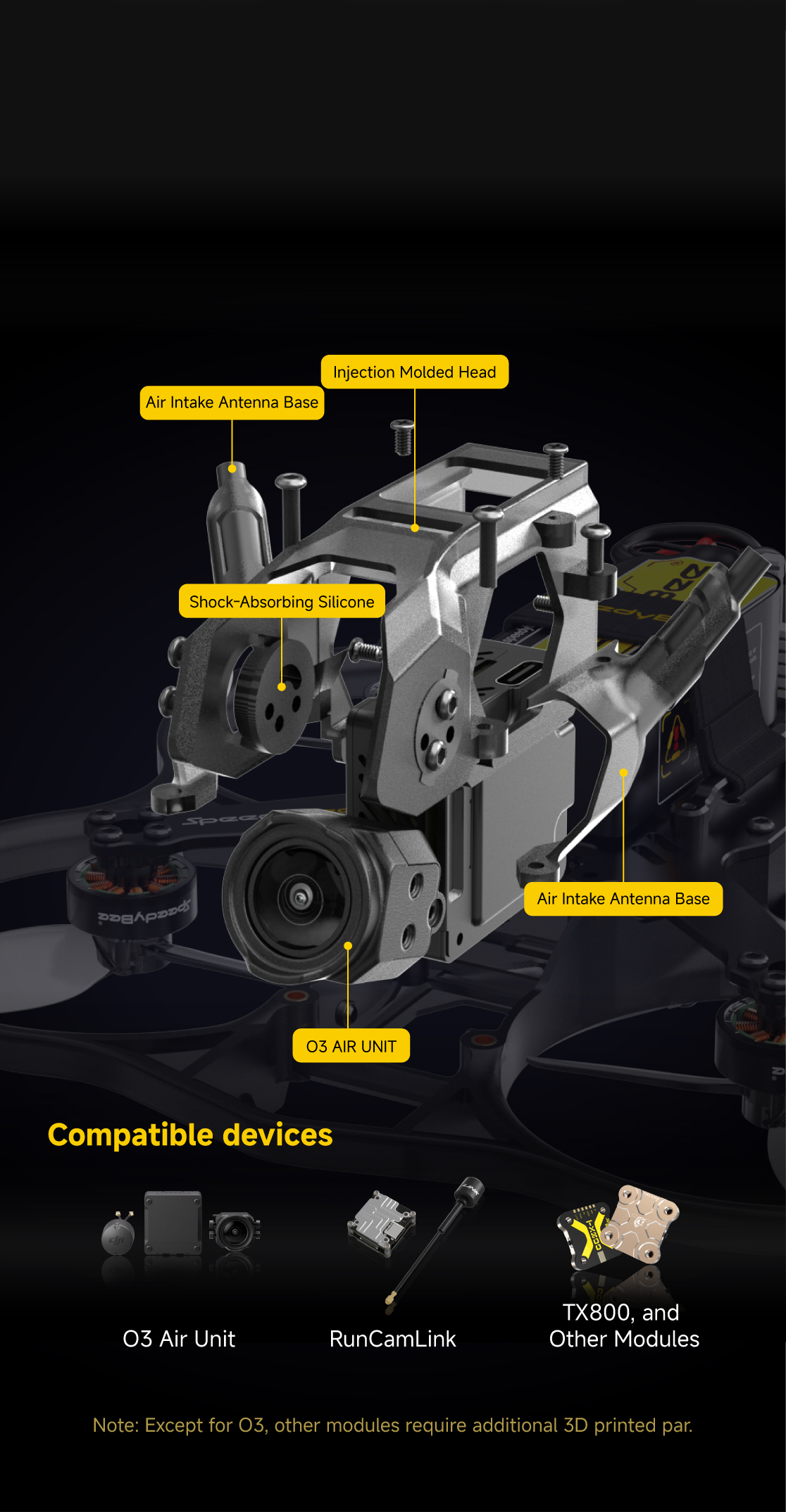

Compatible with
Mainstream HD VTX
Mainstream HD VTX
Seamlessly compatible with O3 Air Unit, Vista, and RunCam Link.
Customize your setup to match your flying style!
Customize your setup to match your flying style!
Specifications
Product Name | SpeedyBee Bee25 Frame |
Wheelbase | 120mm |
Carbon Plate Thickness | 2mm |
Camera Mounting Distance | 19/20mm |
Mounting Height of Electronic Equipment | 18mm |
Stack Mounting Holes | 25.5*25.5mm |
Compatible VTX | O3AirUnit / Link / TX800 / TXULTRA (Except for O3, other modules require additional 3D printed par.) |
Propeller Size | 2.5 inch |
Motor Mounting Holes | 9*9mm |
Weight | 68±2g |
Recommended Motor | 1404/1504/1505 |
Recommended KV | 4S 4300-4800KV 6S 2350-2900KV |
Recommended Battery | 4S 650-1100mAh 6S 650-850mAh |
