Lumenier QAV-RXL 2 – 10″ FPV Quadcopter Frame

The Lumenier QAV-RXL is back! Naturally, after the QAV-R 2 launched in 2018, we started planning the next iteration of the XL, but this time we really wanted to go big! The QAV-RXL 2 is available in both 8″ and 10″ versions. It might not be lean, but it sure is mean!

The QAV-RXL 2 features the same silky clear coat carbon fiber as on the QAV-R 2. And while the frame closely resembles the QAV-R 2, there are many notable differences other than just the extended arm length. The QAV-RXL 2 features an extended main body to give room more for accessories and electronics. The body also features extra mounting options with both 30.5×30.5mm and 20x20mm mounting holes in the middle and rear of the frame.

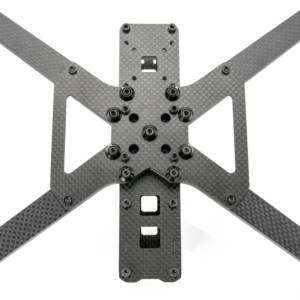

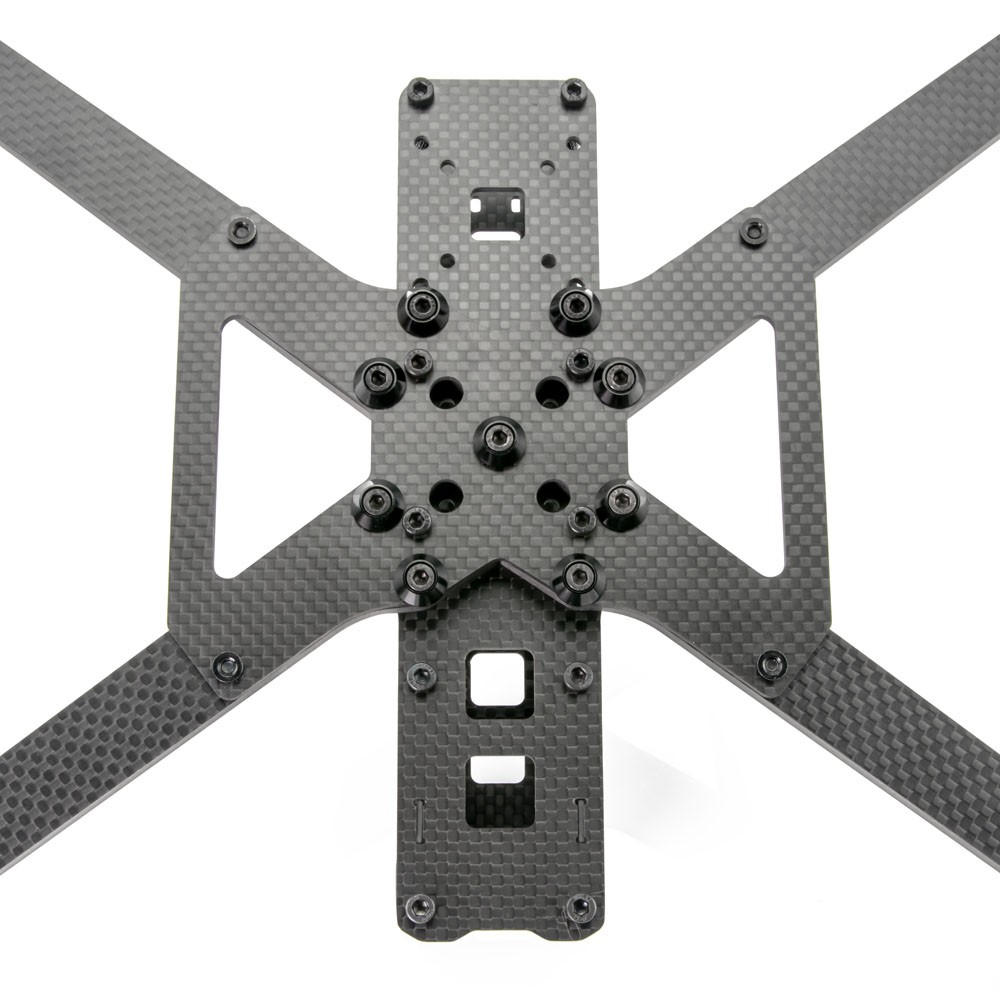

A larger frame means you need tougher and thicker carbon. The QAV-RXL provides this with 6mm thick carbon fiber arms paired with a 2.5mm thick bottom plate and 2mm X-Brace below the arms to give a total of 10.5mm of carbon at the central stress points.

Both versions of the QAV-RXL 2 are made to top-mount the LiPo battery. The included silicone non-slip battery pad helps grip the LiPo and prevents any movement during the flight and or during a crash. The QAV-RXL 2 also comes with socket cap washers to protect the bottom screw heads from damage that could otherwise make the screw heads broken or unusable.

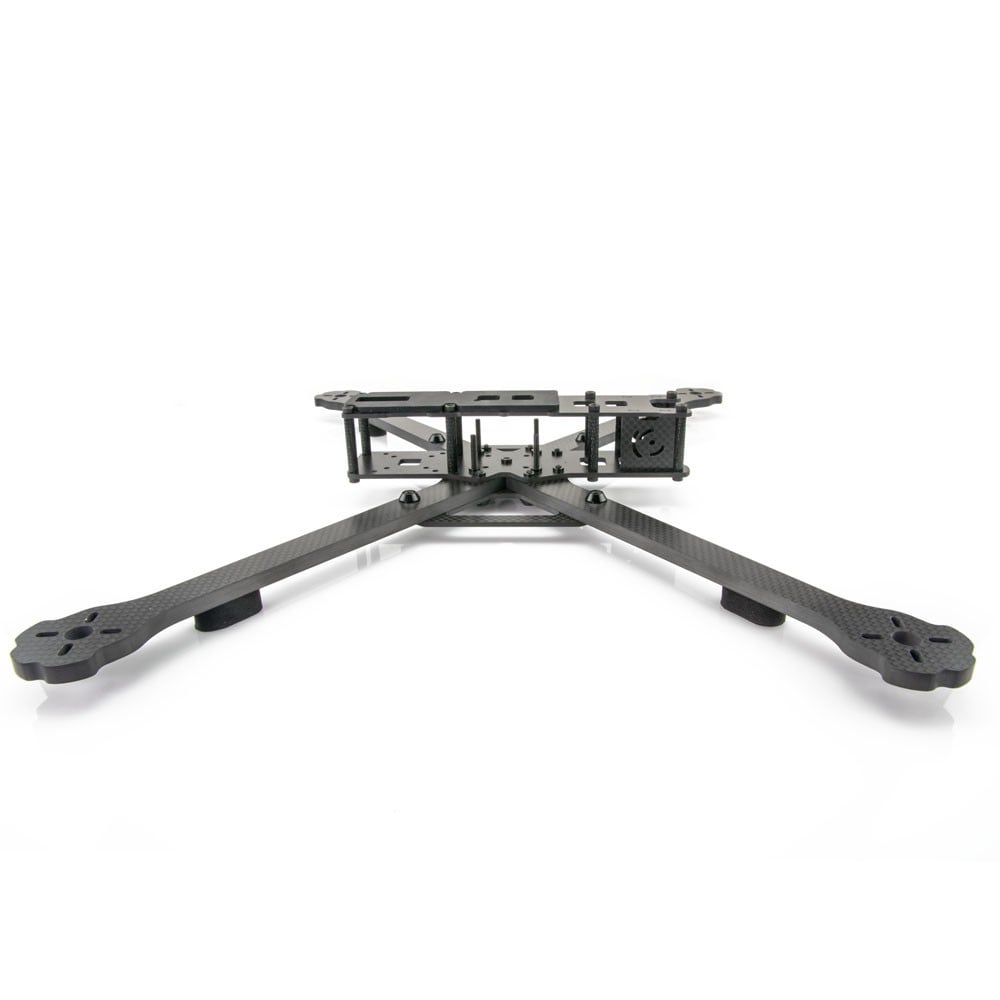

The QAV-RXL 2 is spaced 28mm between the top and bottom plates and designed for a full-size FPV camera.

Features

• Full 3K Carbon Fiber airframe with removable 6mm arms
• Premium carbon fiber sealed with a smooth clear coat layer on top
• Individually “keyed” removable arms, remove just 2 screws, and leave your stack in place.
• Reinforced bottom X-brace for 10″ version
• Carbon fiber camera side walls
• Popular Squashed-X configuration (less props in view!)
• Black Oxide steel screws
• Easy-grip black anodized spacers
• Motor guards on the end of the arms to protect the motor during a crash
• Fits both 30.5x and 20x stacks in middle and rear
• Silicone non-slip battery pad

Weight

• Airframe with Hardware, Battery Pad, and Landing Pads:
  • 8″ version – 205g
  • 10″ version – 285g

Includes

• 1x Lumenier QAV-RXL 2 Quadcopter Kit
  • 4x 6mm carbon fiber arms
  • 2mm carbon fiber top plate
  • 2.5mm carbon fiber bottom plate (with press fit steel nuts)
  • 2x carbon fiber camera side walls
  • 1x Reinforced carbon fiber X-brace for 10″ QAV-RXL 2
• 1x Lumenier Sticker Sheet
• 1x Set of black steel screws and aluminum hardware including knurled spacers, cable ties
• 1x No-slip silicone battery pad
• 4x Neoprene landing pads
• 4x Silicone vibration-damping o-rings
