The meticulous transformation and extreme attention to detail have created a frame which incorporates years of design experience.
Equally comfortable as a sub-250g long-range explorer, or a full-blooded freestyle machine capable of handling the harshest environments.

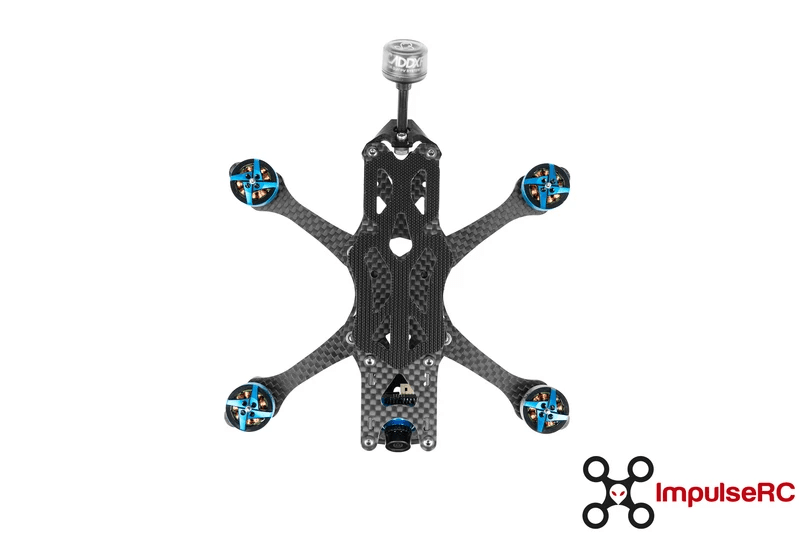

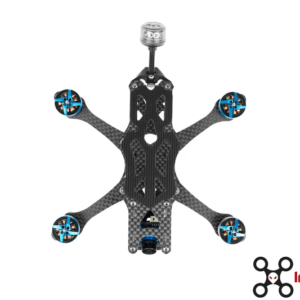

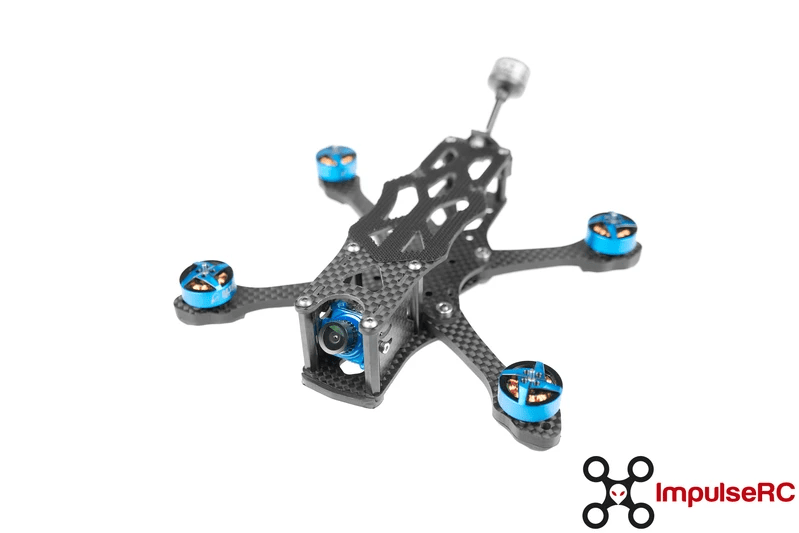

**This is the Micro Apex 3inch, consider upgrading to the ImpulseRC 4inch frame for a different feel with the same great results!

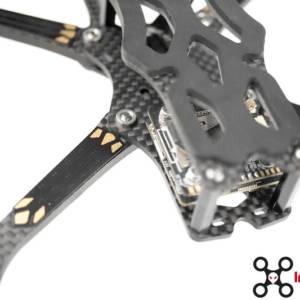

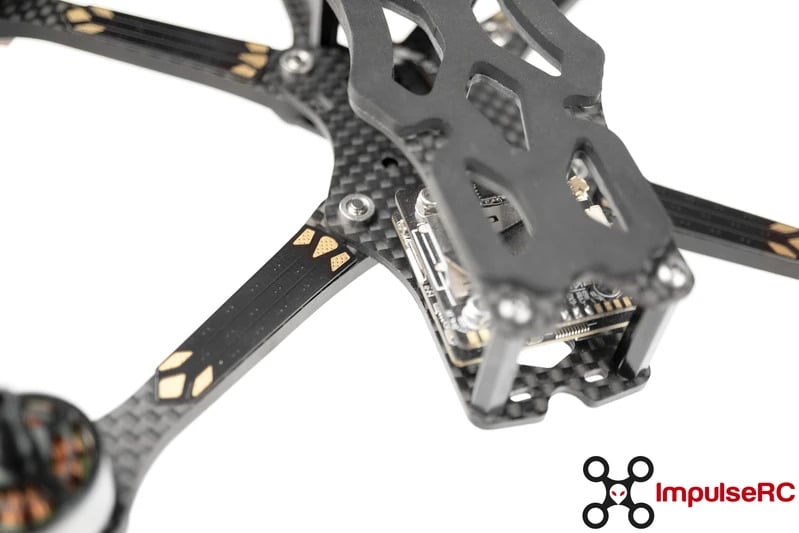

The Micro Apex incorporates all of the unique innovations pioneered by ImpulseRC and is now widely imitated. From the compressed-X arm geometry, integrated camera tilt, front box section and split main plate design, to our custom shoulder bolts and arm locking key. At the centre of mass where the arms meet there is a massive 8mm of carbon fibre, taking the stiffness of a micro-frame to a new dimension so you can enjoy unsurpassed flight characteristics at this prop size.

You can expect zero arm slop or movement, zero vibration or resonance, and of course that proven ImpulseRC durability you can always trust. All are backed up with our full crash damage warranty that covers all carbon fibre and metal parts for 1 year from the date of purchase.

• Full crash damage warranty on all parts for 1 year
• Perfect for Caddx Vista, 4K Tarsier or classic analog setup
• No props in shot of flight camera with 3” arms
• Dual stack, 20×20 M3 and M2 centre, 20×20 M2 rear
• Fits M2 9x9mm motors and M2 12x12mm motors

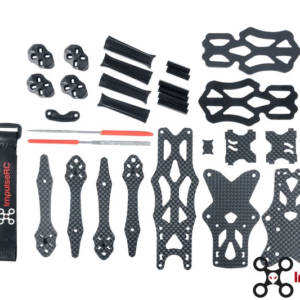

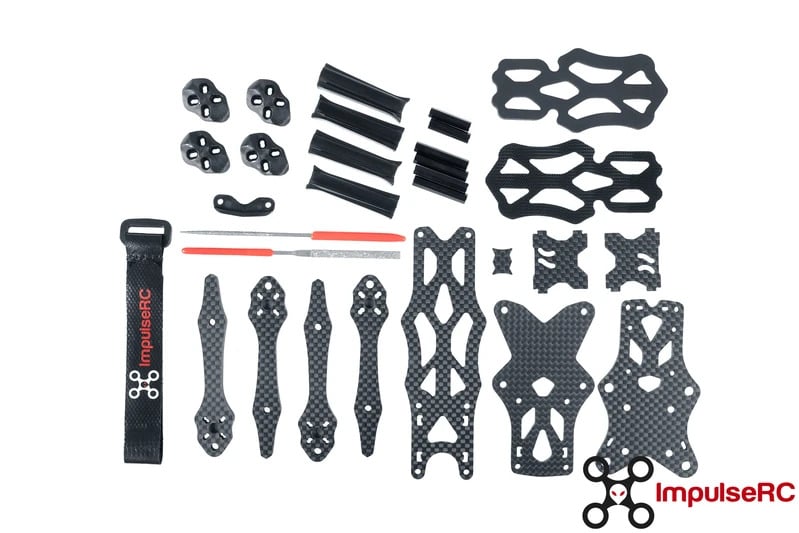

• Injection moulded arm skids and front bumper
• Injection moulded fitted wire guards to protect from prop strikes
• Two battery pads included, 2mm rubber and ultra-light hook pad
• Custom fitted Racewire available for 4” arms
• 3” frame weight 58g, carbon fibre + hardware
• 4” frame weight 61g, carbon fibre + hardware

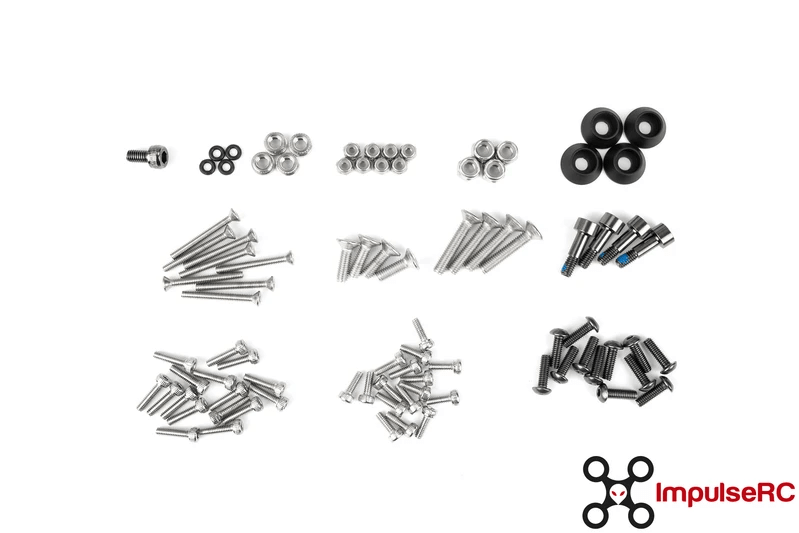

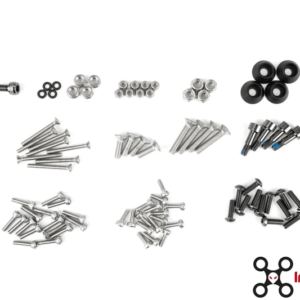

• 4mm thick arms, single shoulder bolt per arm
• 2mm thick upper and lower main plates
• 1.5mm thick top and camera plates
