iFlight Chimera4 Long Range FPV Frame Kit (X-Geometry)
The X-Geometry version of the Chimera4 frame from iFlight. This is a long range 4 inch FPV frame designed to go the distance!
Specifications:
- Wheelbase: 178mm
- Main body dimension: 136.8*114.8mm
- Bottom to top distance: 28mm
- Arm thickness: 4mm
- Bottom plate thickness: 4mm
- Top plate thickness: 2mm
- TPU Camera plate thickness: 2mm
- FC: 25.5*25.5mm/20*20mm/16*16mm
- FPV Cam: 19mm Micro / 20mm

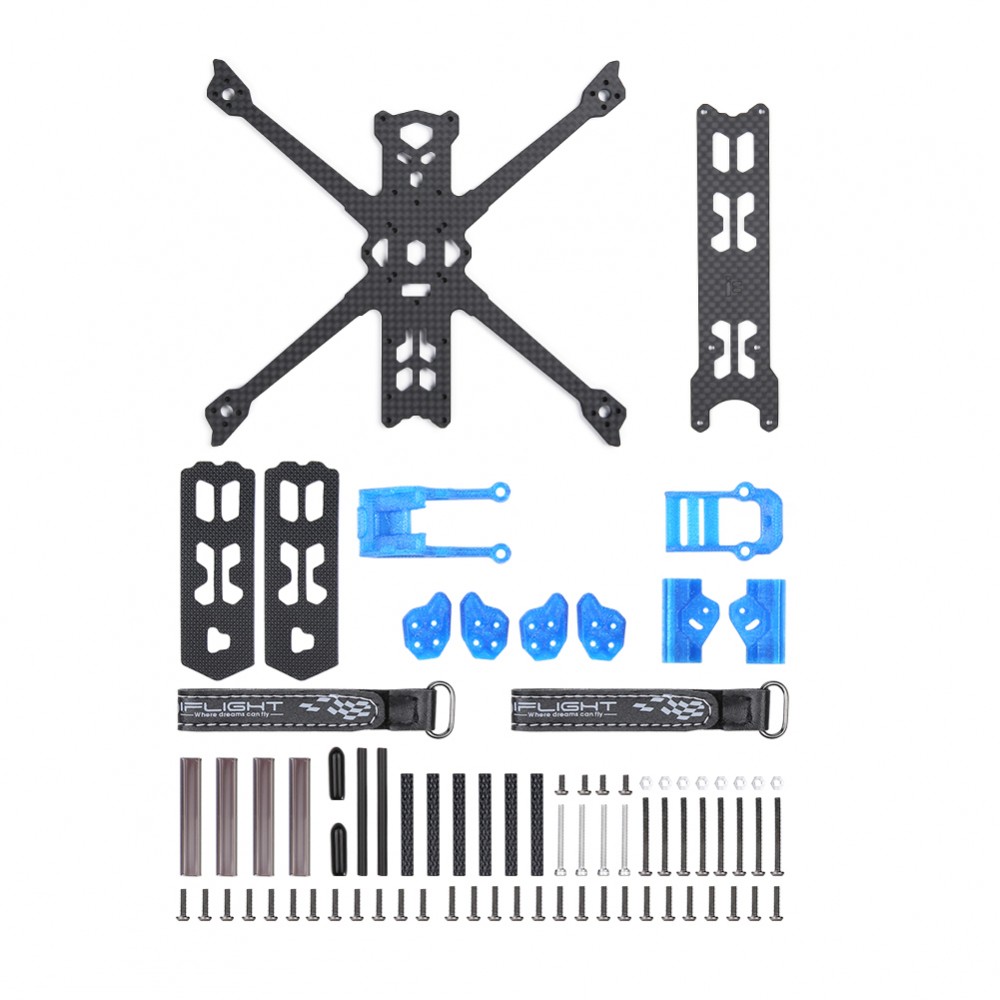

Package includes:
- 1 x Chimera4 Frame
- 2 x battery straps
- 1set x TPU parts
