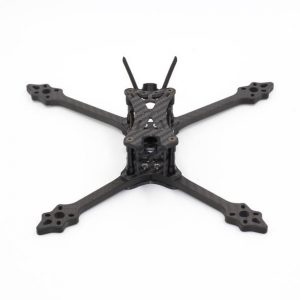

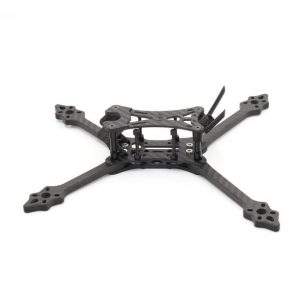

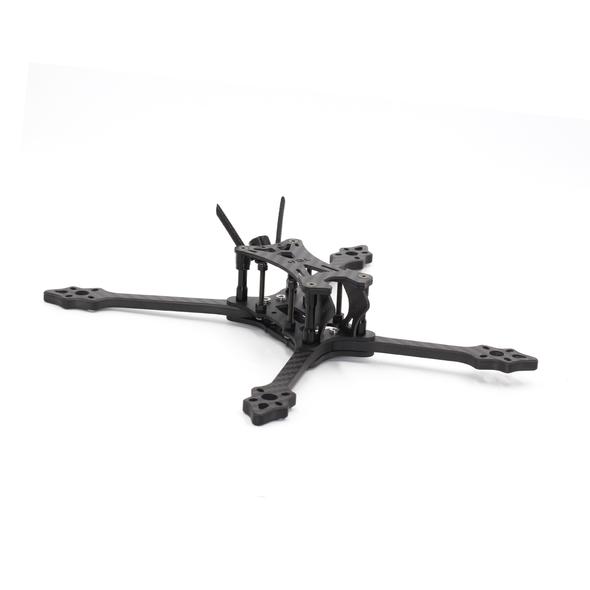

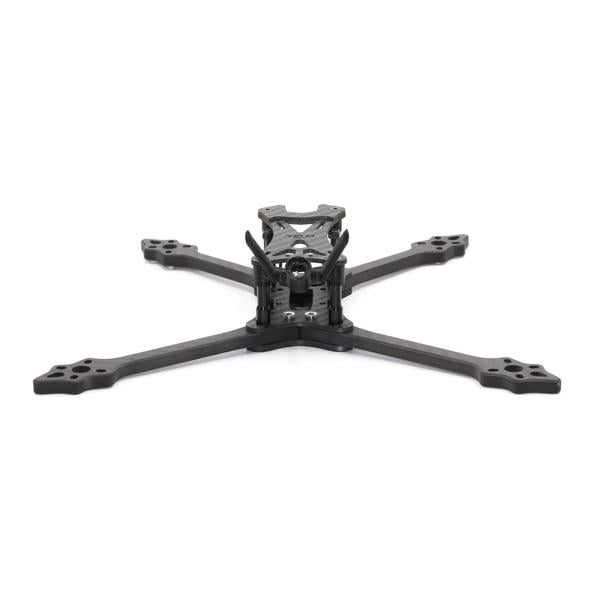

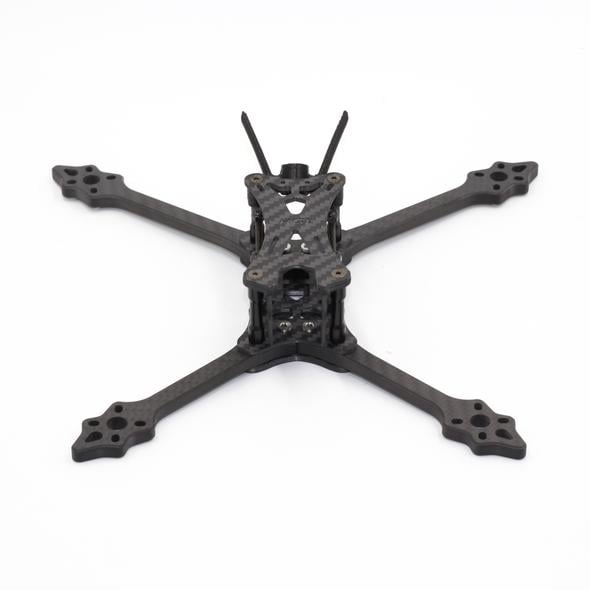

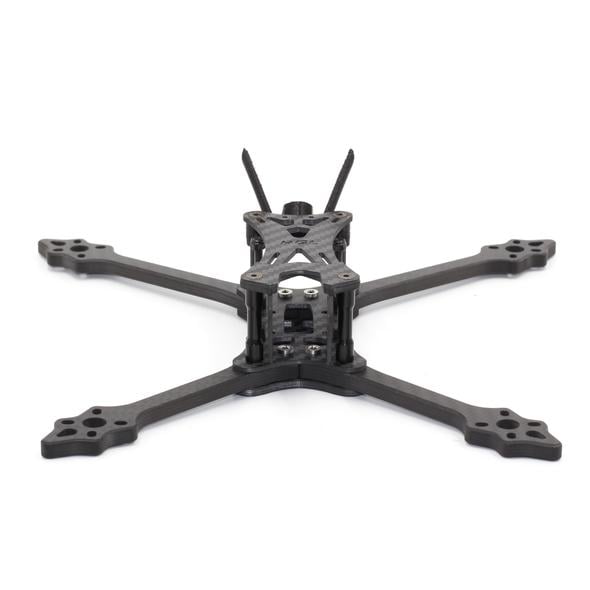

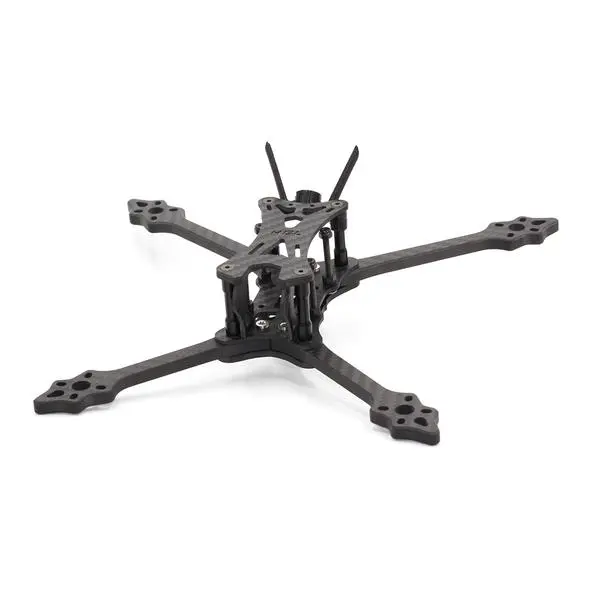

HGLRC Wind5 Hybrid Frame Kit

HGLRC Wind 5 Hybrid Frame Kit

Check out all of our HGLRC Products!

Designed by the top pilot from HGLRC, Doven Lee. The Wind 5 frame’s hybrid design is smooth and durable. Your components will be well protected inside its carbon fiber frame.

Specification:

Material:  Carbon  Fiber
Type:  5″  frame
Wheelbase:  233mm
Arm  Thickness:  6mm
Standoff  Height:  28mm
Weight:  98.4g
Flight  control  installation  holes:  20*20mm&30  *  30mm  Chute  type
Support  camera:  19mm

Features:
Hybrid  Frame  Design
Flight  control  installation  damping  system
TPU  Antenna  Mounts
Capacitor  mounting  slot
6mm  arms,1.5mm  vertical  side  plates
1.5mm  top  plate  &  2mm  upper  plate
2mm  &  3mm  Base  plate

Package  Included:
1x  HGLRC  Wind5 5-inch Frame  Kit

Hardware:
1x 1.5mm_Top  plate
1x 2.0mm_Top  plate
2x 1.5mm_Sidewall
1x 2.0mm_Base  plate
1x 3.0mm_Base  plate
2x 6.0mm_5  inch  Strecher  Arm
2x 6.0mm_6  inch  X  Type  Arm

4x  M3*28mm  Aluminum  black  standoff
4x M3*30  Screw
4x M3*  8    Countersunk  head  Screw
4x M3*12  Countersunk  head  Screw
4x M3*16  Countersunk  head  Screw
4x M3    Shock  absorption
4x M2    Shock  absorption
4x M3    black  Plastic  nut
4x M3    black  Relax  nut

1x Battery  sticker
1x Battery  Strap
1x TPU  Antenna  Mount
