Features：

• The perfect match for a DJI FPV Air Unit
• Upgraded size of hole, 16mmx16mm & 19mmx19mm both feasible
• 3D printing parts are fixed and protected
• Full 3K Carbon Fiber Frame
• Super lightweight Freestyle frame
• Beautiful appearance design， durable in crashing
• Quick maintenance of Arms and replacement of equipment
• 25mm standoffs for better height and CG relation, Ample space for electronic installation
• ALU6061 Standoff New , Strengthen the hardness
• There are 30.5*30.5mm and 20*20mm flight control holes, Stack can fit in the center or the rear.
• High-quality 3K twill carbon fiber plate, high-precision CNC processing
• YFS screw, 12.9-grade strength, non-slip teeth, anti-rust, Durable steel hardware

Specifications：

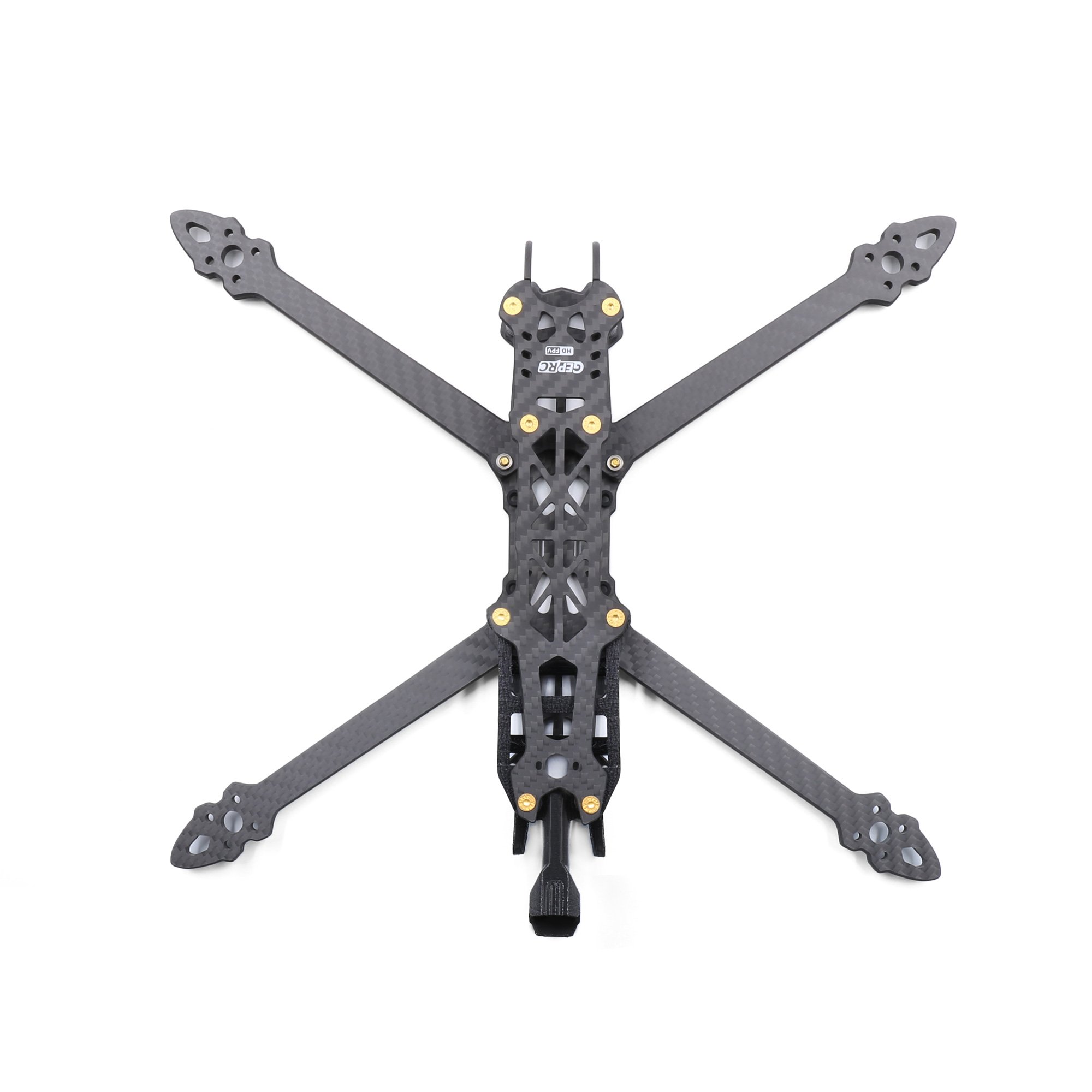

• Item name： GEP-Mark4 HD7 Frame
• Frame type： H-TYPE
• Propeller: 7inch
• Motor to motor：295mm
• Size：193*223mm
• Mounting Holes: 30.5*30.5mm/20*20mm
• Weight：140g
• Arms plate: 5mm
• Side plate: 2.5mm
• Top plate: 2.5mm
• Bottom plate: 2.5mm
• Protect plate: 2mm

Recommended：

• Flight Controller： RF/Kiss/F3/F4/F7
• Motor：2205/2206/2207/2207.5/2305/2306/2306.5
• ESC：30A-50A
• Propeller：7inch
• Lipo:  6S 2200mAh
• FPV: DJI FPV Air Unit

Include：

• 4 x 5mm 7inch Arms
• 2 x 2.5mm side plate
• 1 x 2.5mm top plate
• 1 x 2.5mm Bottom plate
• 2 x 2mm Bumpers plate
• 2 x 2mm Reinforce plate
• 1 x Lipo silicone pad
• 1x DJI FPV Air Unit fixed
• 1x Antenna Mount
• 1x RX Antenna Mount
