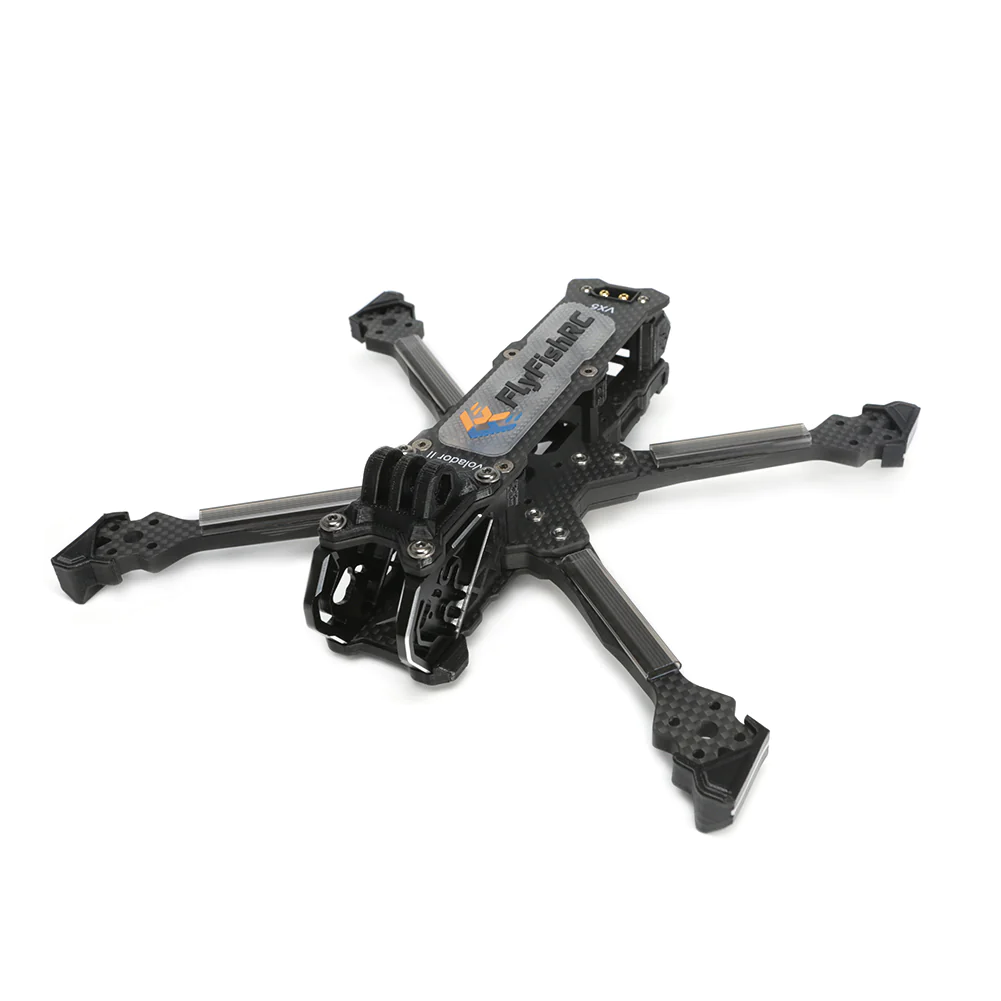

Volador II VX5 O3 FPV Freestyle T700 Frame Kit
Introducing the Volador II VX5 O3 FPV Freestyle T700 Frame Kit, the second iteration of our renowned 5” frame, meticulously refined based on feedback from the FPV community, including valuable insights from Ryan Harell and Kai Lin. The Volador II is a masterpiece of design, offering unparalleled compatibility and simplicity in construction, alongside a range of configurations to suit any pilot’s preferences. Whether you choose the Squashed X for maximum control or the Deadcat style for an unobstructed view, this frame kit is compatible with a wide array of analog and HD systems.
Designed to minimize frame resonance with its independently detachable arms and tight structure, the Volador II incorporates high-quality TPU parts for a sleek, integrated setup. Its silicone shock-absorbing camera plate for the DJI O3 Air Unit ensures jello-free DVR footage, compatible with 19mm/20mm cameras. Crafted from T700 carbon fiber and CNC aluminum alloy for strength and beauty, it also features a redesigned anti-slip battery pad and an integrated XT60 connector for added safety and convenience.
The kit comes fully equipped with all necessary accessories for analog and HD builds, including 12.9-grade hardware pre-applied with Loctite threadlocker. Notable improvements from V1 to V2 include weight reduction, enhanced motor wire protection, and TPU parts in the vibrant Tropical Mix set, making the Volador II not just a frame, but a statement of style and commitment to performance.
Volador II Assembly Guide:
VX5 Review by Wyatt：
V2 Features:
High-end T700 carbon fiber
Tight structure design minimizes resonance

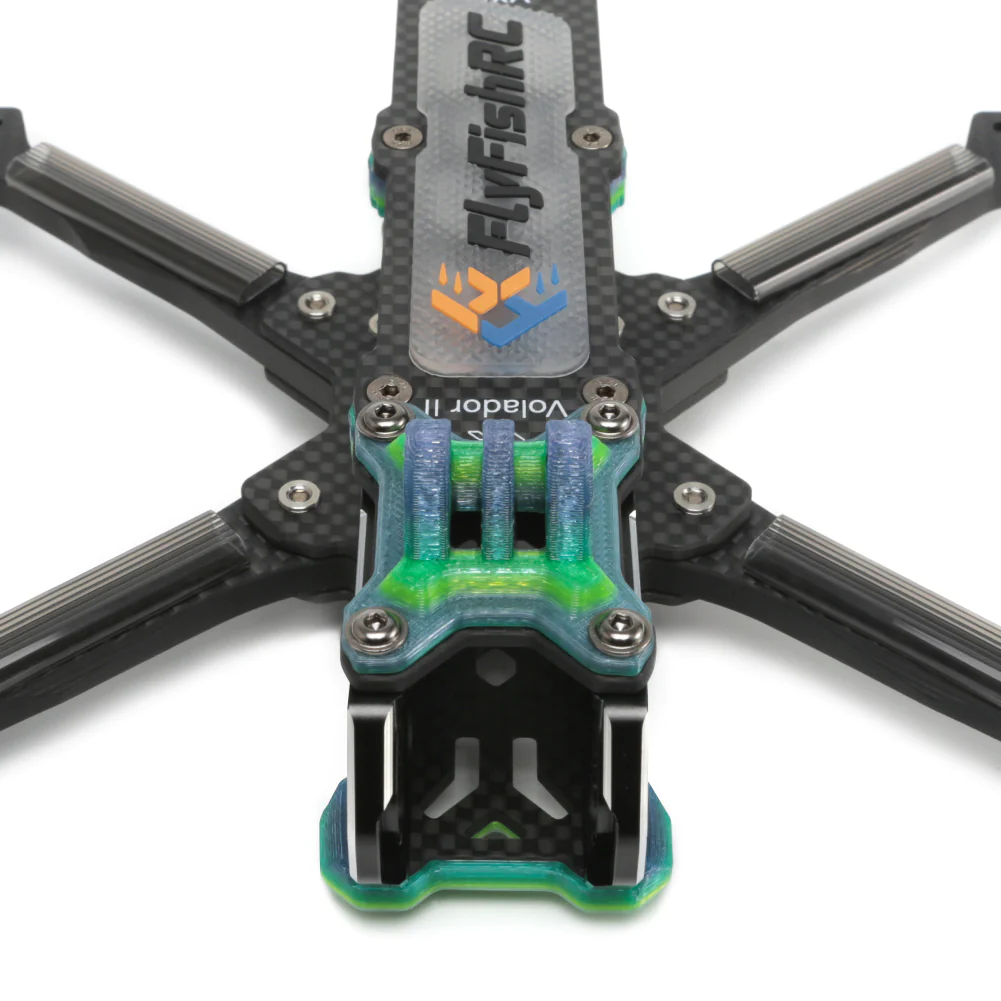

The new CNC aluminum camera plates effectively protect the camera
The silicone shock-absorbers for the O3 AU eliminate jello

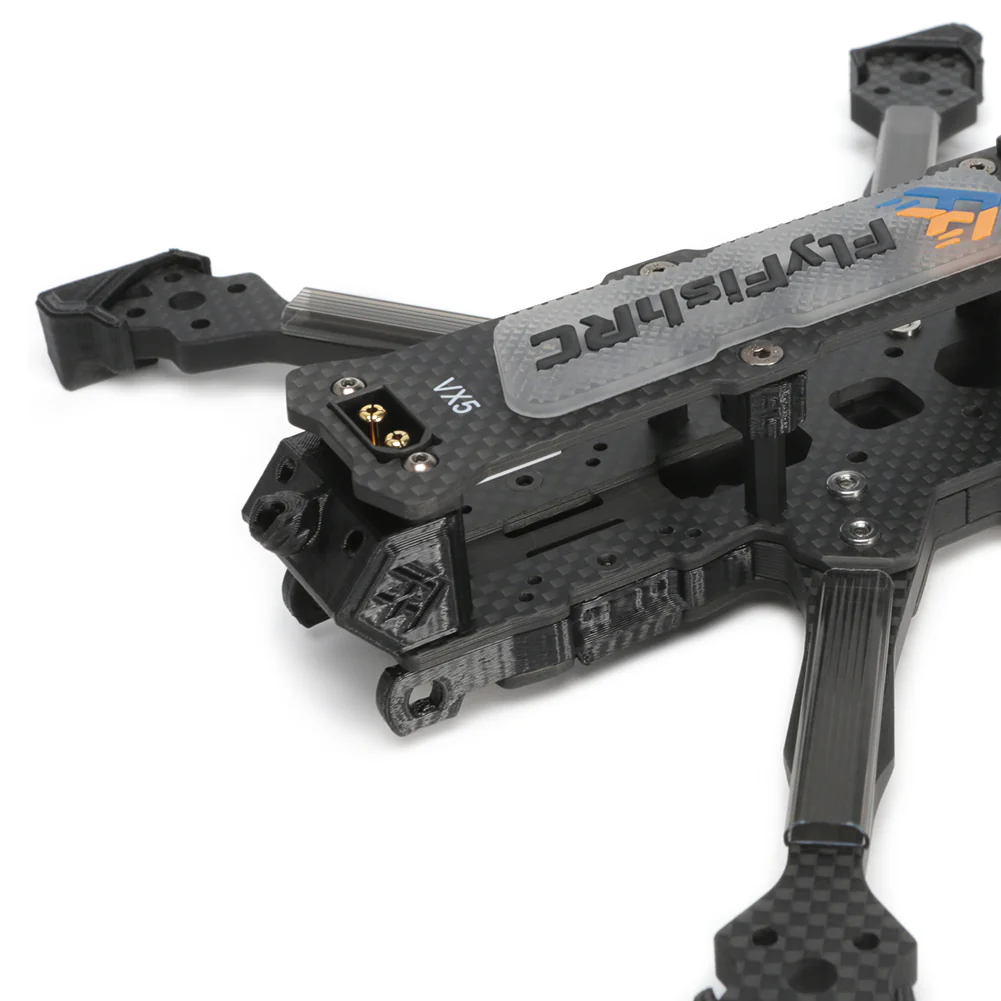

Integrated XT60 connector for safety and reliability

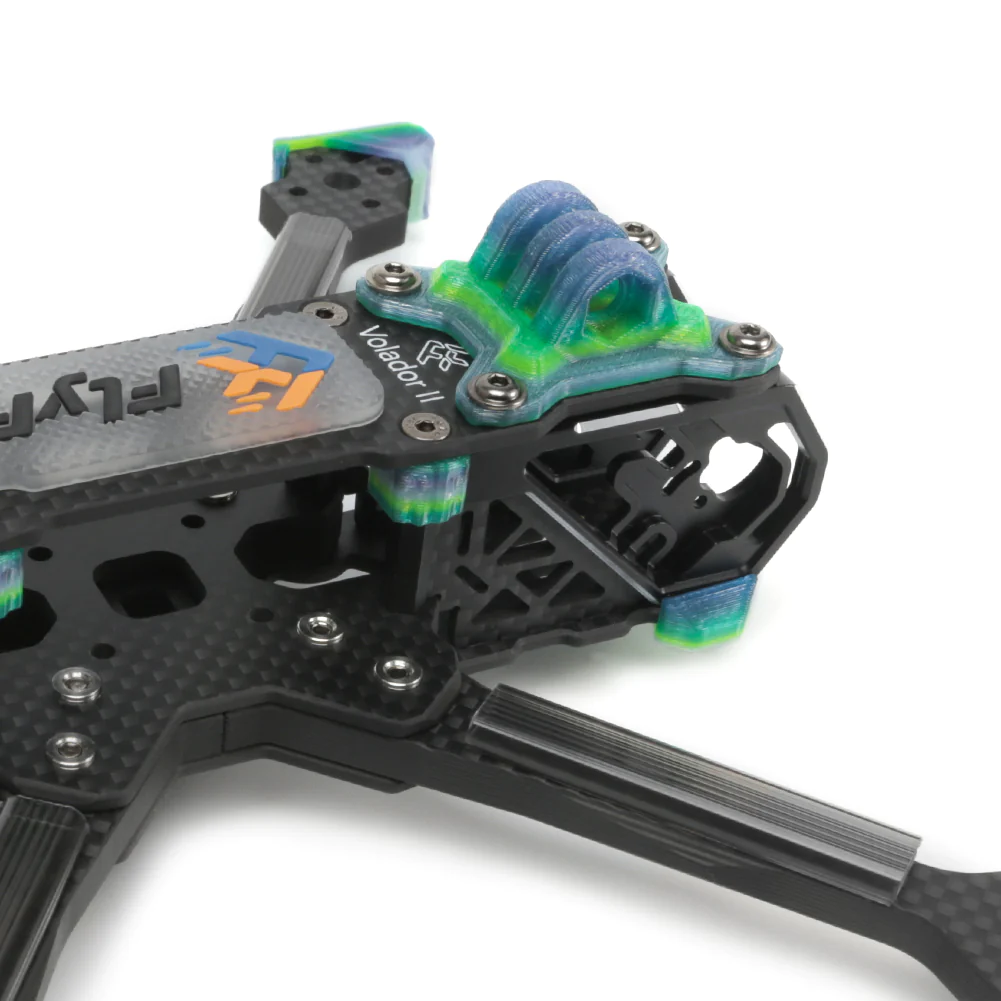

High-quality TPU parts
Innovative anti-slip battery pads
New motor wire protection tubes
Compatible with both 19/20mm cameras
Equipped with all accessories needed for analog and HD builds
12.9-grade strength hardware with Loctite threadlocker pre-applied
High electronics compatibility
V1 to V2 notable differences:
The frame is now significantly lighter.
The new CNC side plate is lighter and perfectly fits the DJI O3 AU camera.
The new battery anti-slip pad is more “sticky” and has better adhesion.
Added keystone to even further reduce arm vibration.
Added bottom screw gasket.
Added motor wire protection tubes.
The four middle screws on the top plate are now countersunk and sit flush, to eliminate possible battery damage during crashes.
The new TPU arm protectors are now lighter and allow for easier disassembly.
All models now come with two types of TPU antenna mount (with or without GPS mount).
The thickness of the bottom and middle plates has been adjusted to 2.5mm.
The connection structure between the arm and the clamp plate is slightly adjusted to distribute stress better.
XT60 plug cutout on the top plate is now symmetrical, allowing installation of the XT60 in both orientations.
VX5 Specifications:
Arm Thickness: 6mm
Top plate thickness: 2.5mm
Middle plate thickness: 2.5mm
Bottom plate thickness: 2.5mm
Keystone thickness:5mm
Side plate thickness:2mm
CNC Side plate thickness:5mm
Propeller size: 5~5.1 inch
Material: T700 carbon plate
FPV cam spacing: 19mm/20mm

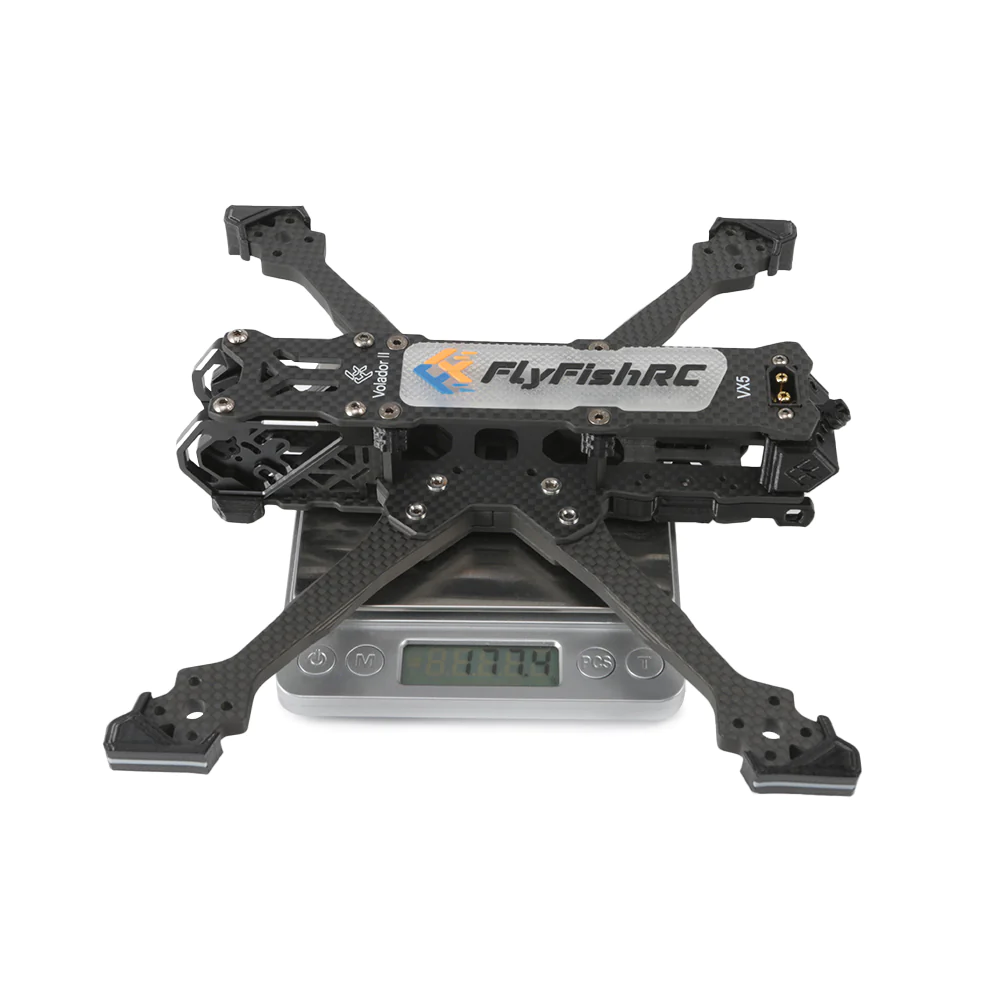

Weight: 177.4g(with TPU parts)

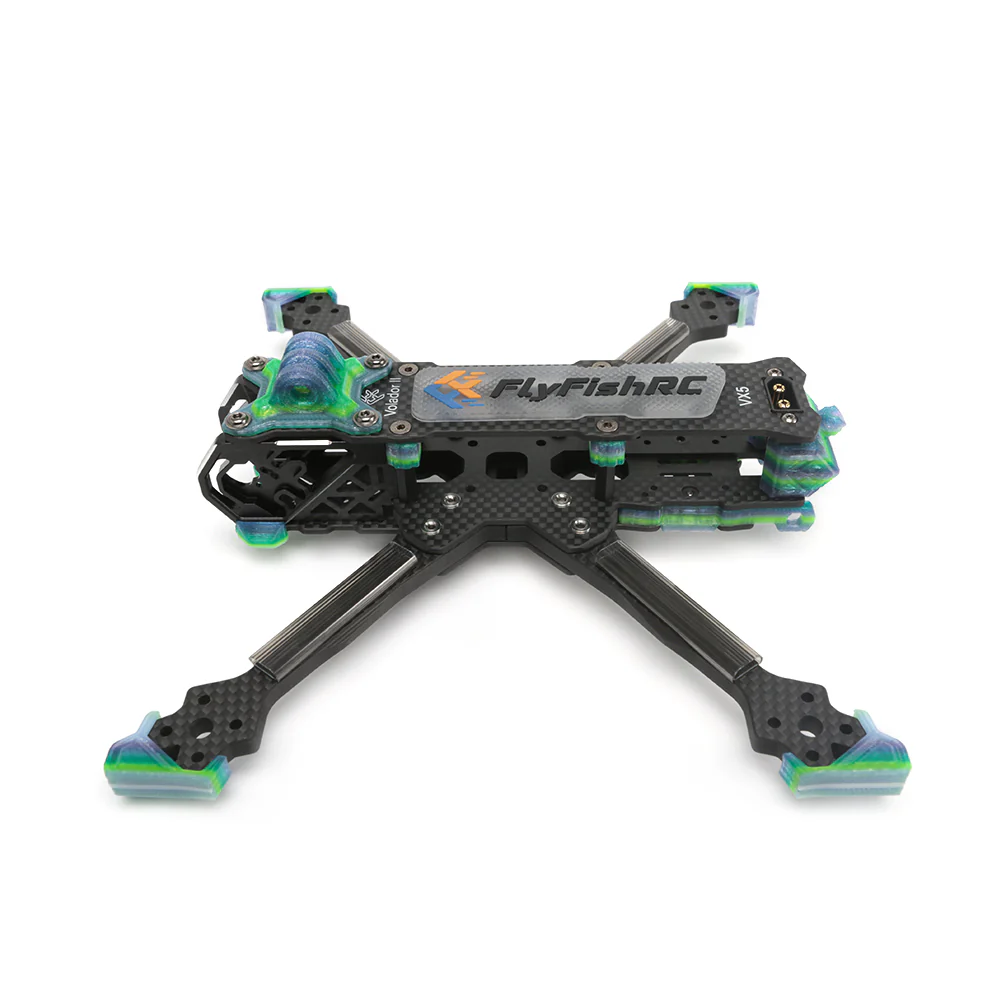

Colour: Black/Tropical Mix (Optional)
Total Dimensions:177mm*165mm Wheelbase:225mm
Stack mounting holes: 20mm*20mm/30.5mm*30.5mm(M3)
VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
