Wheelbase: 290mm

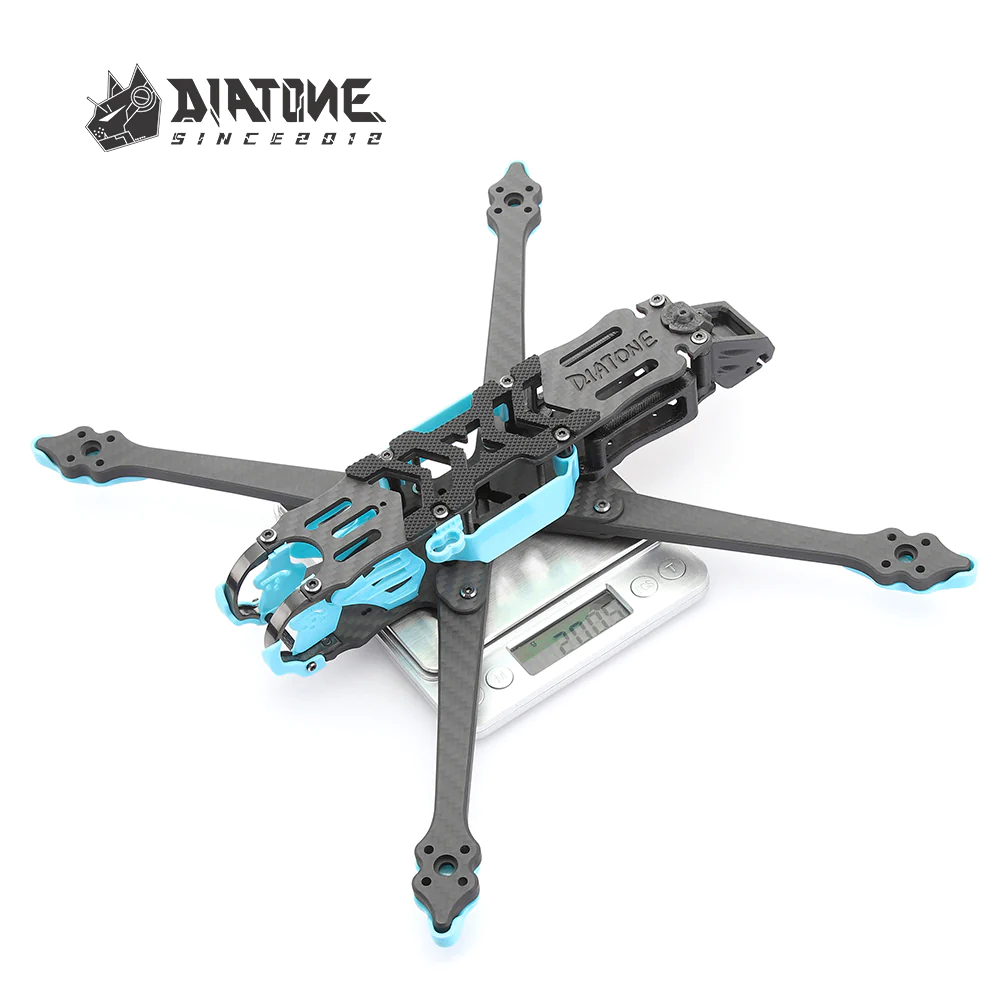

Weight: 200g
Prop Size : 7 inch
FC Mounting: 30.5×30.5(M3)&20×20mm（M2）
Motor Mounting: 16mm(M3)
Recommended Motor Size: 28 Series motor
Top Plate: 2.5mm
Medium Plate:2mm
Bottom Plate: 3.5mm
ARM Thickness: 6mm
Max Stack Height: 23mm
Rated Voltage（Recommendation): 4-6S

Recommend Lipo size: 6s 1600-1800 mAh
Drone nose metal parts: SUS304
carbon fiber: T300 3K

Packing List:

1.The default lake blue injection molded parts include:

2.head aluminum protection,

3.camera mount,

4.arm protection,

5.general GOPRO fixed base,

6.the Stack side plate

Printed Parts:
M8PLUS GPS/SMA analog antenna base *1
M22 GPS/DJI dual antenna mount *1
