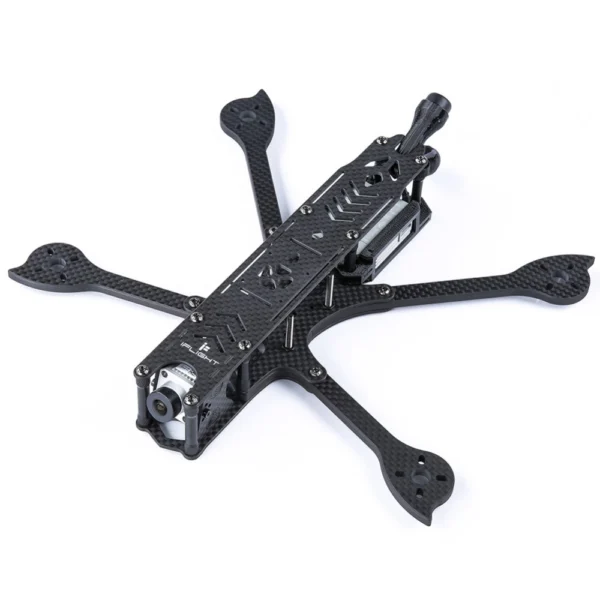

The iFlight DC5 was designed for the DJI Digital FPV System. It is also suited for 5-inch propeller power systems and flight controllers. The DC5 HD Frame design makes installation and maintenance easy. With the 5-inch propeller power system, users have ensured a super great flying experience. Soft TPU material helps to protect the camera and antenna in the event of a crash.

Features：

• Full 3K Carbon Fiber Airframe
• Easy arm swaps
• 230mm wheelbase，137g
• Popular Deadcat style configuration, No prop in View
• Fits both 30.5x and 20x stacks

Specifications:

• Type: 5″ FPV Freestyle frame
• Frame wheelbase: 230mm
• Frame weight:137g approx
• Standoff: M3*25mm(4pcs), M3*32mm(4pcs）
• 5mm thickness, 11.3mm width arms,1.5mm vertical side plates
• 2mm top, the upper & bottom plate
• Mounting Holes: 30.5*30.5mm/20*20mm
• Support camera size: 19*19mm 22*22mm
• Recommended motors: 22xx, 23xx

Package includes:

• 1 x DC5 HD Frame
• 1 x Screw Bag
• 1 x TPU Camera mount adapters
• 1 x TPU DJI Air Unit Bracket Mount
• 1 x TPU DJI Air Unit Antenna Mount

• 1 x Battery Anti-slip Mat
• 2 x Battery Straps

NOTE: CAMERA, ANTENNA , AND DJI AIR UNIT ALL ARE NOT INCLUDED
