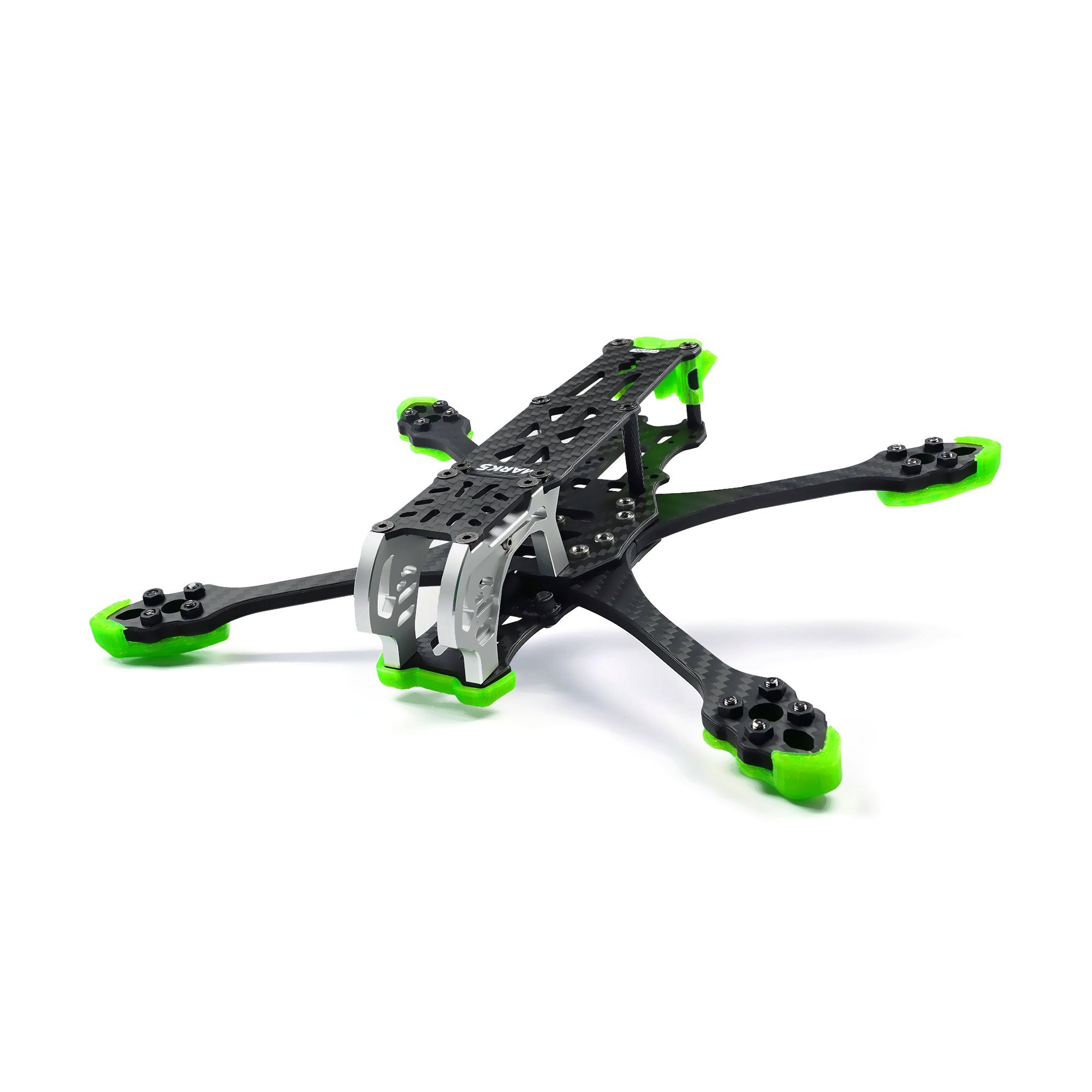

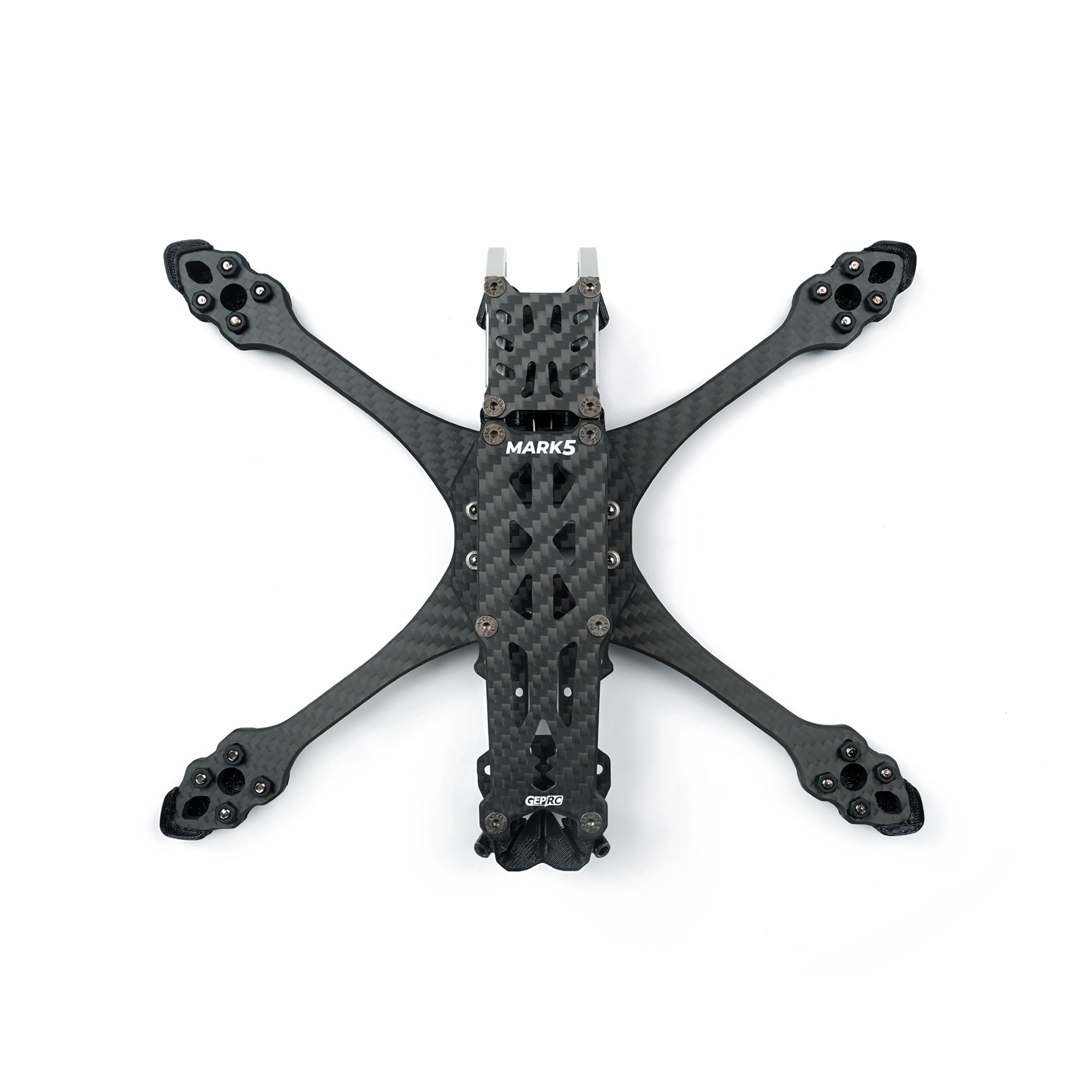

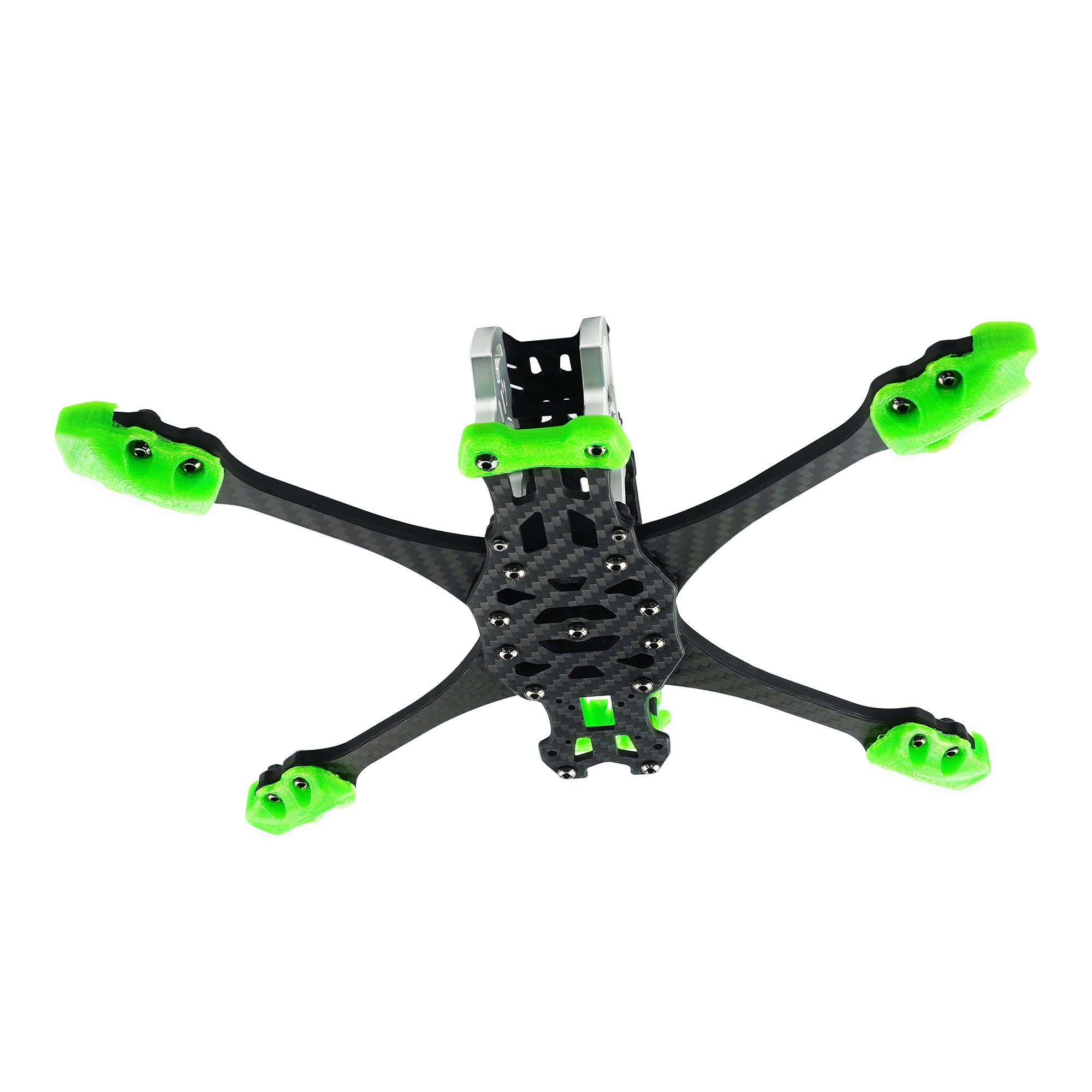

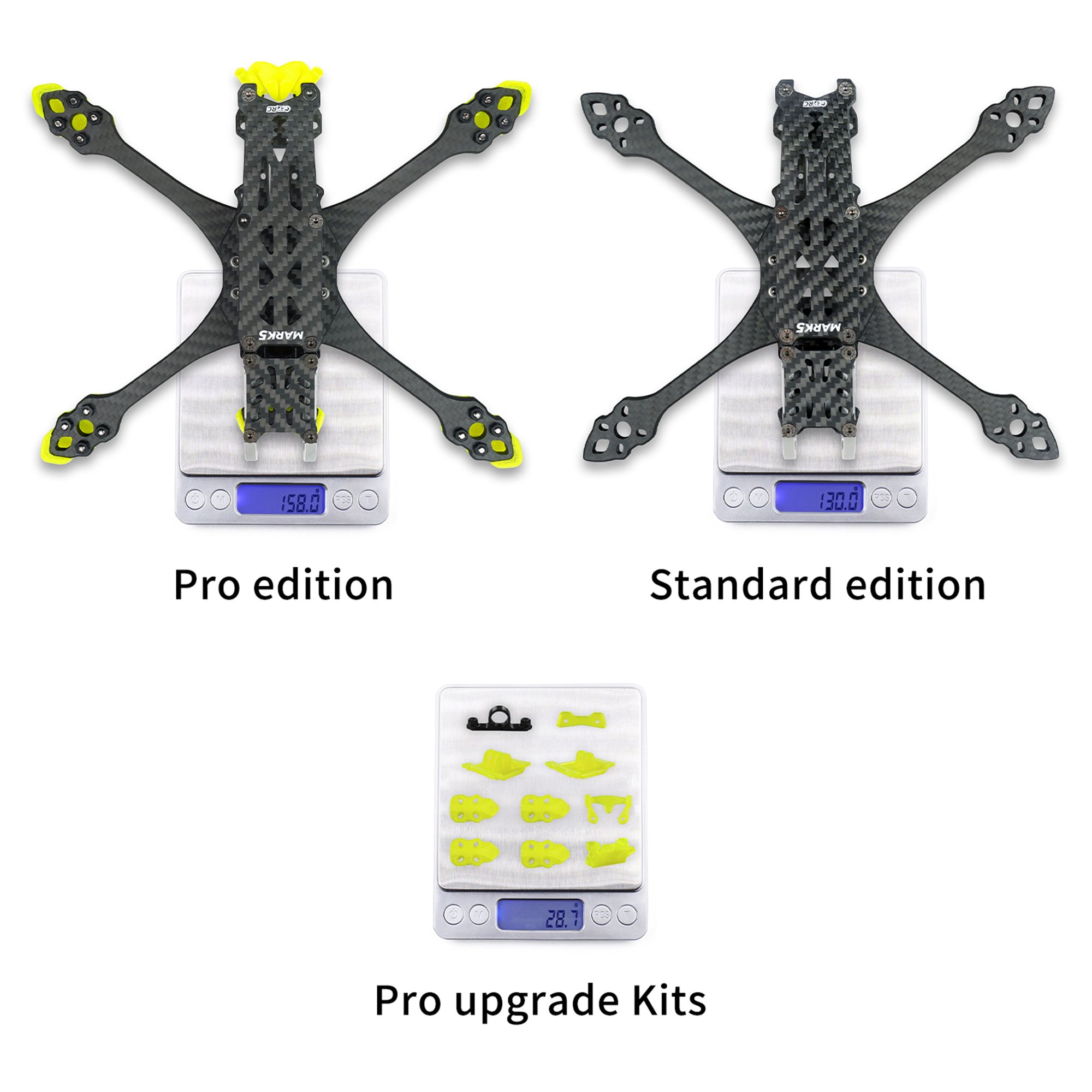

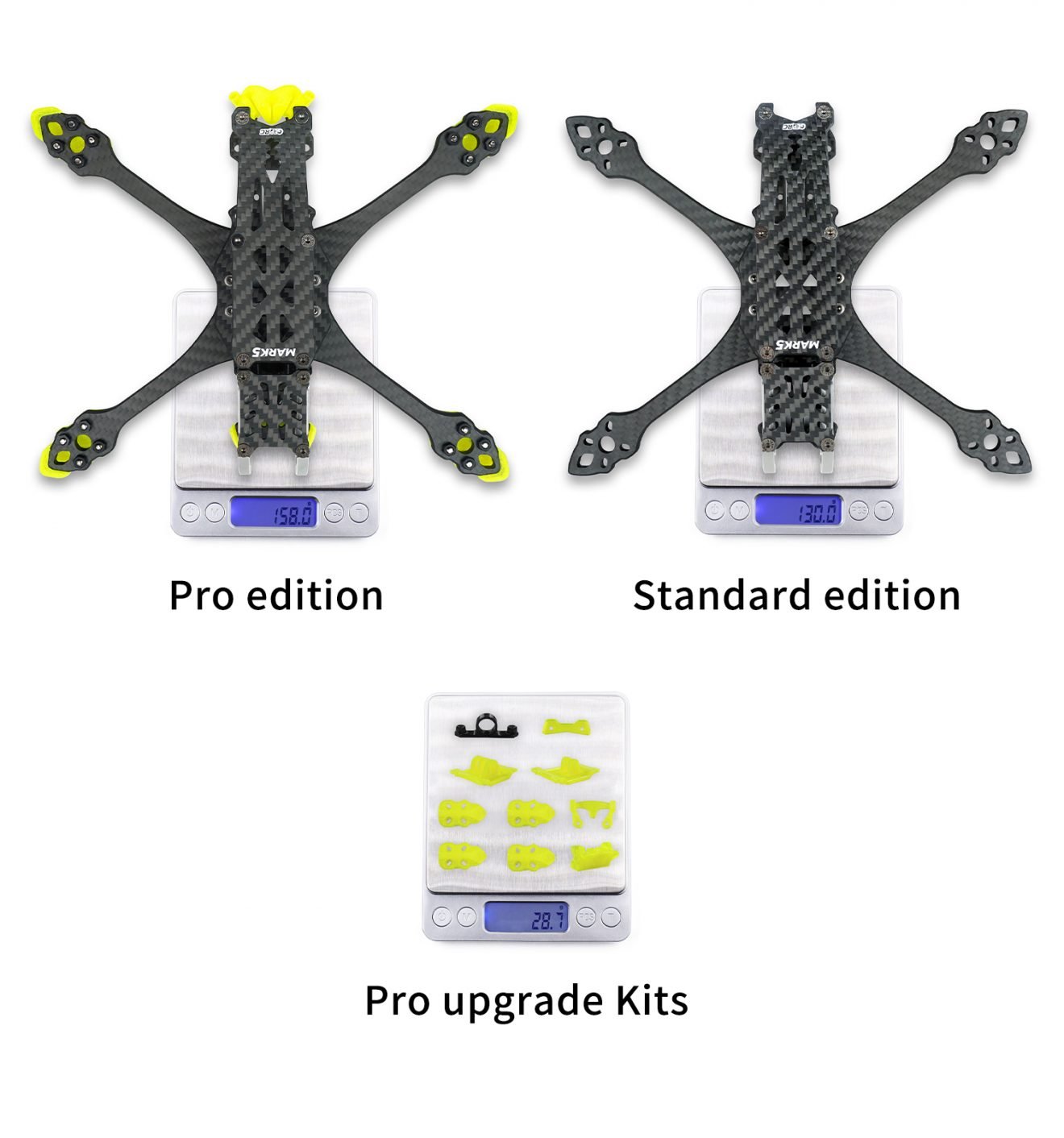

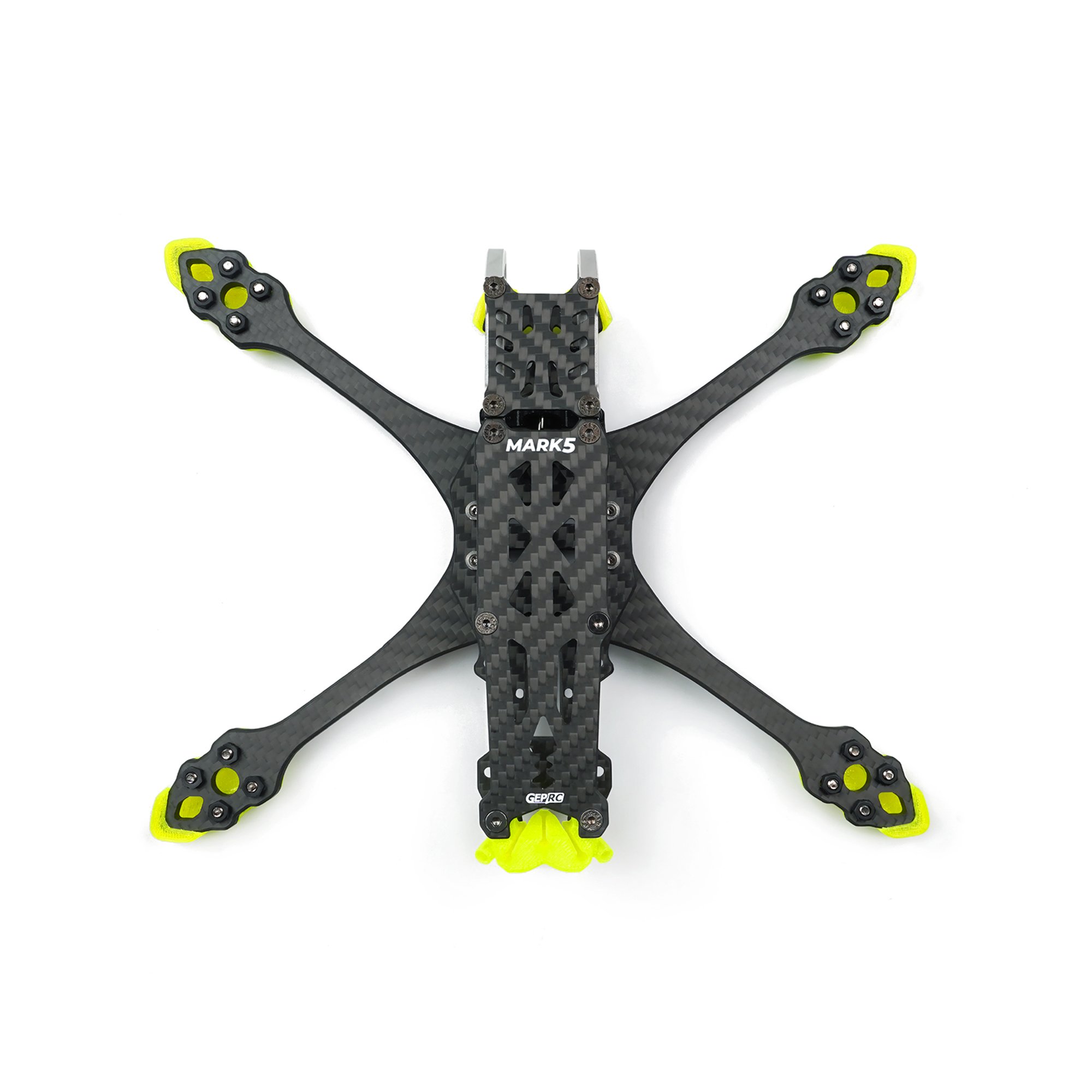

New Generation freestyle MARK5 frame. The MARK5 Frame is now officially released in three versions, which are the standard version, the pro version, and the pro upgrade kits version. The frame is compatible with DJI AIR UNIT, CADDX VISTA, and Analog VTX.

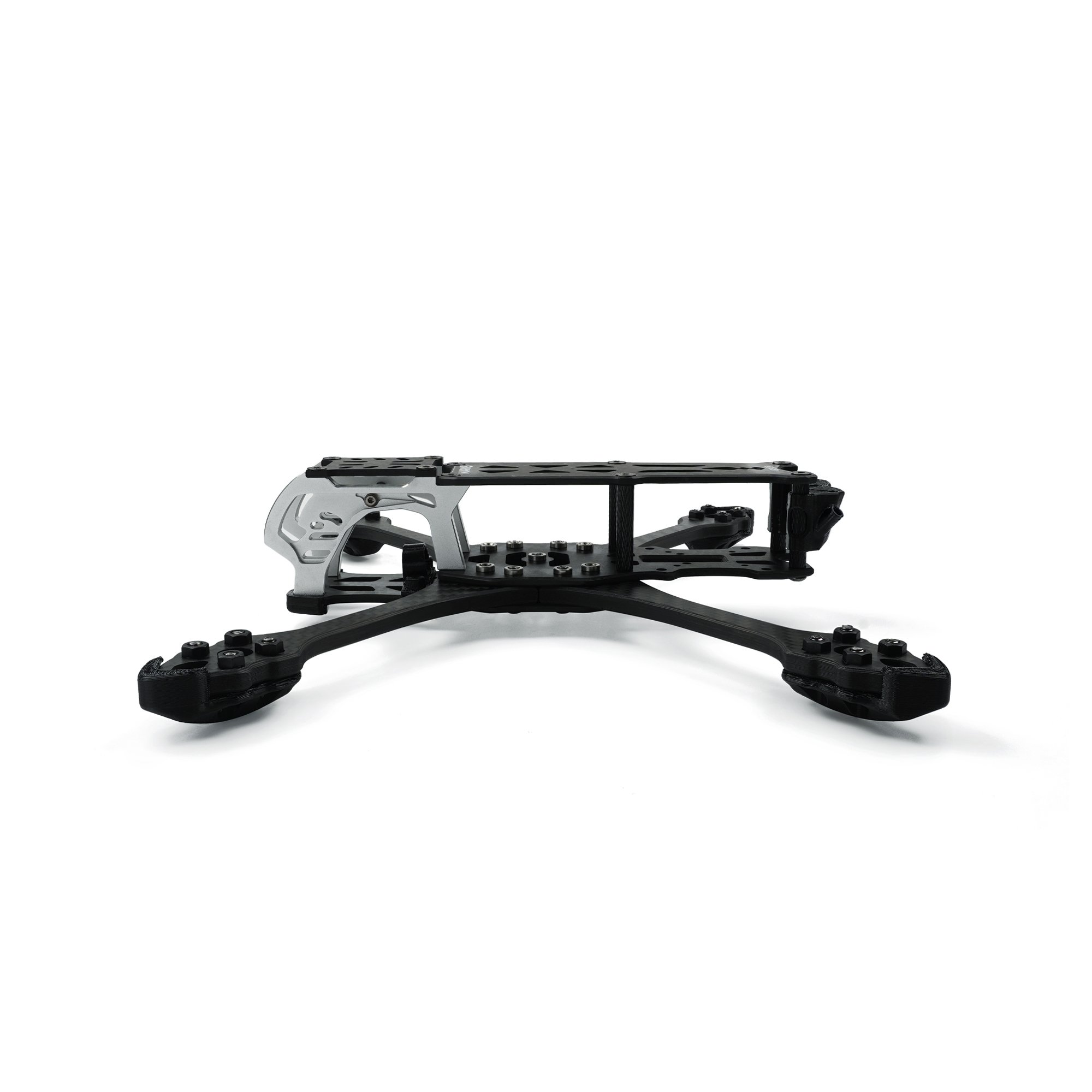

MARK5 frame is developed specifically for freestyle with a squashed X-arm design. The unique shock-absorbing structure design, fewer vibrations, and resonance provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning but also reduce weight and add more endurance.

MARK5 frame supports the mainstream 30.5mm x 30.5mm Flight Controller. Pre-set two sets of installation holes, 30.5mm x 30.5mm and 20mm x 20mm Fixing holes respectively. The subsidiary printing parts can also be directly installed with DJI Air Unit.

Strong power system, 16mm x 16mm / 19mm x 19mm motor holes will allow you to install larger 21-22-23-25 series motors, with 5-inch propellers, with strong power output.

The MARK5 designed two different 3D printed mounts which can be installed with GoPro /Naked GoPro8/Insta 360 GO2 and Caddx Peanut cameras to record every moment of Freestyle.

After perfectly continuous development, testing, and tuning by the GEPRC R&D team, we are proud to say, by far, the MARK5 frame is one of the best freestyle quadcopter frames on the market.

We’ve been pursuing lighter weight, better flying experience, and more functionality for all our products!

Specification

Model: GEP-MK5

Motor to motor: 225mm

Top plate: 2.5mm

Bottom plate: 2.5mm

Arm plate: 5.0mm

FC mounting holes: 30.5mm x 30.5mm

VTX mounting holes: 30.5mm x 30.5mm / 20mm x 20mm

Motor mounting holes: 16mm x 16mm / 19mm x 19mm

Camera installation space: 19-20mm

Suitable propeller size: 5″propeller

Dimension: 214mm x 168mm x 42mm

Weight: 130.0g

Feature

1. Aluminum alloy side plates not only look stunning but reduce weight and add more endurance.

2. Developed specifically for freestyle with a squashed X-arm design.

3. The installation hole of VTX is compatible with DJI Air Unit and VISTA while maintaining the 30.5*30.5 analog VTX installation hole.

4. Support the installation of a 19-20mm width lens, you can directly install DJI’s original lens.

5. Unique shock-absorbing structure design, fewer vibrations, and resonance.

6. Specially designed independent capacitor and buzzer compartment for better performance and shaking reduction.

7. Compatibility motor hole design, support the installation of 16x16mm and 19x19mm motors.

8. Designed two different 3D printed parts bases, which can be installed with GoPro, Naked GoPro8, Insta 360 GO2, and Caddx Peanut cameras, shooting is stable and clear. (Pro version comes with delivery)

9. MARK5 frame kit is ideal for freestyle flying and is bando-bashing resistant.

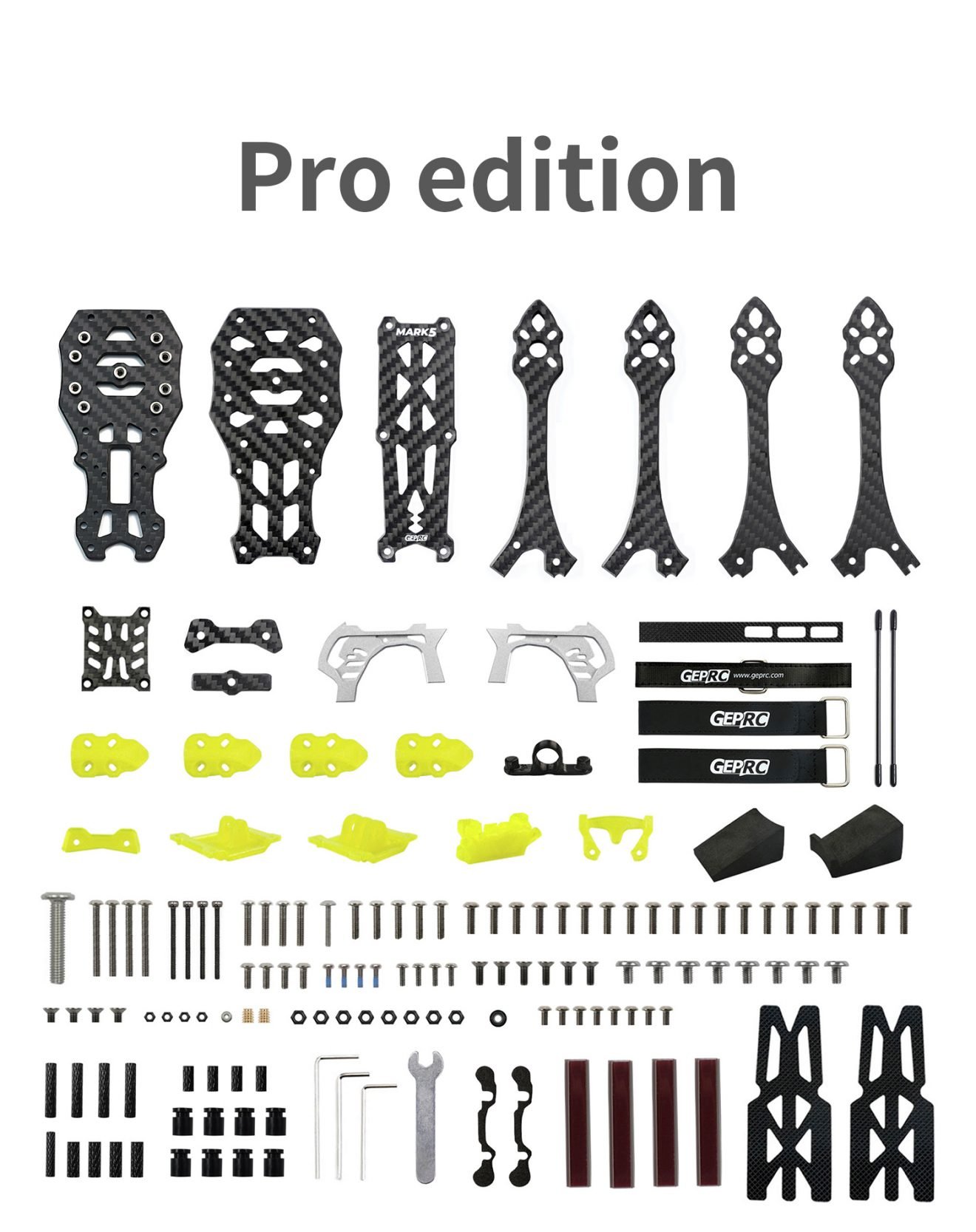

Included
