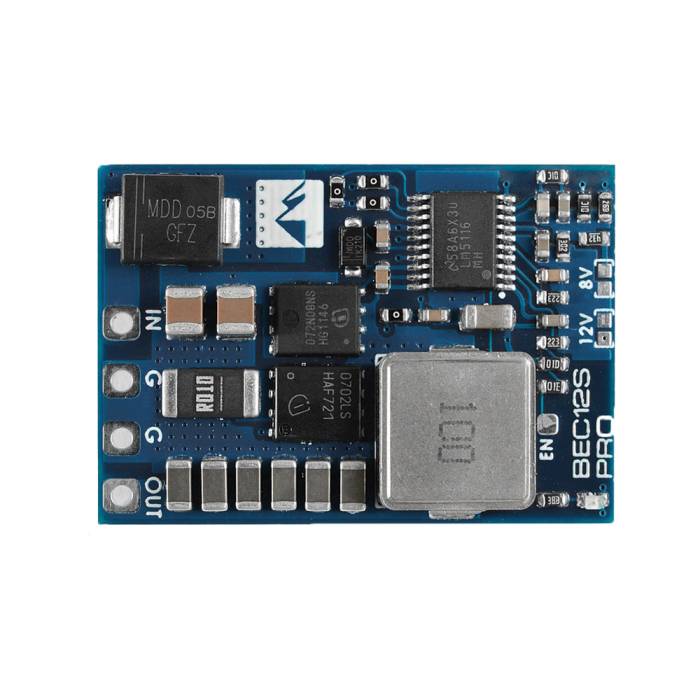

The MATEKSYS 12S Pro BEC boasts an extensive 9-55V input range, offering three distinct output voltages: 5V, 8V, and 12V. It consistently supports up to 5A output current and can manage peak currents as high as 9A. Additionally, this voltage regulator comes with a synchronous buck converter, thermal protection, a 2-second tolerance for output short-circuits, overcurrent safeguards, and an ability to self-recover, among other features.

Dive into our BEC/PDB category and explore our Matek assortment!

SPECIFICATIONS:

• • Extensive 9V to 55V input range bolstered with TVS protection.
  • Trio of output voltages: 5.2V (default), 8V, or 12V.
  • Efficient synchronous buck converter, ranging between 88% and 96%.
  • Consistent support for output currents up to 5A, with a 9A peak tolerance.
  • Output disturbance: 30mV (with 50V input, outputting 5.2V @ 5A) and 60mV (with 50V input, outputting 12V @ 5A).
  • Dormant current draw between 5 and 10mA.
  • Absence of protection against reverse-input voltage.
  • Equipped with thermal protection.
  • Endures output short-circuits for up to 2 seconds.
  • Features overcurrent safeguards and self-recovery mechanisms.
  • Dropout voltage stands at 2V (A minimum of 14V input is necessary for a steady 12V output).
  • Pin spacing: 3.81mm.
  • Dimensions & Weight: 35 x 24 x 5.5mm and weighing 5g. INCLUDES:
  • 1 Matek 12S Pro BEC with 9-55V input and 5V/8V/12V-5A output capabilities.
  •
