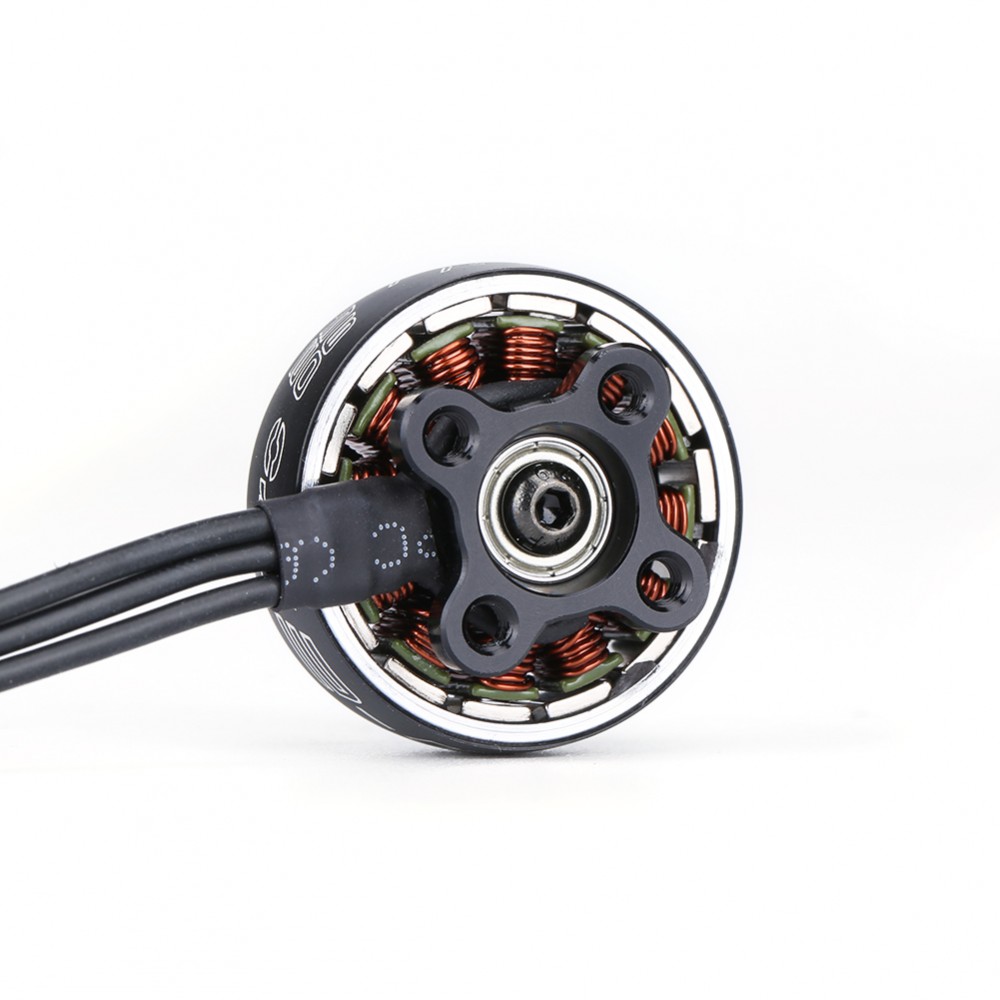

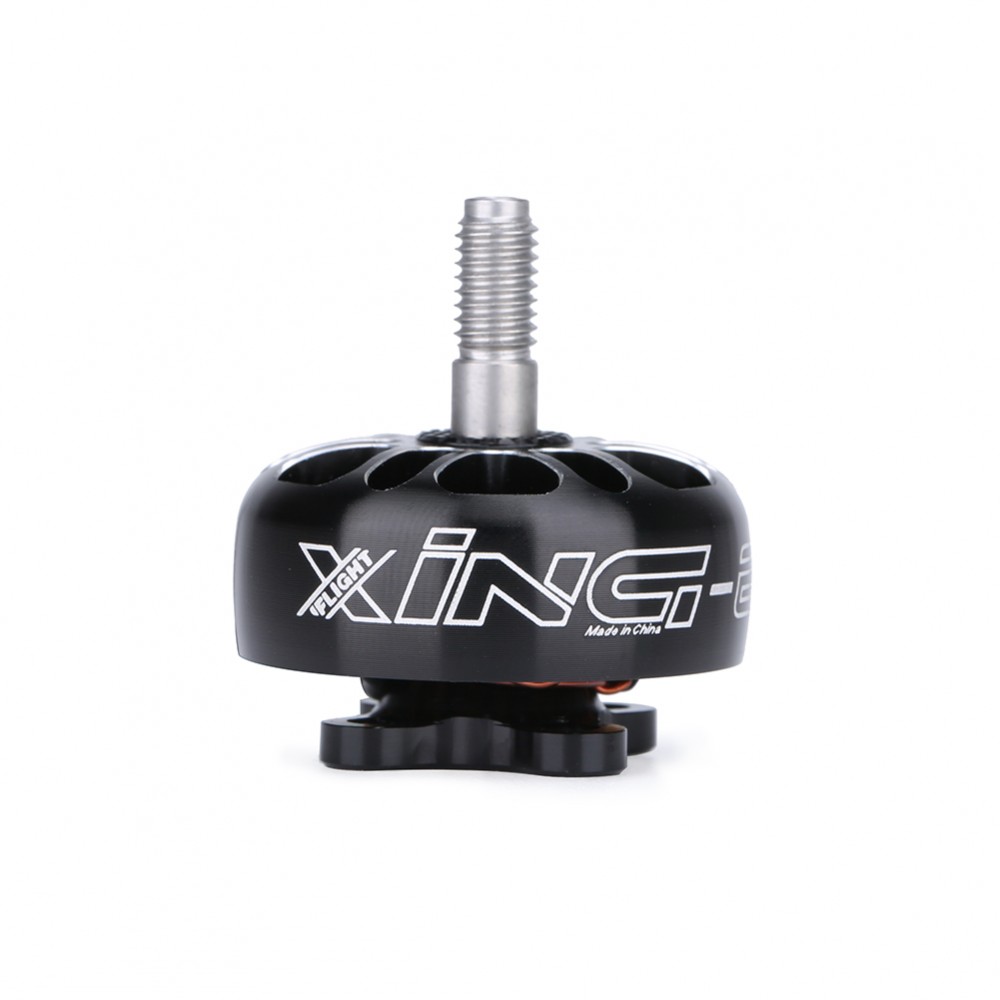

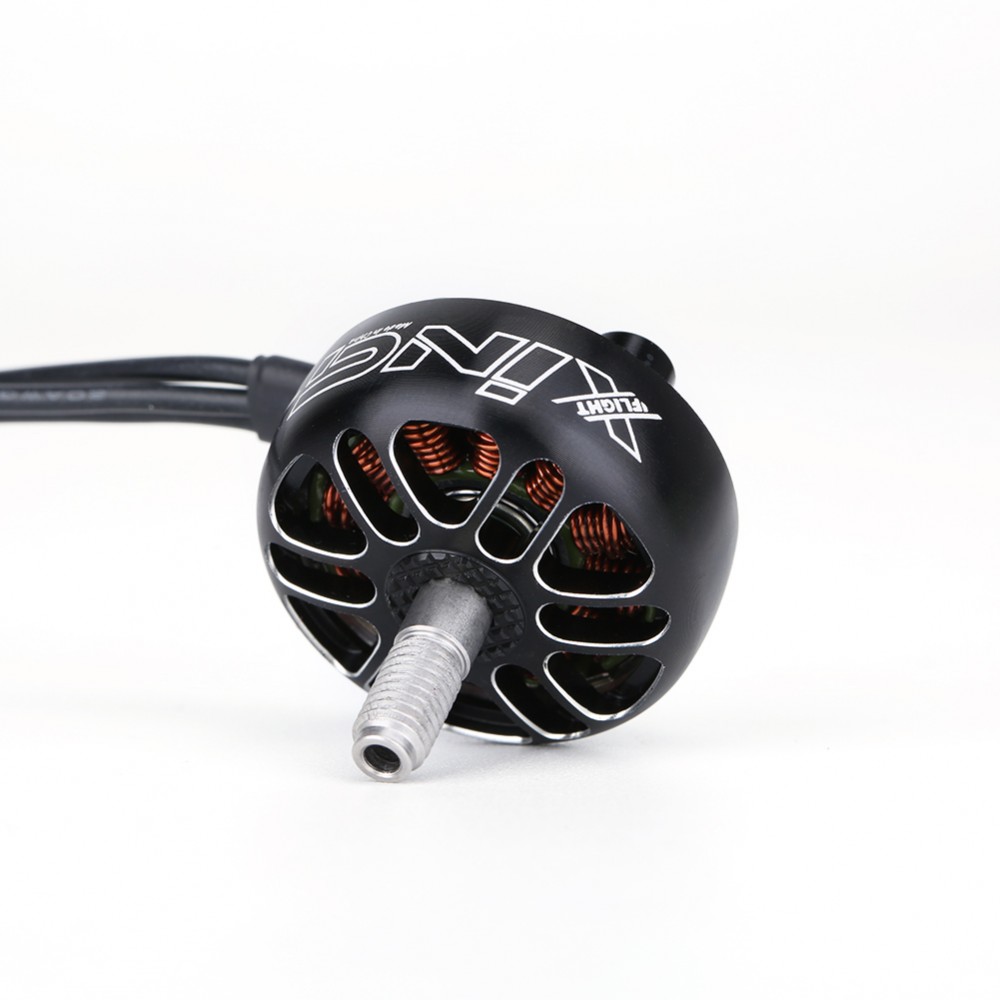

iFlight XING-E Pro 2306 2-6S FPV Motor – 1700Kv/2450Kv

Check out all of our iFlight Products!

XING-E Pro series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance. focus on quality, the XING-E Pro series affordable motors that are strong and durable.

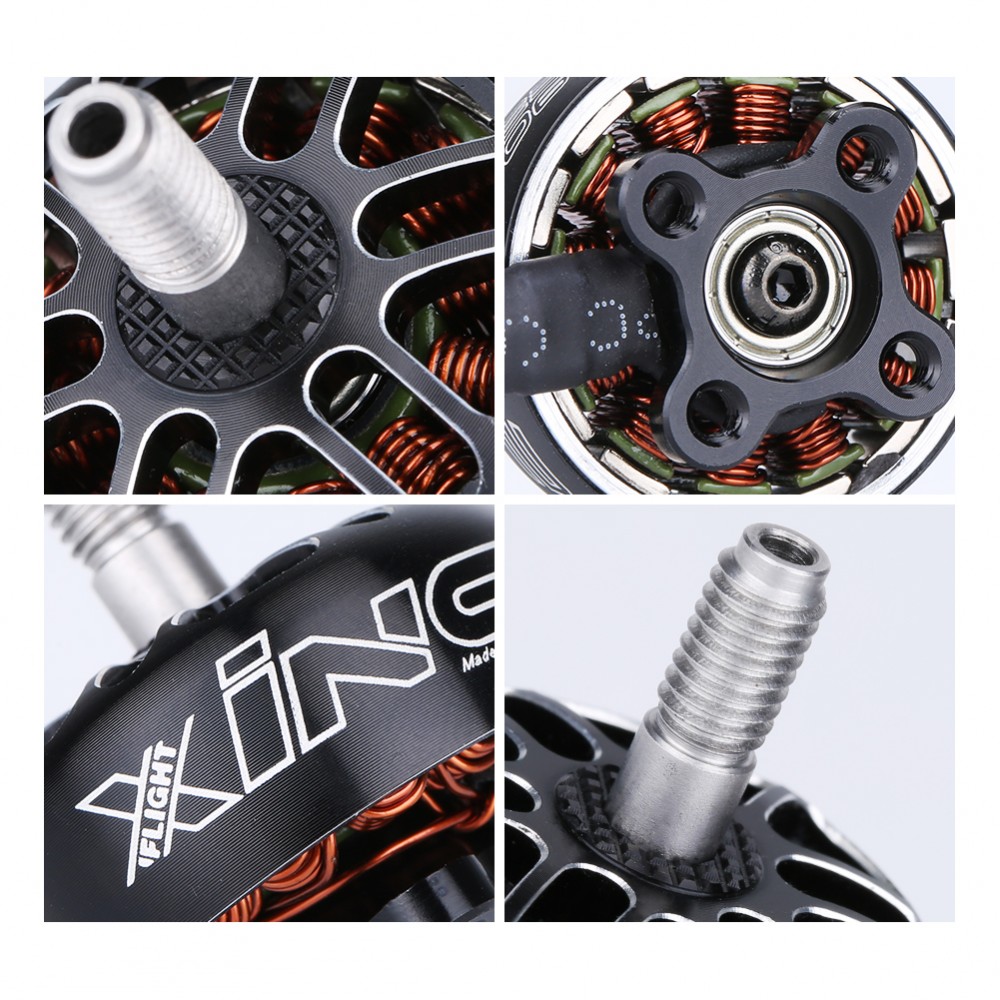

This 2306 sized motor features a high-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.

Features:

-High-strength 4mm Steel shaft

-N52SH High-temperature magnets, NSK bearings

-16x16mm hole pattern

-Single strand copper winding

-6061 CNC machined aluminum top and base parts

-Hex bolt shaft set screw

Specifications:

-Configuration: 12N14P

-Stator Diameter: 24mm

-Magnets: N52SH Curved

-Bearing Size: 9x4x4

-Shaft Diameter: 4mm / Steel

-Base Mounting Pattern: 16x16mm M3 Thread

-Motor Dimension:29.5×18.7mm

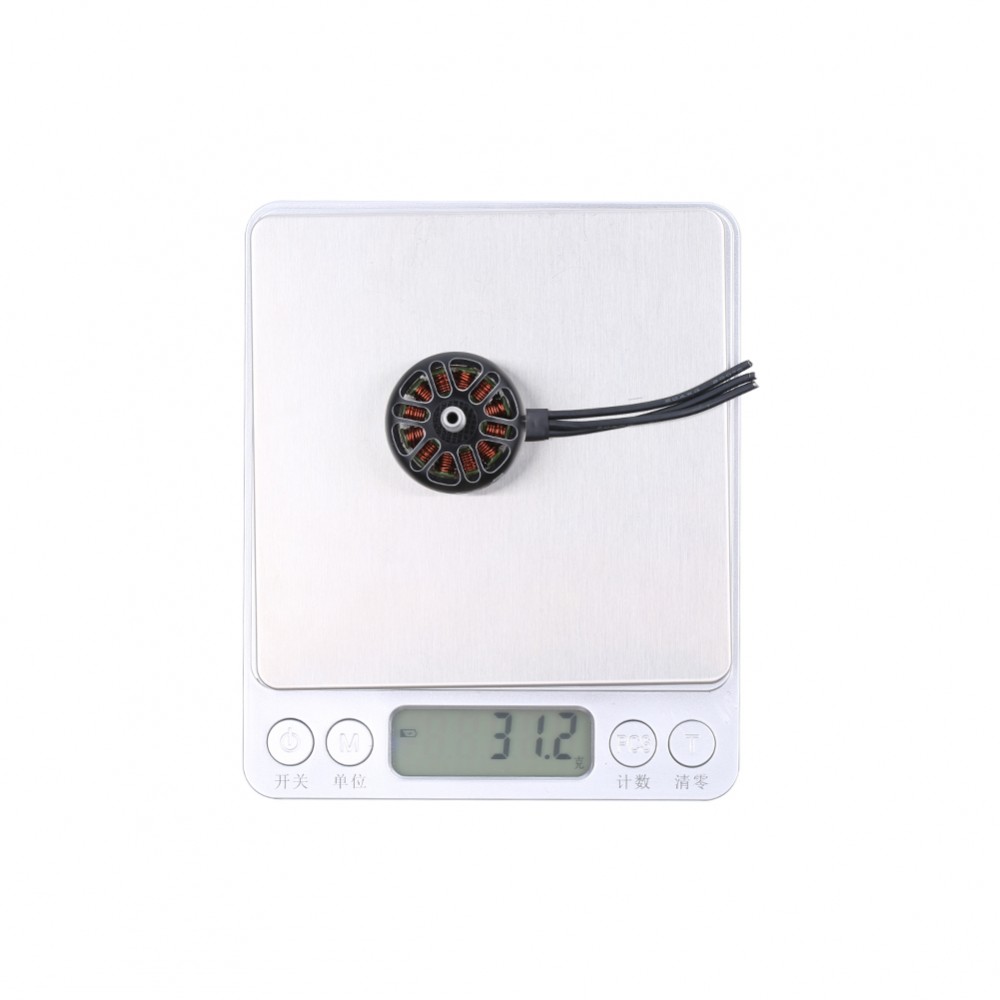

-Weight:33.1g (150mm wires)

-Idle Current @12.6v (Io):2.1A

-Cells (LiPo): 2-6S

-Max Burst Current <10s:55.22A

-Max Power (W) 60s:885.4W

-Internal Resistance (Rm): 40.6mΩ

-Motor Wire Length: 150mm / 20AWG

Package includes:

1pc x MOTOR XING-E Pro 2306  motor
