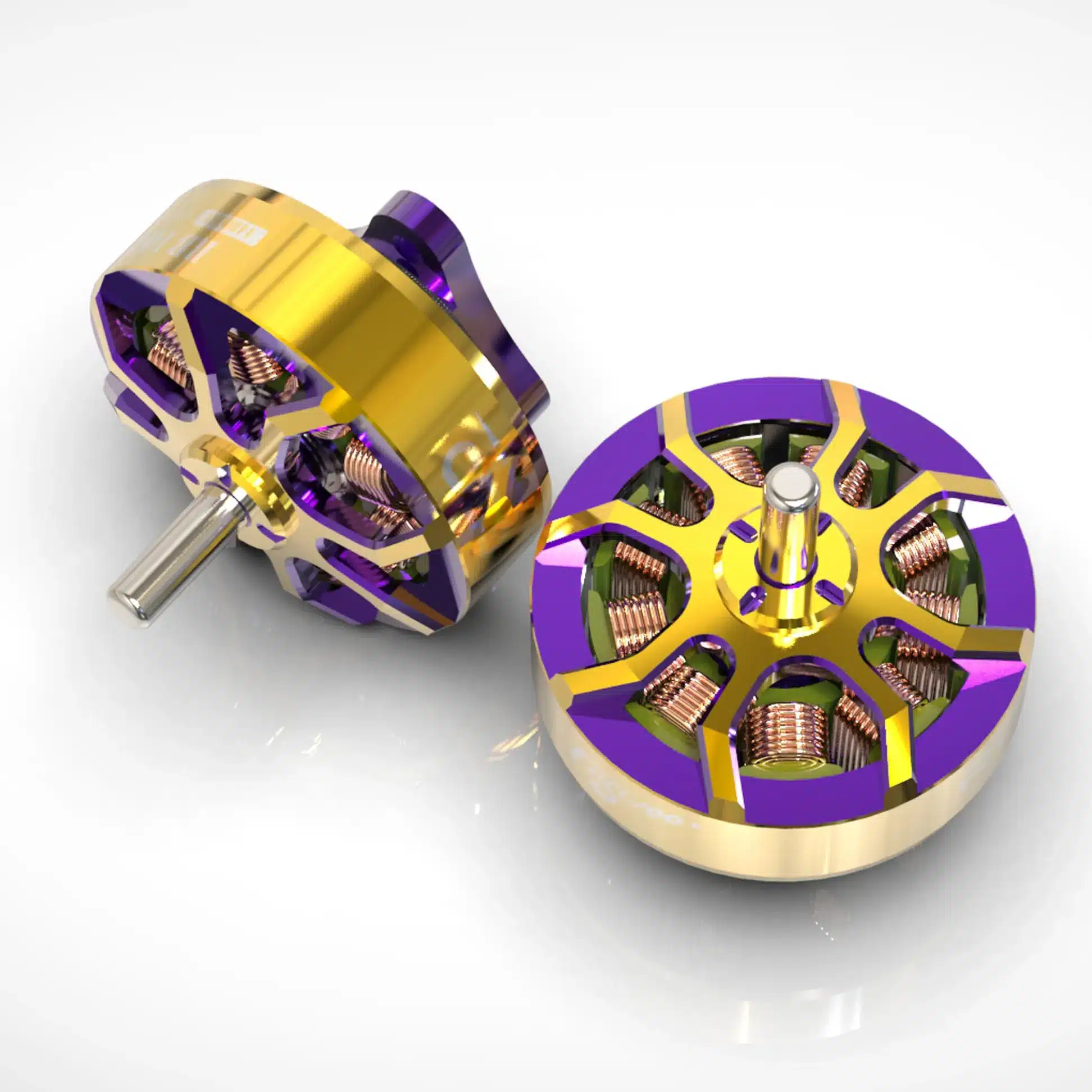

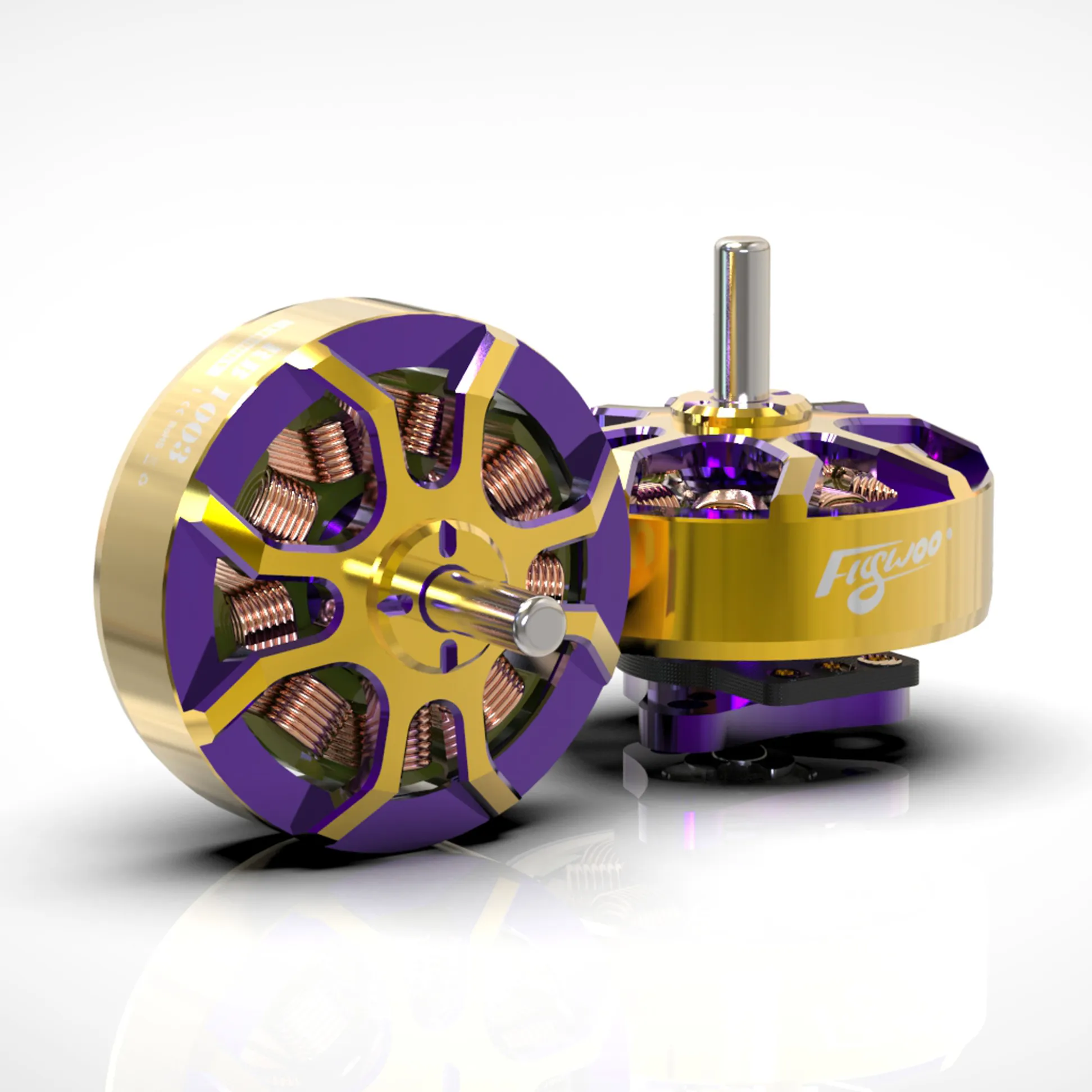

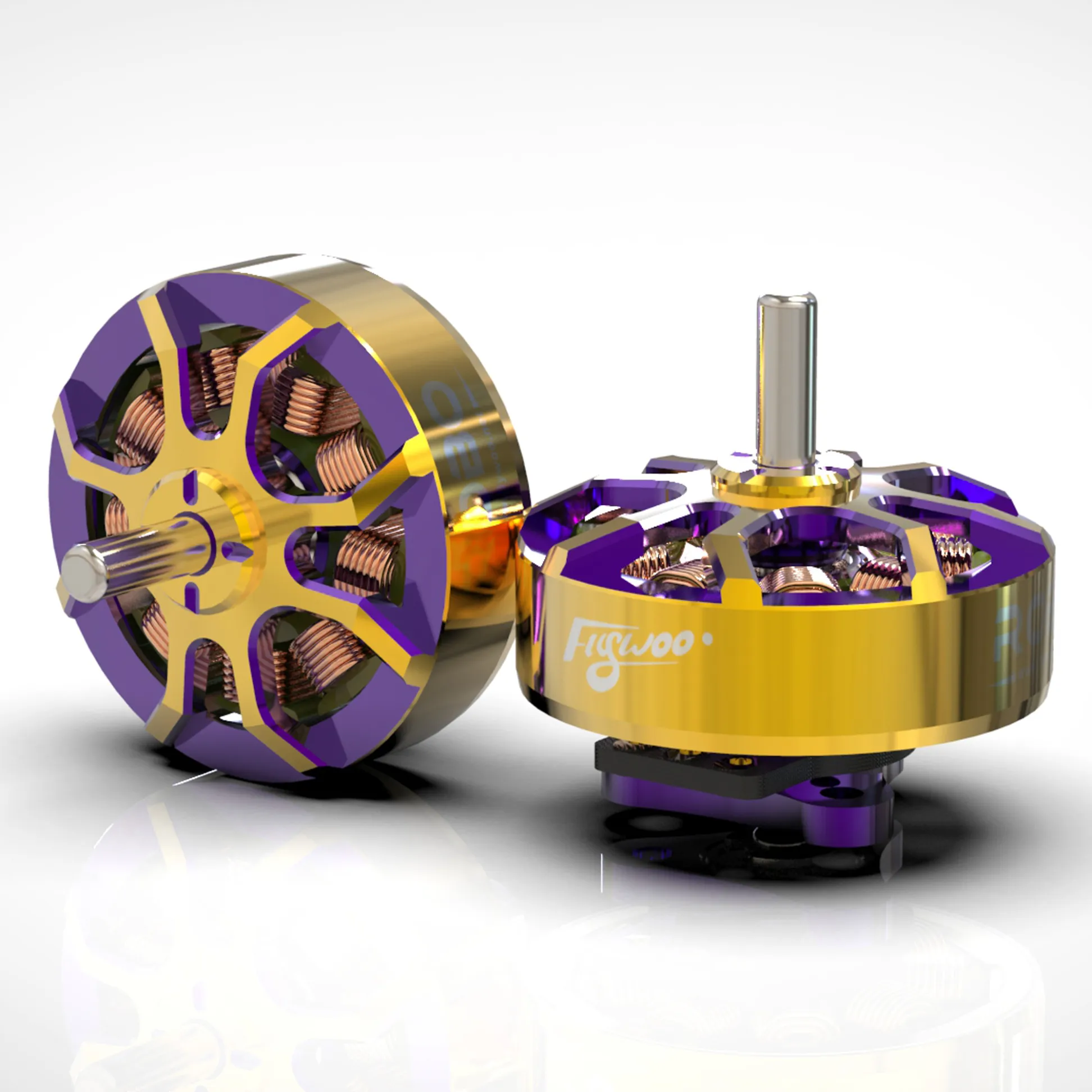

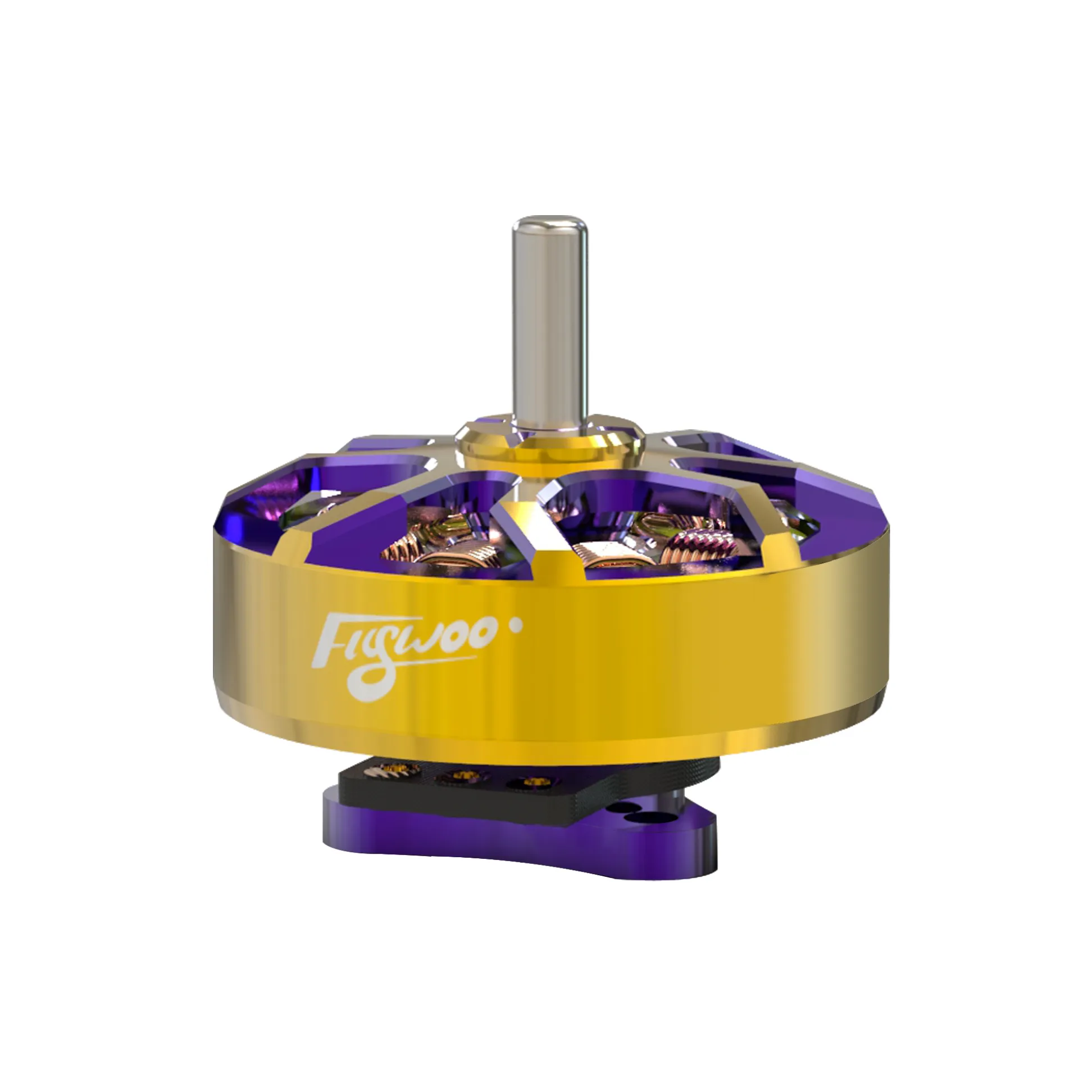

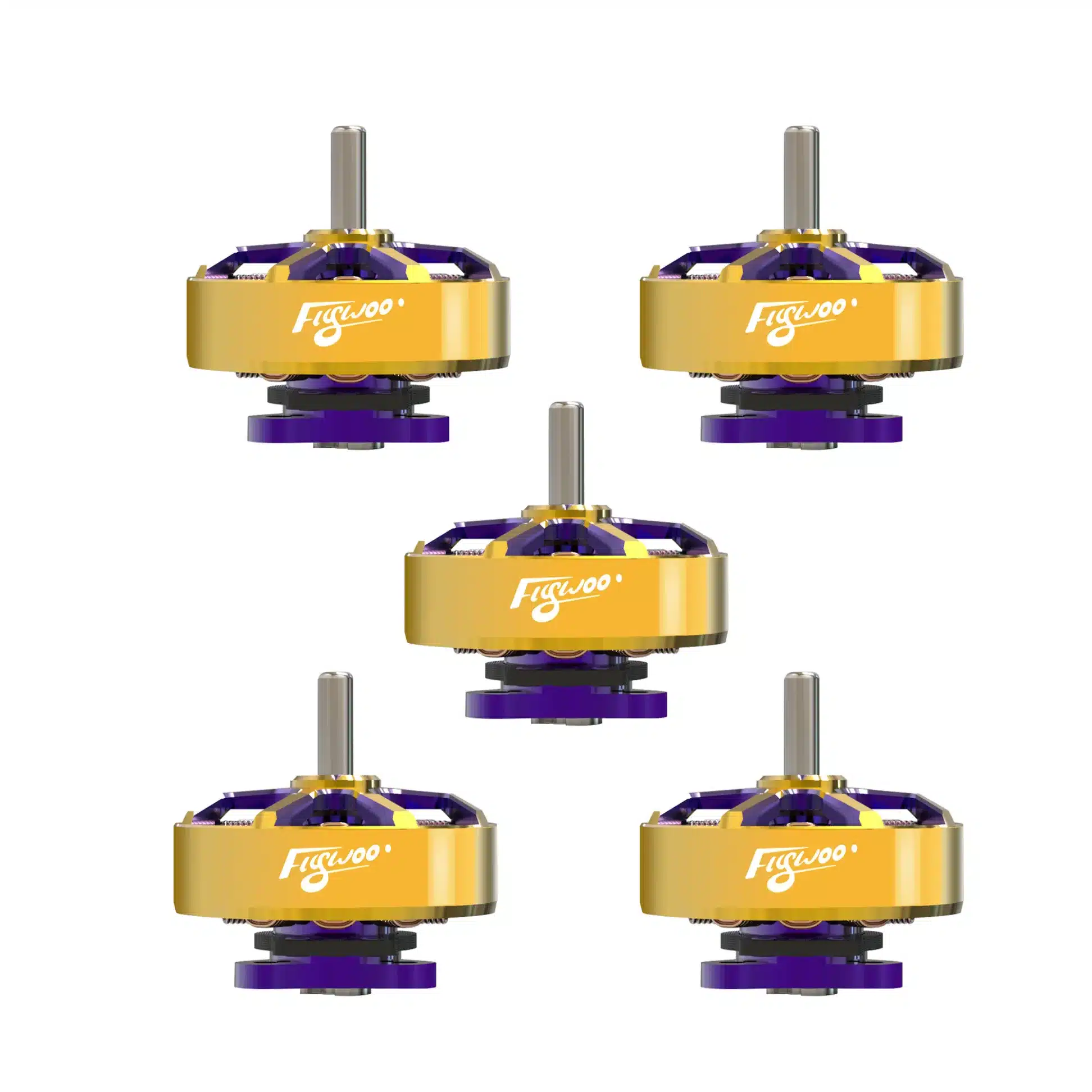

FLYWOO ROBO 1003 14800kv 2s Motor

Check out all of our Flywoo Products!

Specifications:

The FLYWOO RB1003 brushless motor features a dual‑bearing arrangement that keeps the shaft rock‑steady, cutting noise and vibration while boosting efficiency. Machined from 7075 aviation‑grade aluminum and paired with a high‑efficiency magnetic circuit, it delivers a smooth, stable response and impressive power output. At just 3.3 g (with 4 cm wires), it’s finished in dual‑color anodizing and includes solder pads for quick wiring—ideal for Whoop and Toothpick‑style micro drones.

Specifications

• Brand: FLYWOO

• Model: RB1003

• Configuration: 9N12P

• Magnet Type: N52H

• Stator Diameter: 10 mm

• Stator Height: 3 mm

• Output Shaft Diameter: 1.50 mm

• Overall Dimensions: 13.5 mm × 9.2 mm

• Rated Voltage: 1–2 S LiPo

• Mounting Holes: 3 × M1.4 through ø 6.6 mm

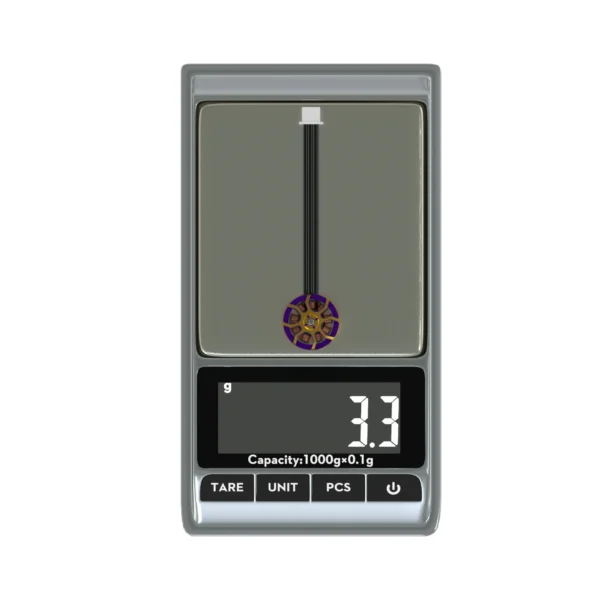

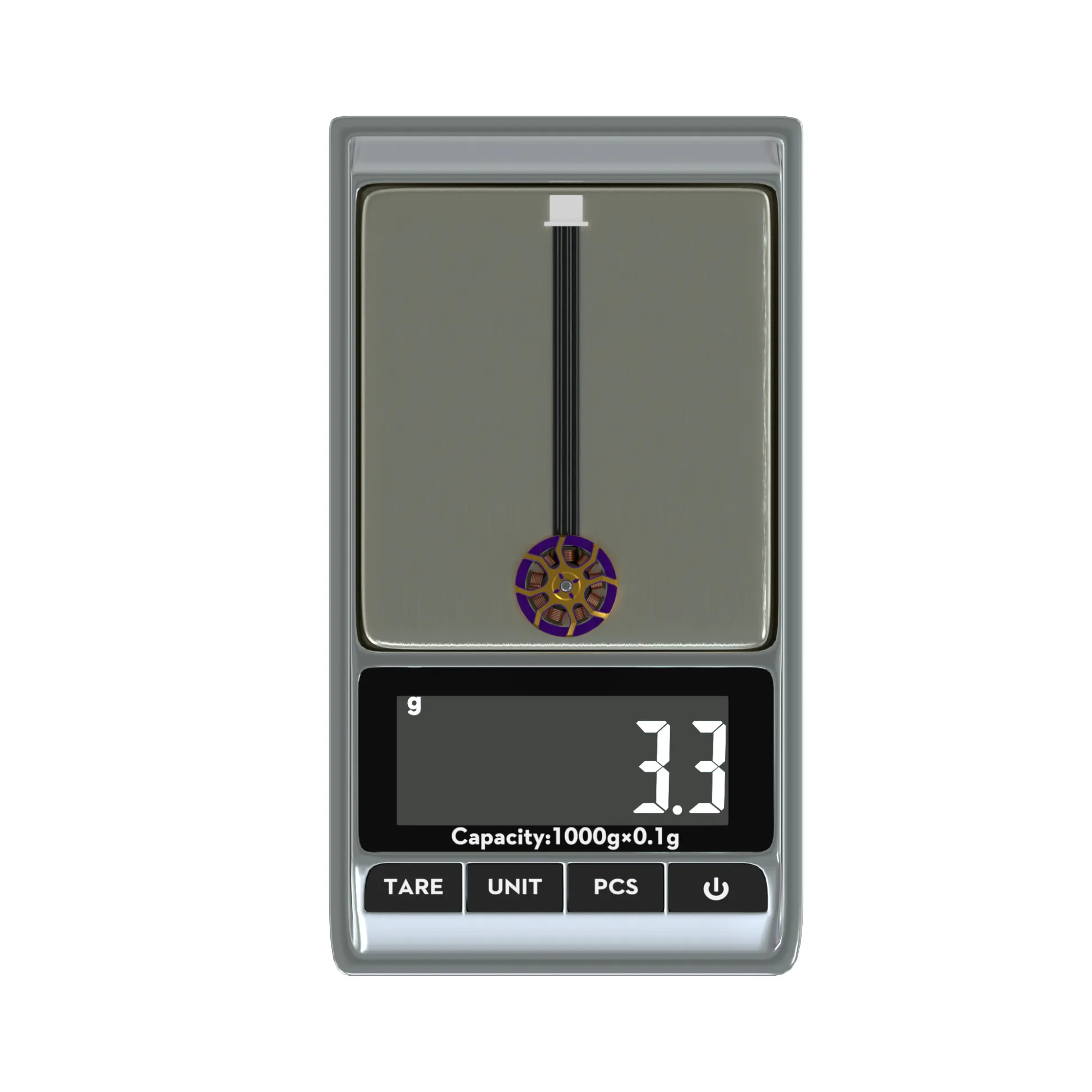

• Weight: 3.3 g (with 4 cm wires)

Key Features

1. Dual‑color anodized finish for durability and style

2. 7075 aviation‑grade aluminum rotor for exceptional strength

3. Custom N52H arc‑shaped magnets for maximum efficiency

4. 200 °C‑rated copper windings for high‑temperature resilience

5. Premium Kawasaki silicon‑steel laminations for optimal performance

6. Dual‑bearing arrangement for pinpoint shaft control and minimal vibration
