It’s been 2 years since we launched the first version of the Moon boot and now it’s time we introduce V2. The new moon boot delivers the same smoothness, quality, and efficiency as the original but with added power when you need it on the high end and control when you need it most on the low end. All this is gained with a larger stator size and two KV options to choose.

Specification

• Stator Size (Diameter): 25mm*7mm
• Kv: 1750kv / 2200kv
• Magnets: N52SH Curved
• Windings: 8turn DLRK
• Shaft Length (mm): 11.5mm
• Shaft Diameter (mm): 4mm
• Shaft material: Steel
• Bearing: NSK684
• Weight (With Wires) (g): 41g
• Cells (Lipo): 6S
• Max Current (A): 45A
• Max Burst Current (A): 60A
• Internal Resistance (Rm): 64mΩ
• Wire Spec (AWG): 20#

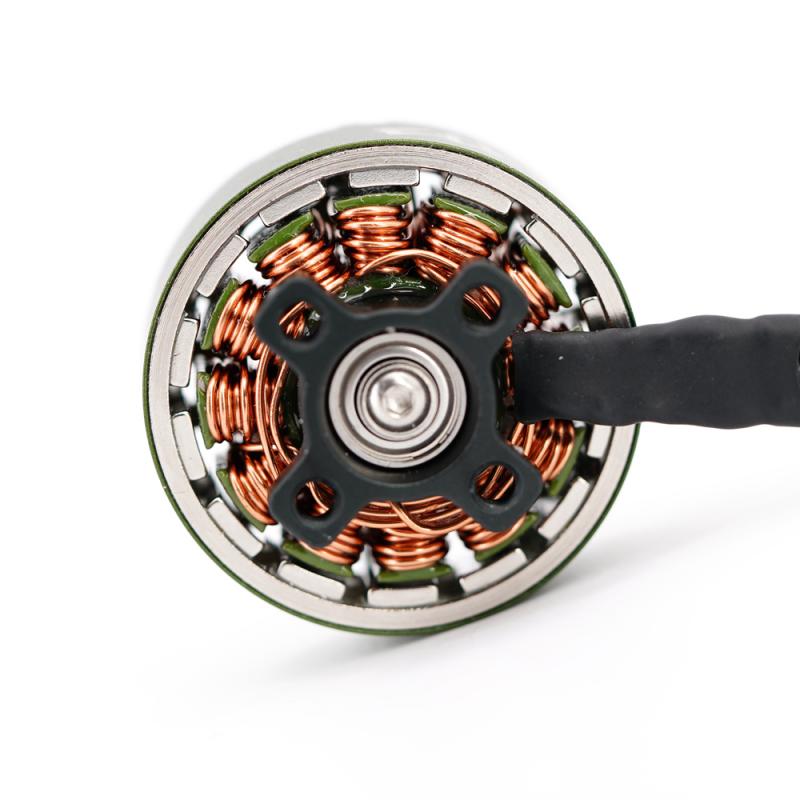

• Base Mounting Pattern: 16x16mm
• Base Mounting Thread: M3 Thread
• Motor Overall Dimensions: φ31.8mm*19.3mm
