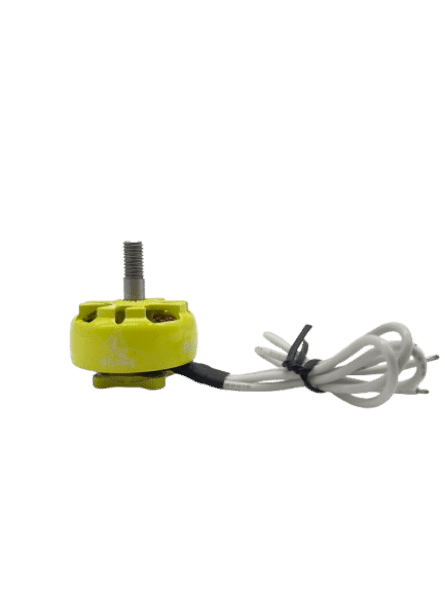

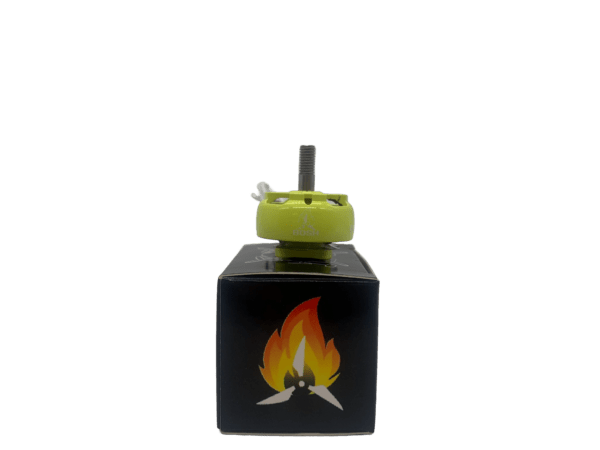

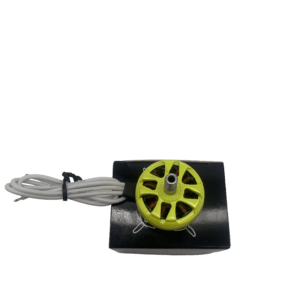

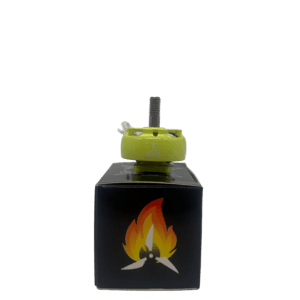

Bosh V3 Durable FPV Drone Motor 2306.5 – (1750kv or 1850kv)
Other Bosh FPV Racing Products

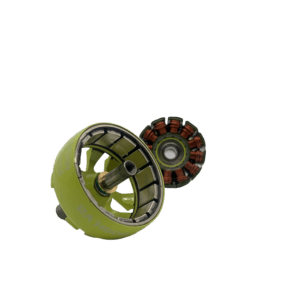

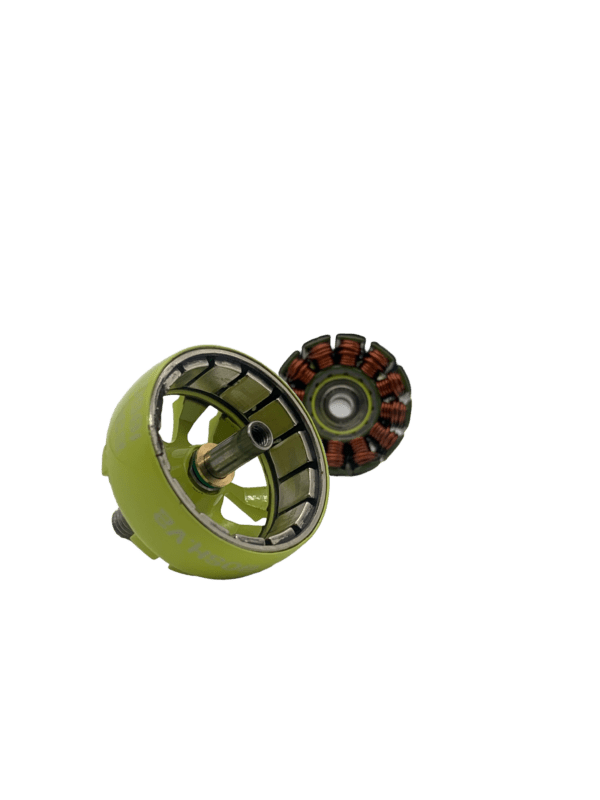

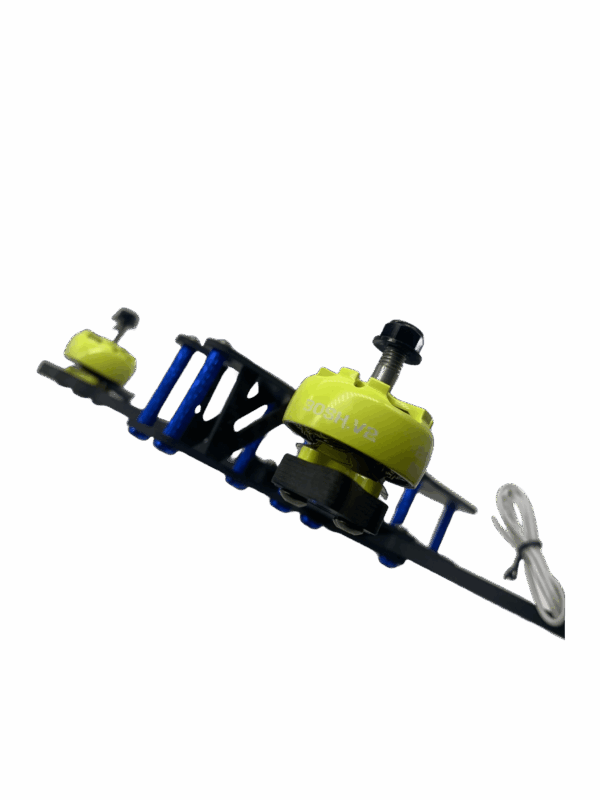

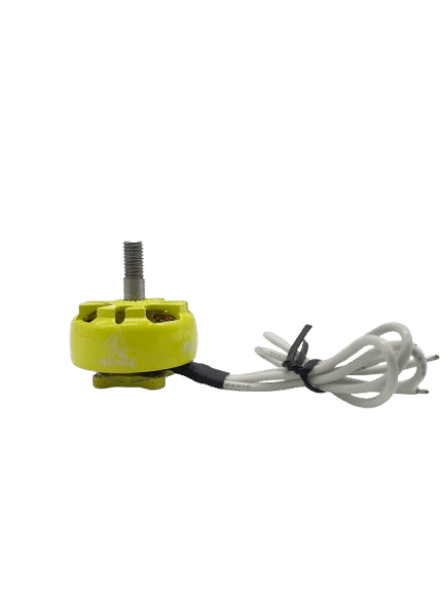

Introducing the all-new Bosh v3 FPV Freestyle Motors, now in a striking radioactive yellow! Engineered for exceptional performance and durability, these motors feature a unique thick spoke design on a unibell configuration. Upgraded with a 4mm shaft diameter, NSK693 bearings, and plastic protection for motor mounting screws, the Bosh v3 is built to last. The powerful 2306.5 bell ensures the perfect balance of power and agility, while the motor’s lightweight design, weighing just 34g, delivers a responsive flight experience. Choose between the 1850KV variant for the perfect freestyle flow—delivering smooth, controlled power without being too aggressive—or the 1750KV version for effortless cruising and extended flight times. Designed for the toughest freestyle sessions or relaxed flying, the Bosh v3 is your ultimate choice for reliable and high-performance flying.
SPECIFICATIONS
- KV: 1750Kv, 1850Kv (Choose your favorite, or try them all!)
- Configuration: 12N14P
- Shaft Diameter: 4.0mm
- No. of Cells: 6s
- Prop Shaft: M5
- Motor Wires: 20AWG (Thicker and better), 145mm length
- Prop Size: 4 – 6 Inch
- Weight: 34g
- Motor Size: 2306.5
- Magnets: N50H Arc
- Stator: 0.2mm Silicone Steel Sheet
INCLUDES
- 1 x Bosh V3 Motor in 1750Kv or 1850Kv (Pick your Kv)
- 1 x M5 Nylock Propeller Nut
- 4 x M3 x 2.5mm Full Head Cap Head Mounting Screws
