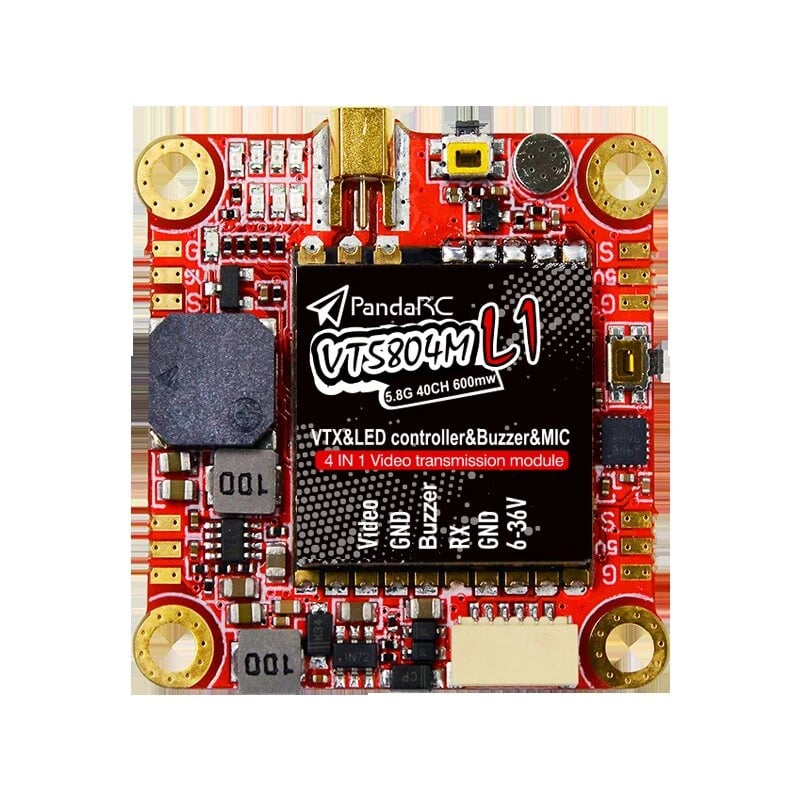

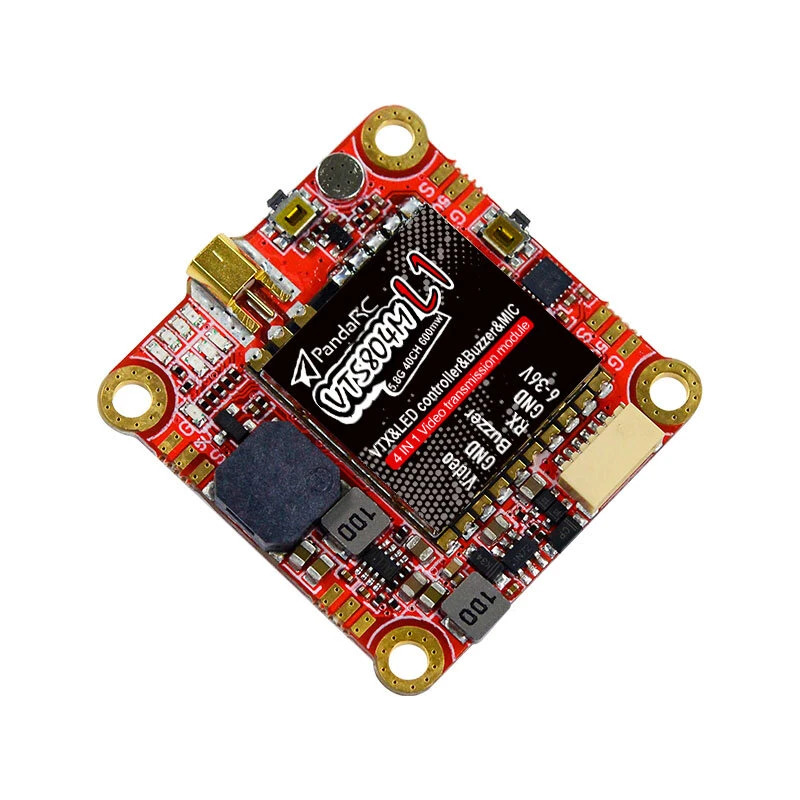

PandaRC VT5804M L1 5.8G 25/100/200/400/600mW VTX FPV Transmitter
Check out all of our PandaRC Products
Specification:
Input Voltage: 6~ 36V;
Frequency: 5.8Ghz 40CH , including AVB/E/F/R groups,
R group is the race band
Output power : PIT/25mW/100mW/200mW/400mW/600mW
Connect: MMCX ;
Video Format: NTSC/PAL ;
Radio Frequency Output Impedance: 75 Ohm ;
Power consumption: 3.5W@600mW
Smart Audio : IRC-Tramp ;
LED controller specification
Each Drone arm can hold Max 8 LEDs ;
16 LEDs states can be controlled by one button ;
Default: dosed(Each Drone Am led can be controlled by FC )
Build-in Buzzer (85dB)
Build in Microphone
Weight: 10g(including the MMCX antenna) ;
Size : 36.5×36.5x5mm (mounting hole :30.5×30.5mm)

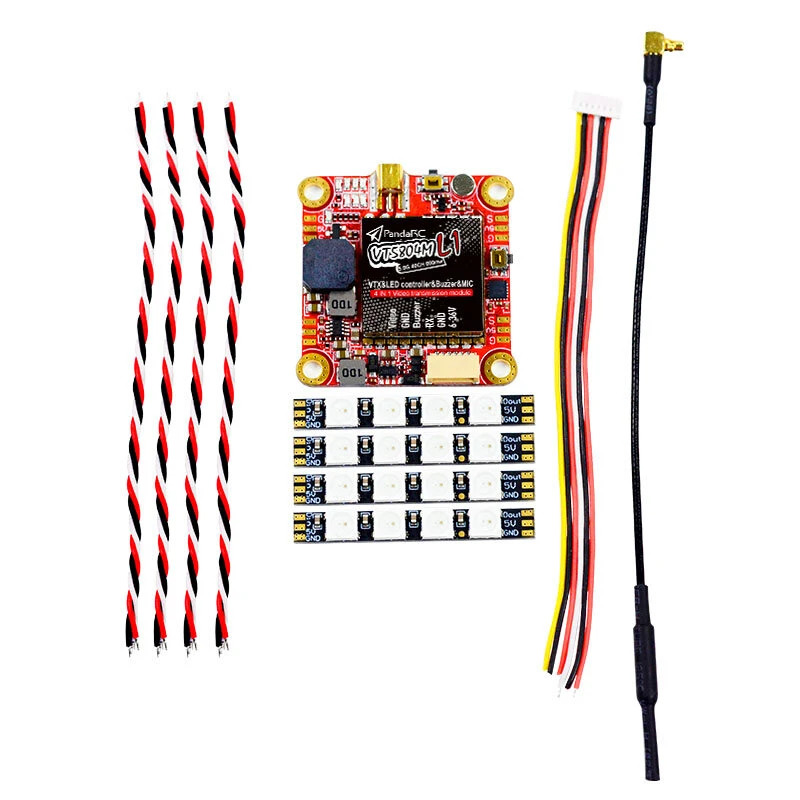

Package included:
1 xVT5804 ML 1
4xLED bar
4 x 100mm LED Cable
1×5.8 GHz Antenna
1x 6 PIN 100mm cable
