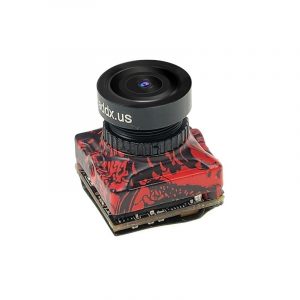

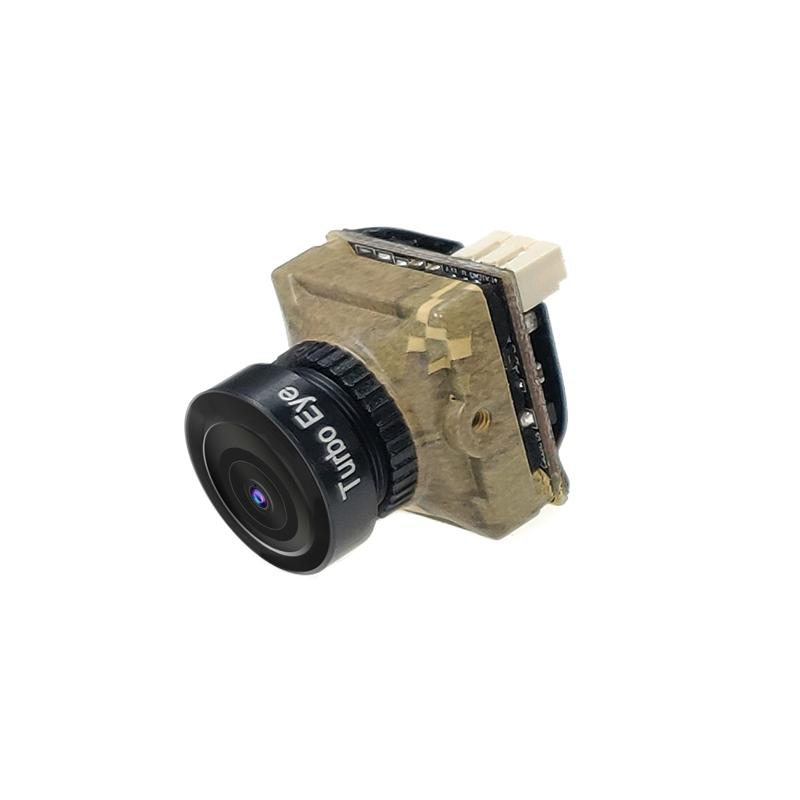

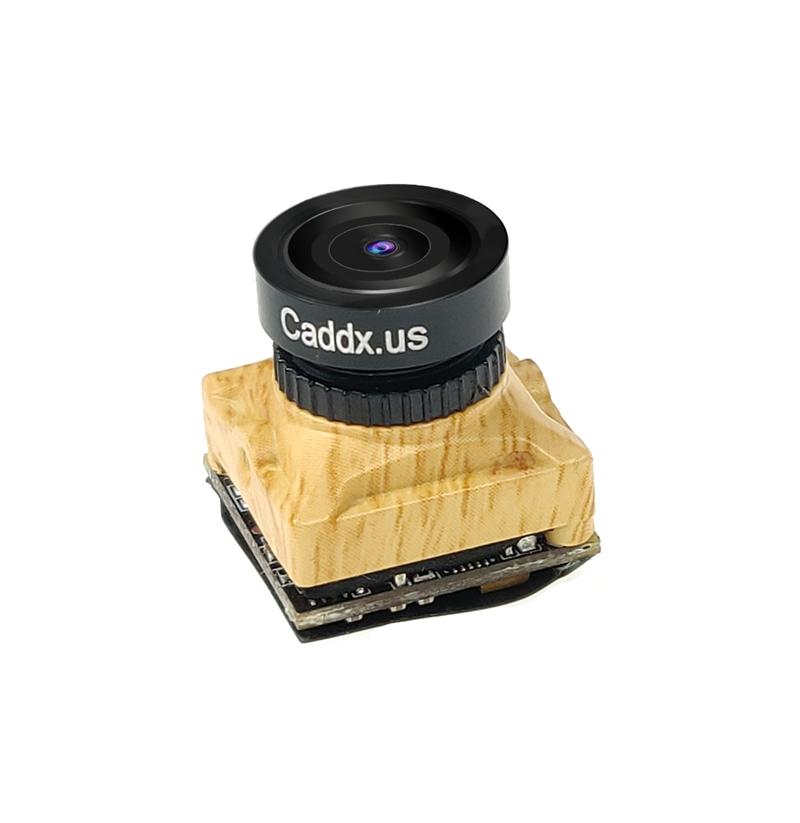

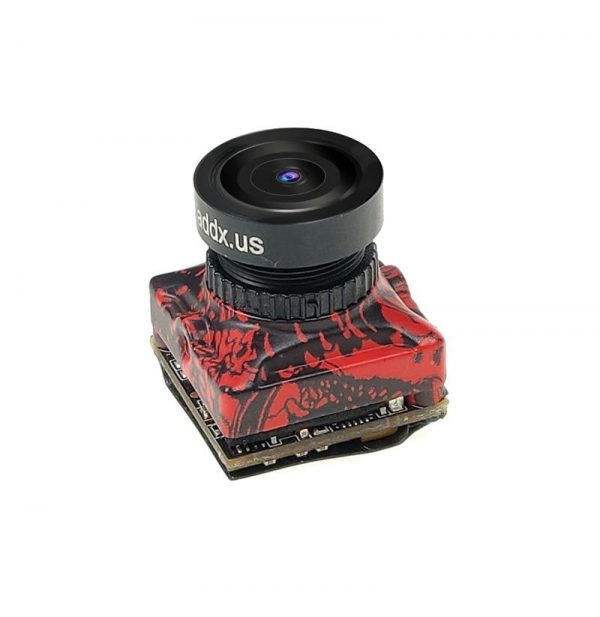

Caddx Turbo Micro SDR2 Plus (Race)
Check out all of our Caddx Products!

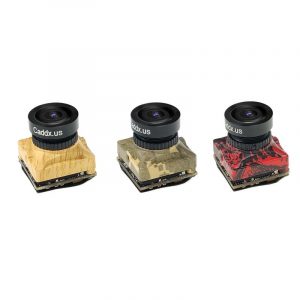

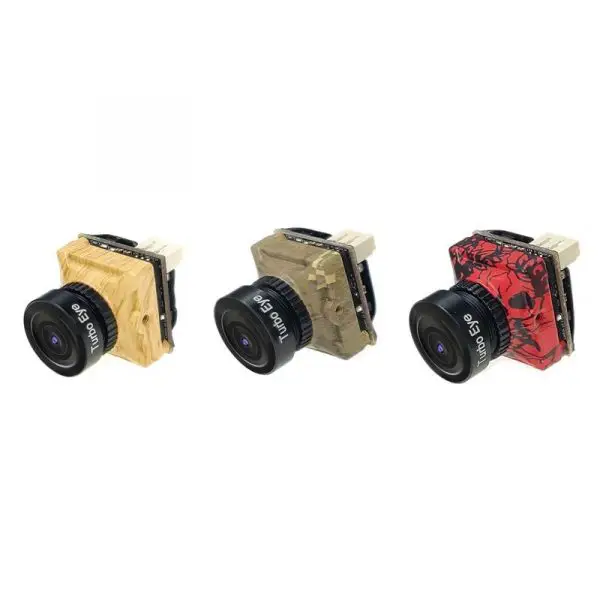

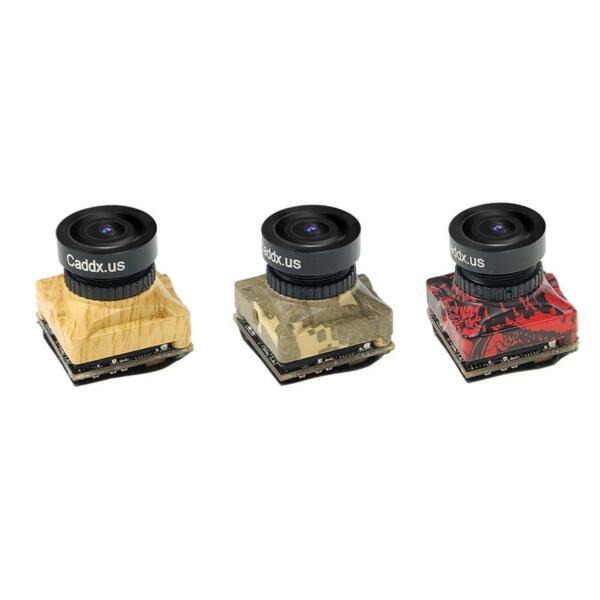

Spice up your FPV drone with these unique colors for FPV Cameras on the Caddx Turbo Micro SDR2 Plus Race Edition. Featuring an extremely low latency system so that you can react fast for drone racing.
Specifications:
| Model | Turbo micro SDR2 plus (Race version)
No jello, Extremely low latency |
| Image Sensor | SONY STARVIS sensor |
| Horizontal Resolution | 1000TVL |
| TV System | NTSC & PAL Â (changeable) |
| IMAGE | 16:9 & 4:3 Â (changeable) |
| WDR | Super WDRÂ (Double Scan) |
| Min. Illumination | 0.0001Lux@F1.8 Â (Starlight) |
| Lens | Full-Size Turbo Eye Lens |
| Synchronization | Internal |
| Electronic Shutter | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
| S/N Ratio | >60dB (AGC OFF) |
| Flip / Mirror | Support |
| Video Output | CVBS |
| Camera OSD | Voltage/time/horizontal line/title |
| DNR | 3-DNR |
| LANGUAGE | ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN |
| Day/Night | Auto/Color/B&W/EXT |
| Dimensions | 19mm*19mm*17mm |
| Wide Power Input | DC 5-40V |
| Work Temperature | -20℃~+60℃ |
| Work Humidity | 20%~80% |
| Weight | 6.4g (N.W.)/ 41.8g (G.W.) |
Includes:
1 x Camera
1 x Aluminum bracket
1 x 5D-OSD menu board
1 x 4pin FPV silicone cable AÂ (extend into a 2pin joint for OSD board and a 3pin joint for FPV)
1 x FPV silicone cable BÂ (2-pin port for both sides)
1 x Internal hexagonal wrench
1 x Screws set
