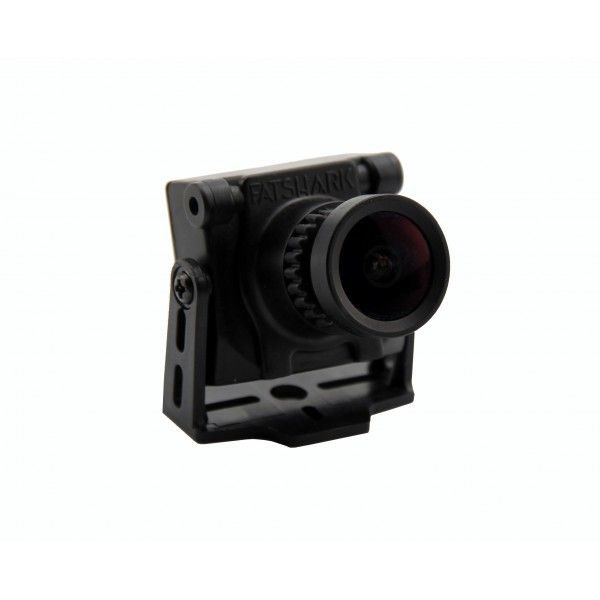

FatShark Mojo Camera 600TVL CCD FPV Camera
Check out all of our FatShark Products!
The 600TVL FatShark Mojo Eye CCD FPV camera adds new digital signal processing technology (DSP) to the Racecam line of Fat Shark cameras. The result is superior light handling in a reliable, tried, and trusted form factor. Expect better transitions from light to dark, better exposure when dealing with mixed sunny and shady images, and a strong foundation on which the system is built.
Note that the Mojo is NTSC.
Other features include:
- Ultra-low latency in line with industry peers
- 2.9mm, 148 degrees Field of View wide angle race lens
- Integrated OSD with navigable settings for customized performance
- Industry-compatible pivot mounts for a wide range of quad configurations
- Hot swap capability with the Immersion RC Vortex 230 Mojo quad

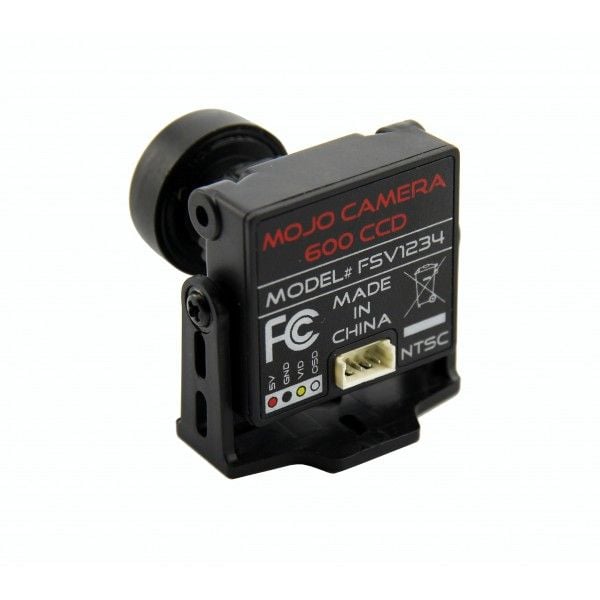

- NTSC (FSV1234) support
Camera Specs
- Mechanical: 25x27x12(lens) mm, 13.5g (plastic cased) + 5g/9g cable
- Maximum gain: 0-18
- Operating voltage: 3.5-6.5V
- Power: 110mA @ 5V
- Operating Temp: -10 to 60C
- Imager: 1/3″ Sony super HAD CCD
- Resolution: 600 TVL
- Lens FOV: 148 degrees
