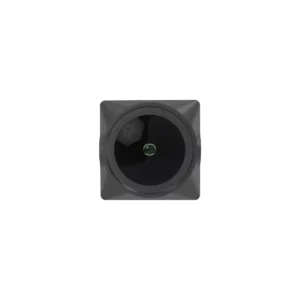

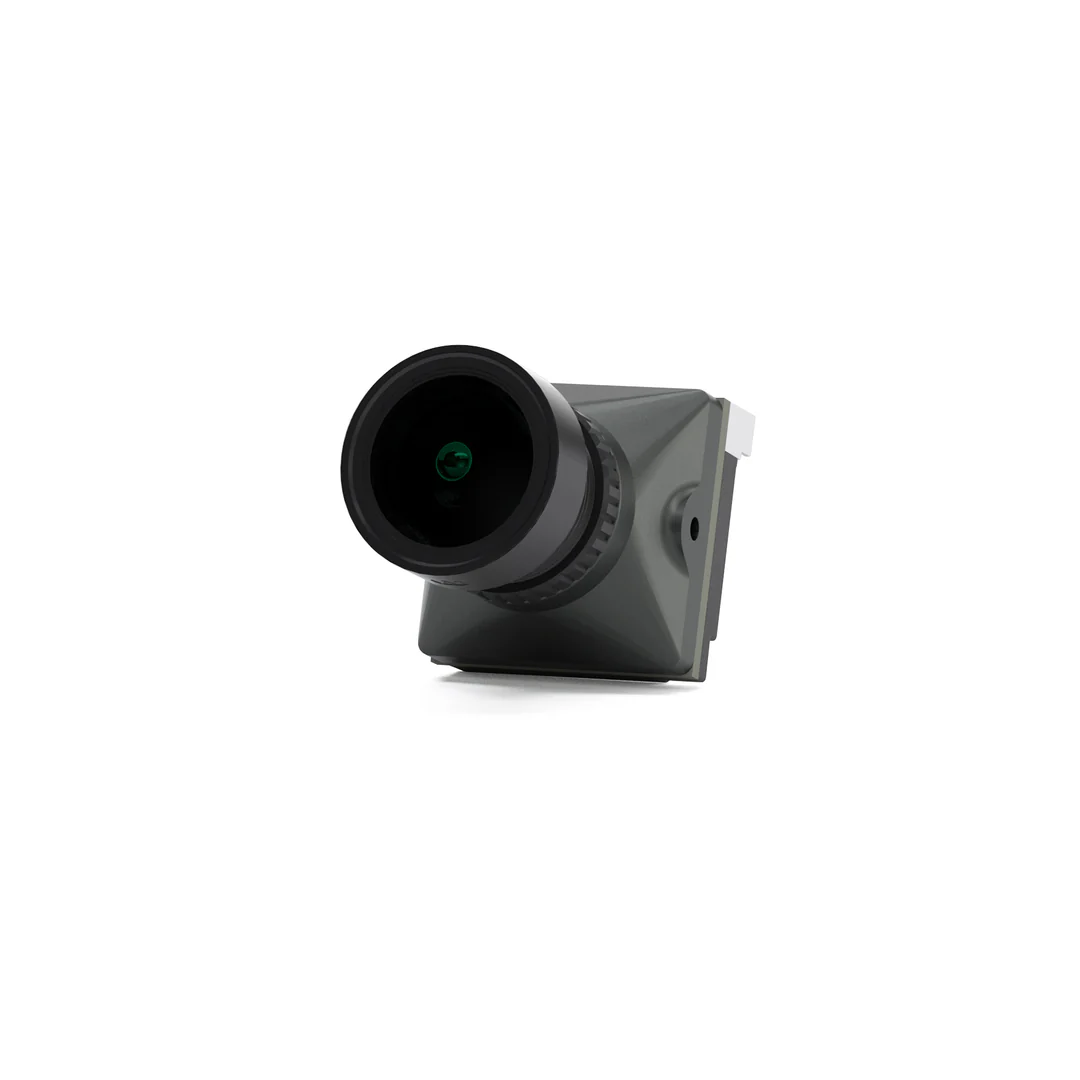

Caddx Ratel Pro Analog Camera
Check out all of our CaddxFPV Products, and all of our FPV Cameras!
features:
●Day and night | ●Blacklight |
●1500TVL | ●Super WDR |
●4.5V-27V | ●FOV125° |
Bullet Points:

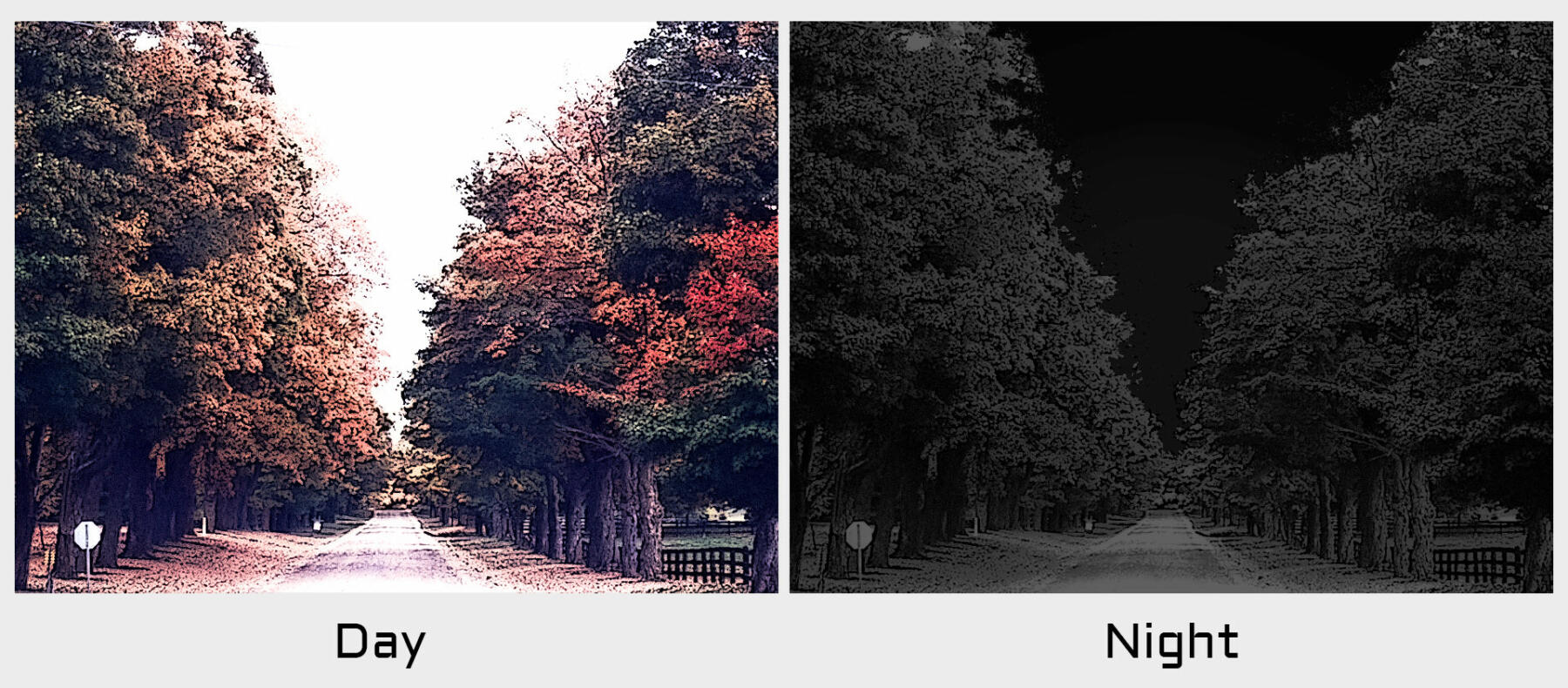

Featuring a blacklight technology, Ratel Pro displays real color images during the day and displays to black-and-white visuals at night, ensuring optimal visual performance in diverse lighting conditions.
![Caddx Ratel Pro Analog Camera 10 Caddx Ratel Pro Analog Camera 9 - Caddx](https://www.myfpvstore.com/wp-content/uploads/2024/06/img_66621d2a3b6df-1800x790.jpg)

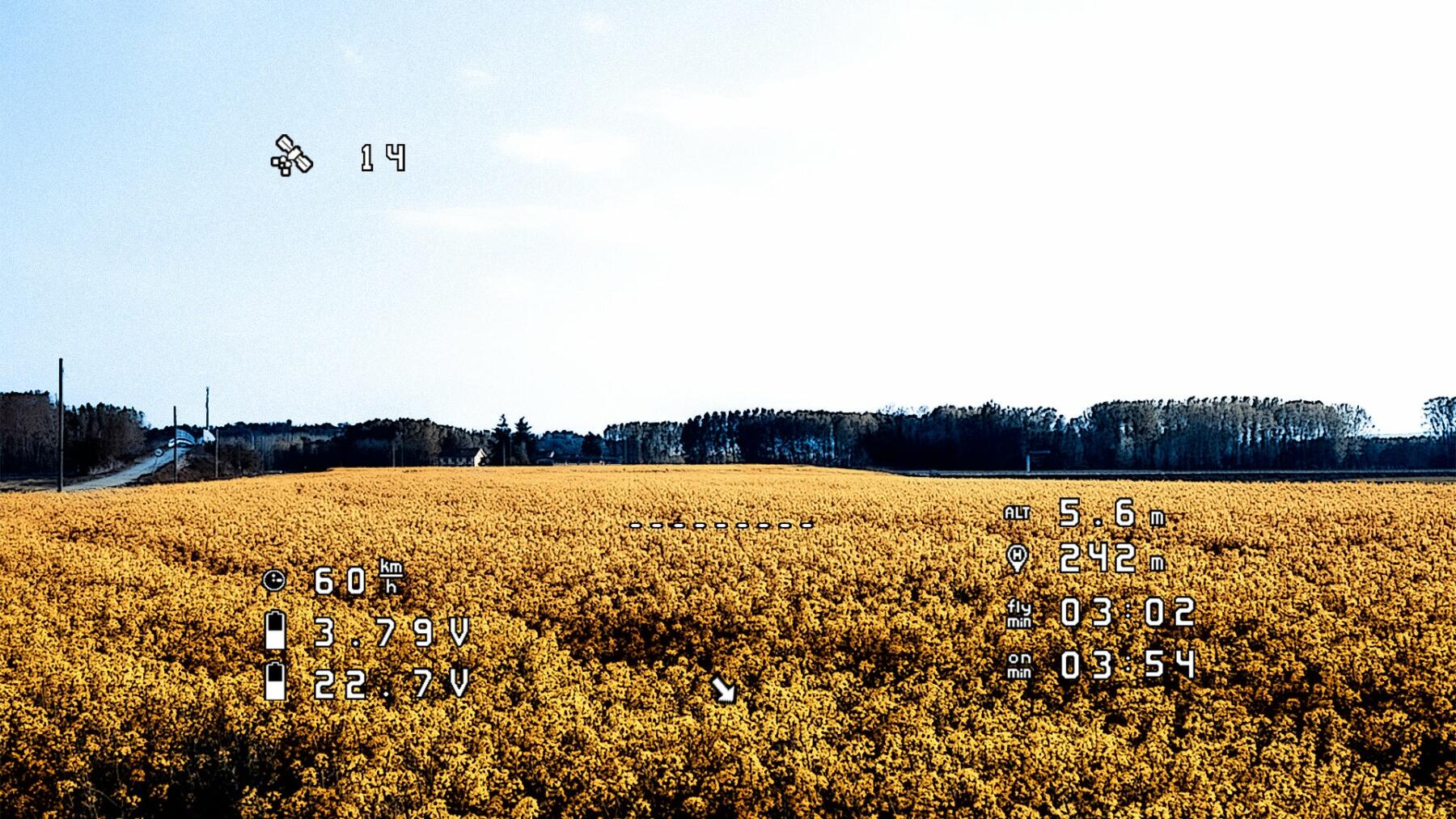

Ratel Pro delivers excellent daytime clarity, setting new standards in visual excellence within the analog camera domain.
![Caddx Ratel Pro Analog Camera 11 Caddx Ratel Pro Analog Camera 10 - Caddx](https://www.myfpvstore.com/wp-content/uploads/2024/06/img_66621d2fb0326-1800x1013.jpg)

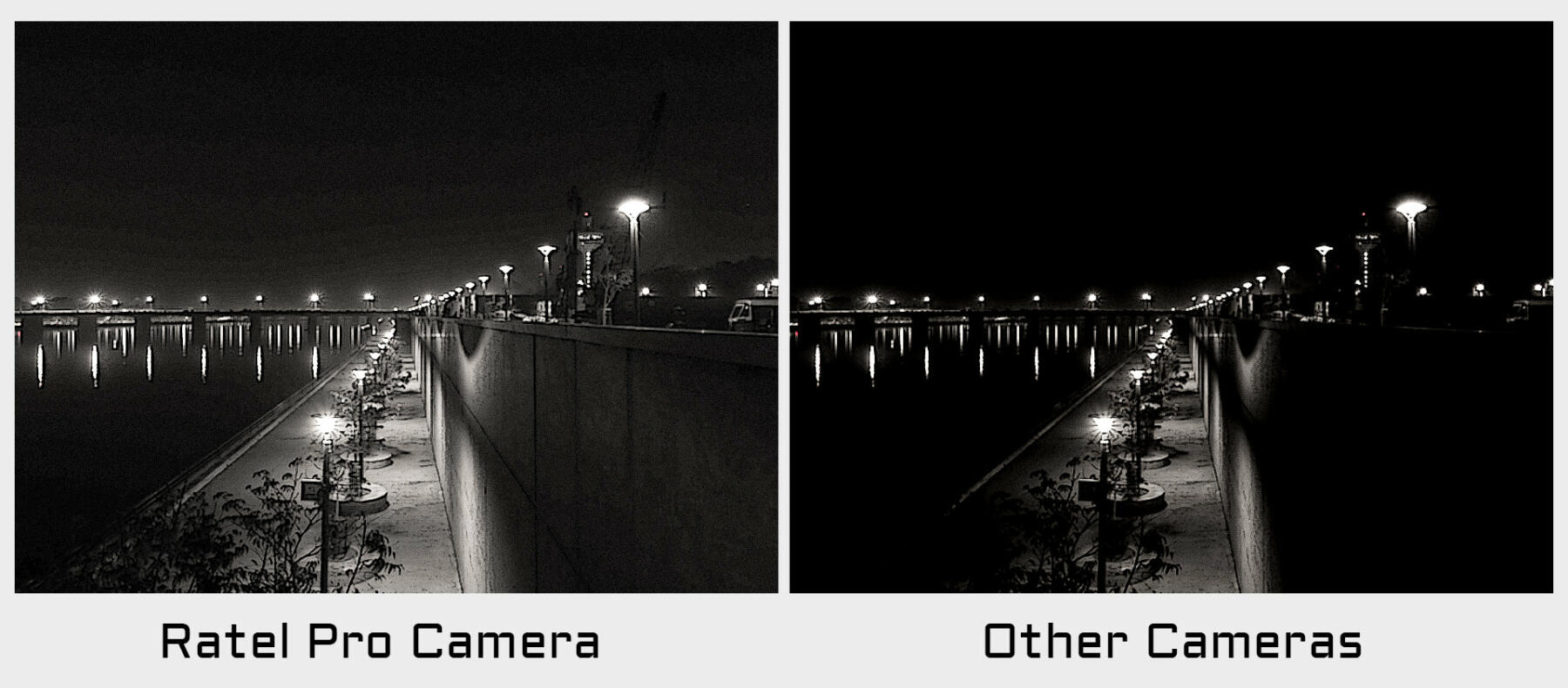

Using BSI 1/1.8INCH large sensor and enhanced algorithm, the illumination is doubled compared to ordinary night vision cameras. Even in low-light conditions, Ratel Pro achieves outstanding night vision, providing clear and reliable imagery for uncompromised visibility.
![Caddx Ratel Pro Analog Camera 12 Caddx Ratel Pro Analog Camera 11 - Caddx](https://www.myfpvstore.com/wp-content/uploads/2024/06/img_66621d351a7fd-1800x790.jpg)

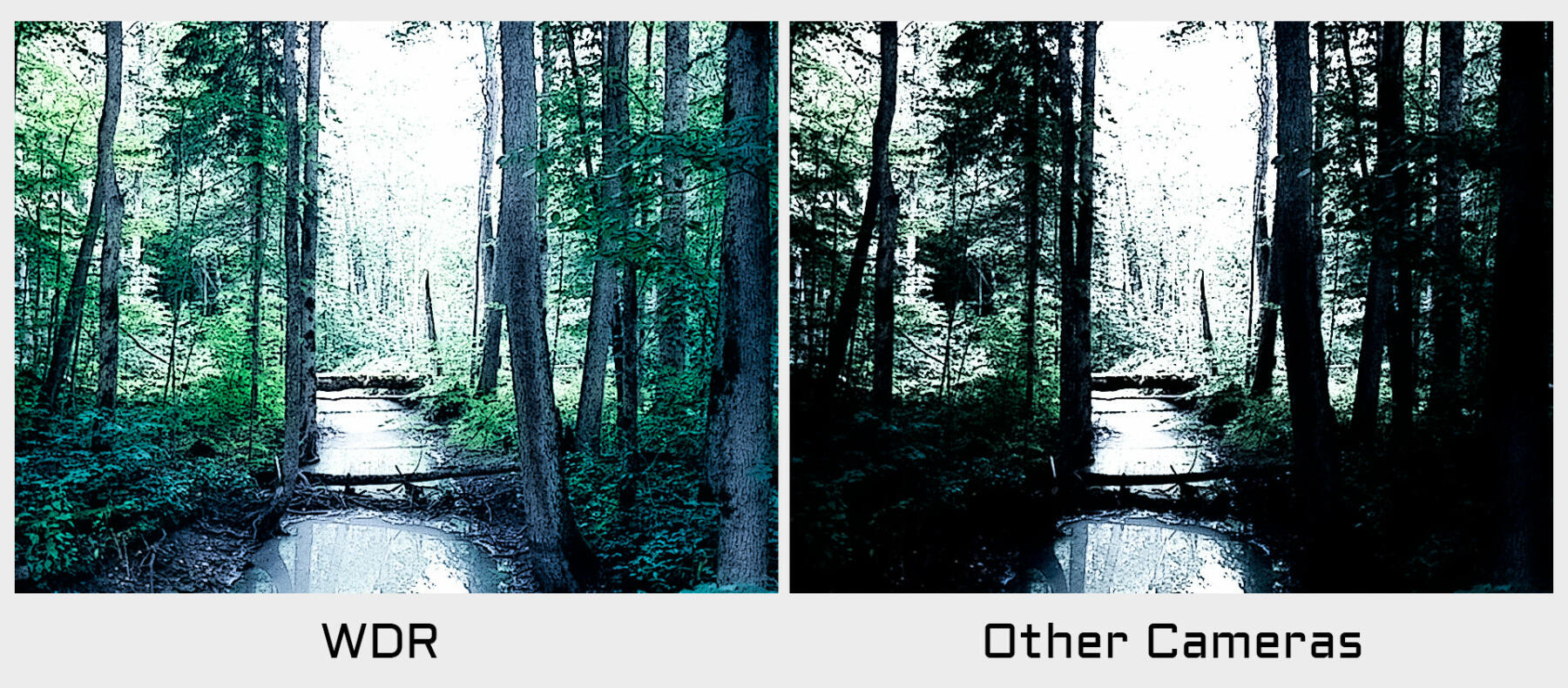

Supports WDR, bounteously satisfying the pursuit of detailed shooting whether in bright or dark environments.
![Caddx Ratel Pro Analog Camera 13 Caddx Ratel Pro Analog Camera 12 - Caddx](https://www.myfpvstore.com/wp-content/uploads/2024/06/img_66621d398dde0-1800x790.jpg)
![Caddx Ratel Pro Analog Camera 14 Caddx Ratel Pro Analog Camera 13 - Caddx](https://www.myfpvstore.com/wp-content/uploads/2024/06/img_66621d3ec4612-1800x683.jpg)
Designed with 125° FOV, Ratel Pro offers pilots a natural visual experience during flight, restoring the authenticity of the scenes.
![Caddx Ratel Pro Analog Camera 15 Caddx Ratel Pro Analog Camera 14 - Caddx](https://www.myfpvstore.com/wp-content/uploads/2024/06/img_66621d432698d-1800x1013.jpg)

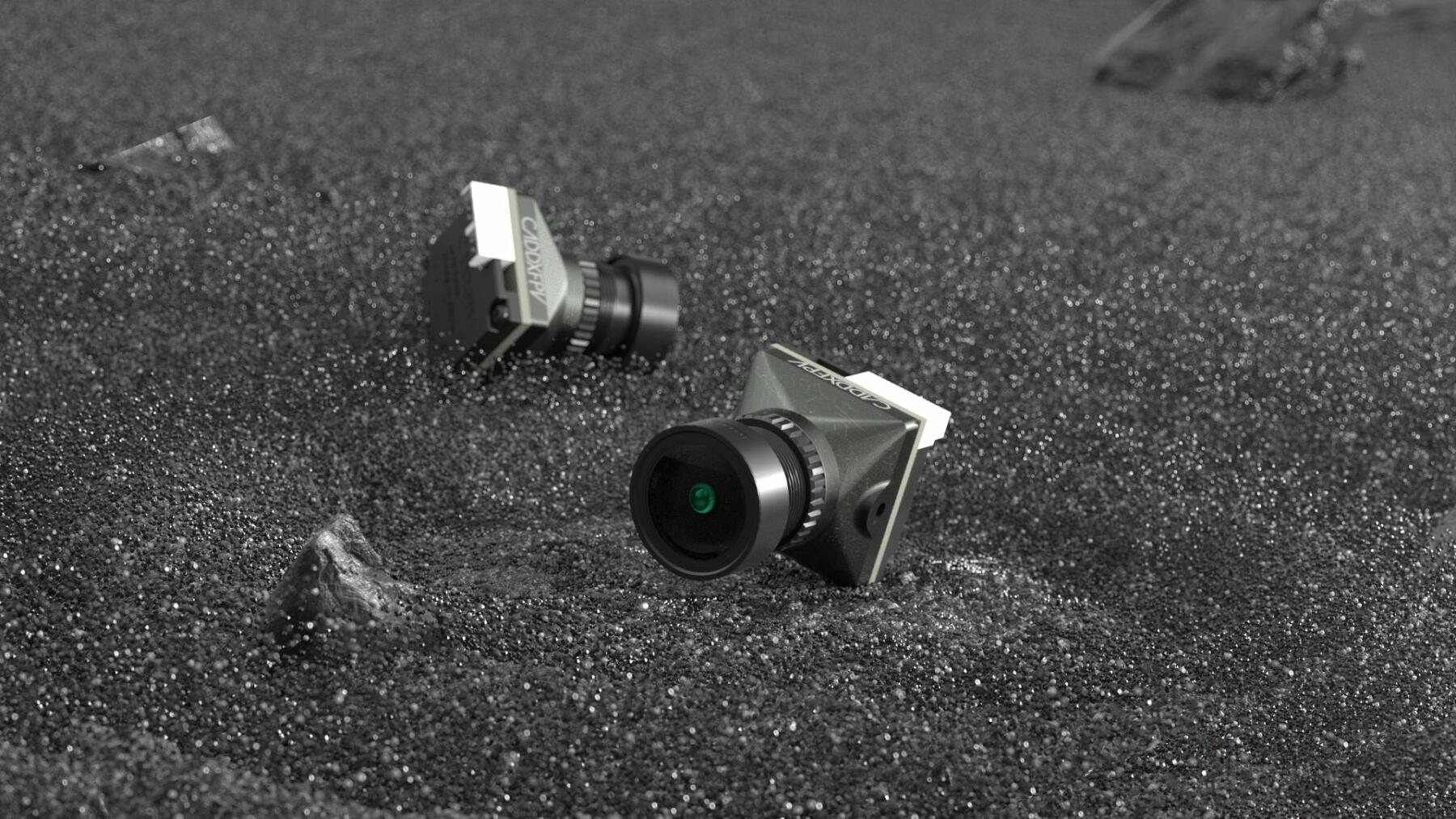

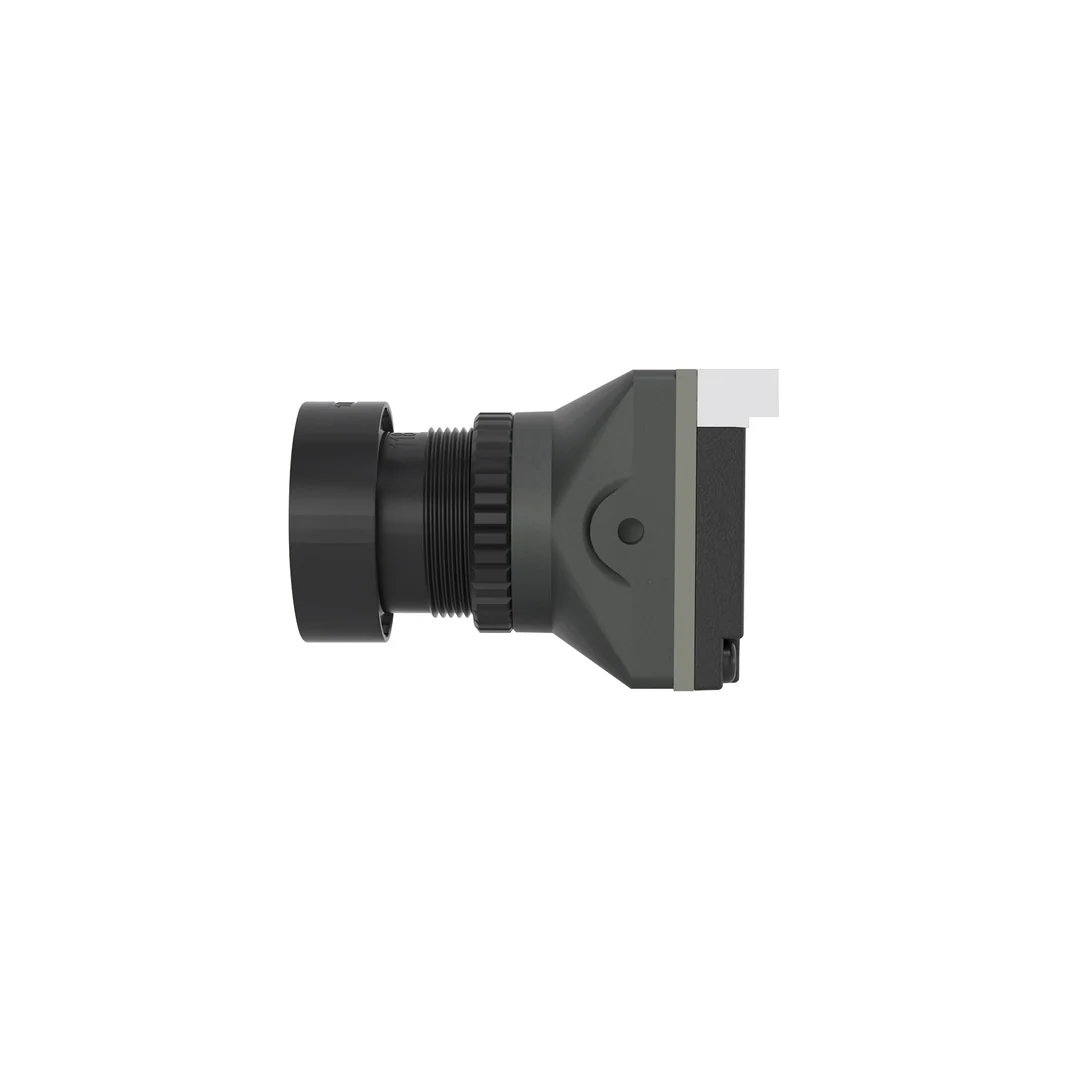

Featuring a metal case, the lightweight design improves durability and heat dissipation.
![Caddx Ratel Pro Analog Camera 16 Caddx Ratel Pro Analog Camera 15 - Caddx](https://www.myfpvstore.com/wp-content/uploads/2024/06/img_66621d482bcbc-1800x1013.jpg)
Model | Ratel PRO |
Image Sensor | 1/1.8″ Inch sensor |
Horizontal Resolution | 1500TVL |
TV System | NTSC & PAL (changeable) |

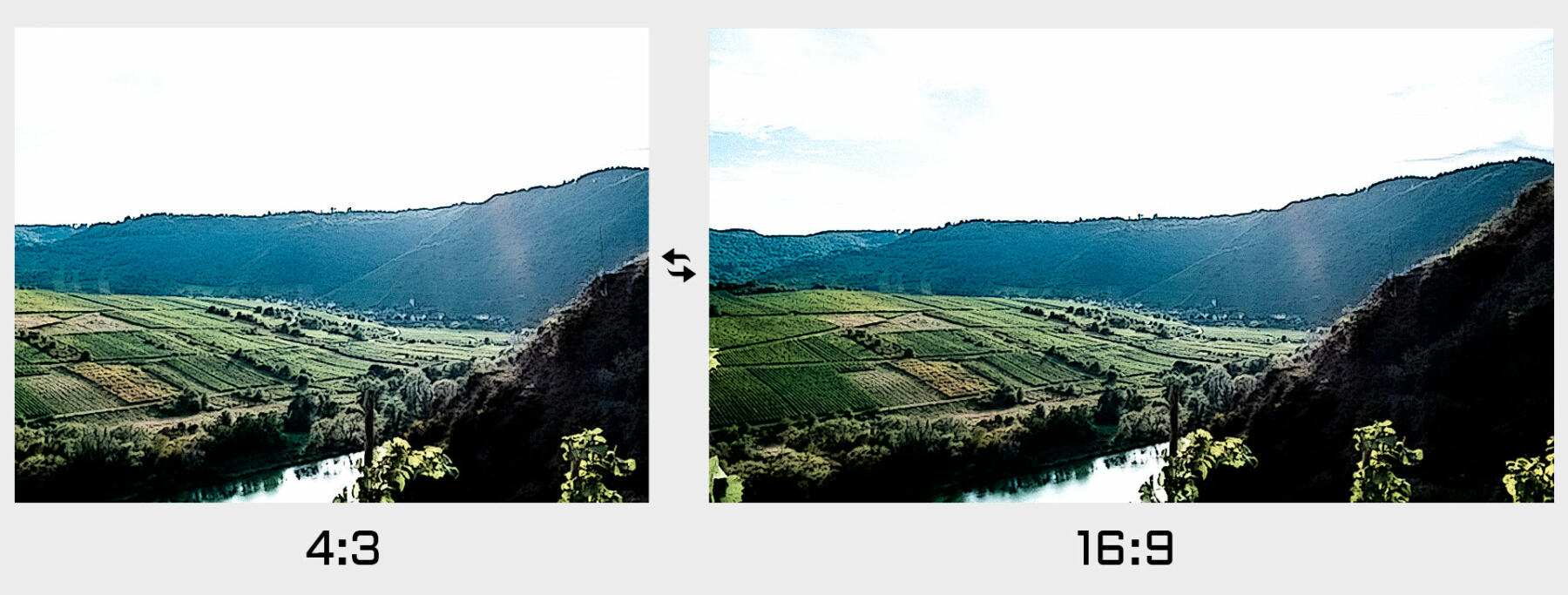

IMAGE | 16:9 & 4:3 (changeable) |
WDR | Super WDR (HDR) |
Min. Illumination | 0.00001 lux |
Lens | 5Mega |
Color | Black |
Synchronization | Internal |
Electronic Shutter | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
S/N Ratio | >60dB (AGC OFF) |
Video Output | CVBS |
OSD manual | Support |
DNR | 3-DNR |
FOV | 125° |
Language | (ENGLISH/中文/繁中文/Русский/ESPANOL/ITALIANO/ FRANCAIS/POLSKIM/ PORTUGUES/日本语) |
Day/Night | Auto/Color/B&W/EXT |
Dimensions | 19mm*19mm |
Wide Power Input | DC 4.5-27V |
Work Temperature | -20℃~+60℃ |
Work Humidity | 20%~80% |

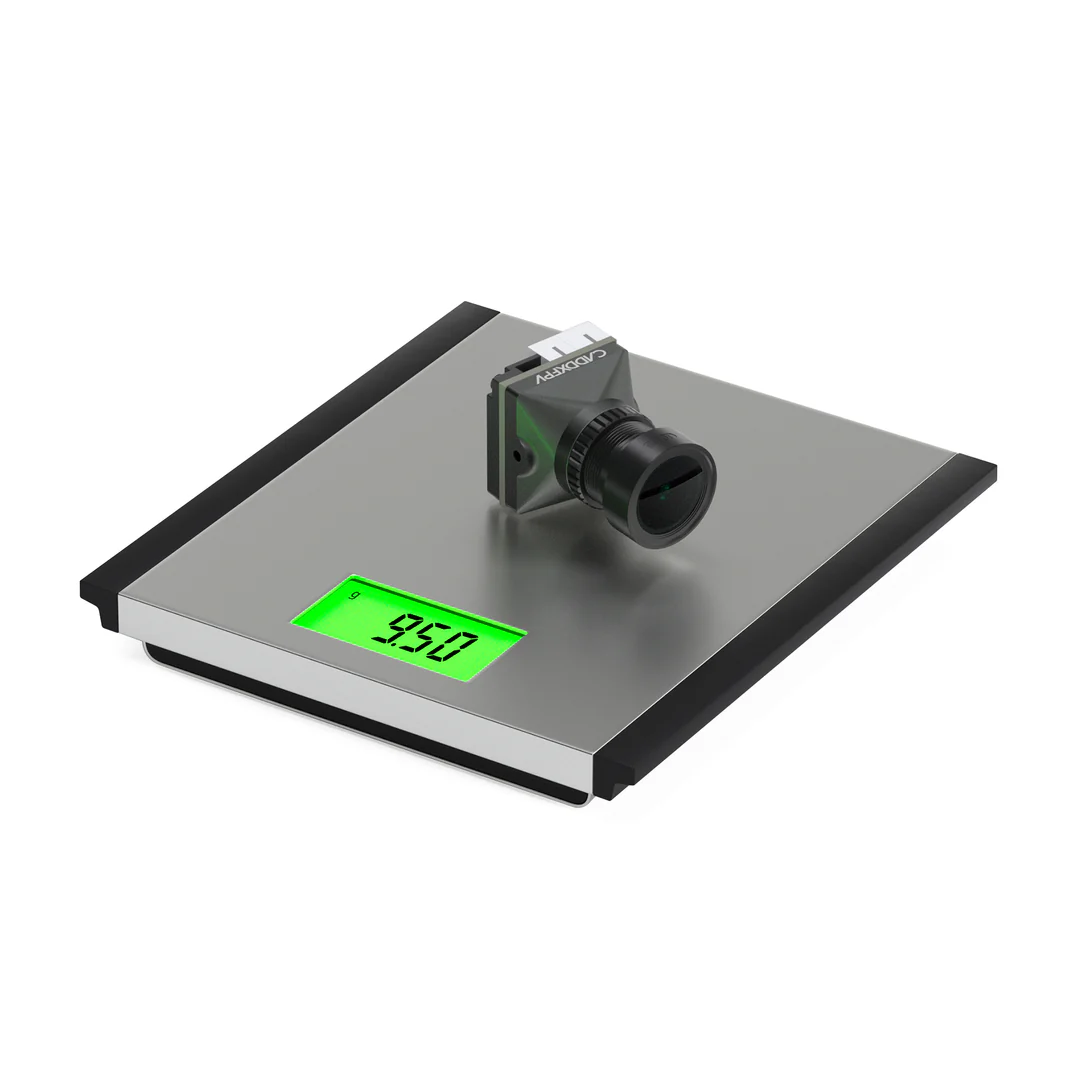

Weight | 9.5g |

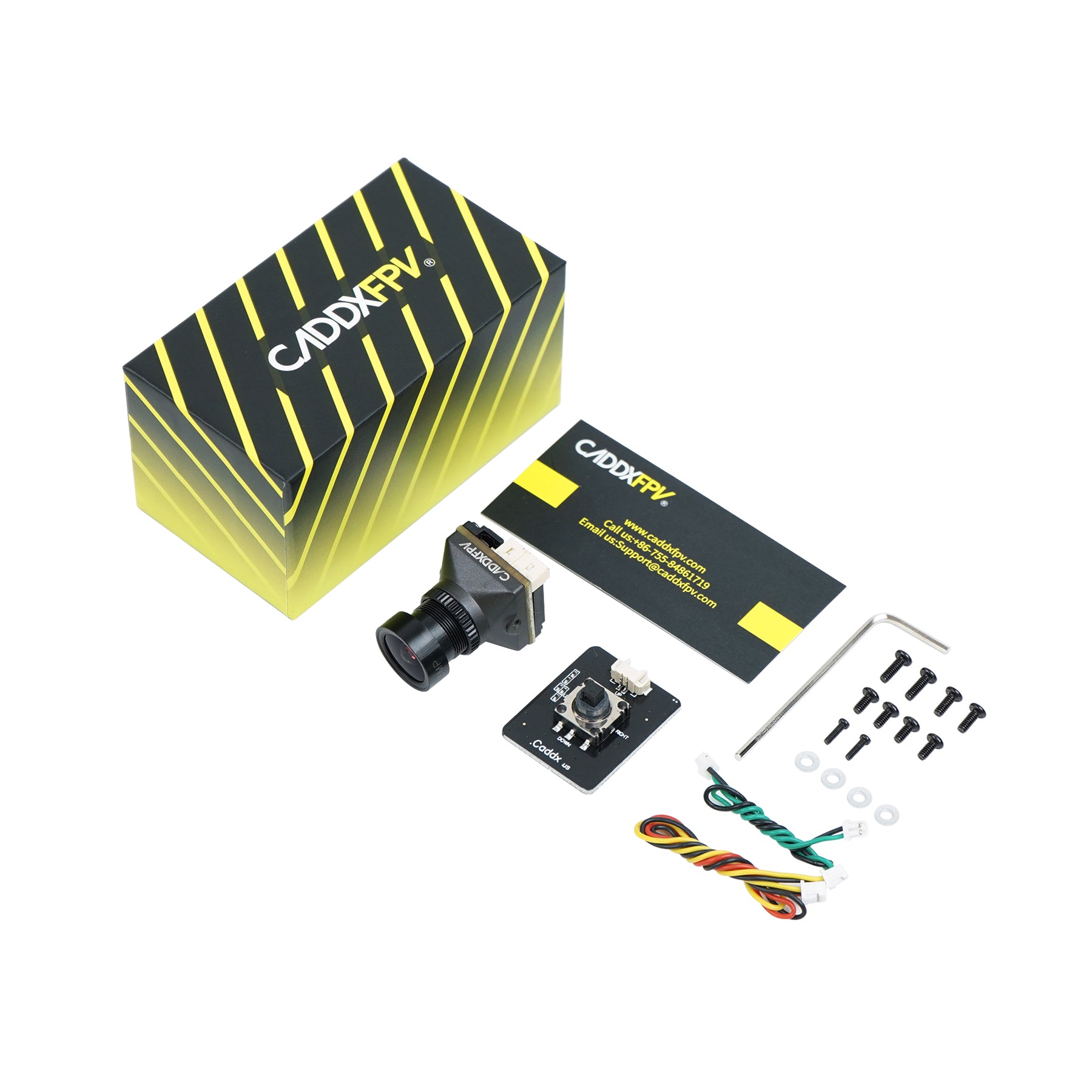

Packing List:
