Holybro Micro OSD V2

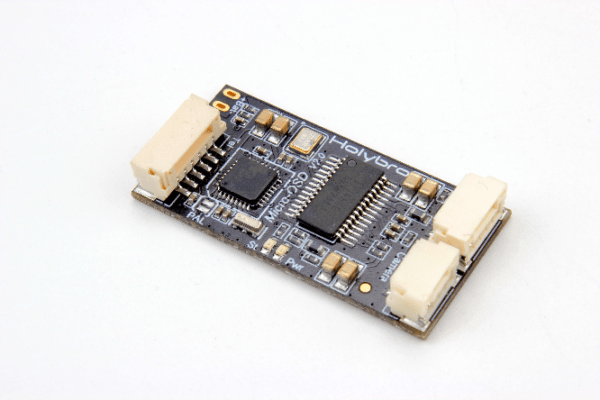

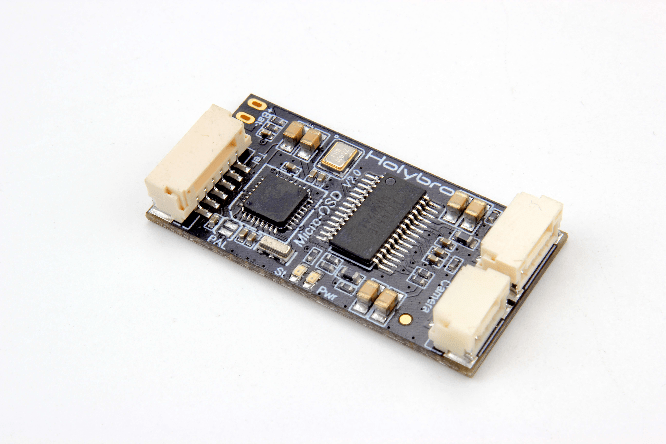

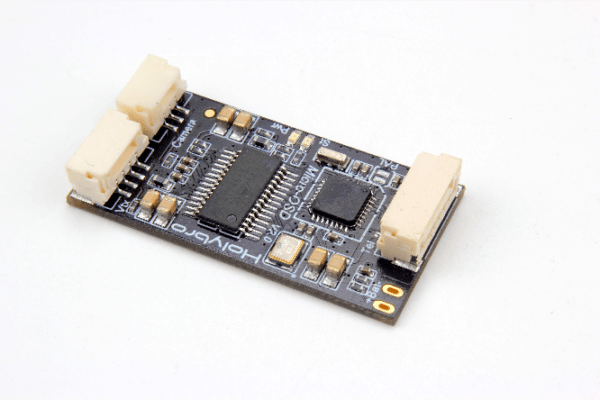

The Holybro Micro V2.0 OSD features a monochrome on-screen display, solder jumper for PAL video option, ATmega328P and weighs only 3 grams!
Specifications:
ATmega328P with Arduino bootloader
MAX7456 monochrome on-screen display
Standard 6-pin ISP header
Solder jumper for PAL video option
Exposed test points for HSYNC and LOS
Dimensions:17.5*35mm
Weight:3g
Note: BAT+ is directly connected with VTx and Camera (So pay attention to the max withstand voltage of your equipment)

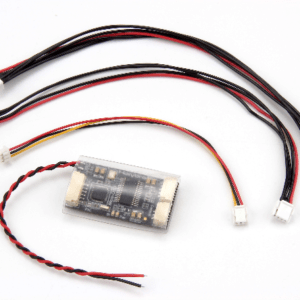

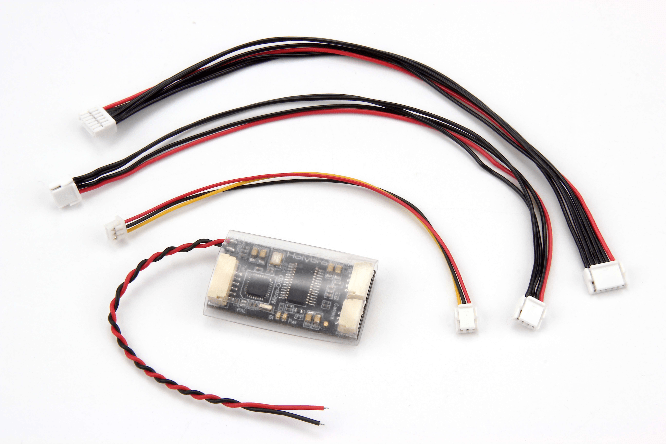

Included:
Micro OSD * 1
GH 6P cable * 1
GH 4P cable * 1
GH 3P cable * 1

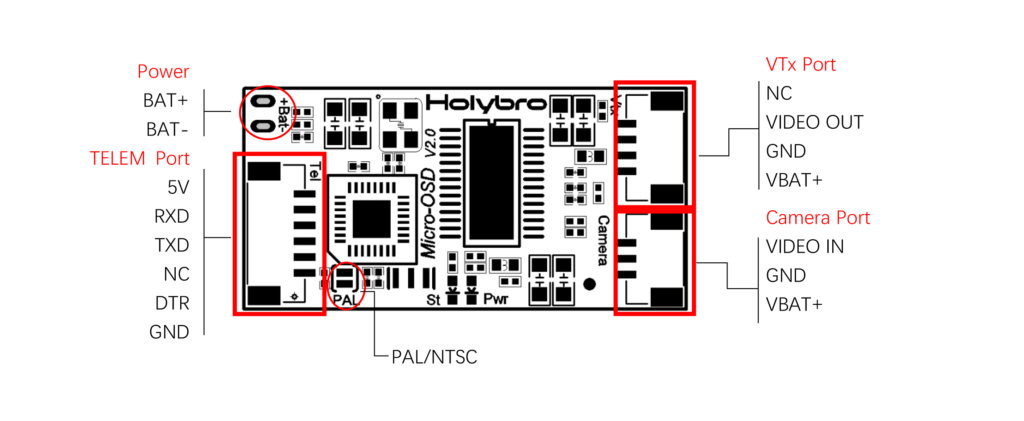

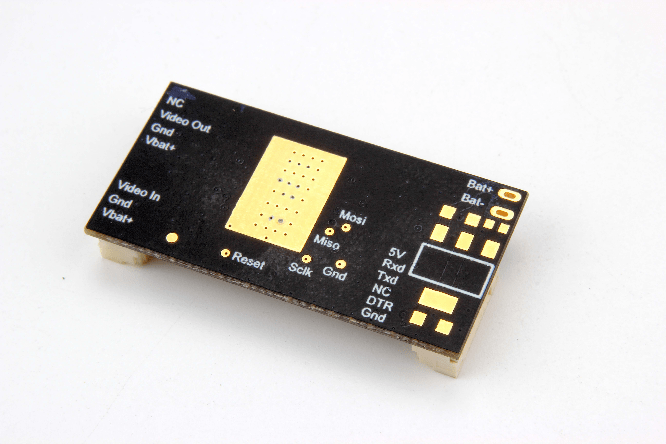

PINMAP

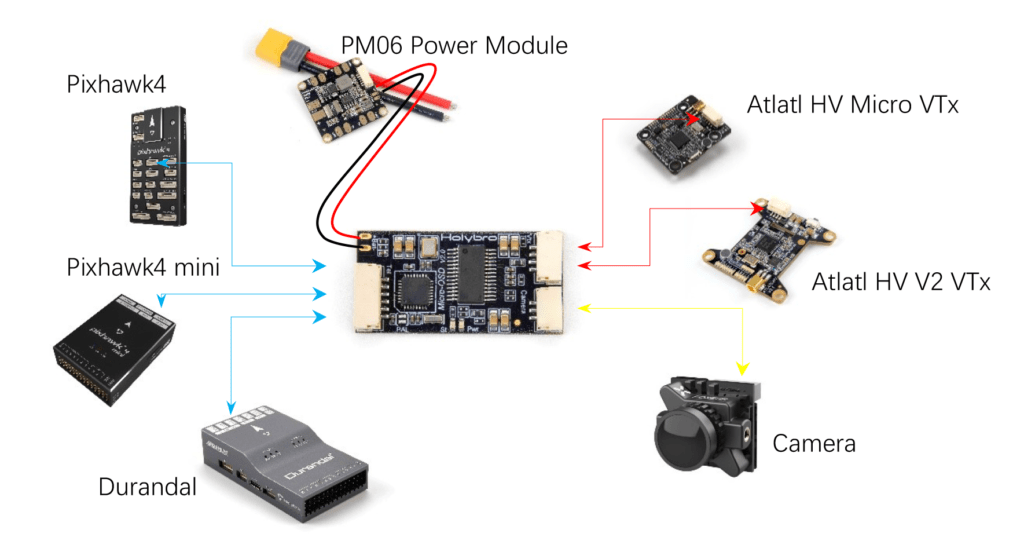

Connection
