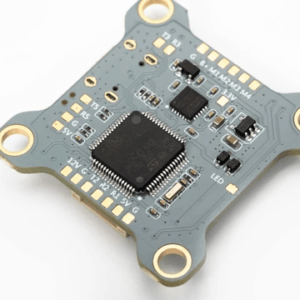

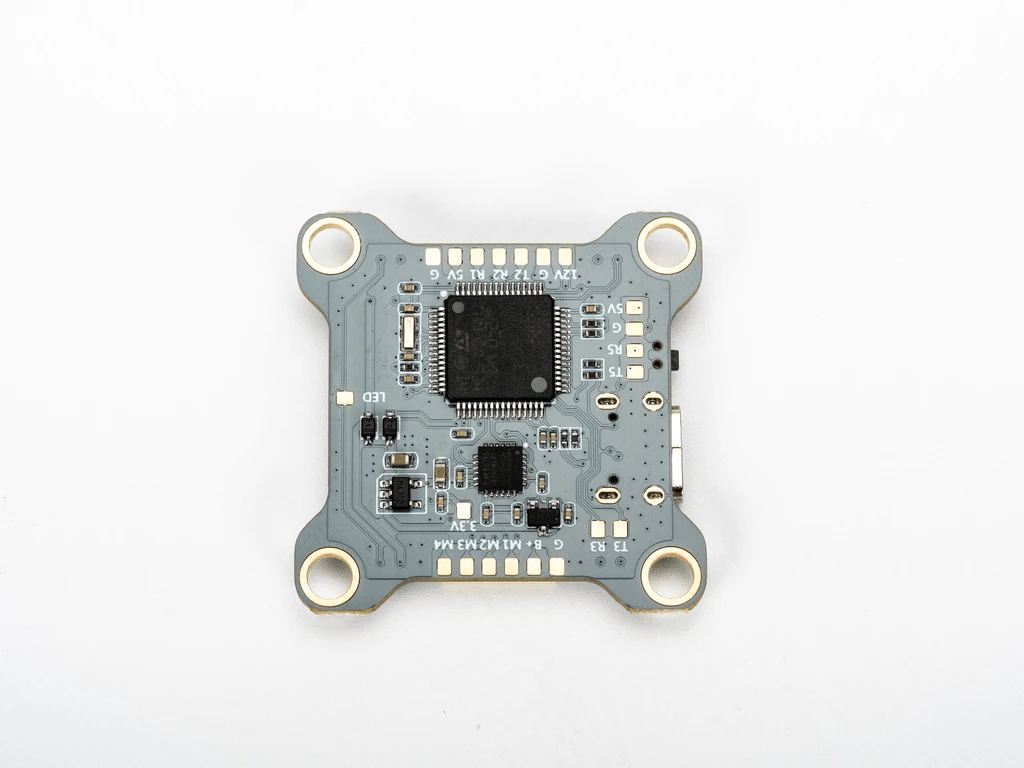

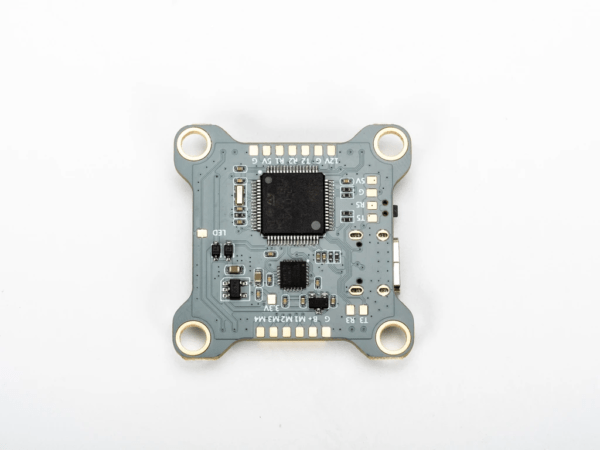

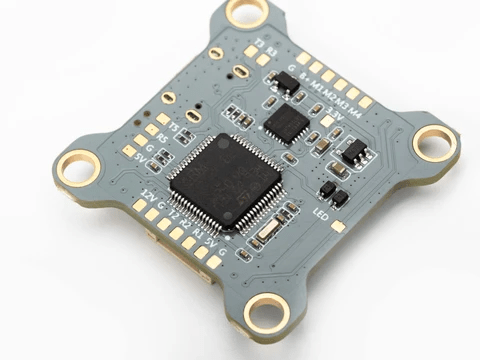

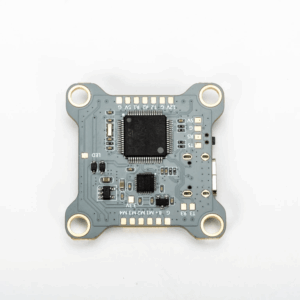

TransTEC F7 HD Flight Controller
Features

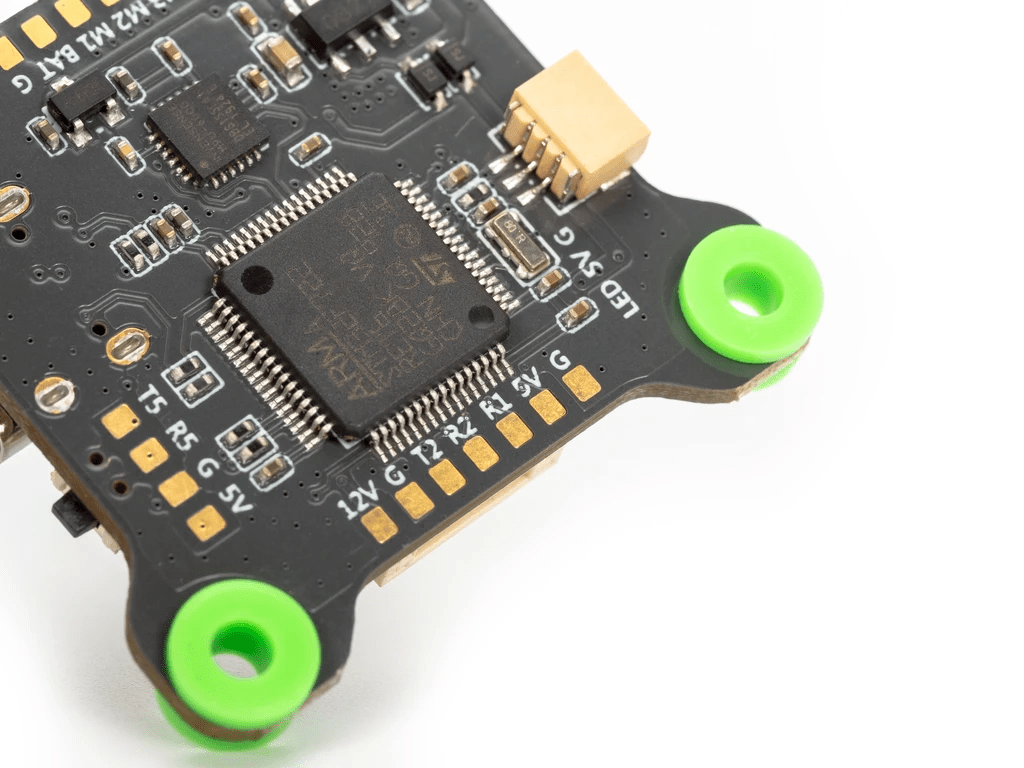

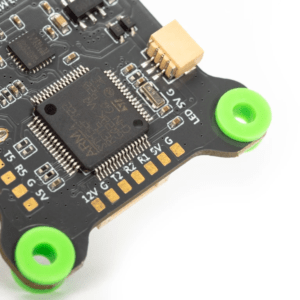

- MCU : 216MHz STM32F722RET6
- IMU : MPU6000 Low noise power filter
- Anti-Vibration silicone grommets built in
- 4x Uarts(1,2,4,5) with built-in SBUS inversion
- 4x Dshot/Proshot/Oneshot outputs(Support Bidshot)
- 1x JST-SH 1.0_8pin connector (G/Vbat/S1/S2/S3/S4/Current/R4)
- 1x GH_1.25_6pin connector for DJI HD Vtx
- Vbat filtered output powerfor VTX(12V for DJI HD system)
- WS2812 Led Strip support (5V output)

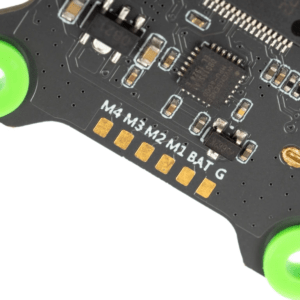

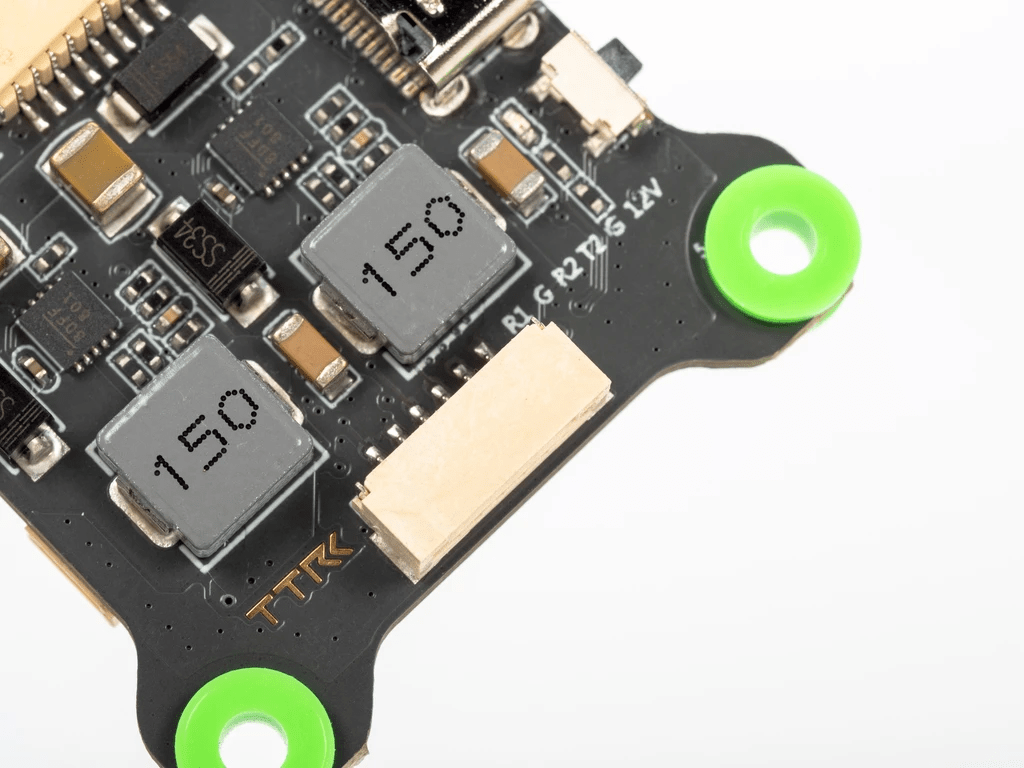

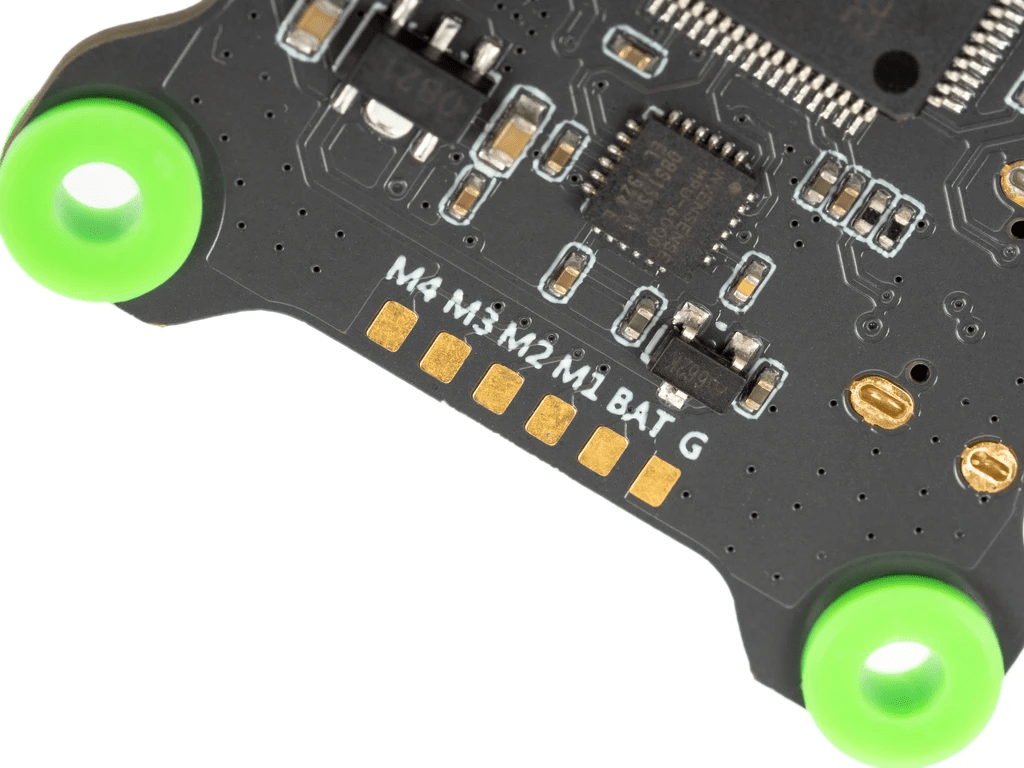

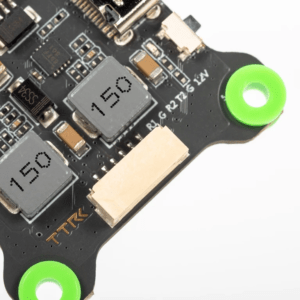

- Backup solder pads for ESC and Vtx
- Input : 6~30V (2~6S LiPo)
- BEC : 5V 2A cont. (Max.3A)
- BEC : 12V 1.5A cont.

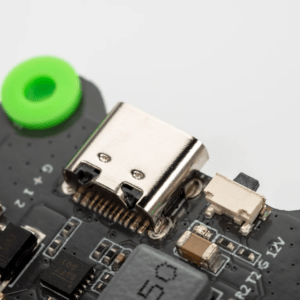

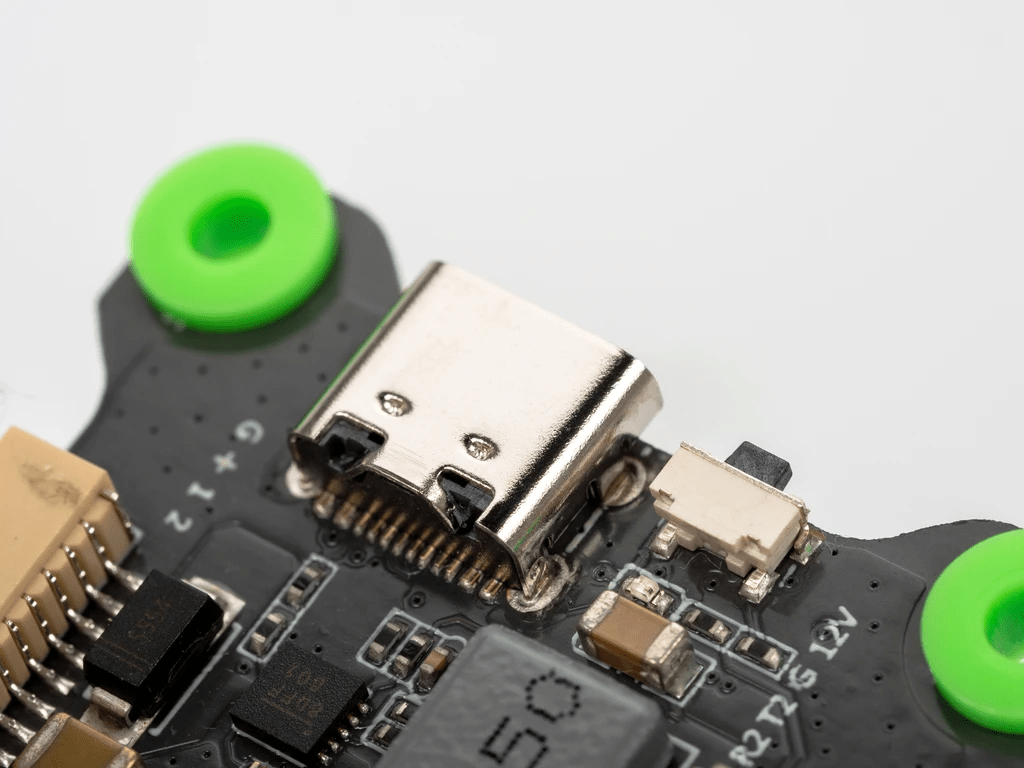

- USB Type-C connector
Software/Hardware Features
- Betaflight support– Target TransTEC F7
- BLHeli passthrough flashing supported by hardware
Specifications
- High Quality, gold plated 1.6mm thick PCB
- Type-C USB connector for setting
- Dimensions : 30.5×30.5mm
- Mounting Holes : M3
- Weight :Â 6g

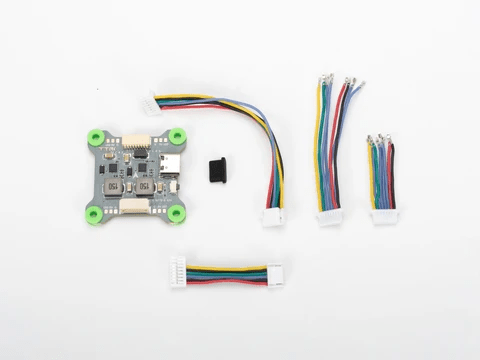

Includes
- 1x TransTEC F7 HD version Flight Controller
- 5x Anti-vibration silicone grommets (for M3 sized screws)
- 2x DJI Air unit cable(short/long)
- 2x ESC cable(contain 6/8/10 pin socket)
- 1x USB-C dust plug
