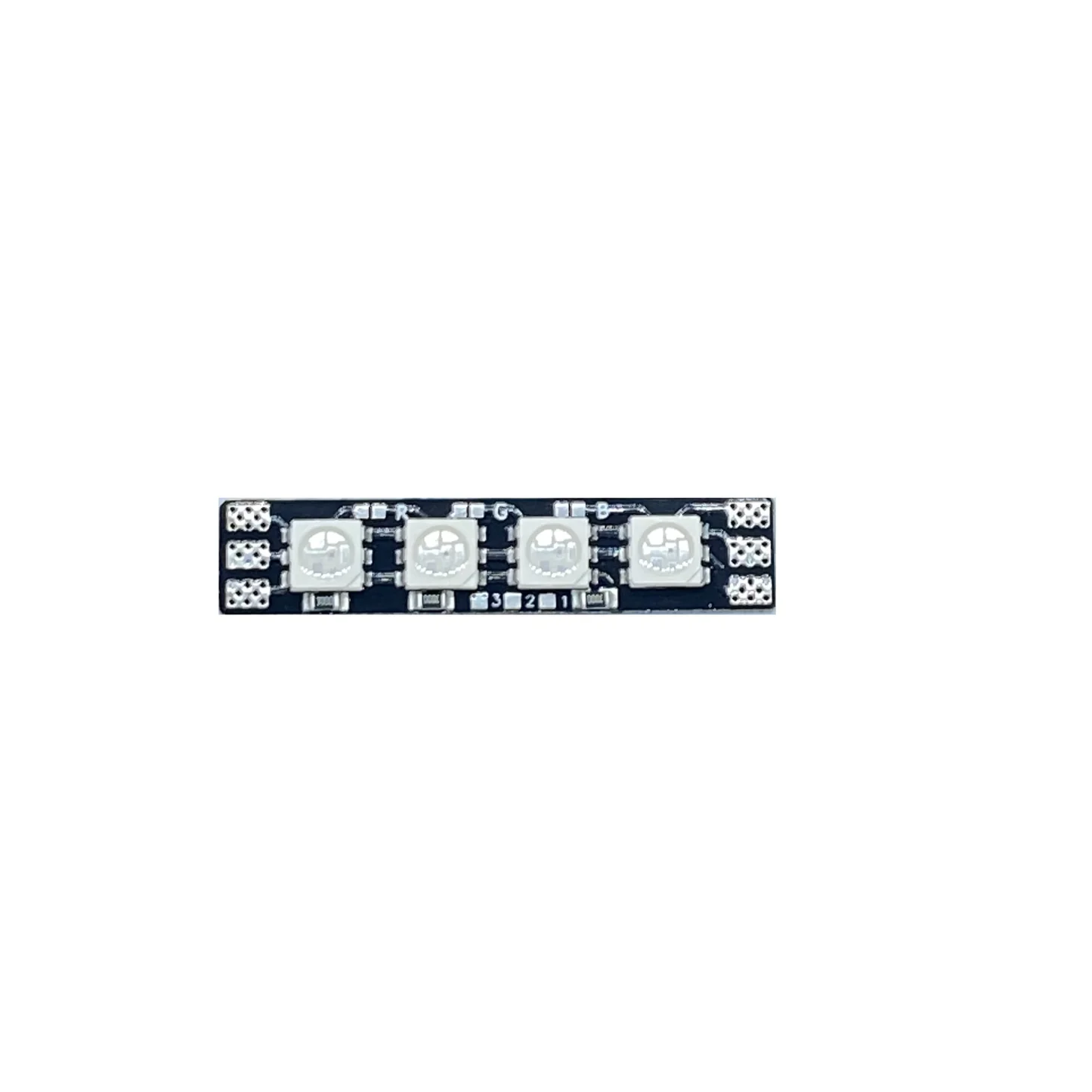

Tiny’s LEDs RGB RaceLiteWire LEDs Full Size

• 1x 5050 RGB LEDs integrated into Racewire.
• Racelites brightness changes with throttle input. These are not constant on full brightness.  They illuminate only when motors are spinning.
• These are integrated Racewire and Racelites.
• These can be installed in any direction.
• There are pads to Allow you to wire up additional Racelites to the bottom of your Arms. Use the pads labeled “1,2,3” and wire them to the same pads on the under arm LED.
• You must insulate the bottom of the boards.

Color Breakout:

Not Soldered=  –

Soldered=  |

Blue / Red / Green

1. Yellow   – | |
2. White     | | |
3. Cyan.    | – |
4. Green    – – |
5. Blue     | – –
6. Red.      – | –
7. Pink/Purple  | | –

Specifications:

• Dimensions:8 x 40 mm
• Voltage: 4-6s
• Contents: 1x RGB RaceLiteWire Full Size
