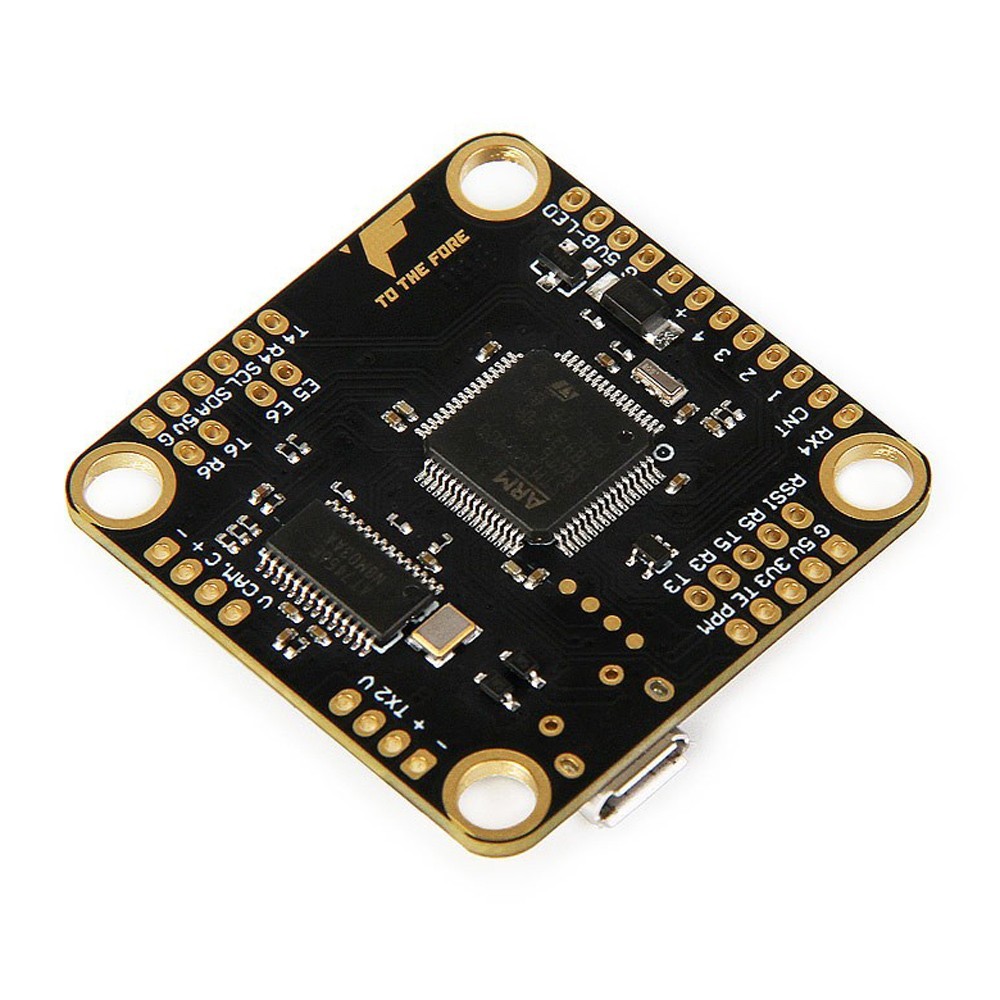

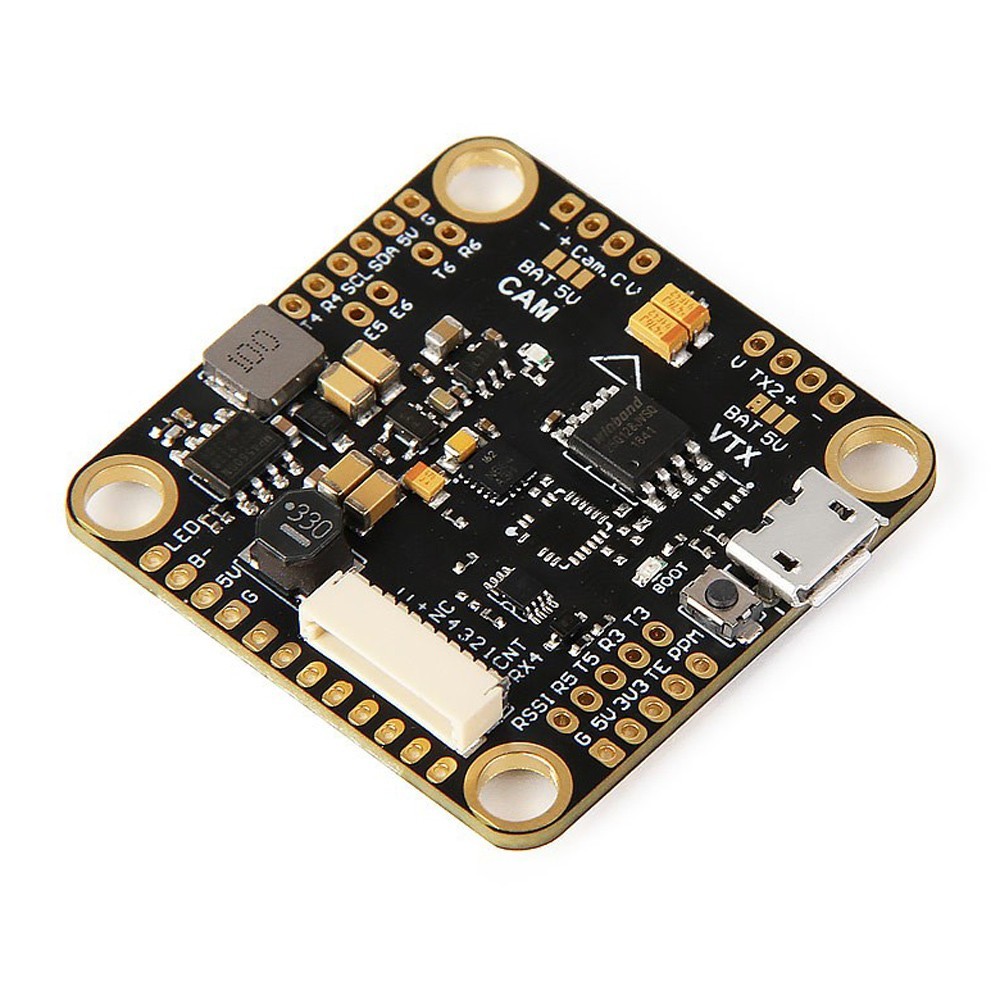

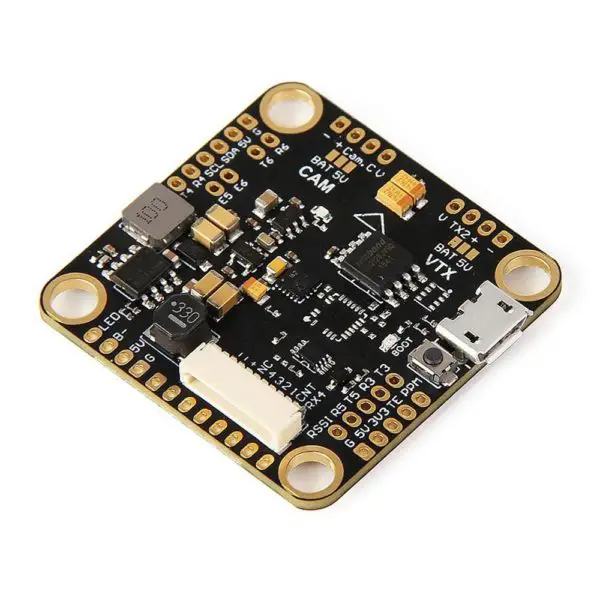

T-Motor F4 Flight Controller

T-Motor F4 Flight Controller

The T-Motor F4 Flight Controller comes with an LC filter, which is great for eliminating interference to your VTX or other equipment. Equipped with a 5V/2A BEC allows hooking up of receivers, cameras, and other 5v compatible gear. The F4 is loaded with 6 UARTs and is specially optimized to fit the F55A PRO II ESC. The user also has the choice of two gyros – the ICM20602 for high refresh rates or the MPU6000.

Specifications

• Input Voltage: 2-8S (8.4-33.6V)
• MCU: STM32F405RGT6
• IMU: ICM20602
• OSD: Yes
• Blackbox: 16MB Onboard Flash
• UARTs: 6
• ESC Connections: 6
• Firmware: BetaFlight Target: TMOTOR F4
• BEC: 5V 2A
• LC Filter: Yes
• Current Sensor: Esc Telemetry / Current ADC
• Buzzer: Pads
• Barometer: No
• Dimensions: 37x37x7mm
• Mounting Pattern: 30.5×30.5mm
• Weight: 7g

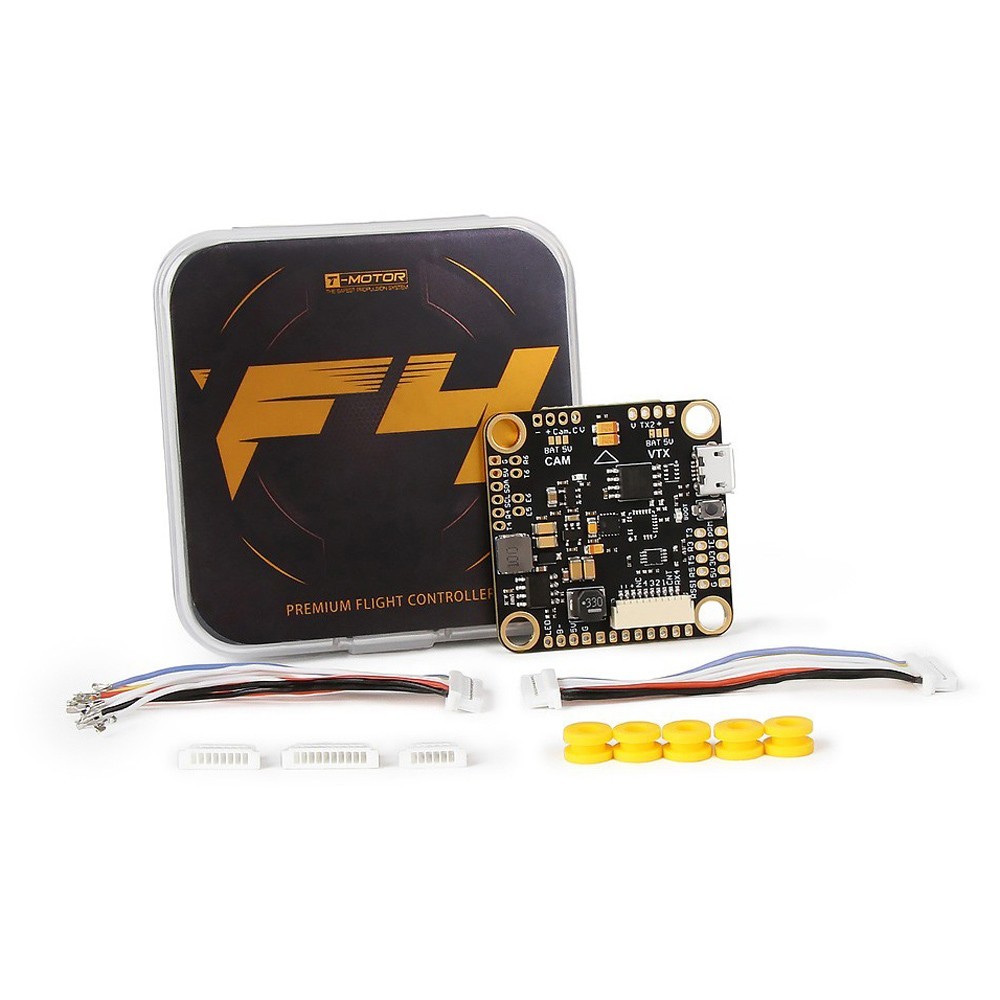

Includes

• 1 x T-Motor F4 Flight Controller
• 2 x FC to ESC Cable
• 4 x Vibration Dampeners
