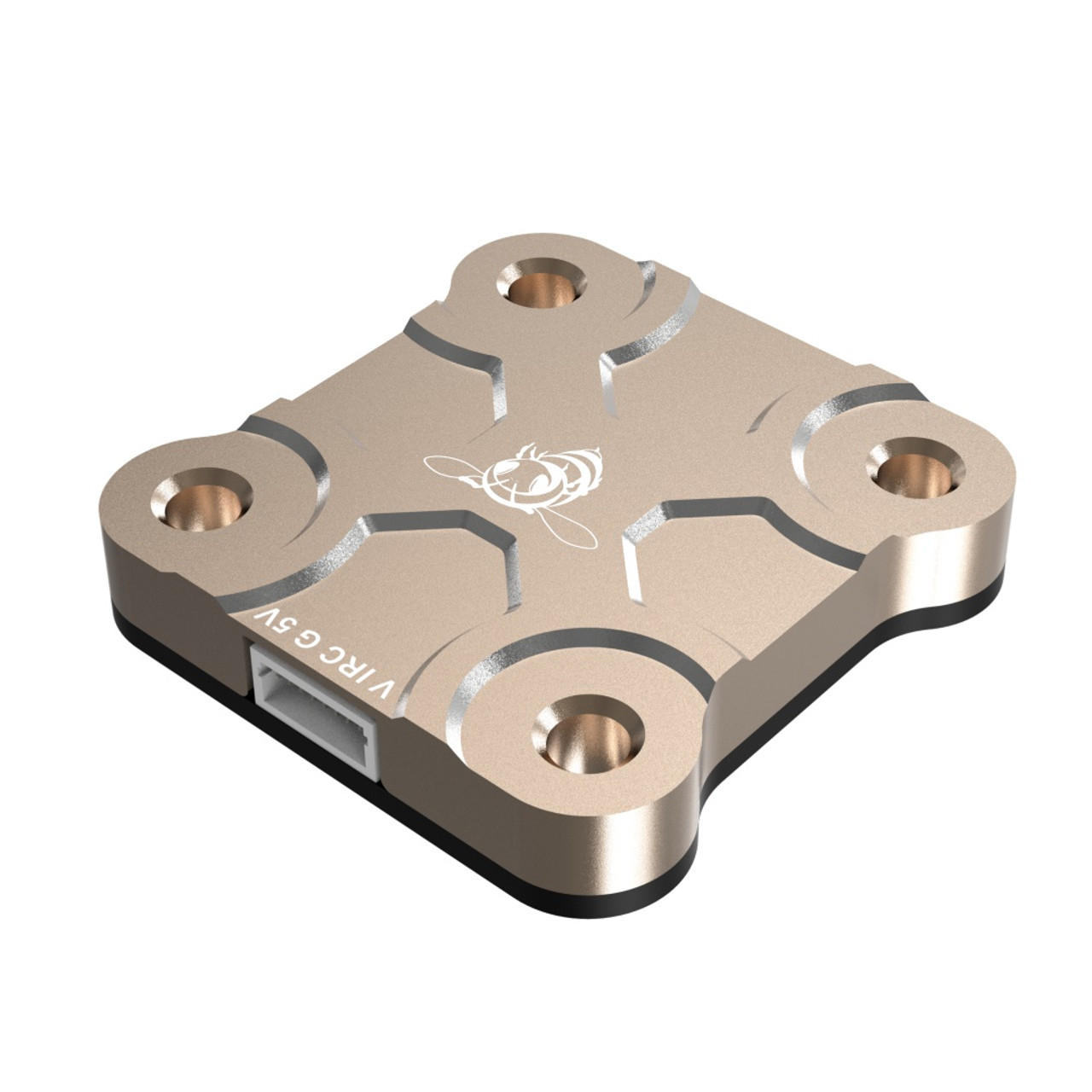

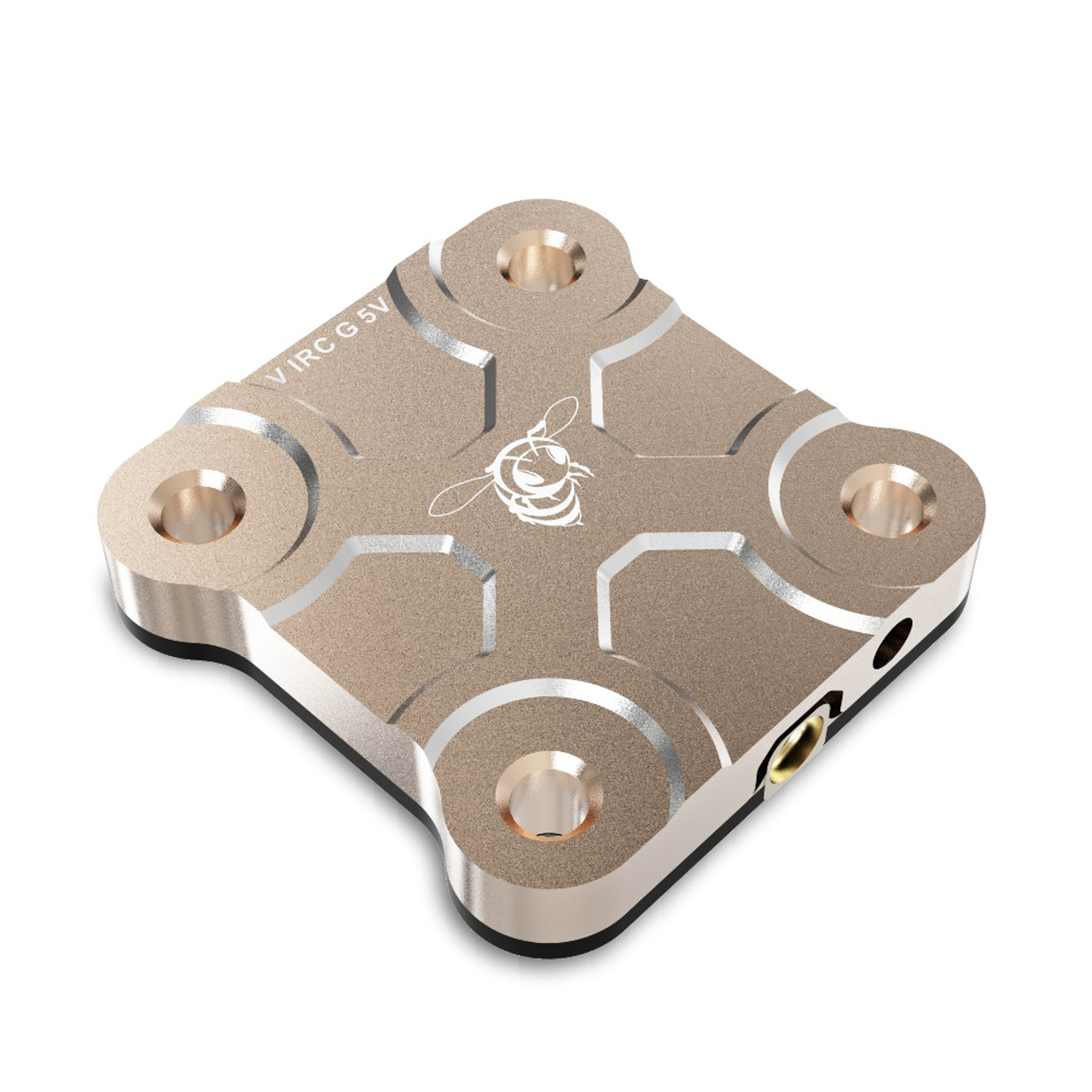

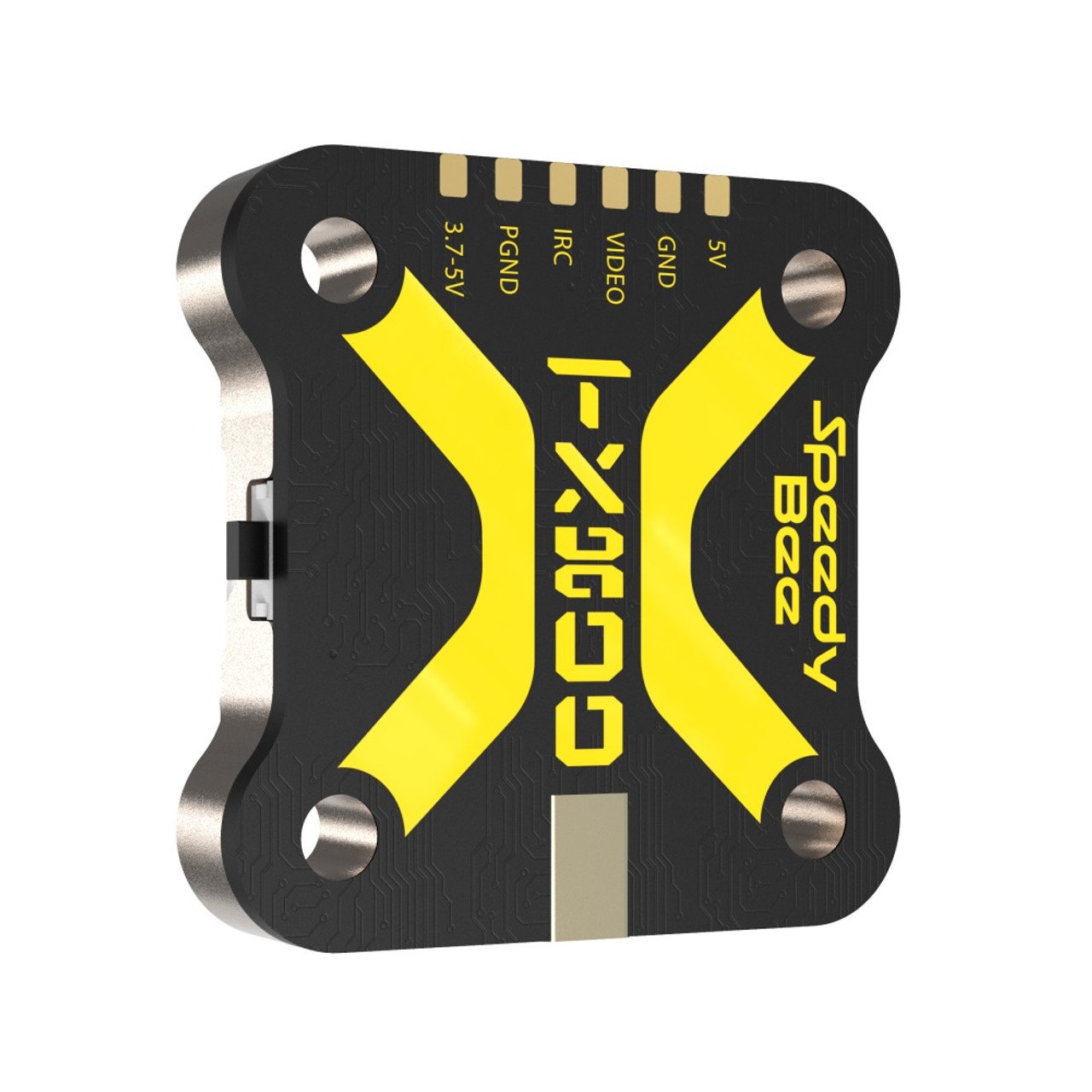

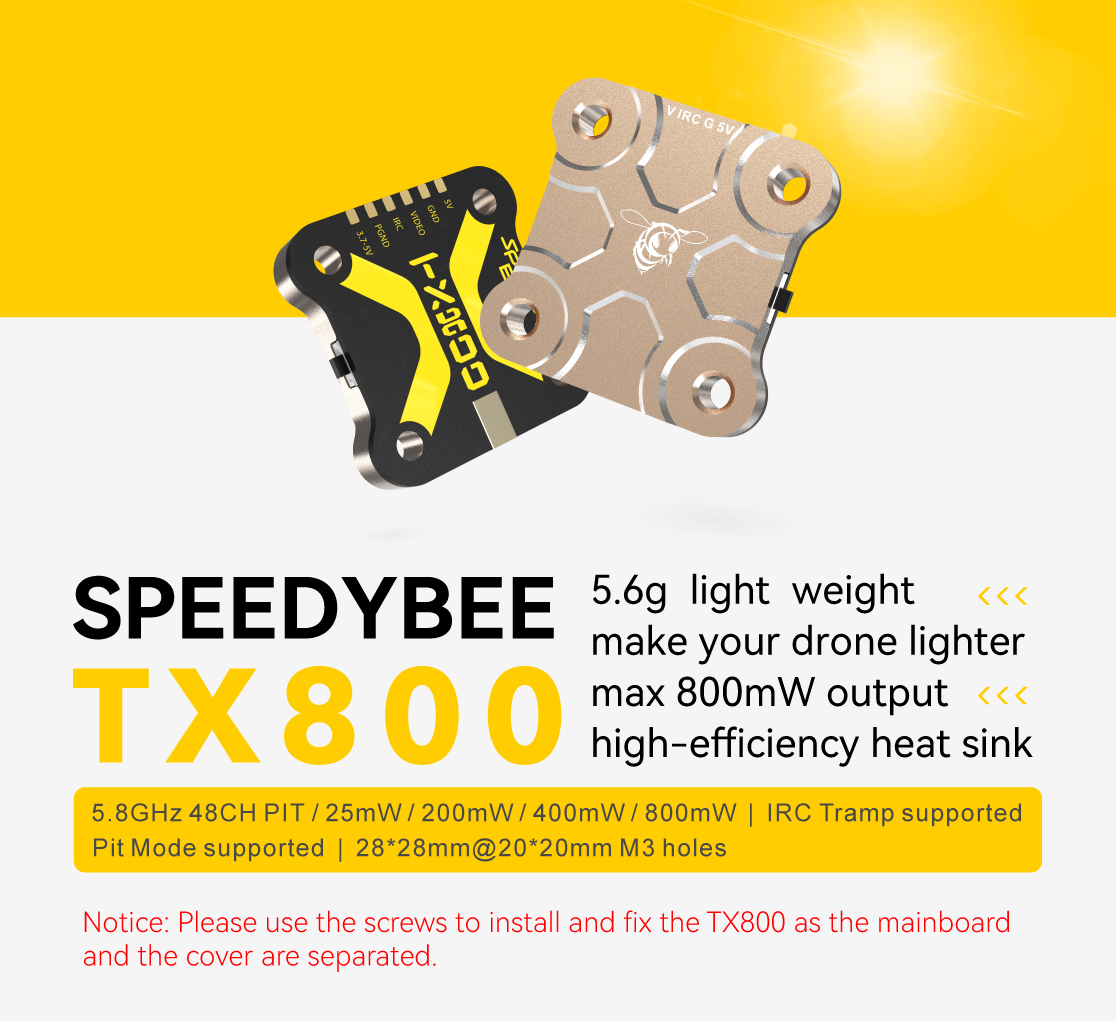

SpeedyBee TX800 VTx

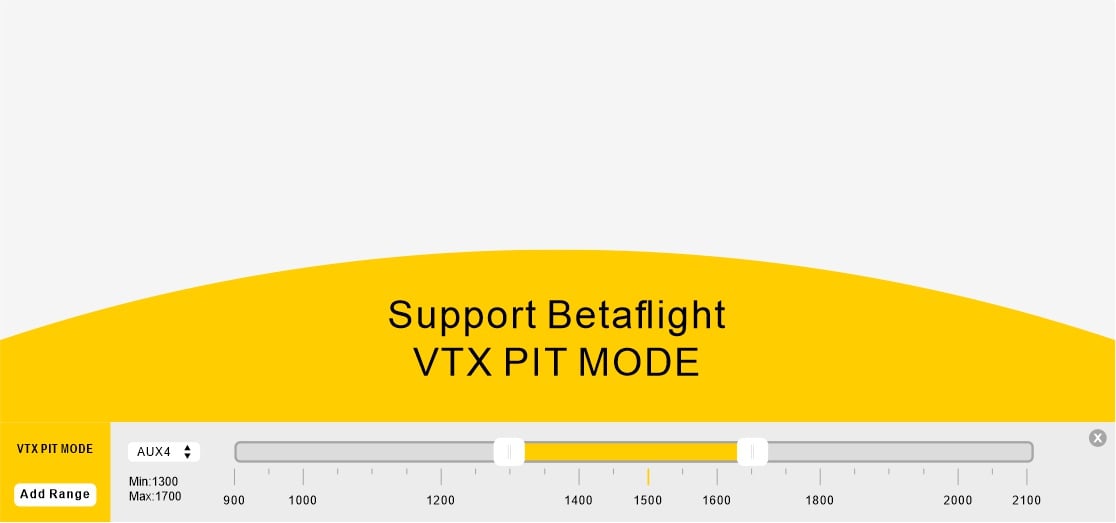

Pit Mode Support
When you are flying with other pilots in the same place,
Pit Mode helps you to power the drone more calmly without disturbing others.
Pit Mode helps you to power the drone more calmly without disturbing others.

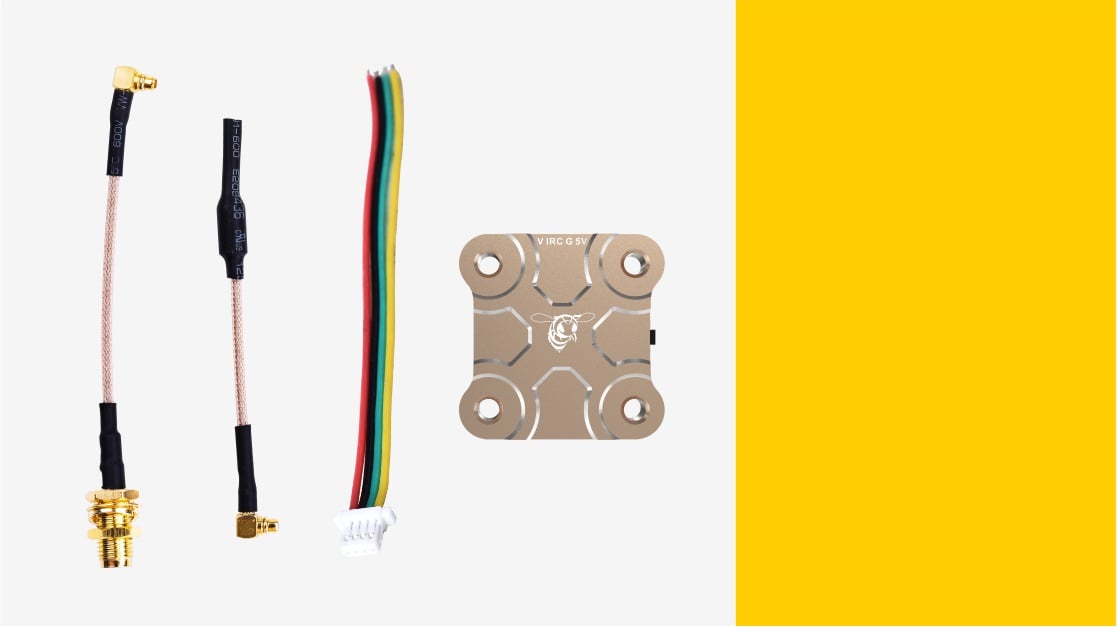

Package
1 X TX800
1 X MMCX antenna
1 X MMCX to SMA Cable
1 X 1.0mm 4pin Cable
1 X MMCX antenna
1 X MMCX to SMA Cable
1 X 1.0mm 4pin Cable
Specifications

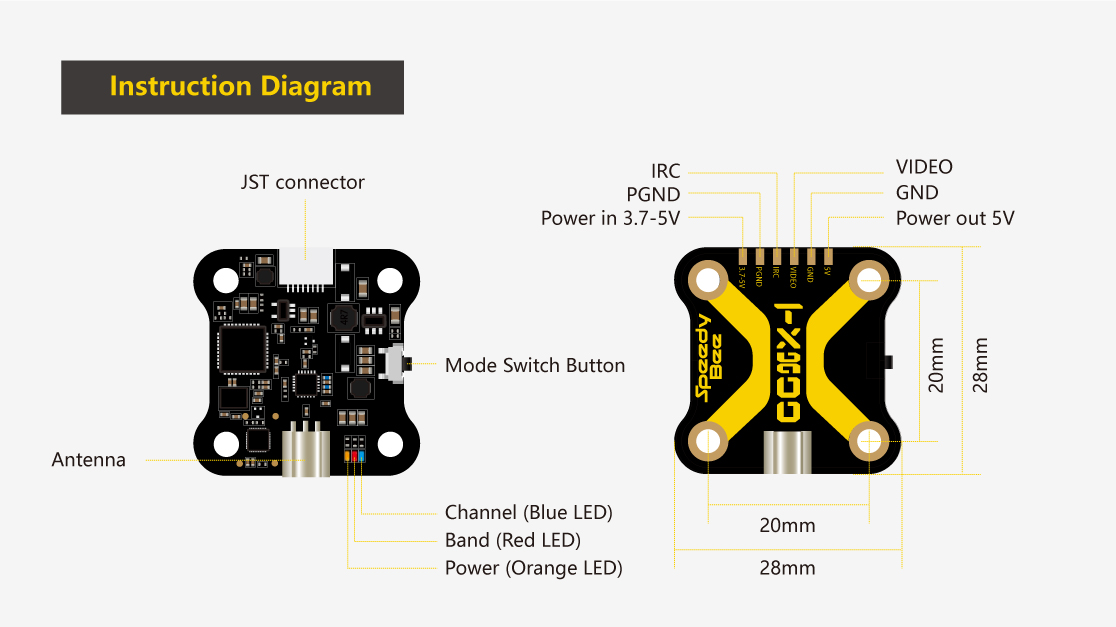

| Frequency Channel | 5.8GHz 48CH |

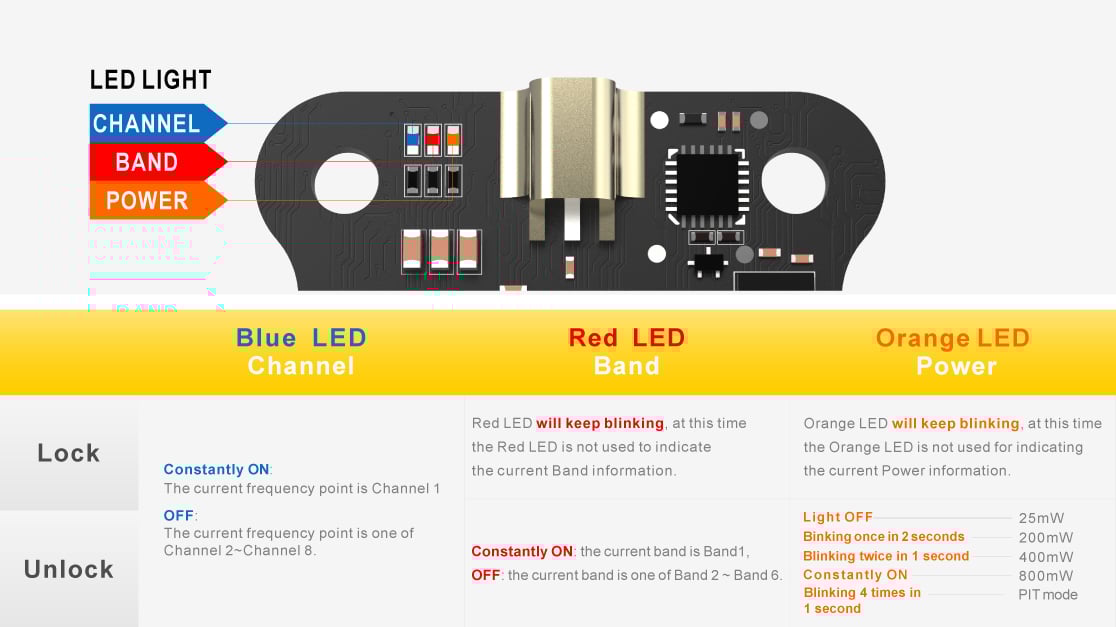

| Output Power | PIT/25mW/200mW/400mW/800mW |
| Working Current | 5V@250~750mA |
| Voltage out | 5V@max 250mA |
| Voltage in | 3.7-5V |
| Video input impedance | 75 Ohm |
| Antenna Connector | MMCX |
| Weight | 5.6g (without antenna) |
| PCB Size | 28mm*28mm@20*20 |

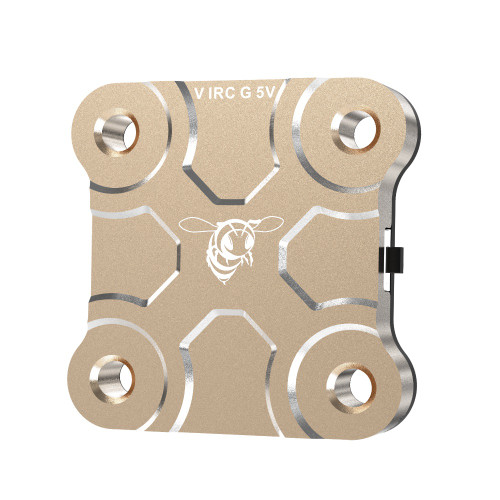

| Mounting holes | M4 holes on the PCB; M3 holes on the metal heat sink |
