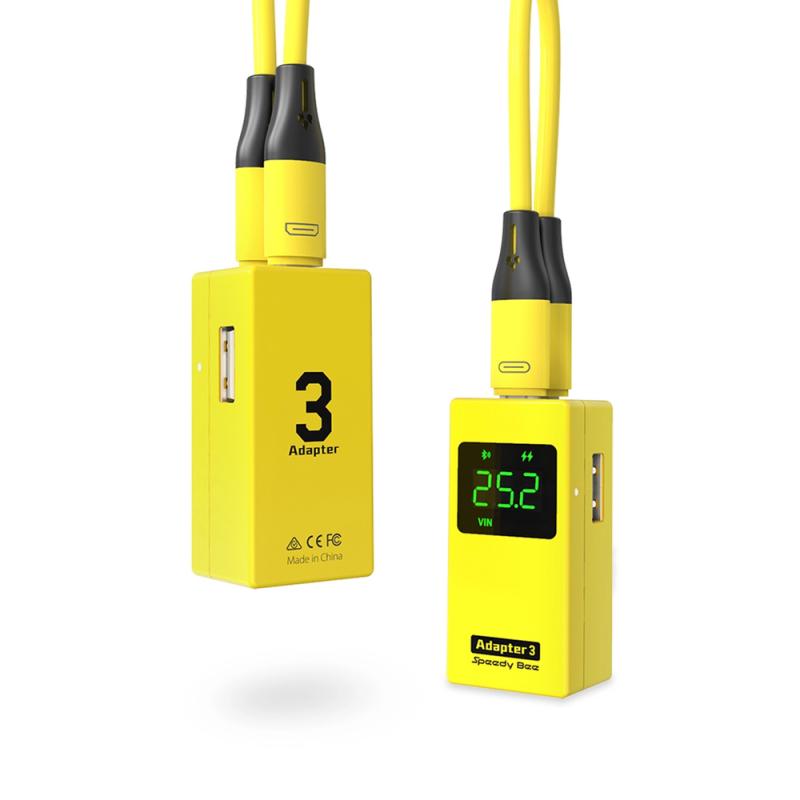

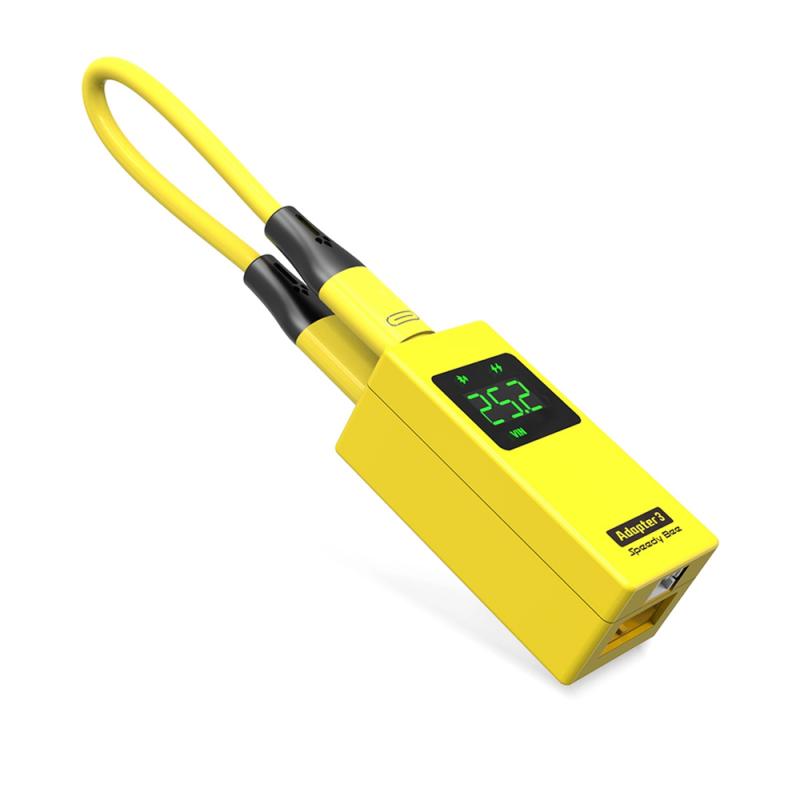

SpeedyBee Adapter 3
Check out all of our SpeedyBee Products!
Features
- Wireless Firmware Flasher & Configurator
- 30W Fast USB Charger
- Wireless Blackbox Analyzer
- Wireless ESC Flasher
- 1-6S LiPo Checker
- iOS & Android Compatible
- USB-C & Micro USB
Turn your smartphone into your mobile FPV companion
- Connect to the SpeedyBee mobile app, and configure your flight controller anytime, anywhere. Or flash the latest version of Betaflight/Emuflight/INAV in just 2 minutes before your flight session. The choice is yours.
Analyzing Blackbox data has never been easier
- No laptop, no separate app, no hassle. Connect your quad to the SpeedyBee mobile app and analyze your Blackbox data* in just 1.5 minutes after a flight. Get the most out of your practice sessions now.
- *Currently supports Betaflight and Emuflight only
Configure your BLHeli_S ESCs wherever you want
- Why stop at the flight controller? Change your BLHeli_S ESC setting or update the firmware anytime, anywhere. Broken motor? Solder it up, take your smartphone out, and configure your motor direction wirelessly with the latest SpeedyBee app
- now supporting BLHeli_32 and BLHeli_S ESCs.

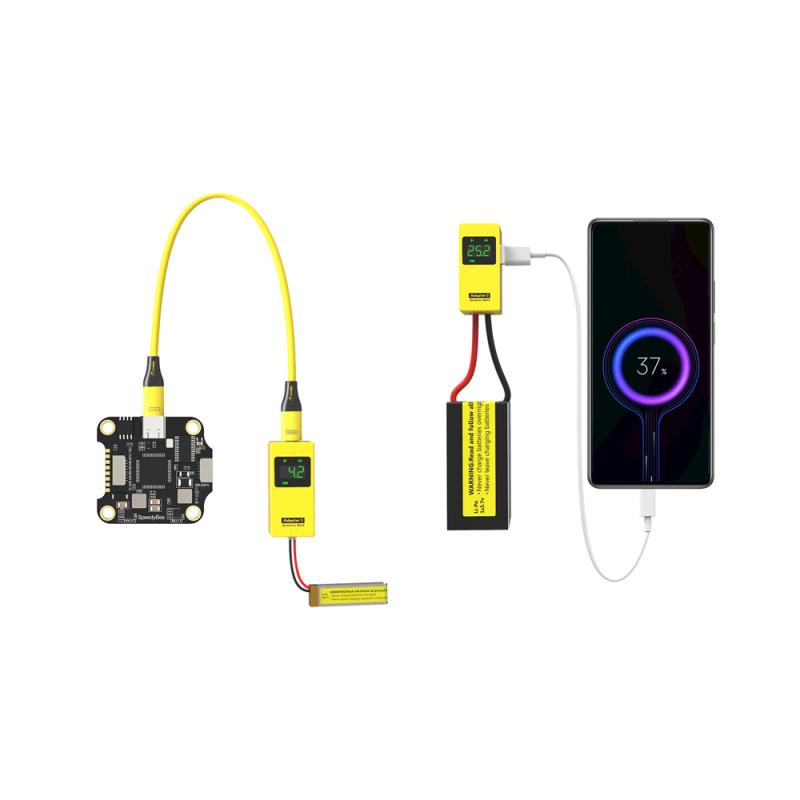

Your LiPo batteries = Powerful 30W power banks
- Connect SpeedyBee Adapter 3 to a LiPo battery and charge your mobile phone* and tablets when you need them the most. Supports mainstream QC3.0/AFC/Apple 2.4A (iPhone 6s and above) and other fast charging protocols with charging power up to 30W. Complete with over-current protection, short-circuit protection, and over-temperature protection to protect your gadgets from unwanted accidents.
- *Charging function requires 2S LiPo and above.
Forgot your LiPo checker? Don’t Worry
- Connect your 1S – 6S LiPo and the display will immediately show your battery voltage and the remaining power with a specific colour code*. The built-in beeper will alert you if the remaining power is less than 40% to help extend your battery lifespan.
- *GREEN(>80%), WHITE(40-80%) and RED(<40%).
WiFi + Bluetooth = the best of both worlds
- Use Bluetooth for quick access to your firmware configurator, or switch to Wi-Fi to flash firmware or download Blackbox data at a higher speed.
Specifications
- Input Voltage: 1-6S(3.8V+ for 1S)
- Power Input Connector: XT60-Male, PH2.0 male
- Required Mobile Device System Version: Android 7.0+ | iOS 12.0+
- Supported SpeedyBee App Version: V1.6.1 + for iOS | V1.5.6+ for Android
- Maximum Output Current for flight controllers: 700mA @5V
- Fast Charging Output interface: USB A Port
- Minimum Input Voltage for Charging output: 7.4V(2S LiPo)
- Supported Fast Charging Protocol: QC3.0/QC2.0, AFC, FCP, SCP/High SCP, PE2.0/PE1.1, SFCP
- Max Fast Charging Current: 3.5A
- Max Fast Charging Power: 30W
- Case Material: ABS + PC
- Liquid Silicone Cable Length: 12.4cm
- Dimension(Main Body): 24.8×21.8×53.6mm
- Net Weight: 35g
