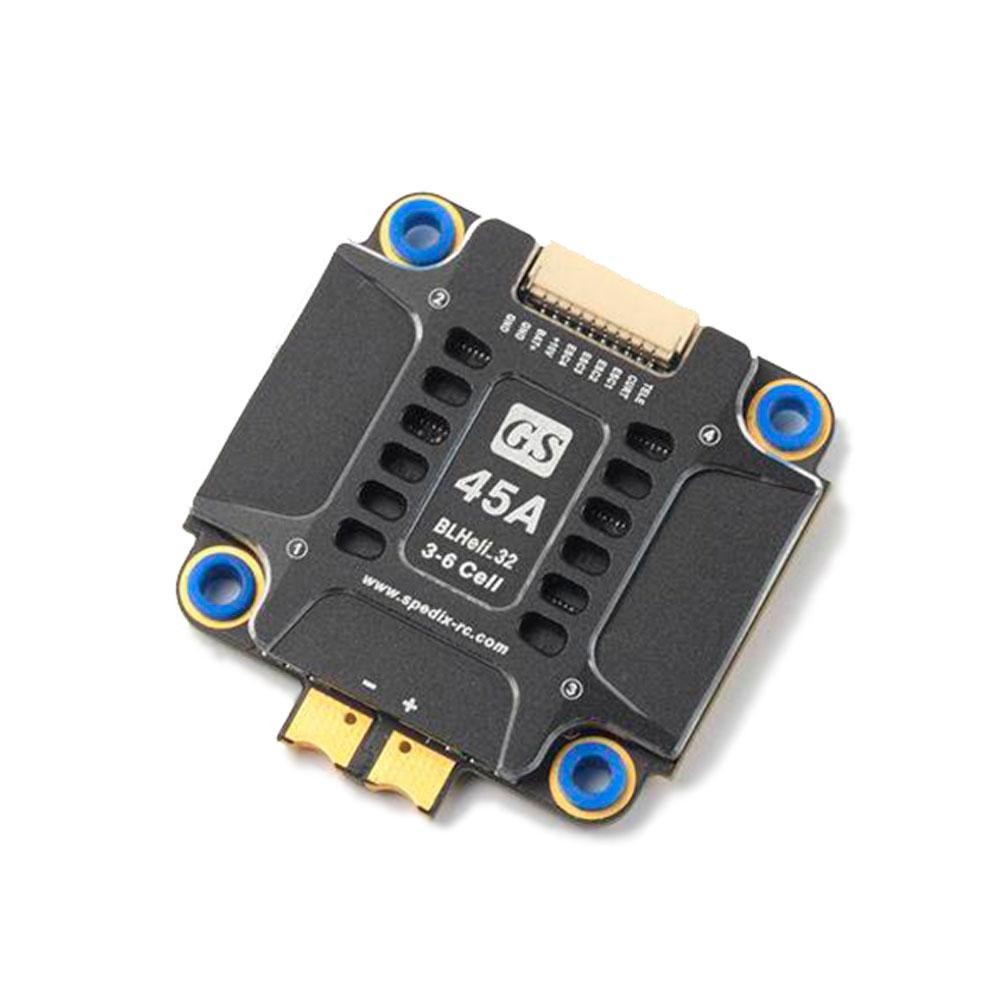

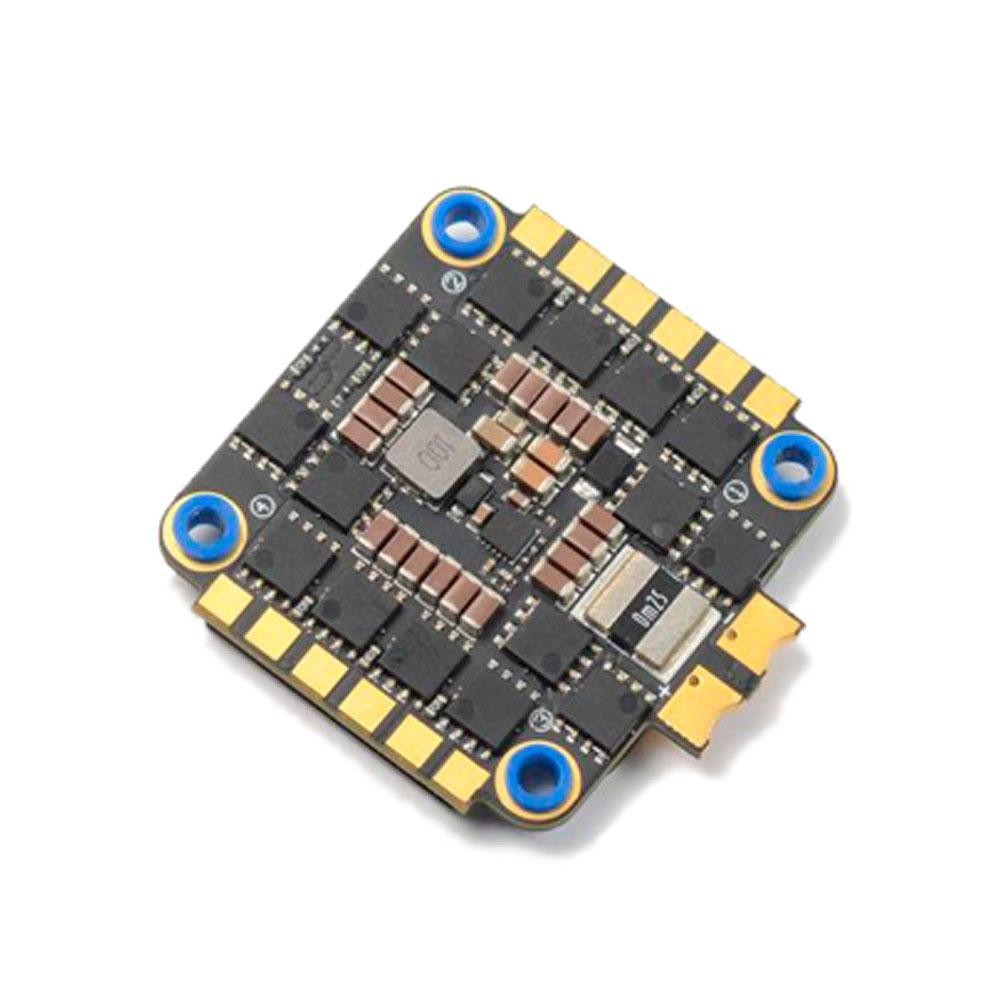

Spedix GS45 45A 3-6s BLHeli32 4-in-1 ESC
The GS45 iterates on the previous GS40 ESC from Spedix. The GS45 adds a bit more headroom to the power output, improves the heatsink design, optimizes the layout, and even adds a 10V 2A BEC.
Check Out Our Entire Spedix Line Up!
Features
- Aluminum alloy cover provides great protection from heat and damage
- Low profile (6.5mm overall) keeps stack size down.
- Fragile components away from mounting holes.
- 40V MOSFETs improve overall reliability and fast response.
- 10V 2A BEC
Specifications
- Input Voltage: 3-6S Lipo
- Con. Current: 45A
- Burst Current: 55A (10S)
- BEC:10V/2A
- Current Detection: Yes
- Firmware: BLHeli_32
- Dimensions: 40.5x42x6.5mm
- Mounting holes: 30.5×30.5mm
- Mounting hole diameter: 3mm
- Weight: 16.5g

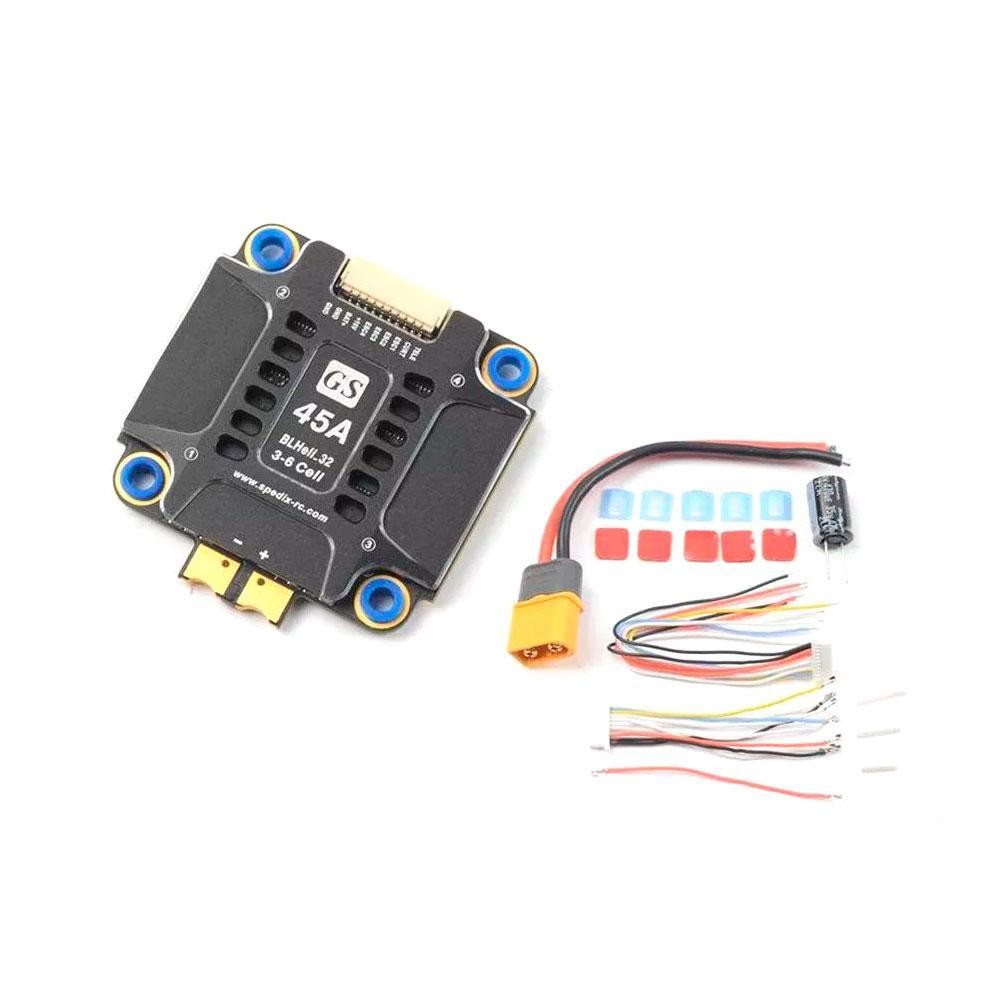

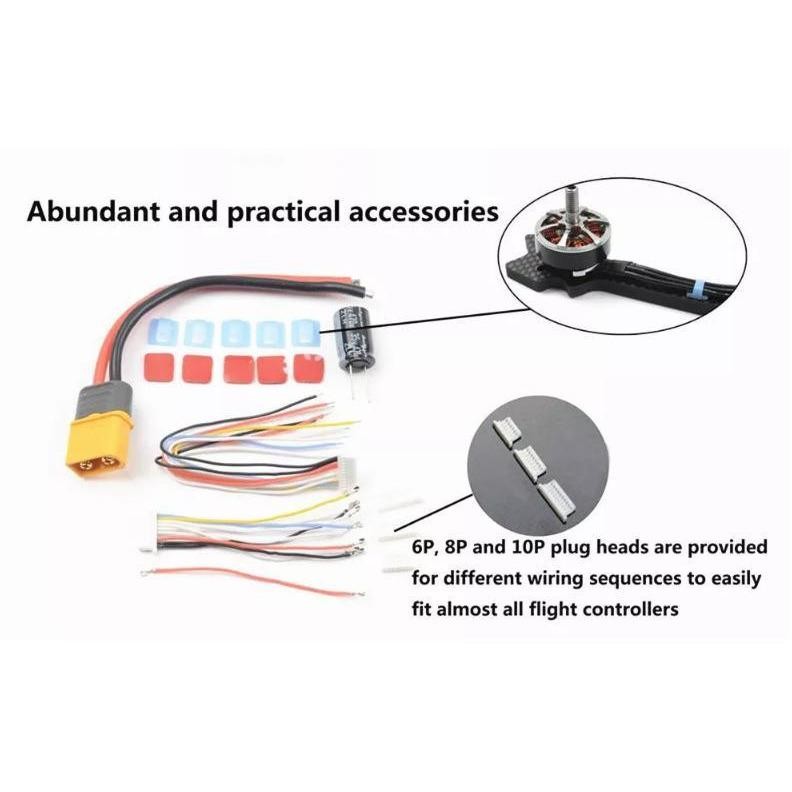

Includes
- 1x GS45 45A 4in1 ESC
- 1x XT60 Connector Cable
- 2x Cable
- 1x 35v 470uf Capacitor
- 5x Cable Tie
