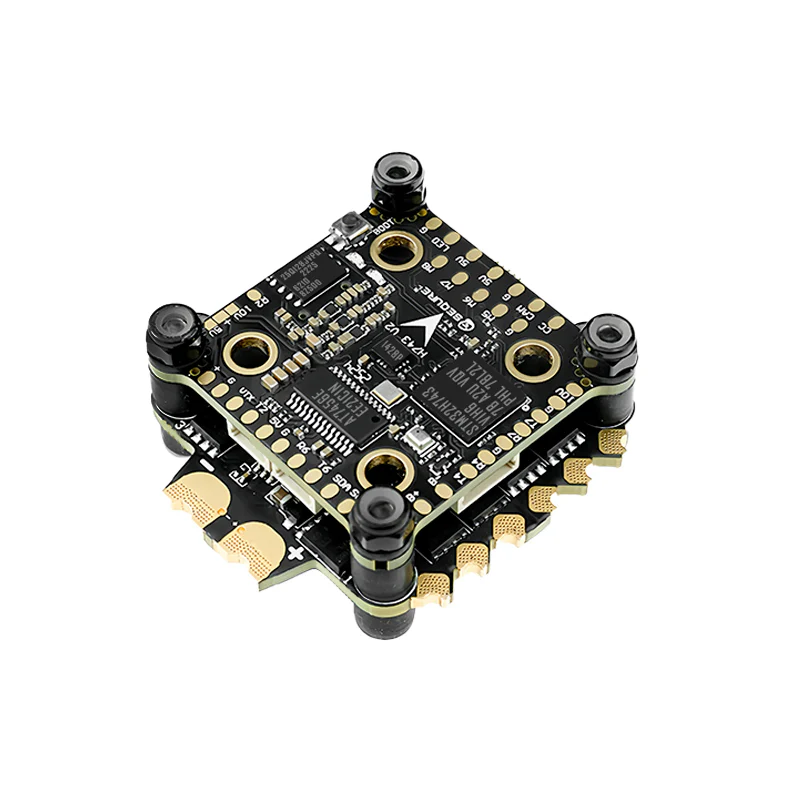

SEQURE H743 & E70 G2 Stack
See all of our Sequre Products!
Product Description:

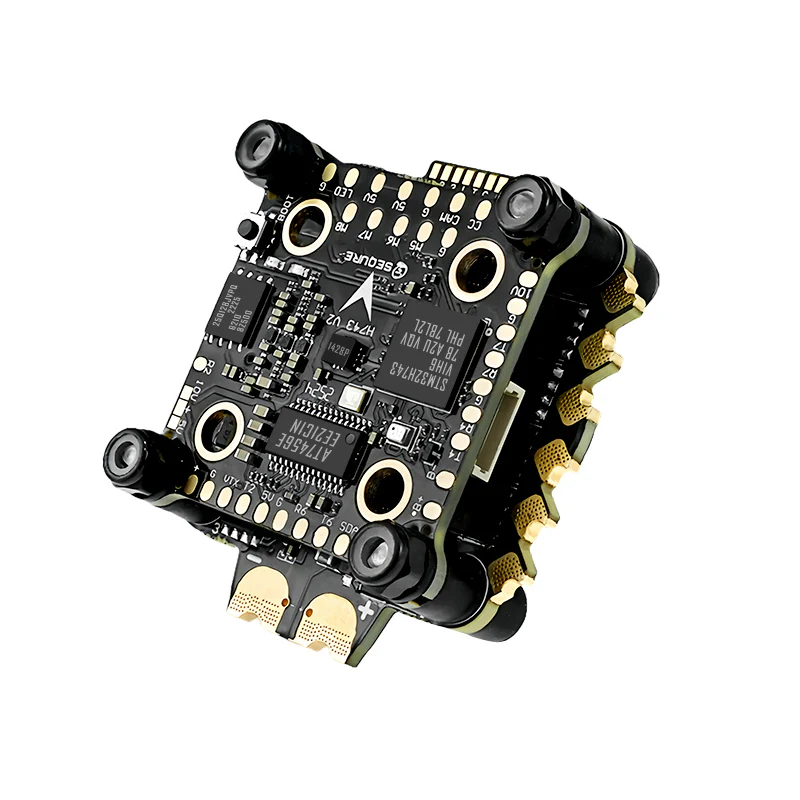

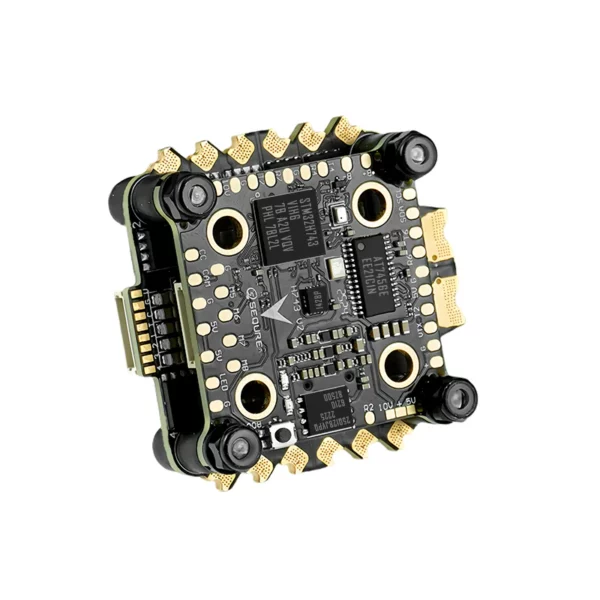

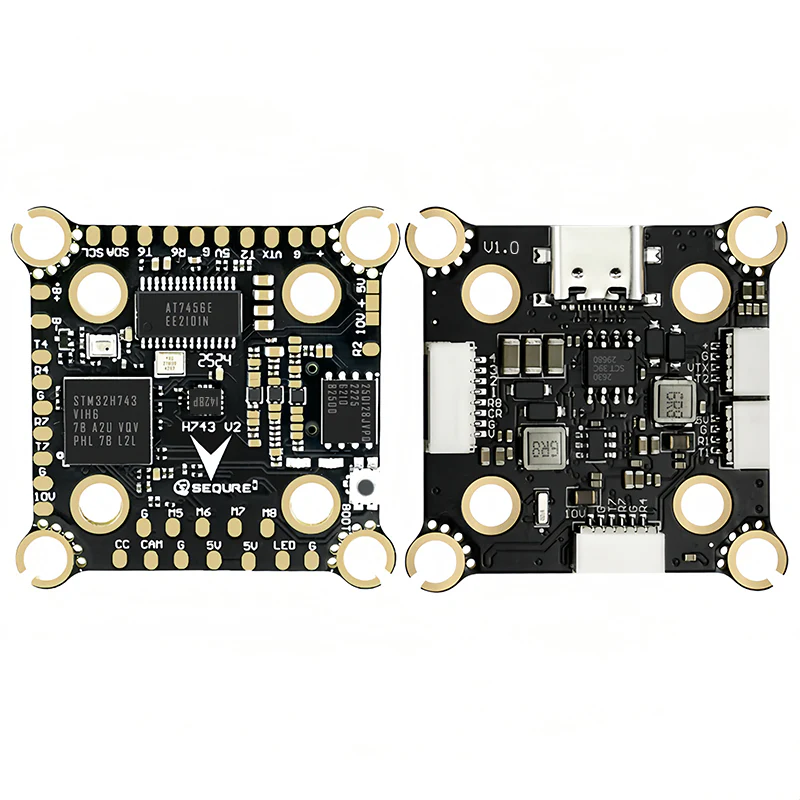

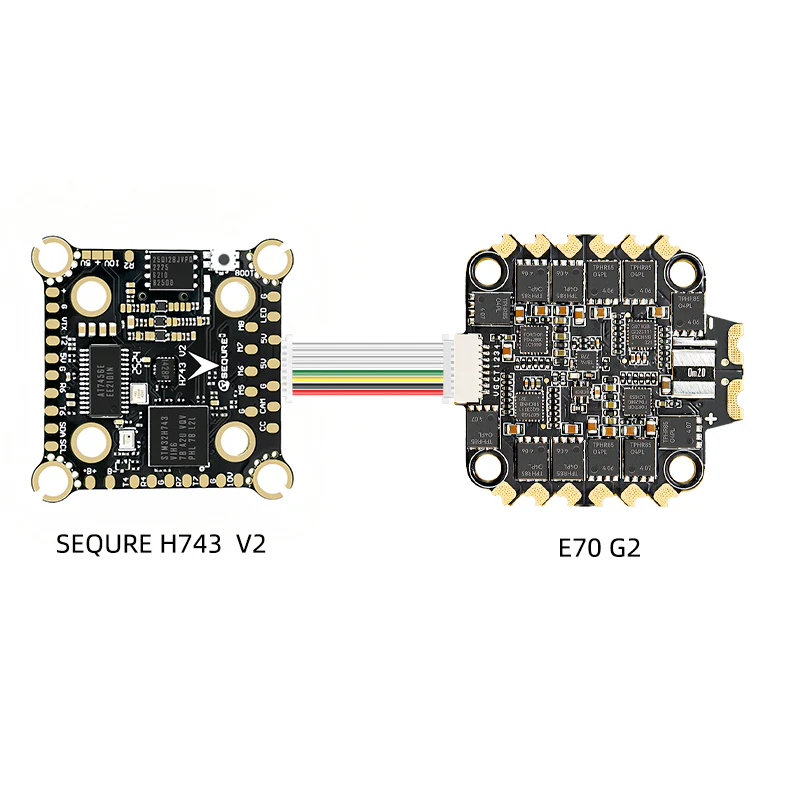

SEQURE H743 V2 FC
(1) Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response.
(2) Adopts ICM42688P gyroscope, this FC realizes precise gesture sensing and stable control, improving the reliability of the system.
(3) SEQURE H743 has an onboard barometer, OSD, and 16MB large capacity black box, which effectively records the flight data.
(4) Reserve 6 UARTS to meet the needs of most devices.
(5) It can control up to 8 motors, easily constructing X8.
(6) Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage,allowing the DJI O3 and analog VTX to plug in for use directly.
(7) Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc.

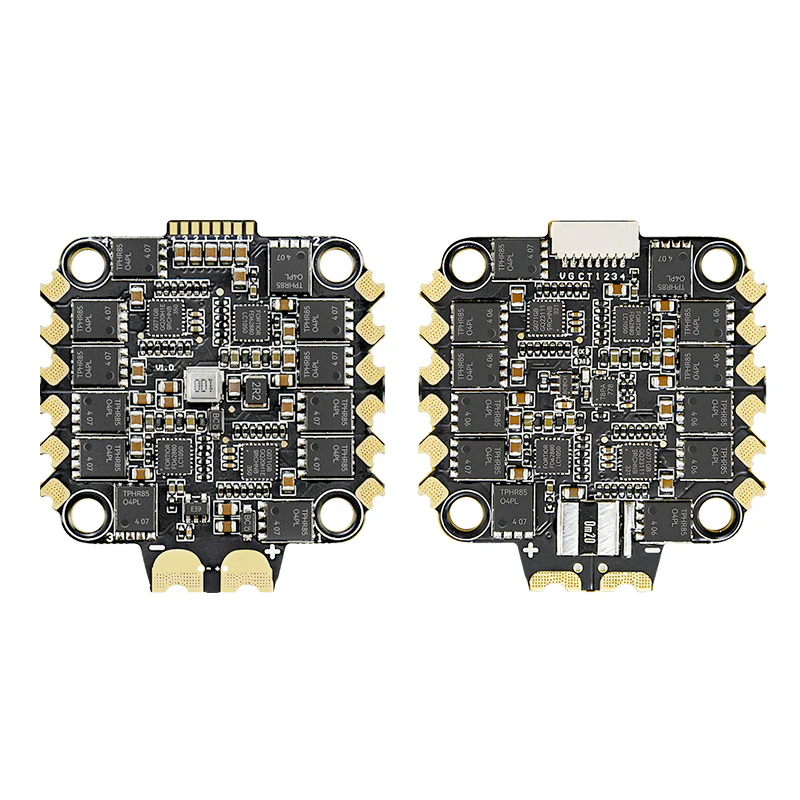

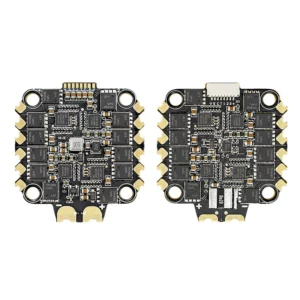

E70 G2 4IN1 ESC
(1) STM32G071 high-performance processor, support BLHeli_32 | AM32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A.
(2) Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time.
(3) High-quality high-power MOSFET, ultra-high efficiency conversion, reducing losses and extending flight time.
(4) High copper thickness multi-layer PCB design increases over-current capability, efficient heat dissipation performance, and is not afraid of load pressure.
(5) Precise switch interval time control, speeding up the response speed of the ESC, smooth control, and delicate feel.
(6) PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem.
(7) Innovative design, oblique surface soldering pad, motor wiring layout is more beautiful and safe, while reducing welding difficulty.
(8) 30.5*30.5mm installation hole spacing design, compact structure, adaptable to various types of racks, easy to install.
Parameters of Product:
| Product Name | SEQURE H743Â V2 |
| Processor | STM32H743 |
| Gyroscope | ICM-42688-P |
| Barometer | BMP280 |
| OSDÂ Chip | AT7456E |
| Black Box | 16MB |
| Firmware | SEQUREH7V2 |
| Input Voltage | 4-8S Lipo |
| BEC Output | 5V/2.5A，10V/2A |
| UARTS | 6 |
| Control Motor | M1-M8 |
| LED | WS2812Â LEDÂ Strip |
| Buzzer | Support |
| ESC Telemetry | RX8 |
| USB | Type-C |
| Installation Hole Distance | 20x20mm,Φ4mm/M3 | 30.5×30.5mm,Φ4mm/M3 |
| Product Size | 36.5*36.5*6mm |
| Product Weight | 7.3g |
| Product Name | E70 G2 |
| Processor
|
STM32G071 |
| Firmware Version
|
BLHeli_32，AM32 |
| PWMÂ Frequency
|
16KHz-128KHz |
| Working Voltage
|
2-8S Lipo |
| Continuous Current
|
70A |
| Peak Current
|
150A |
| Support Protocol
|
Dshot600/300/150,Oneshot,Multishot,PWM |
| Telemetry Return
|
YES |
| Galvanometer
|
YES |
| BEC | NO |
| Mounting Hole Spacing
|
30.5*30.5mm, Φ4mm/M3 |
| Product Size
|
45.5*42.5*6mm |
| Product Weight
|
17.5g |

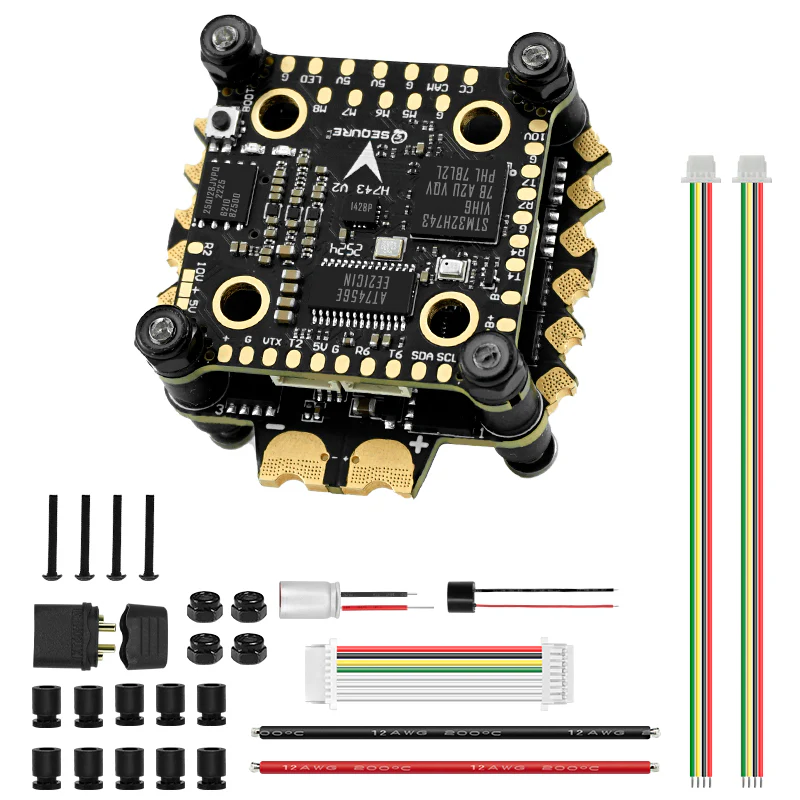

Package included:
SEQURE H743 V2 FC x 1
E70 G2 4IN1 ESC×1
30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable x 1
30AWG 100mm Single-head SH1.0-4P Flat Cable x 2
60mm Length 12095 5V Buzzer x 1
M3*8mm Silicone Shock-absorbing Washer(Black) x 10
12AWG 100mm Power Cable (black/red)×2
XT60H-M Black Male Connector×1
35V 680UF Solid Capacitor×1
M3*25mm Screw×4
M3 Sleeve Nut×4

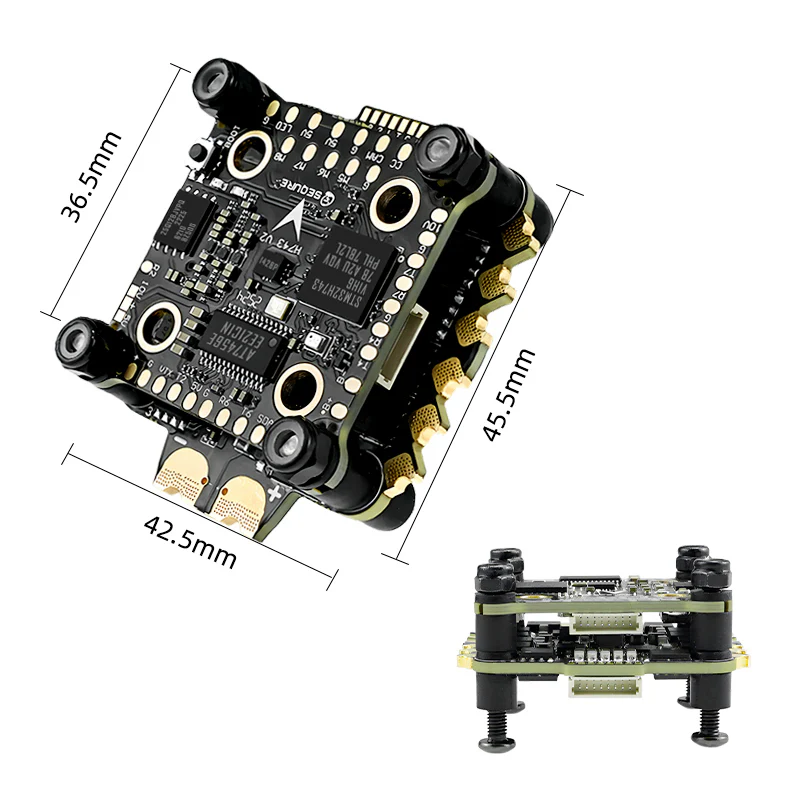

Overall Dimension:
(1) Product Size: 45.5*42.5*16mm

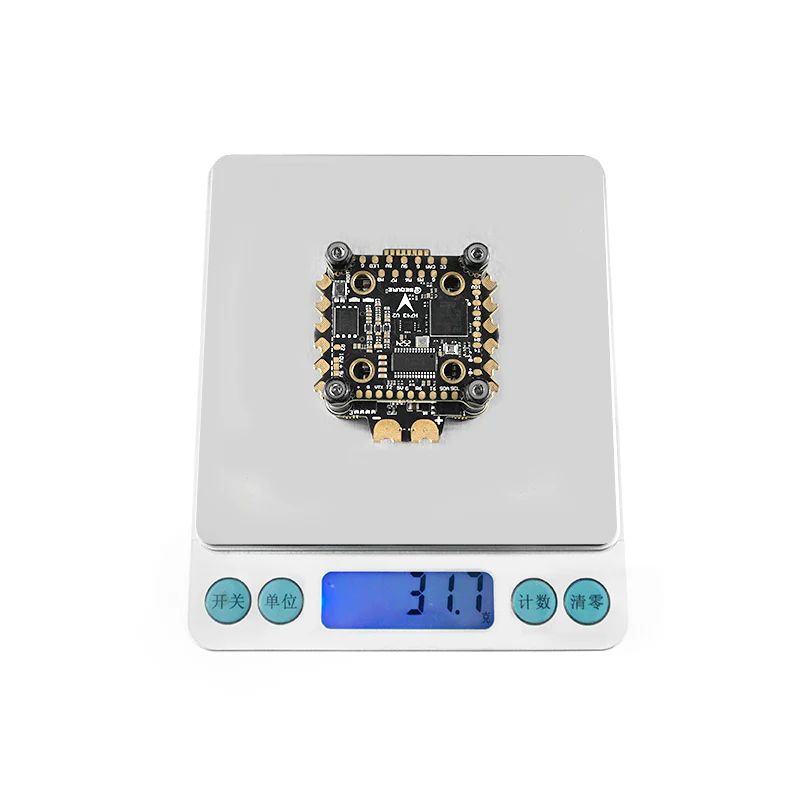

Net Weight Of Product: 32g
(2) Package Size: 200*150*40mm
Packing Weight: 103g
(3) Package Size (Including Outer Carton)：200*130*60mm
Packing Weight (Including Outer Carton)：176g
