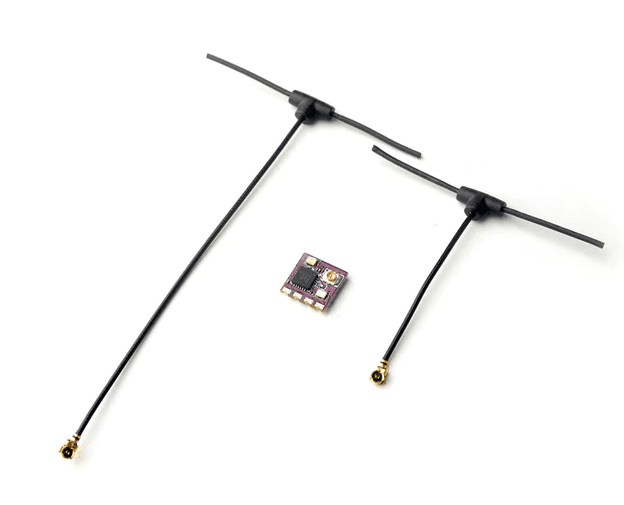

Happymodel 2.4G ExpressLRS EP1 TCXO RX Receiver Module
Check out all of our other HappyModel products! Also, take a look at all of our Radio Receivers, and all of our ELRS-compatible products!
EP1 ELRS receiver is the hottest ExpressLRS receiver since it was released. Now the new TCXO version EP series receiver applies a “temperature compensated crystal oscillator”, accurate frequency and excellent performance in extreme temperature environments make these TCXOs very reliable.
Specifications:
- Type: ISM2.4GHz
- ESP8285 MCU
- SX1280(SX1281)IMLTRT RF Module
- Omni directional antenna
- Frequency Range: 2400 MHz to 2500 MHz
- Receive refresh rate: 25HZ~500Hz
- Working voltage: 5v
- Weight: 0.41 gram(without antenna)
- Dimension: 10mm*10mm*6mm
- Peak gain: 2.23dB
- Default Firmware out of the factory: HappyModel_EP_2400_RX V2.2 version
- Built-in a TCXO (temperature-compensated crystal oscillator)
Package Includes:
- 1 x Happymodel 2.4G ExpressLRS EP1 TCXO RX Receiver Module
