MATEK ELRS-R24-P ELRS 2.4GHZ PWM RECEIVER
Check out all of our Matek Products!
ELRS-R24-P Specifications
- ESP8285, SX1280/1281
- Antenna connector: IPEX MHF 1
- 5x PWM outputs
- RF Frequency: 2.4GHz (2400~2480MHz)
- Telemetry power: 12dbm
- Receiver protocol: PWM or CRSF
- Input voltage: 4~9V DC @ “+” pad
- Power dissipation: 45mA(binding), 85mA(wifi mode)

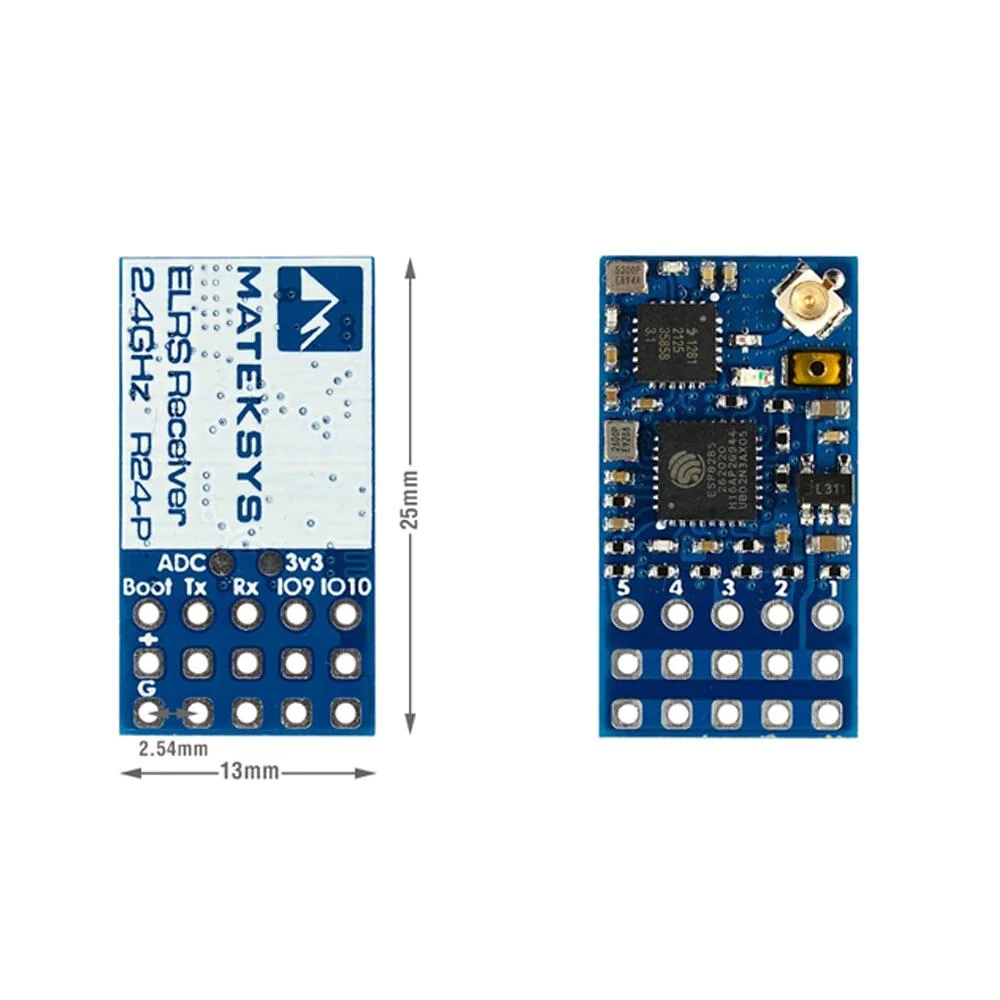

- PCB size: 25mm x 13mm
- Weight: 2g w/ antenna

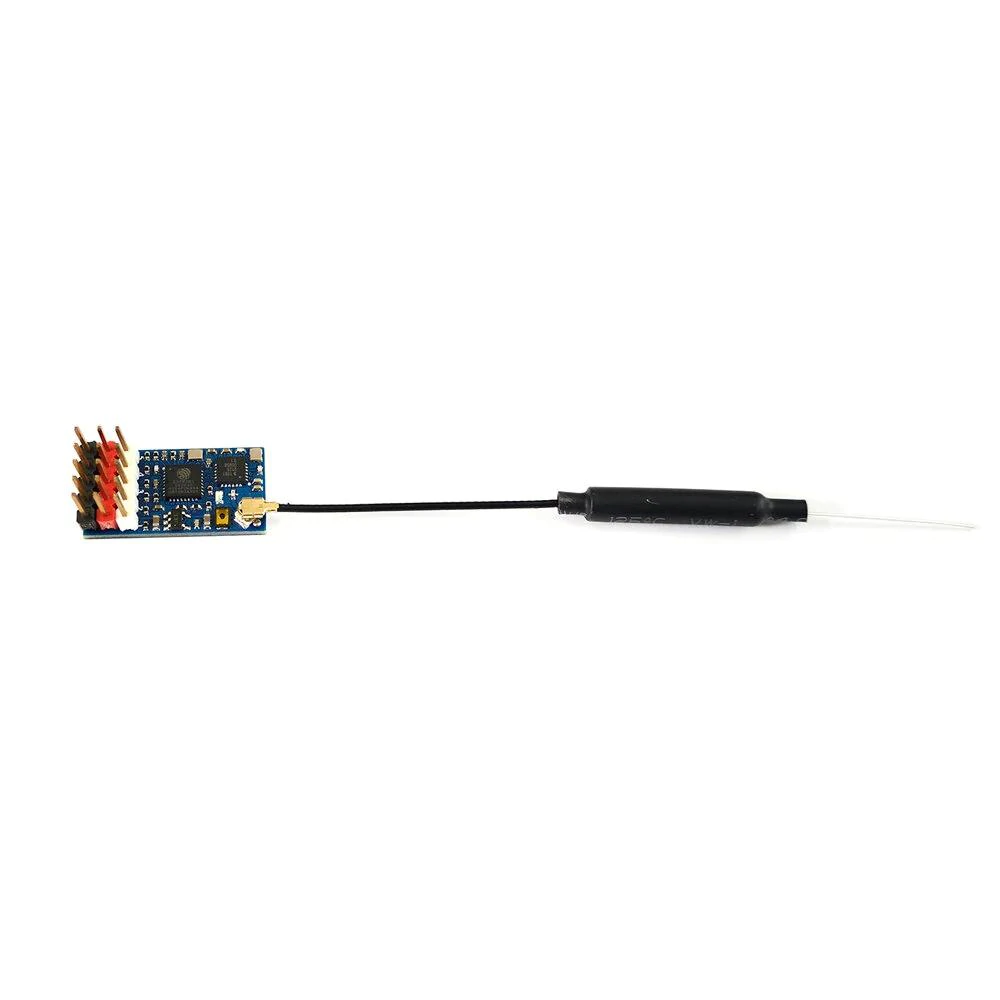

- Packing: 1x ELRS-R24-P, 1x IPEX MHF1 Antennas
Firmware
- ExpressLRS MATEK_2400_RX_PWM, or DIY_2400_RX_PWMP, PWM receiver via 1~5 PWM outputs
- ExpressLRS DIY_2400_RX_ESP8285_SX1280, CRSF Serial receiver via TX and RX
- Firmware update via UART or WIFI
