Matek CRSF-PWM-6 CRSF to PWM Converter
Check out all of our Matek Products!

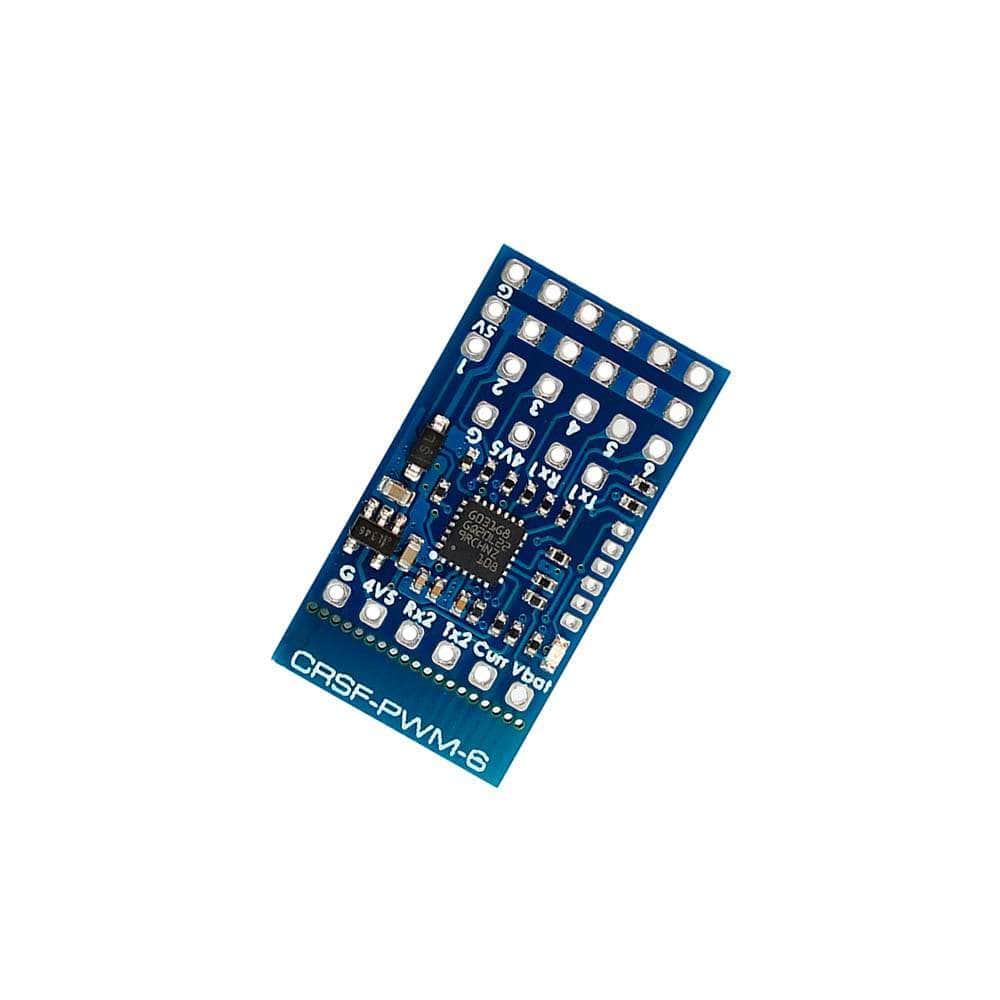

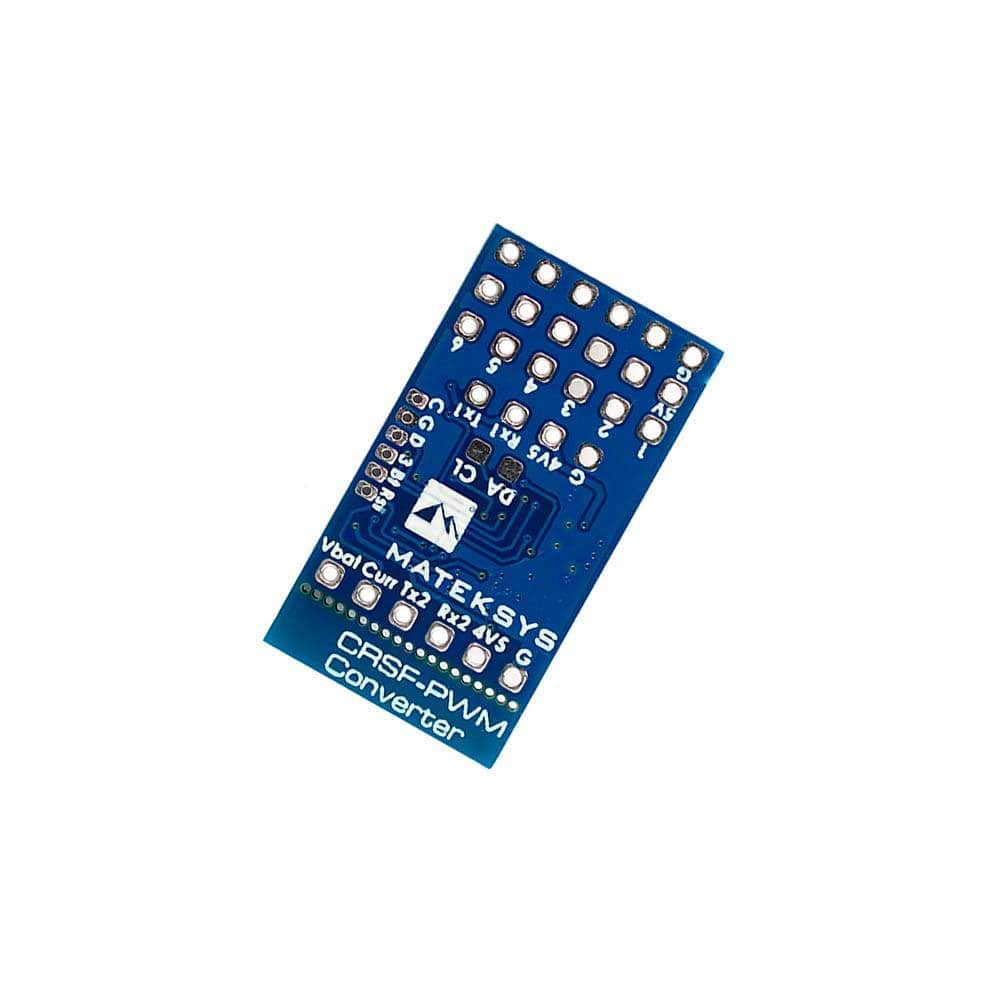

CRSF-PWM Converter, CRSF-PWM-6
- Compatible with CRSF protocol receiver only
- Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)
- 6x PWM outputs
- PWM frequency configurable (50Hz default, 100,160,330, 400Hz)

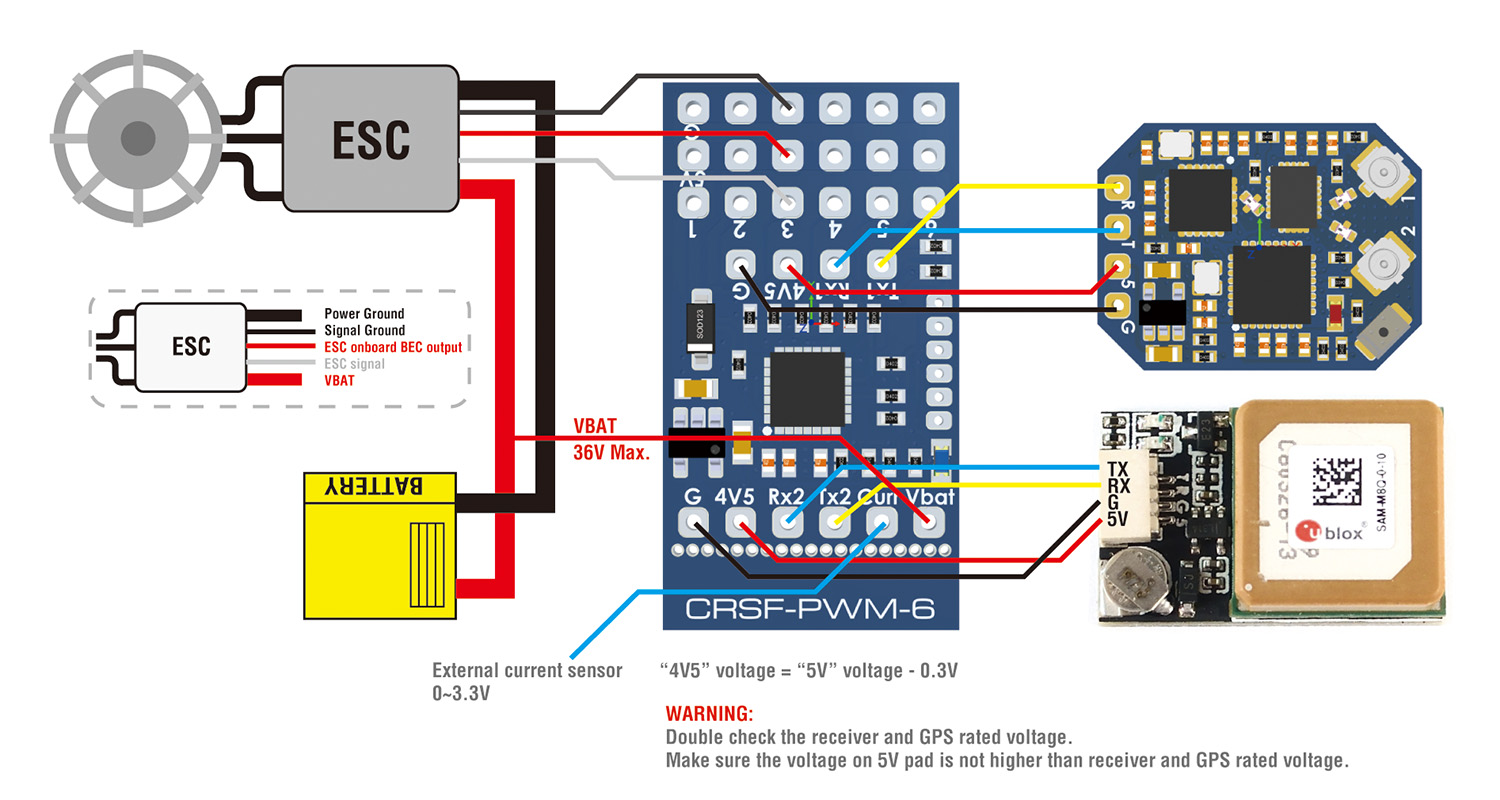

- 2x UARTs (for Receiver and GPS)
- Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats
- 36V Max. battery voltage sense (1K:10K voltage divider built-in)
- Compatible with external Current sensor (0~3.3V)
- Vbat and Current sensor scale configurable
- Failsafe value auto set
- Firmware upgradeable
- Rated voltage: 4~9V @5V pad, 0~36V @Vbat, 0~3.3V @Curr
- No 5V regulator built-in

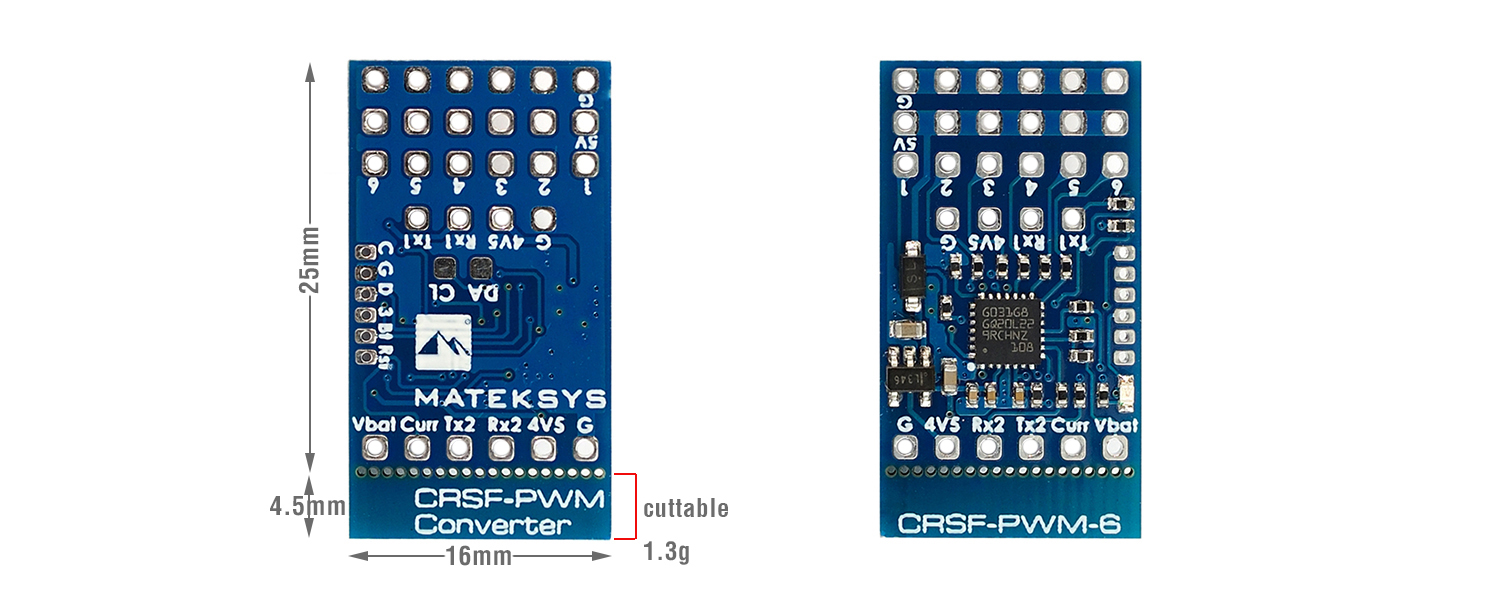

- 25mm x 16mm, 1.3g

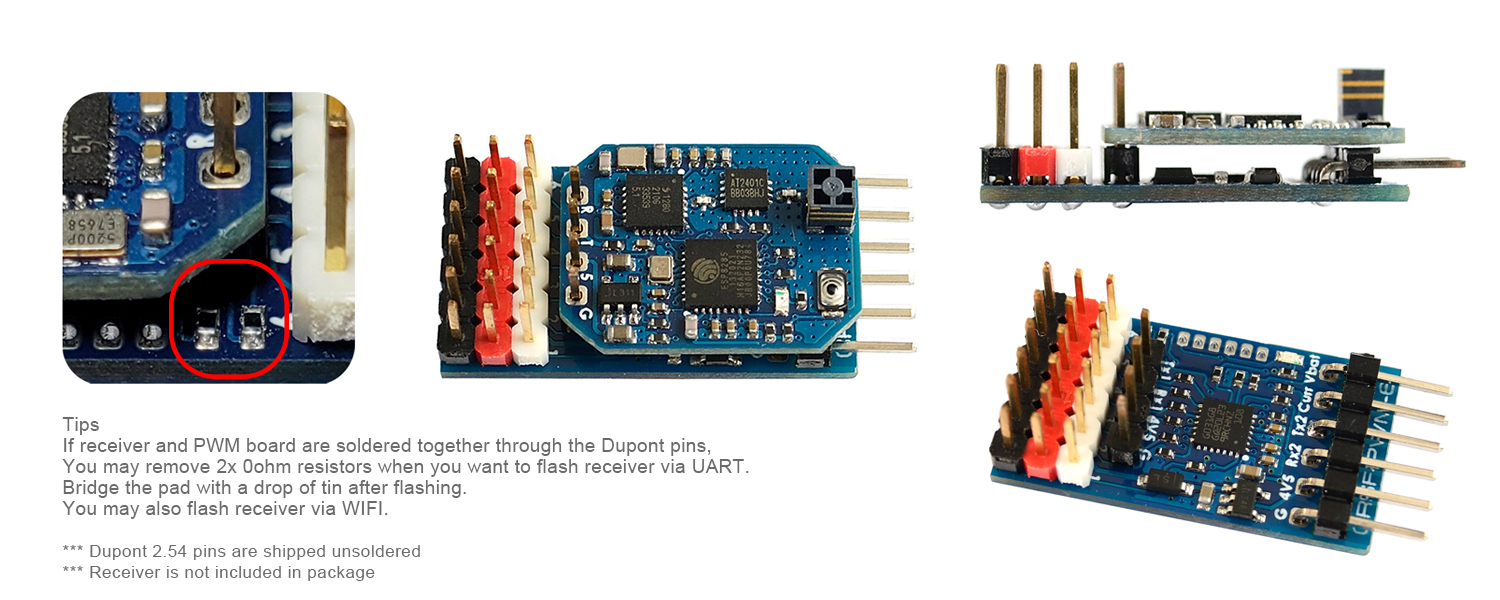

- Packing: 1x CRSF-PWM-6, Dupont 2.54 pins
