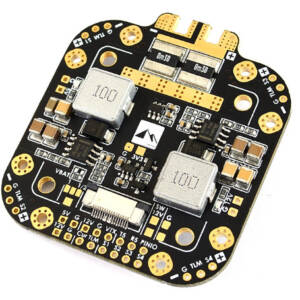

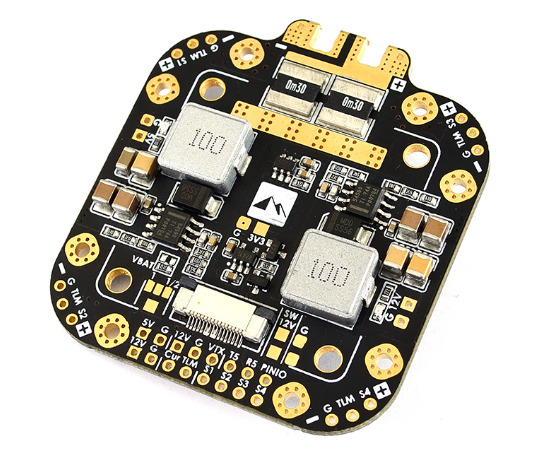

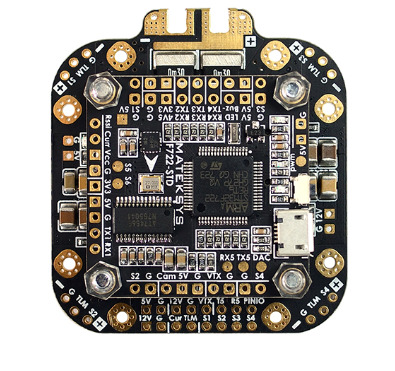

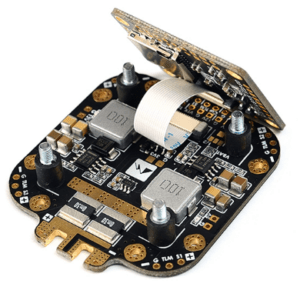

Matek FCHUB-12S PDB X-Class

PDB

• Input voltage range: 8~60V (3~12S LiPo)
• 4x70A cont, 4x110A burst
• 4x ESC power /signal/ telemetry pads
• Current Senor: 440A,  3.3V ADC,  Scale 75
• 2x LED indicators for 5V, 12V
• 1K:20K voltage divider built-in

JST-SH 8pin connector

• “V” pad: 12V or VBat voltage selectable
• G: GND
• Curr: current sensor signal
• TLM: for BlHeli32 ESC telemetry
• S1~S4: ESC signal

BEC 5V output (5V pad)

• Voltage: 5.1 +/- 0.1VDC
• Continuous current 5 Amps,  Max.6A
• Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery

BEC 12V output (12V pad)

• Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
• Continuous current 4 Amps,  Max.5A
• Input voltage<12V,  Output voltage = Input voltage
• Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery

Switchable 12V output (12VSW pad)

• 12V ON/OFF switchable via PINIO(high/low level)
• support constant 2A
• can be use for powering VTX,LED etc.

BEC 3.3V output

• Linear Regulator
• Continuous current: 500mA

Physical

• Mounting: 30.5 x 30.5mm, Φ3mm

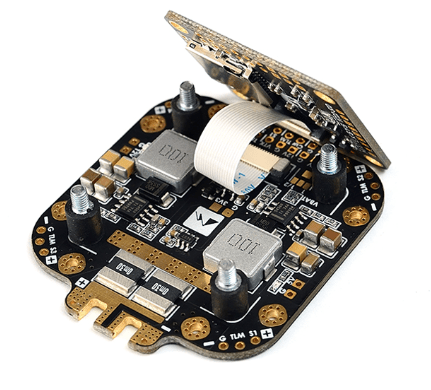

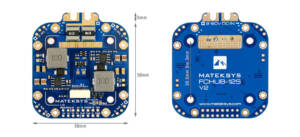

• Dimensions: 55 x 50 x 6 mm
• Weight: 21g

Including

• 1x FCHUB-12S V2
• 1x SH1.0_8pin cable 5cm,  2x SH1.0_8pin connectors
