NewBeeDrone Infinity305 Flight Controller
Check out all of our NewBeeDrone Products!
Pair this with the Infinity305 ESC to create the market’s smallest most powerful Stack!
Build Video:
Flight Controller Spec:

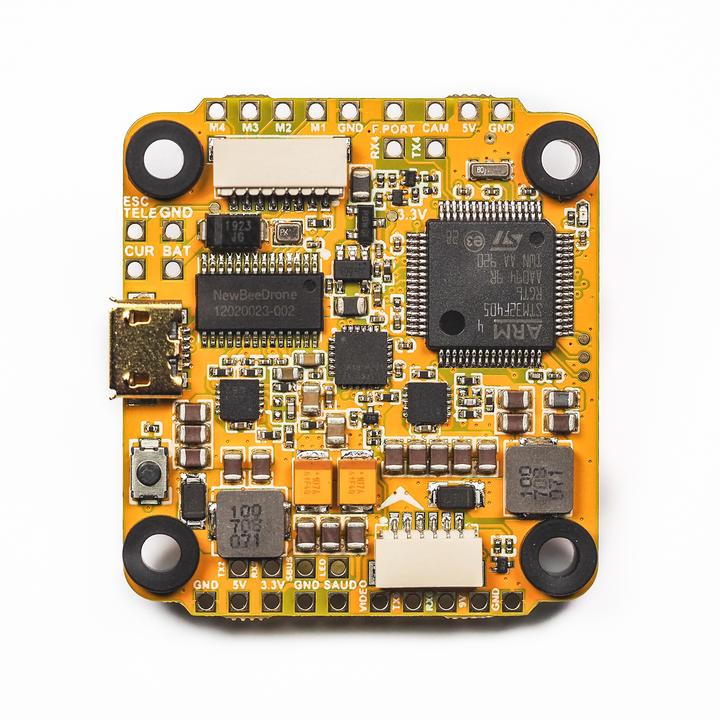

- MPU6000 Gyro
- STM32F405 CPUE @ 168mhz, can be overclocked
- 3-6S direct battery input
- 5V 2A,
- 9V 2A 18W Design for DJI FPV Air Unit
- 5V Camera Power
- Beta flight OSD
- Flat bottom PCB for SUPER CLEAN builds
- 36×39 CB with 30.5×30.5 mounting holes

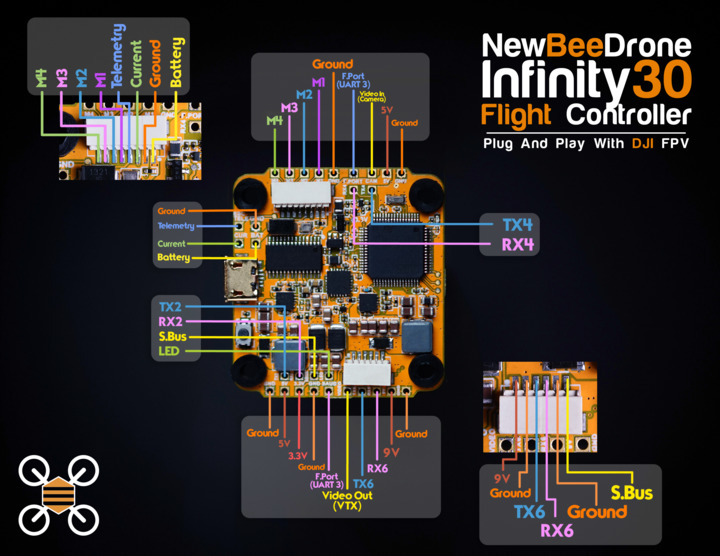

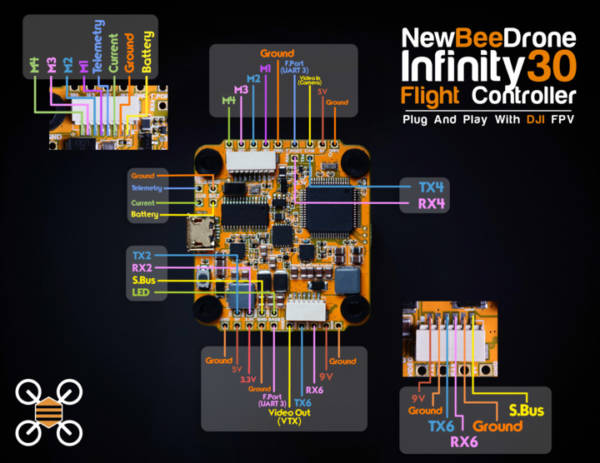

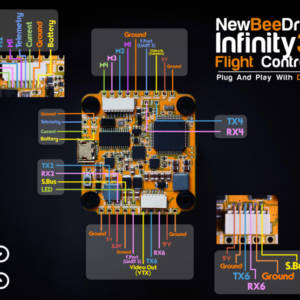

- 6 UARTS. UART1 (INVERTER FOR SBUS)
- UART2 (FREE)
- UART3 (INVERTED TELEMETRY)
- UART4 (Free)
- UART5 (Smart Audio)
- UART6(Free)
- Built-in 4 IN 1 ESC socket(including ESC telemetry, External current sensor) JST1.0 8Pin
- Plug and plug with NBD Infinity30 ESC. Also compatible with most of the ESC on the market.
- Built-in solder pads for ESC signal output and power

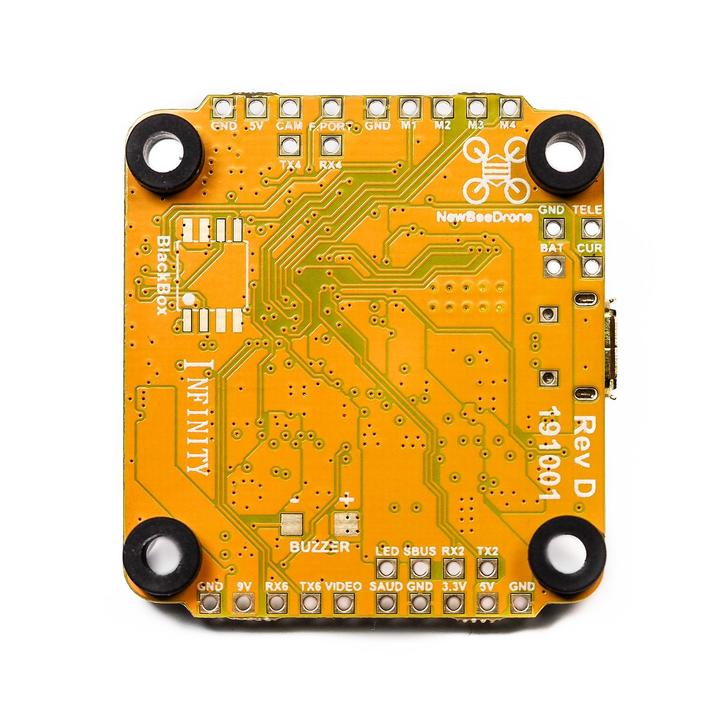

- Printed layout instructions ON the board – no need for instructions!
- DJI FPV Air Unit socket (use UART1 and UART6)
-Infinity305 Flight Controller Firmware
Includes:
- 1x Infinity305 flight controller
- 4x Grommets short 4x Grommets Long
- 1x Infinity305 FC to DJI Air module cable 40mm
- 1x Infinity305 FC to DJI Air module cable 100mm
- 1x Infinity305 FC to DJI Air module cable 150mm
NOTE: We suggest running a cap on 4s builds. Even though we tested and designed it to not need one, all builds are different and there are always exceptions.
