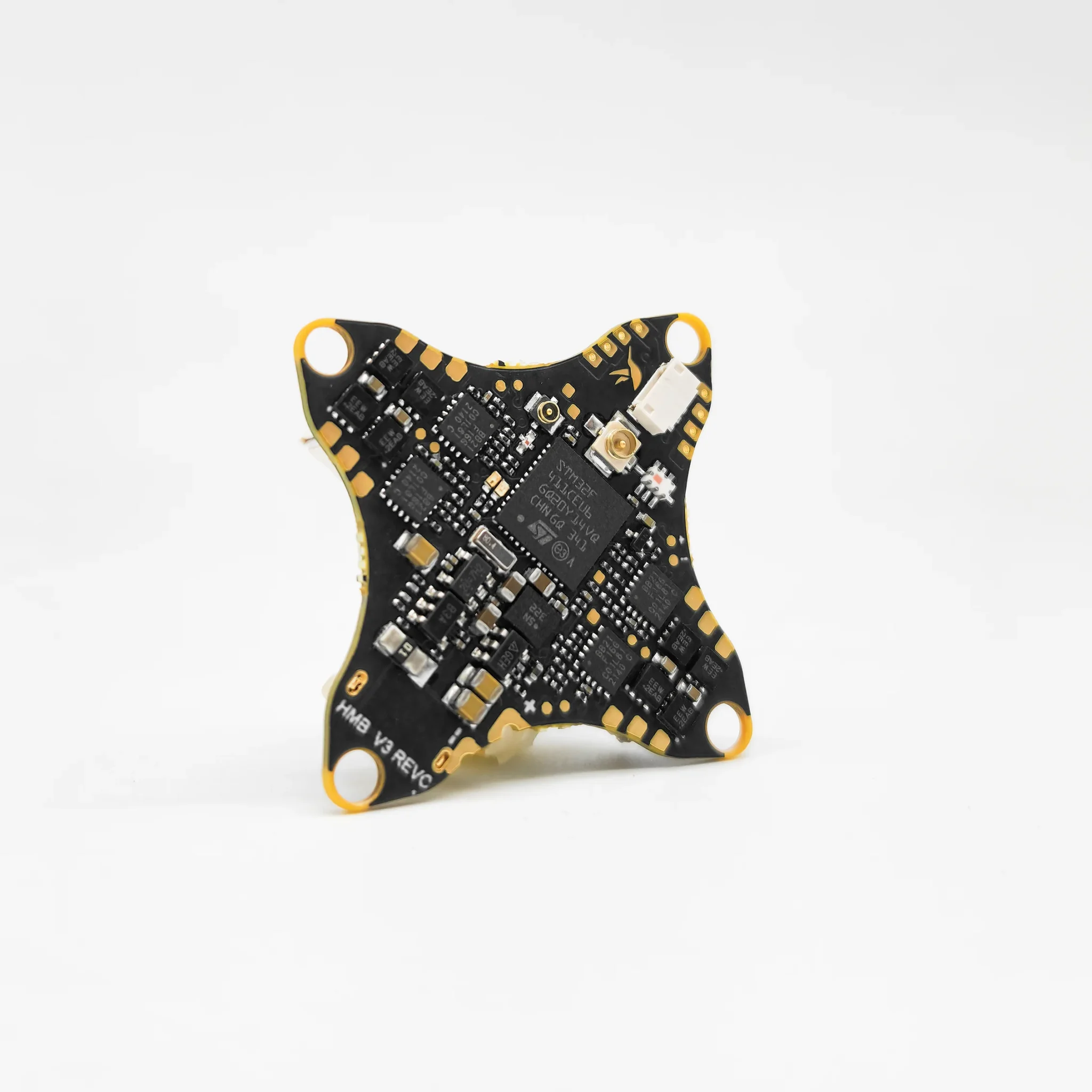

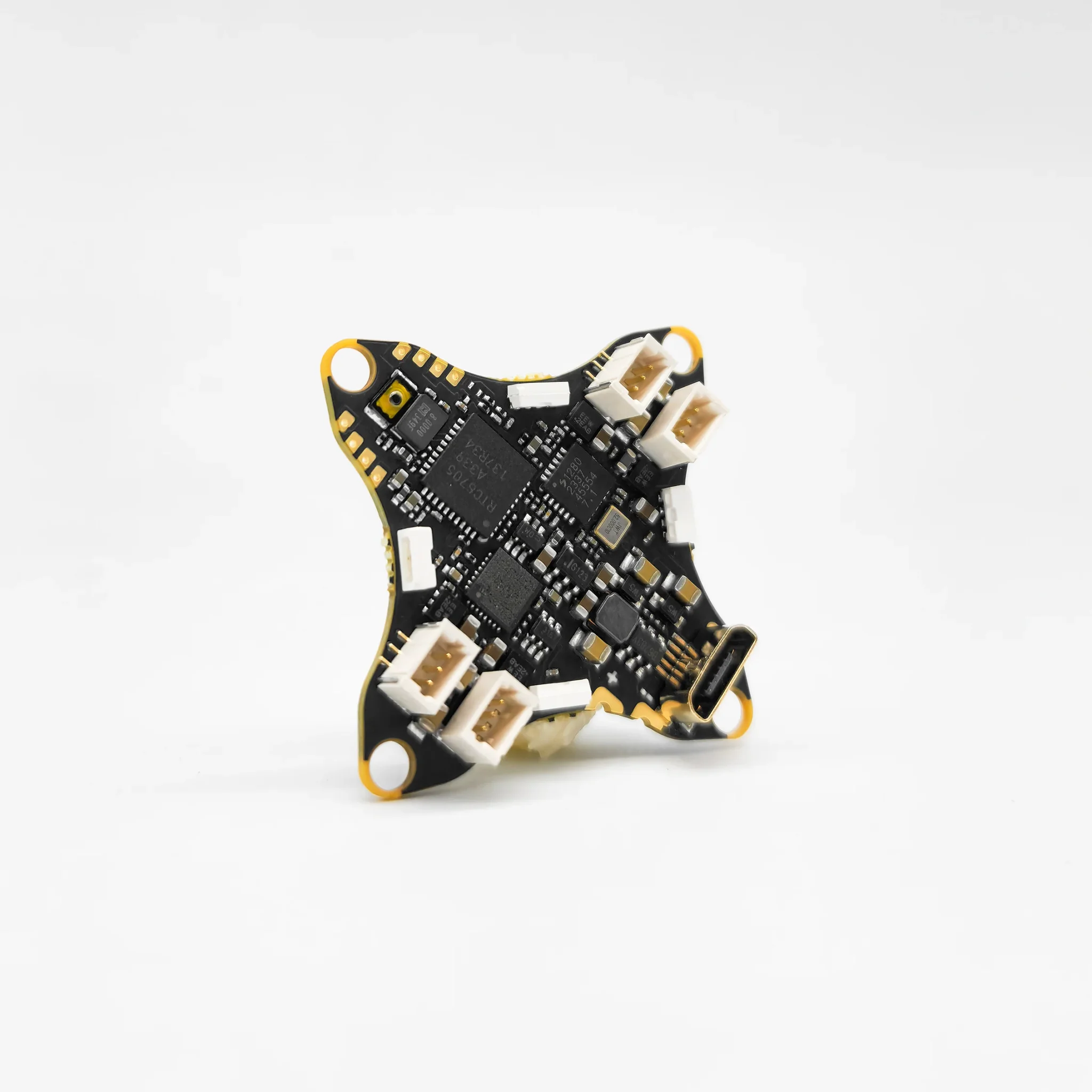

NewBeeDrone HummingBird V3 AIO Flight Controller ELRS 2.4g with 25mw VTX
Check out all of our NewBeeDrone Products!
Introducing the NewBeeDrone HummingBird V3.1 AIO Flight Controller with ExpressLRS (ELRS) 2.4G and 25mW VTX, meticulously designed as a replacement part for the Hummingbird V3 BNF drone. This compact and high-performance flight controller is tailored to enhance your flying experience with its advanced features and specifications, ensuring optimal performance for your Hummingbird drone.
Key Features:
- STM32F411 MCU: Offers reliable and fast processing capabilities for smooth and responsive flight control.
- GYRO Options: Equipped with either the BMI270 or 42688 gyro for precise flight dynamics and stability.
- Integrated VTX: Features a 25mW VTX with a BeeTX 5.8GHz antenna, providing clear and reliable video transmission for FPV flying.
- 12A BLHeliS ESCs: Pre-flashed with Bluejay 0.19.2 firmware for efficient and responsive motor control.
- ExpressLRS Receiver: Utilizes a 2.4G antenna with an MHF3 connector, compatible with the latest ELRS3.0 standard for enhanced connectivity and range.
Specifications:
- Flight Controller Weight: 4.57g (including antennas and battery connector)
- Dimensions: 29x29x7.6mm with mounting holes spaced at 25.5×25.5mm, perfect for compact builds.
- Battery Input: Optimized for 1S batteries only, ensuring safe and efficient power management.
- Onboard OSD: NBD7456 graphical OSD, fully compatible with Betaflight for real-time flight data display.
- Connectivity: Includes multiple UARTs for additional peripherals and a gold-plated PH2.0 solid pin power plug for reliable connections.
Installation Notice: This product is specifically intended for use as a replacement part within NewBeeDrone’s Hummingbird V3 BNF setups. It is not suitable for DIY projects involving non-NewBeeDrone components or any form of soldering. Misuse outside of its intended replacement role could void the warranty and any damages incurred from such activities will not be covered.
Binding Instructions: To bind the SPI ELRS3.0 receiver, simply power on the drone and press the bind button located under the flight controller. Please ensure that your remote controller is updated to ELRS version 3.0 or higher, as older versions are not supported by the latest Betaflight 4.4 firmware.
This advanced flight controller is your go-to solution for maintaining or upgrading your Hummingbird V3 BNF drone, providing you with the latest in drone technology and ensuring a superior flying experience.
