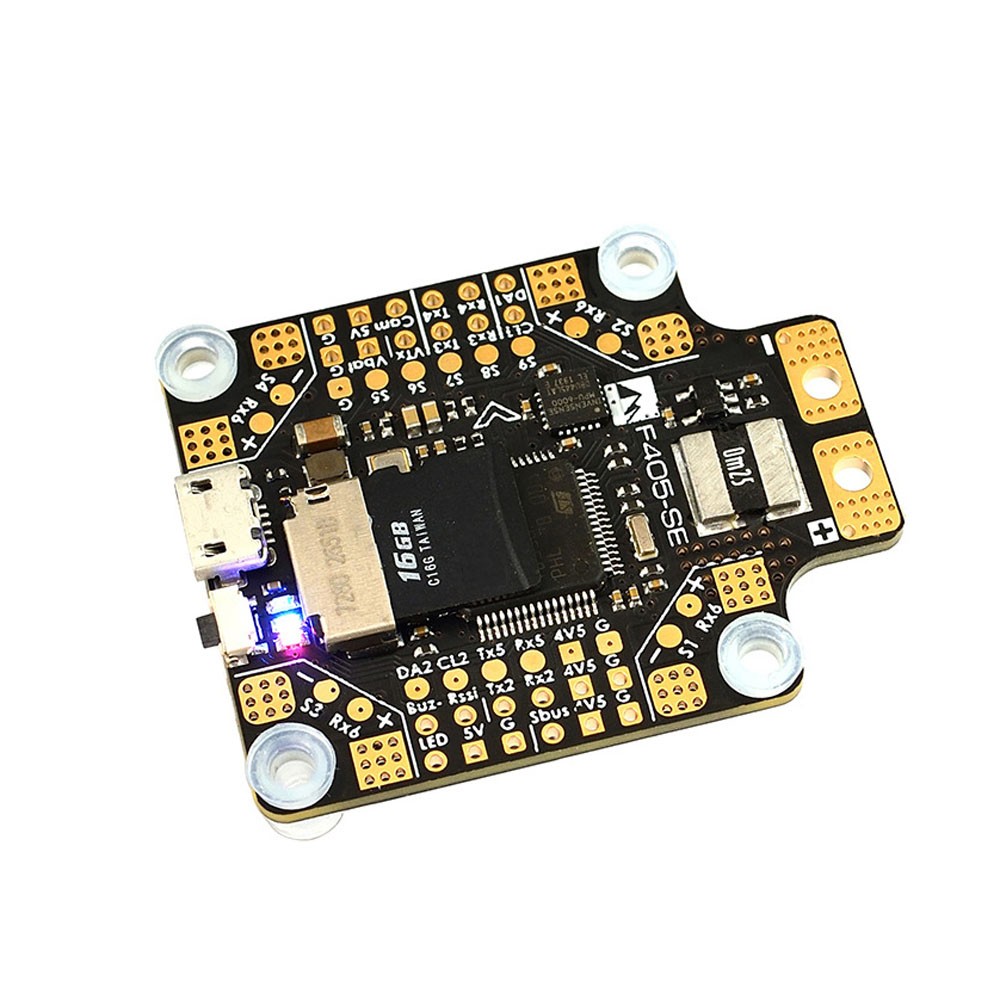

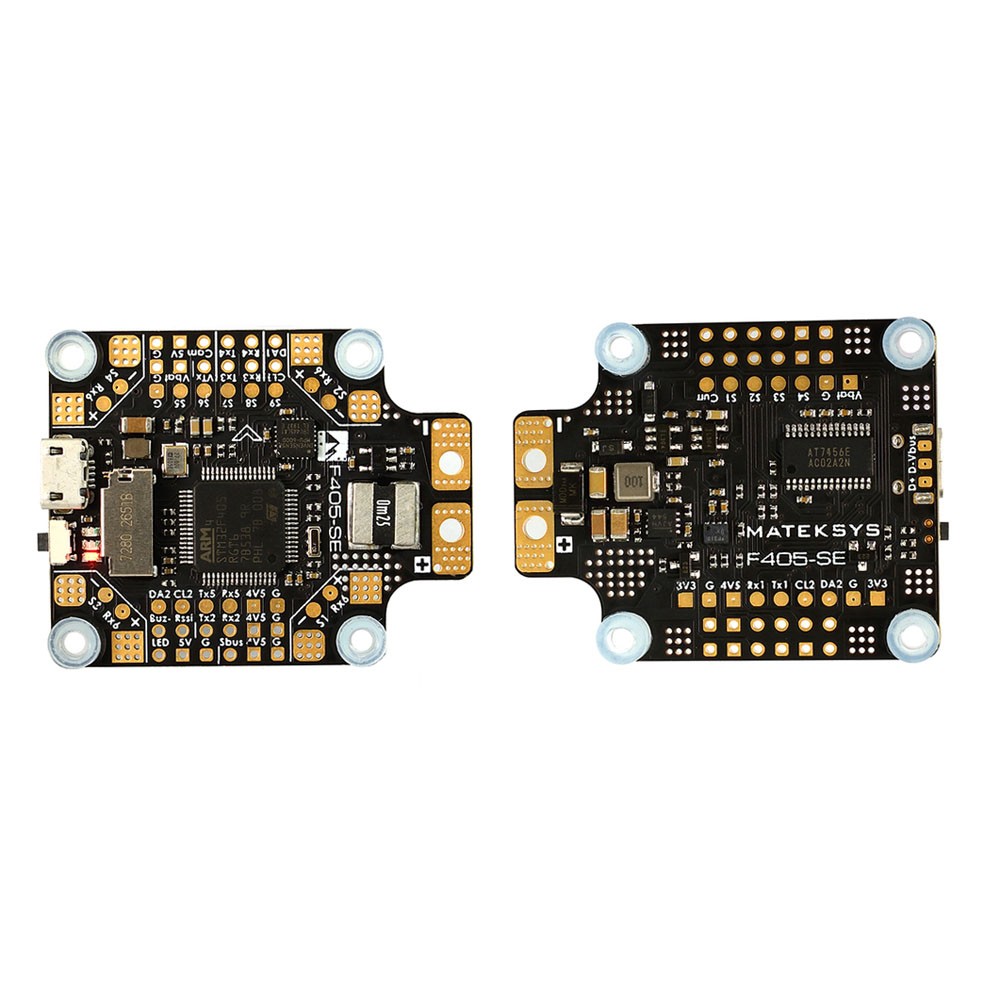

Matek Flight Controller F405-SE

Specifications

• MCU: 168MHz STM32F405RGT6
• IMU: MPU6000 (SPI)
• Baro: DPS310 (I2C)
• OSD: AT7456E (SPI)
• Blackbox: MicroSD slot (SPI)
• VCP & 6x Uarts, 1x Softserial_Tx supported
• 9x PWM outputs (7x Dshot compatible with BF/INAV)
• 2x I2C
• 3x ADC (voltage, current, RSSI)
• 4x RX6 pad(one per corner) for BLheli32 ESC telemetry
• 4x individual ESC power/signal pads
• 1x Group of  G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
• Built in inverter on UART2-RX for SBUS input
• PPM/UART Shared: UART2-RX
• Vbat filtered output power for VTX

• Camera control: Yes
• Smartaudio & Tramp VTX protocol: Yes
• DJI FPV OSD protocol: Yes
• WS2812 Led Strip : Yes
• Beeper : Yes
• RSSI: Yes

PDB Specifications

• Input: 6~36V (2~8S LiPo) w/TVS protection
• PDB: 4x35A (Max.4x46A)
• BEC: 5V 2A cont. (Max.3A)
• LDO 3.3V: Max.200mA
• Current Sensor 184A (Scale 179 in INAV/BF)
• Battery Voltage Sensor: 1K:10K

Firmware

• INAV: MATEKF405SE
• BetaFlight: MATEKF405SE
• ArduPilot: MATEKF405-WING

Physical

• Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
• Dimensions:  36 x 46 mm
• Weight: 10g

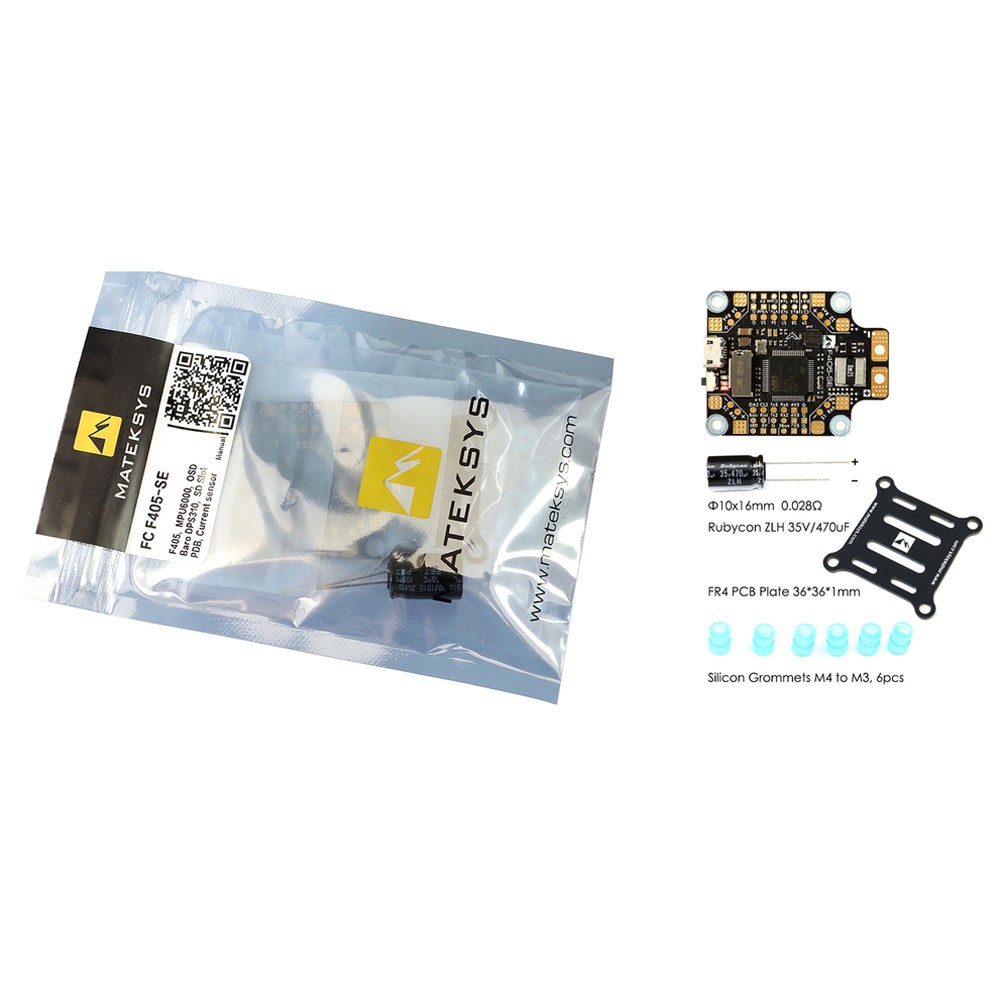

Including

• 1x F405-SE
• 6x silicon grommets M4 to M3
• 1x FR4 PCB Plate 36*36*1mm
• 1x Rubycon ZLH 35V/470uF (Low ESR)
