Matek F405-WMN Flight Controller
Matek’s F405-WMN (Wing Mini) board is an excellent choice for builders seeking to minimize weight and space without compromising on functionality. This compact flight controller crams the capabilities of a full-sized board into a diminutive form factor of only 31x26x16mm.
Key Features:
- Compact version of a full-sized board
- Lightweight design
- F405-WMN FLIGHT CONTROLLER
Technical Specifications:

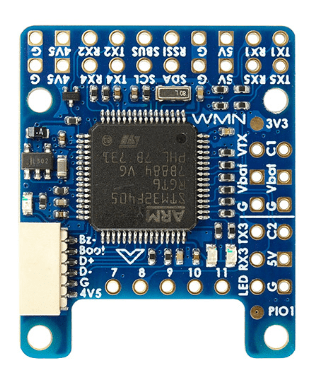

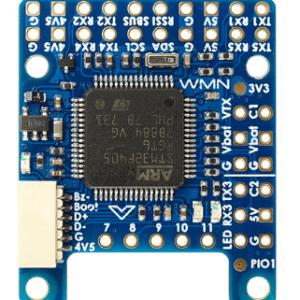

- MCU: STM32F405RGT6, 168MHz, 1MB Flash
- IMU: ICM42688-P
- Barometer: SPL06-001

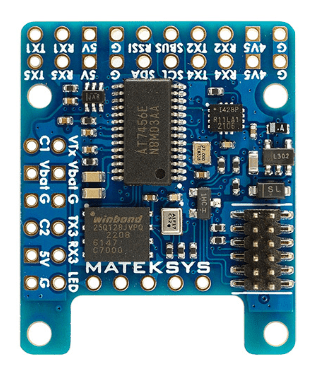

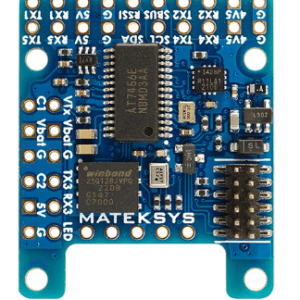

- OSD: AT7456E
- Blackbox: 16M Flash
- 5x UARTs, 1x Softserial_Tx option (INAV)
- 12x PWM outputs
- 1x I2C
- 3x ADC (VBAT, Current, RSSI)
- 1x spare PINIO
- USB/Beep Extender with Type-C (USB2.0)
- Inbuilt inverter on UART2-RX for SBUS input
- Switchable Dual Camera Inputs
Power Specifications:

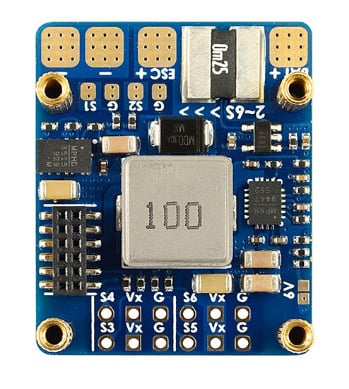

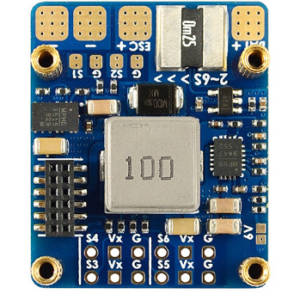

- Input Voltage: 6-30V DC (2-6S LiPo)
- Current Sense: 132A (INAV Scale 250, ArduPilot 40A/V)
- PDB/Current sense resistor: 90A continuous, 132A burst
- BEC 5V 1.5A for FC & Peripherals
- BEC Vx 5A for servos, with 5V/6V options
- Vbat for VTX and camera
- LDO 3.3V 200mA
- Battery Voltage Sensor: 1k:20k
Firmware Compatibility:
- ArduPilot: MatekF405-TE
- INAV: MATEKF405TE (INAV 5.0 or newer)
Physical Attributes:

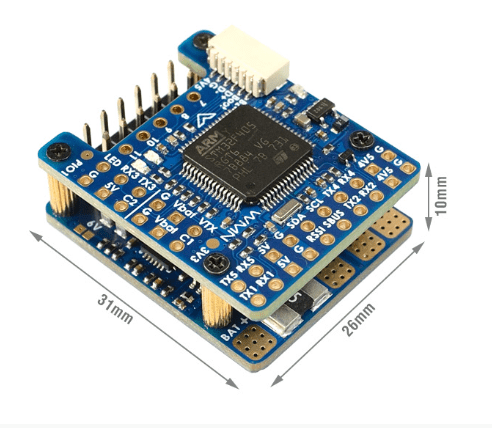

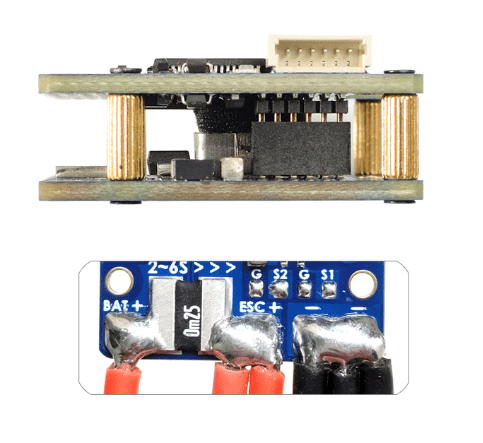

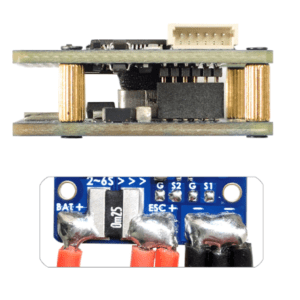

- Dimensions: 31 x 26 x 16.5 mm
- Mounting: 22 x 22mm, Φ2mm
- Weight: 10g
Package Contents:
- 1x MATEKSYS F405-WMN
- 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for the USB extender.
- Dupont 2.54 pins (Note: Board is shipped unsoldered)
