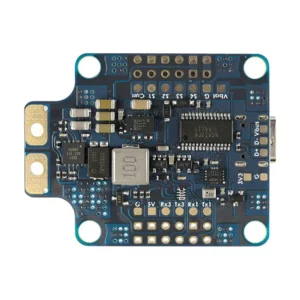

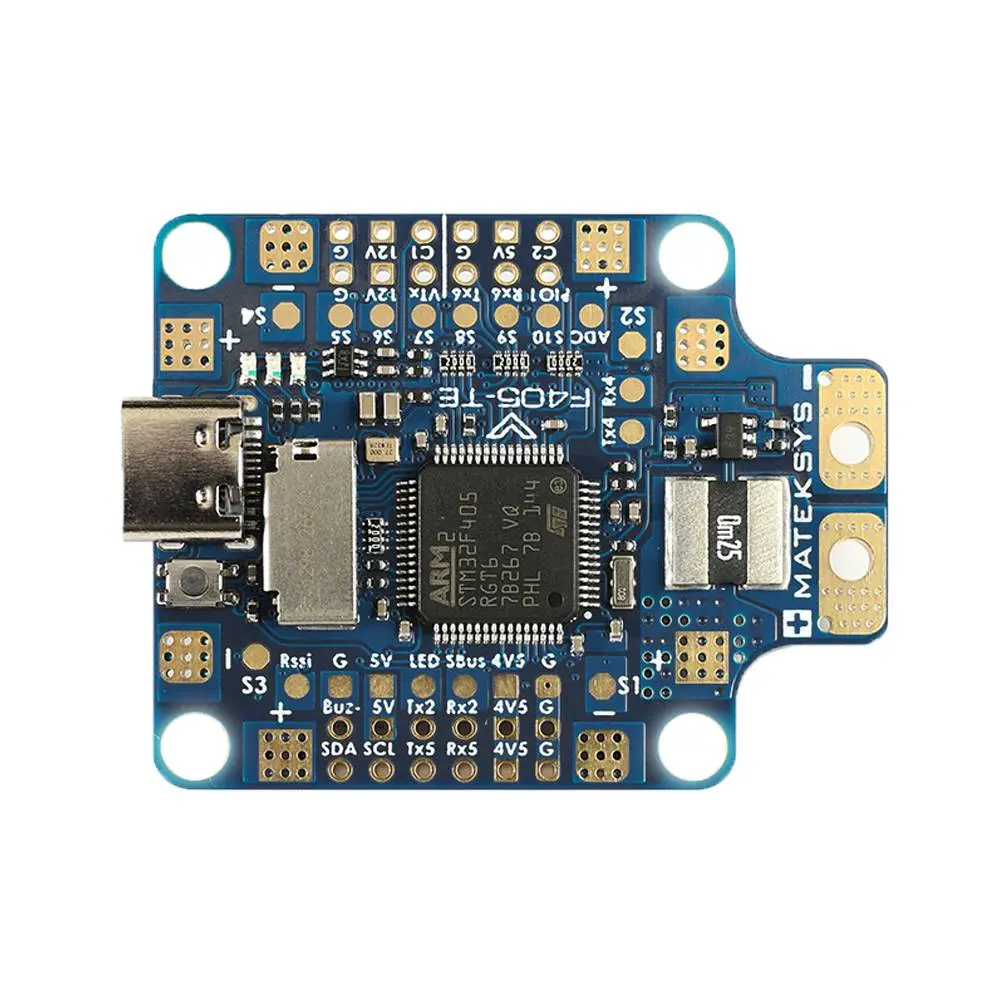

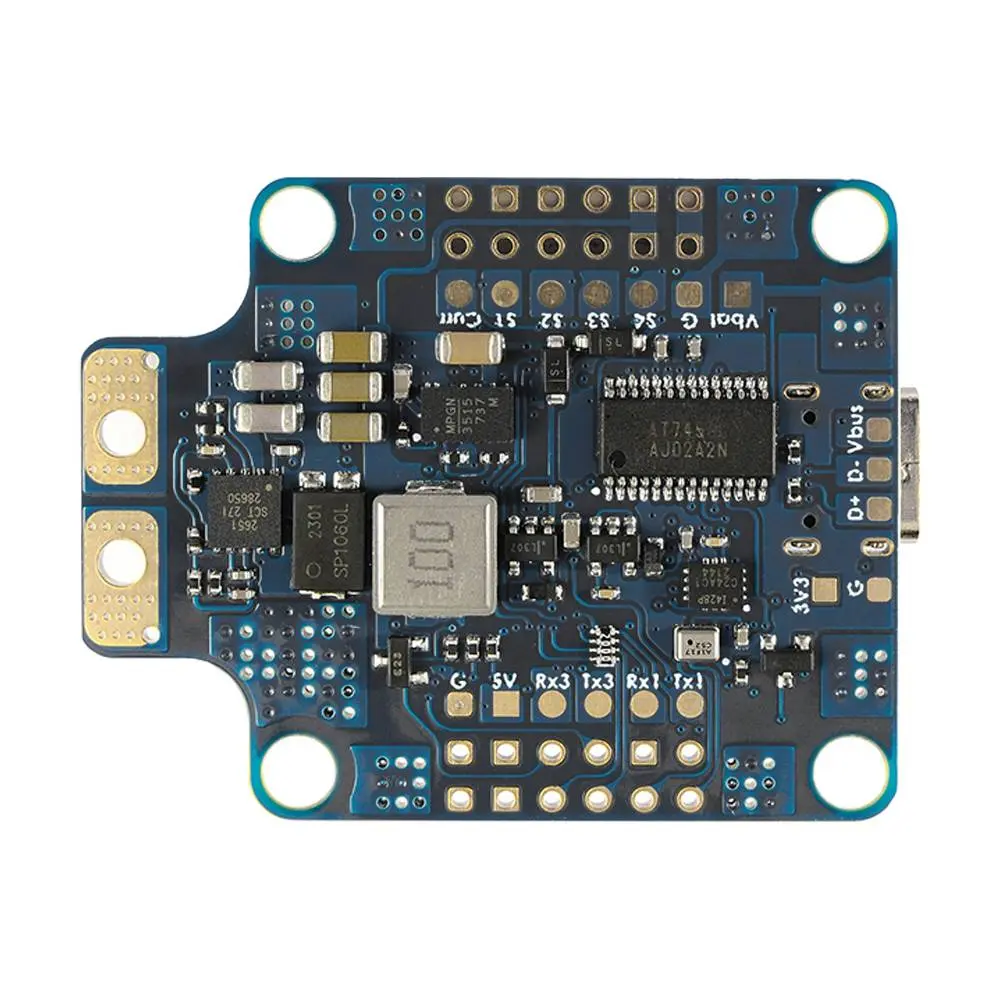

Matek F405-TE Flight Controller
The Matek F405-TE Flight Controller is engineered for performance with a high-speed STM32F405 MCU and the latest ICM42688-P IMU. Optimized for advanced RC enthusiasts, it includes a robust PDB with 4x 35A outputs, versatile BEC options, and comprehensive firmware support compatible with INAV, ArduPilot, and BetaFlight. Designed for both individual and 4in1 ESCs, it offers flexibility with 11 PWM outputs, making it a top choice for custom drone builders.
Specifications
- MCU: 168MHz STM32F405RGT6
- IMU: ICM42688-P (SPI)
- Baro: SPL06-001 (I2C)
- OSD: AT7456E (SPI)
- Blackbox: MicroSD slot (SPI)
- 6x UARTs, 1x Softserial_Tx option(INAV/BF)
- 11x PWM outputs (8x Dshot compatible with BF/ArduPilot)
- 1x I2C
- 4x ADC (VBAT, Current, RSSI, Airspeed)
- 1x spare PINIO
- 4x individual ESC power/signal pads
- 1x Group of  G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
- Built in inverter on UART2-RX for SBUS input
- Switchable Dual Camera Input
PDB Specifications
- Input: 9~36V (3~8S LiPo)
- PDB: 4x 35A (Max.4x 50A)
- BEC: 5V 1.5A
- BEC: 12V 2A
- LDO 3.3V: 200mA
- Current Senor: 220A,  3.3V ADC (INAV/BF scale 150, ArduPilot 66.7 A/V)
- Battery Voltage divider 1K:20K (INAV scale 2100, BF scale 210, ArduPilot BATT_VOLT_MULT 21.0)
Firmware
- ArduPilot: MatekF405-TE
- INAV: MATEKF405TE_SD
- BetaFlight: MATEKF405TE_SD

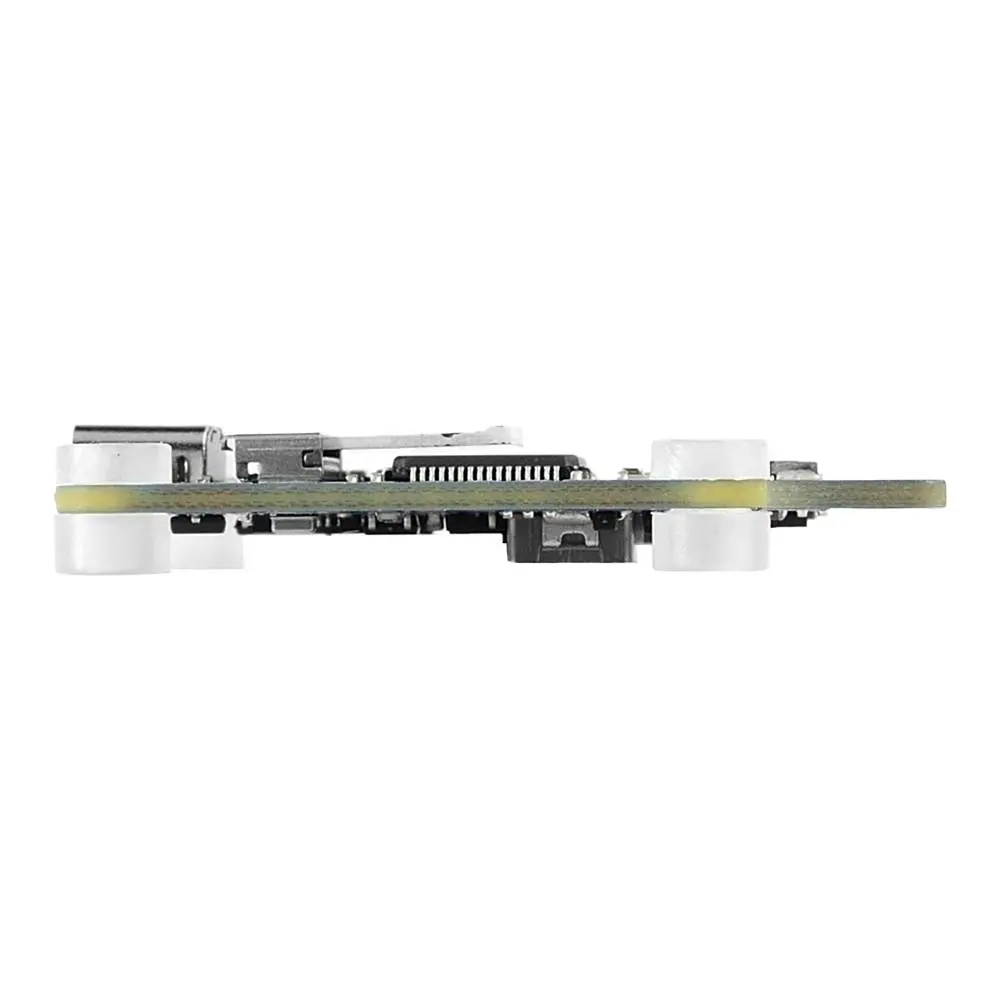

Physical
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
- Dimensions:Â 36 x 46 mm
- Weight: 10g
Including
- 1x F405-TE
- 6x silicon grommets M4 to M3
- 1x Rubycon ZLH 35V/470uF (Low ESR)
