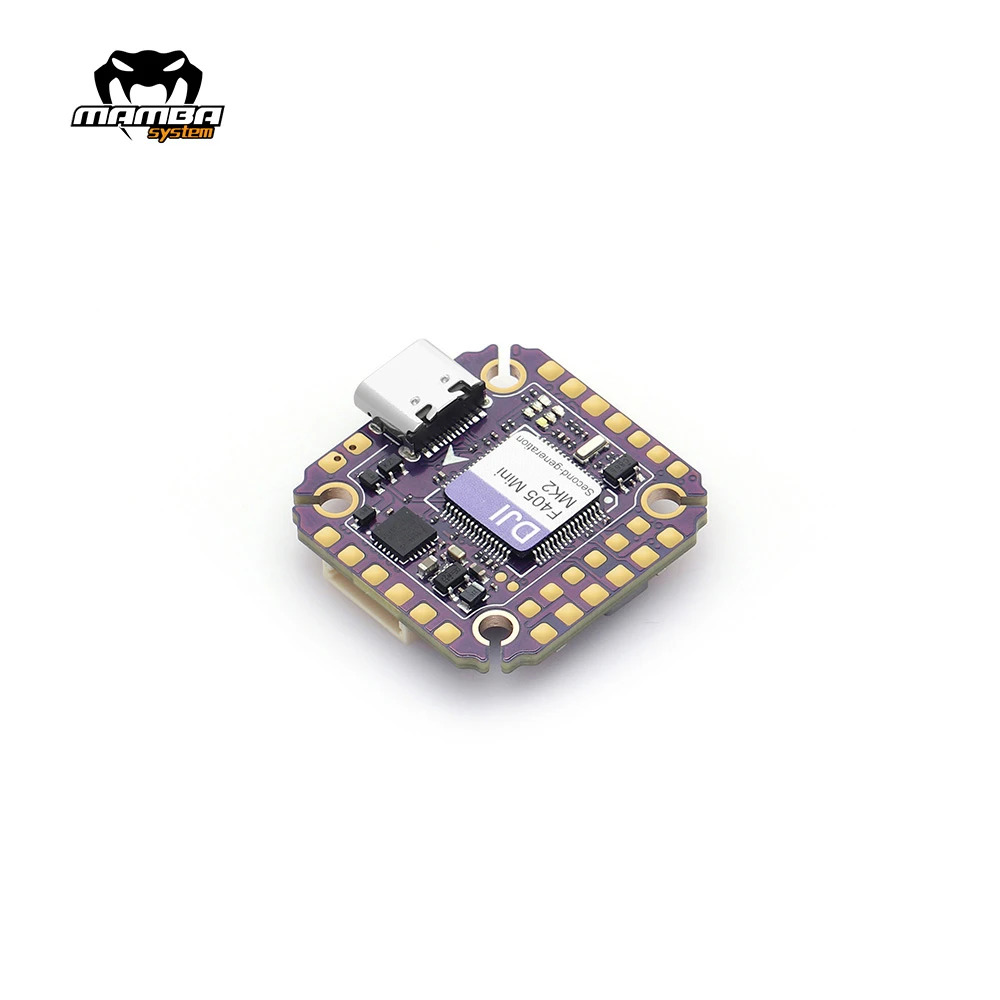

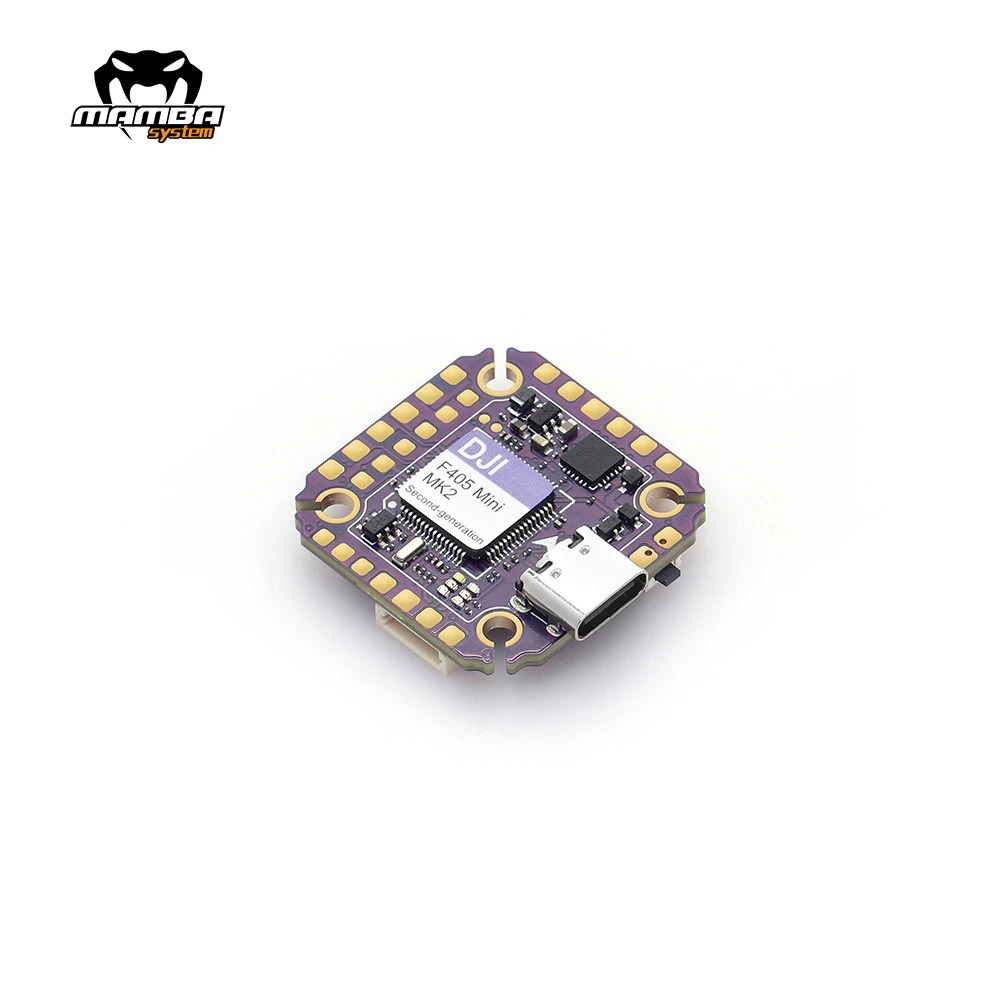

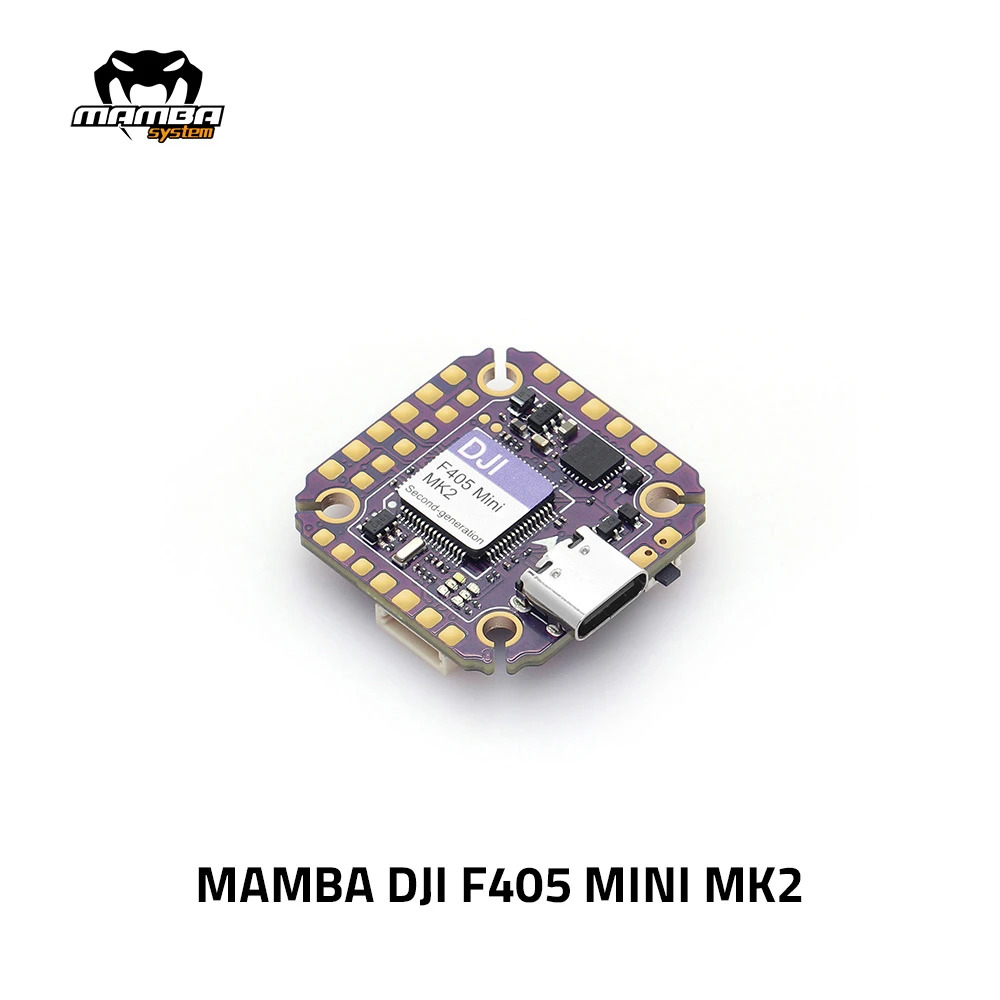

Diatone Mamba DJI F405 MINI MK2 Flight Controller – 20*20mm/M2
Specification:
Mamba DJI F405 MINI MK2 FC 20*20mm/M2
MCU: 168MHz STM32F405RGT6
GYRO: MPU6000
Barometer: Yes
OSD: Yes
Blacbox: No
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED
F.Port: Yes
RSSI: No
Buzz: Yes
Input: 2~6S Lipo (8.4~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 2.5A &（DJI） 9V 2A
MOUNTING: 20mm,M2
