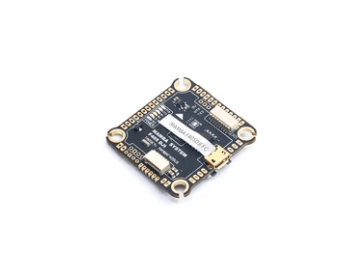

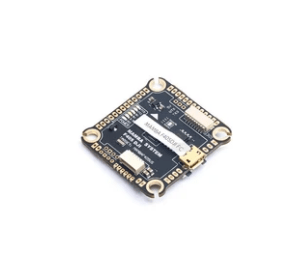

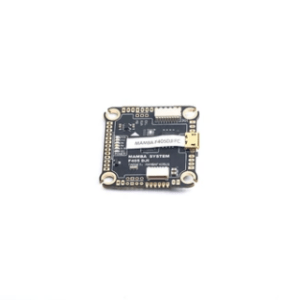

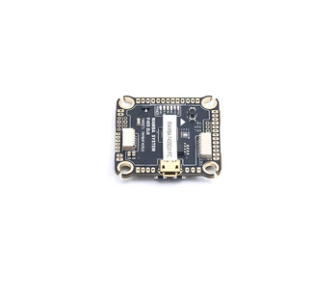

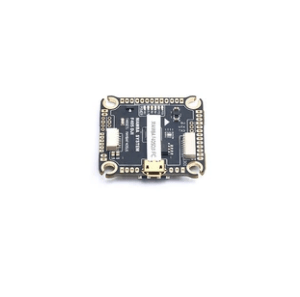

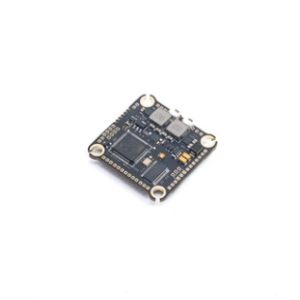

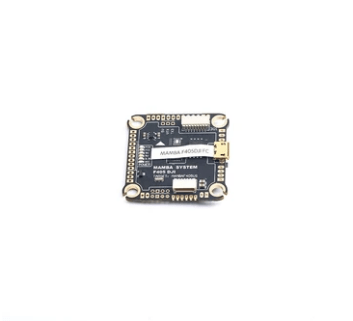

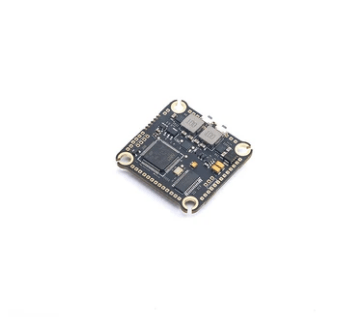

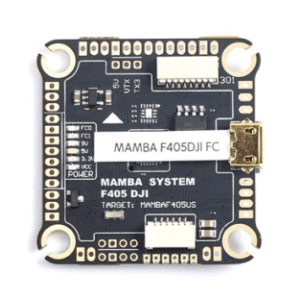

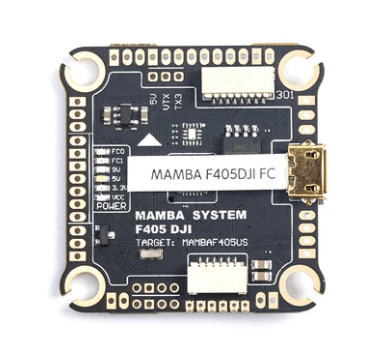

Mamba F405 DJI Flight Controller

Specifications

• MCU: 168MHz STM32F405RGT6 32BIT
• IMU: MPU6000
• Baro: No
• OSD: BF OSD
• Blackbox: 16M Flash Memory
• ESC Soft: Dshot300/600/1200
• ESC Telemetry: RX6
• LED: Blue&Orange for FC Status, Green 9V, White 5V, Red 3.3V
• UARTS:6 Ports
• WS2812 LED Control:
• Betaflight LED Control &LED Controller: 4 Set 2812 LED
• Smart audio: Yes
• RSSI: Yes
• Buzz: Yes

PDB Specifications

• Input: 3~6S Lipo (12.6~25V)
• VTS Protection: Yes
• BEC: 5V 2A & 9V 2A (Max 3A)

FC Firmware
BetaFlight
Firmware Target ： MAMBA F405US

Physical
Mounting: 30.5×30.5mm, Φ3
Dimensions:
Weight: 7.5g

Includes

1×FC MAMBA F405 DJI
