Tiny’s LEDs SaddleLites

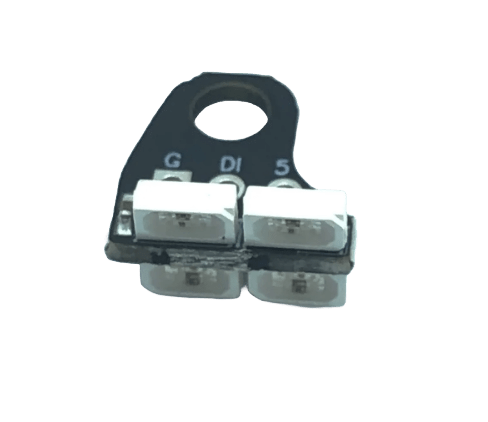

These are Saddlelites V2 that includes a Data OUT pad.

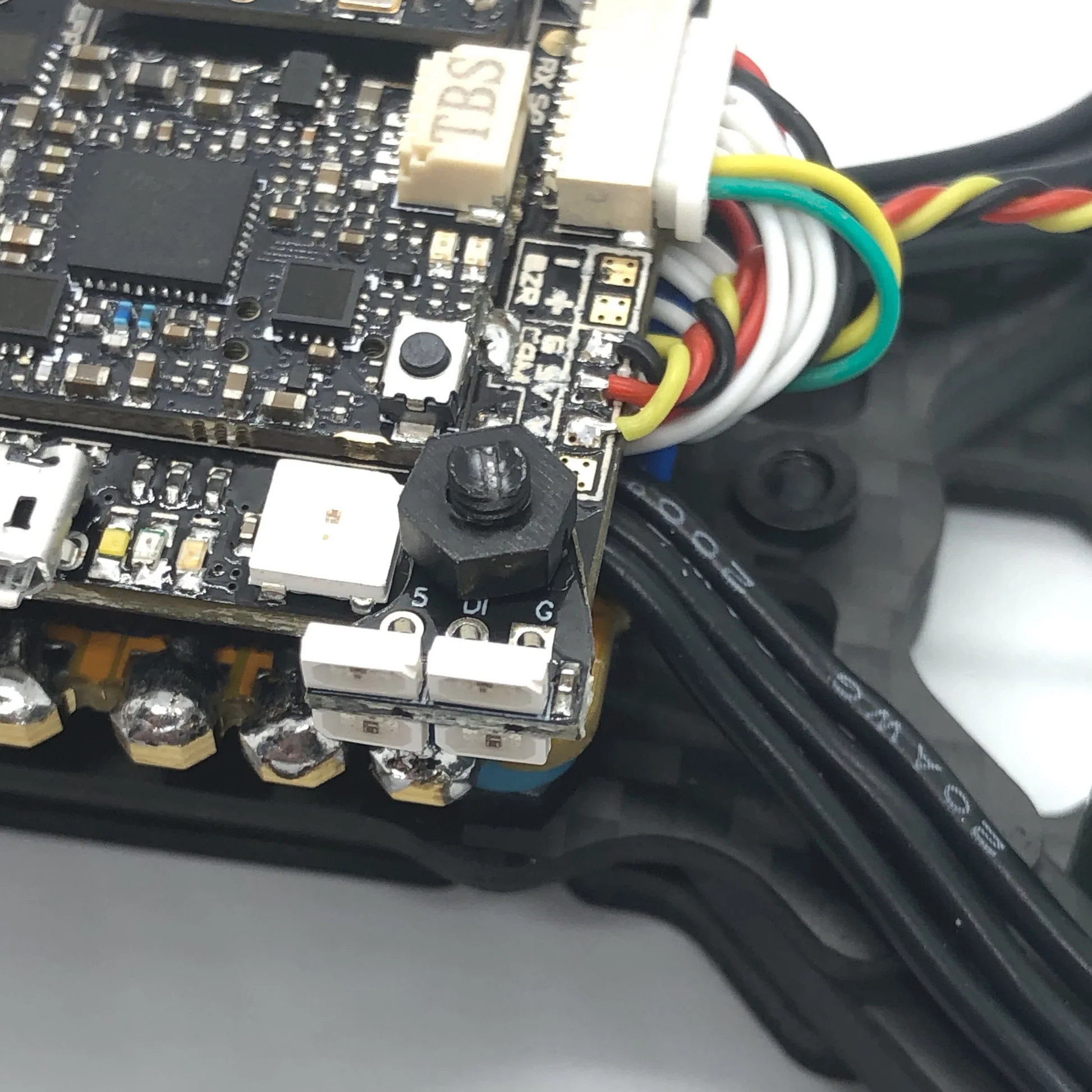

How do you mount LEDs to the side of a quad? It has always been a challenge until now! Just slide these on like a saddle on a horse. Easy to install, compact and hard to damage. No extra weight of TPU mounting or special tape or glue. The most clean install possible. LEDs are configured to act as 1 chip in your configuration. This ensures maximum safety for racing. No strings going out due to a damaged chip.

Betaflight or Other Flight Controller Setup instructions:

Setup 1 LED in your Flight controller software. Saddlelites are 4 leds with the same signal.

Dimensions: 10 x 9 x 5 mm
Weight: 1 gram w/o wires
Current Draw: 150ma MAX per board on white.
Voltage: 5 volts (Requires LED Signal)
