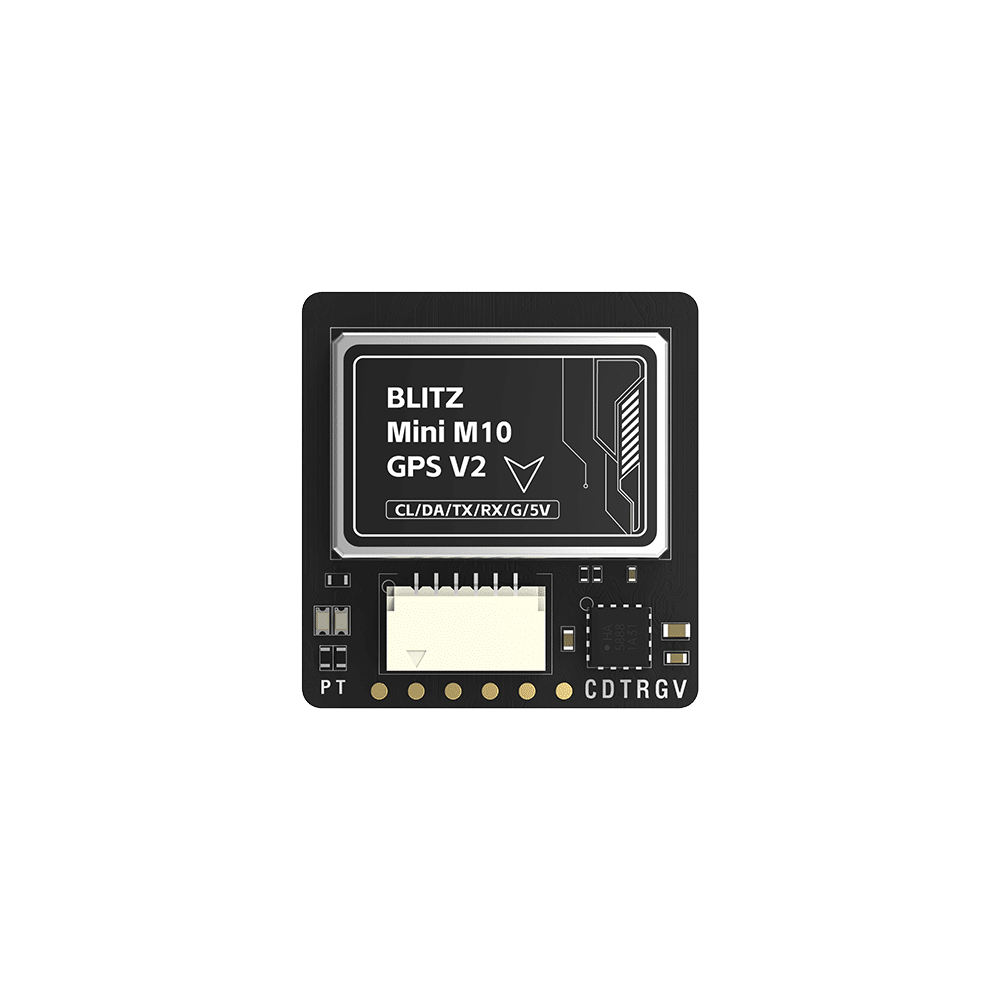

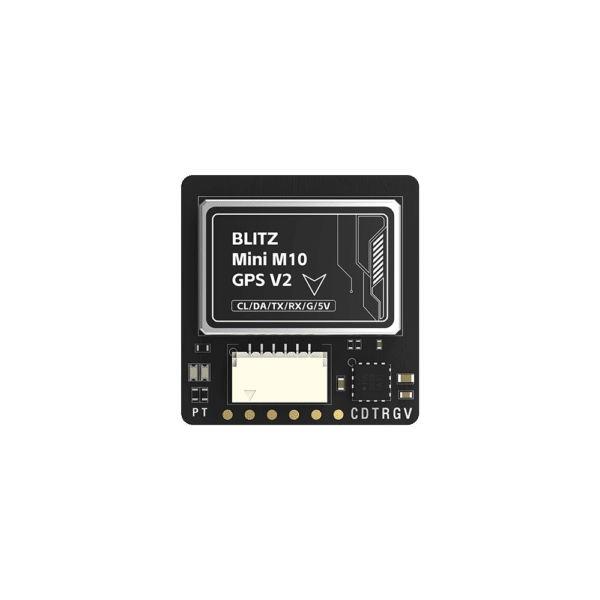

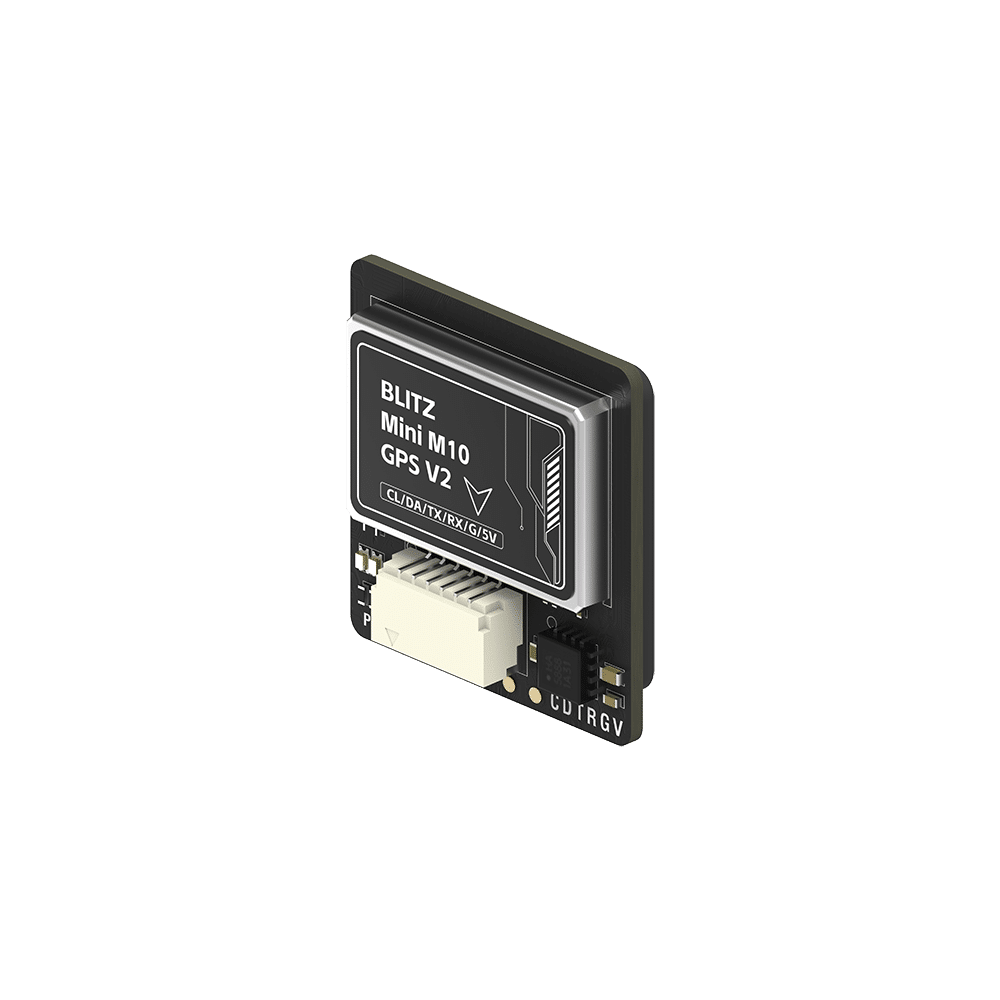

iFlight BLITZ M10 GPS V2 – Mini – 20x21x8mm
Elevate your FPV drone’s navigation capabilities with the iFlight BLITZ M10 GPS V2 – Mini. This upgraded GPS module features the cutting-edge UBLOX M10 chip, delivering faster satellite acquisition, enhanced signal strength, and ultra-low power consumption. Whether you’re racing, freestyling, or exploring long-range flights, the BLITZ M10 GPS V2 ensures precise positioning and reliable performance.
Designed for compact builds, this mini GPS module integrates a QMC5883L compass module and advanced features like a built-in farad capacitor for rapid hot starts, an onboard LNA (Low Noise Amplifier), and a TCXO (temperature-compensated crystal oscillator) for superior accuracy. With support for multiple GNSS systems (GPS, SBAS, Galileo, QZSS, and Glonass), you’ll enjoy high-precision tracking and a 10Hz refresh rate for real-time updates.
Key Features:
- UBLOX M10 Chip: Offers faster satellite locking, low power consumption, and strong signal reception.
- High-Precision Positioning: Integrated compass module and advanced filtering for accurate navigation.
- Rapid Hot Start: Built-in farad capacitor ensures quick satellite reacquisition.
- Compact and Lightweight: Weighing just 8g, it’s perfect for mini and micro FPV drones.
- Multi-GNSS Support: Compatible with GPS, SBAS, Galileo, QZSS, and Glonass for global coverage.
Specifications:
- Compass Module: QMC5883L
- Baud Rate: 9600-460800 / 4800bps-921600bps (Default: 115200bps)
- Sensitivity: Tracking: -167dBm
- Cold Start: 27s | Hot Start: 1s
- Maximum Height: 80,000m | Maximum Speed: 500 m/s
- Speed Accuracy: 0.05 m/s | Refresh Rate: 10Hz
- Dimensions: 20 x 21 x 8 mm | Weight: 8g
- Input Voltage: 3.3-5.5V
- GNSS Support: GPS, SBAS, Galileo, QZSS, Glonass
Packing List:
- 1 x BLITZ M10 GPS V2 Module
- 1 x Cable Set
