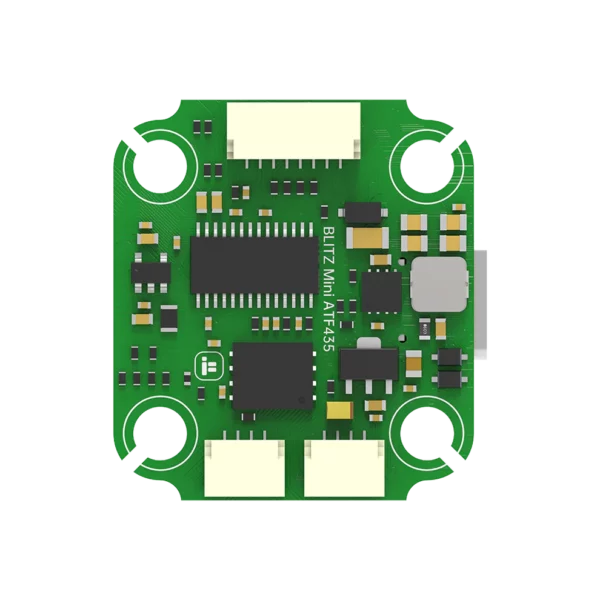

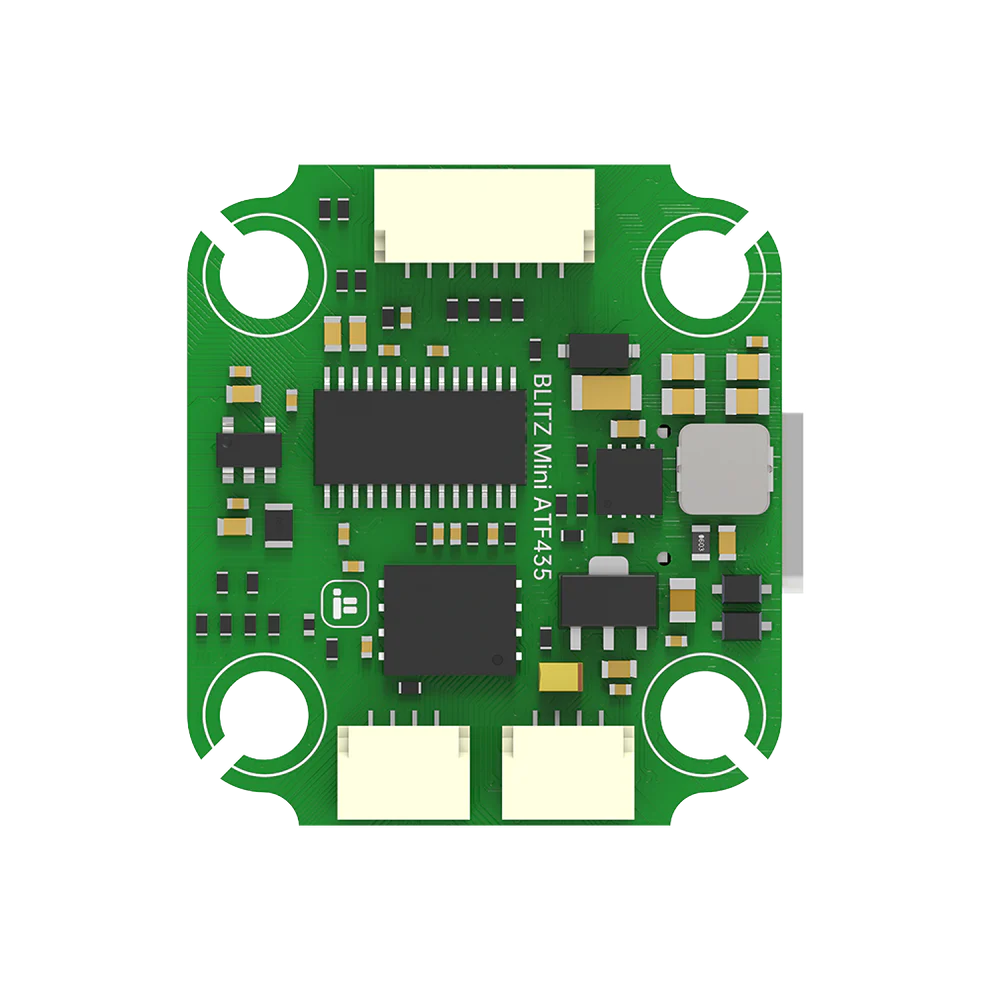

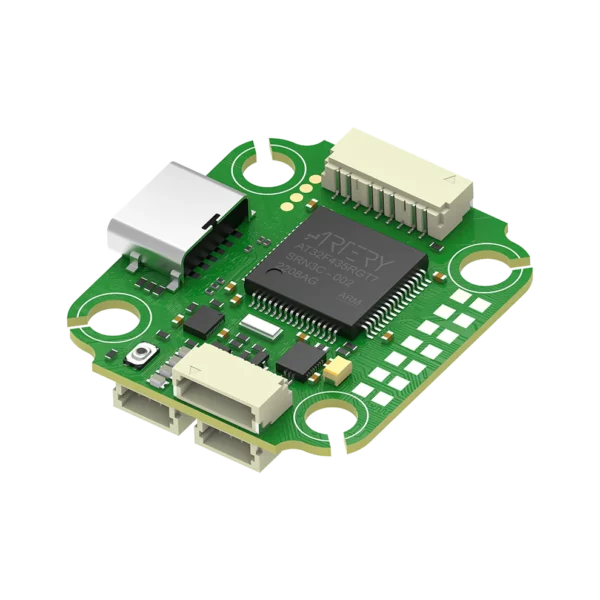

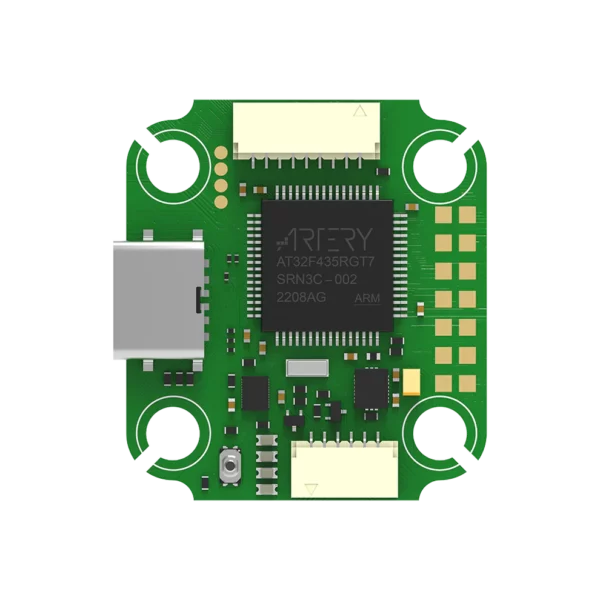

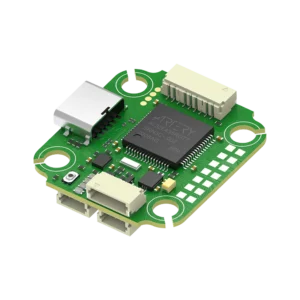

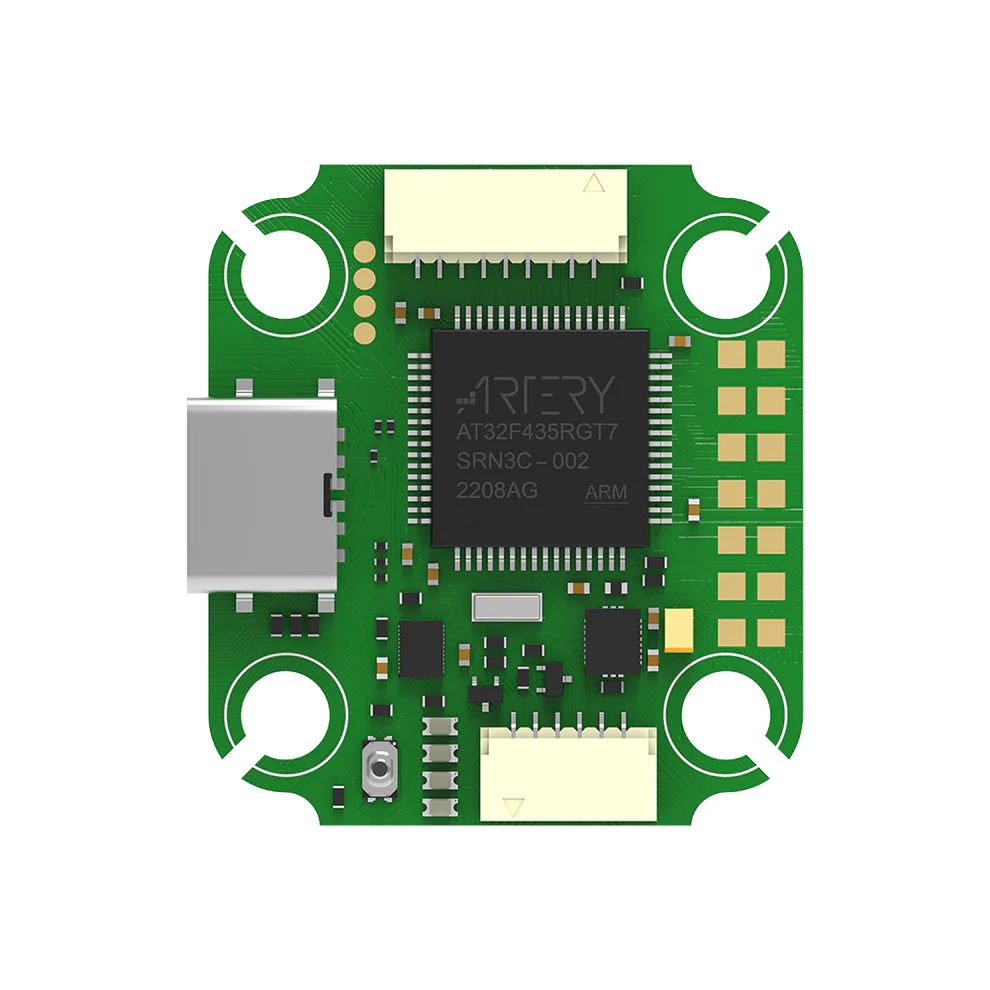

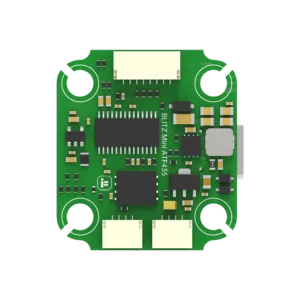

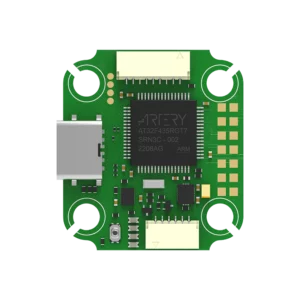

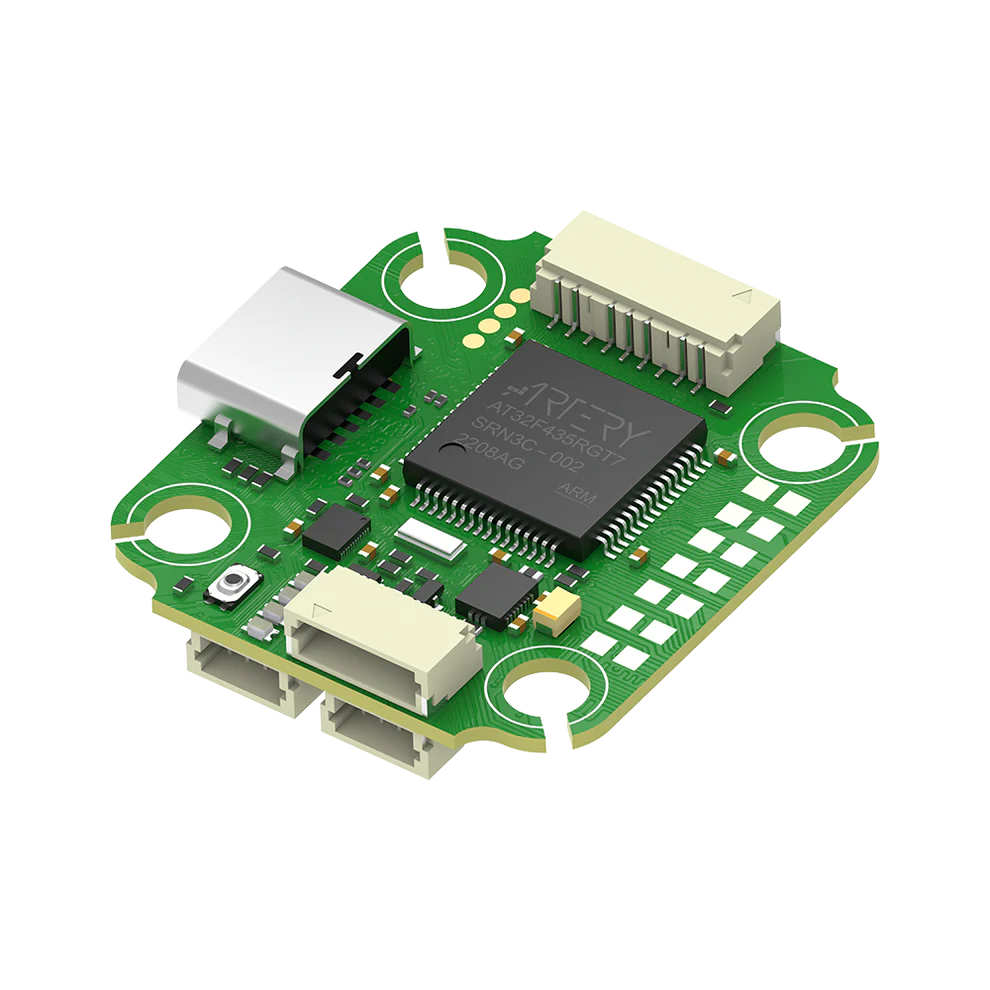

iFlight BLITZ Mini ATF435 Flight Controller
Introducing the iFlight BLITZ Mini ATF435 Flight Controller: a cornerstone of technology for the compact FPV drone enthusiast. This flight controller is built around the powerful AT32F435RGT7 MCU and features the high-performance BMI270 gyro and DPS310 barometer for precise flight control and altitude hold. With an OSD chip AT7456E, 16MB of flash for blackbox data, and six UARTS for comprehensive connectivity, it supports a wide range of peripherals from VTX HD/Analog to receivers, GPS, and sensors. The BLITZ Mini ATF435 also comes with an LED controller and beeper pad for enhanced functionality.
Designed with a 20x20mm mount pattern for snug fits in tight builds, it maintains a lightweight profile at just 5g, complete with a robust 5V 2.5A BEC. Whether you’re setting up a high-speed racer or a precision-focused freestyle quad, this flight controller promises to streamline your build with efficiency and reliability.
Check out all of our iFlight Products!
Specifications
- MCU: AT32F435RGT7
- Gyro: BMI270
- Barometer: DPS310
- OSD Chip: AT7456E
- Flash: 16MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C serial: SDA / SLA pads
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFLIGHT_BLITZ_ATF435
- Mount pattern: 20*20mm/φ4
- Dimensions: 30.5*27mm
- Weight: 5g
- BEC: 5V 2.5A
Wiring Suggestion
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet
Packing List
1 x BLITZ Mini ATF435 Flight Controller
