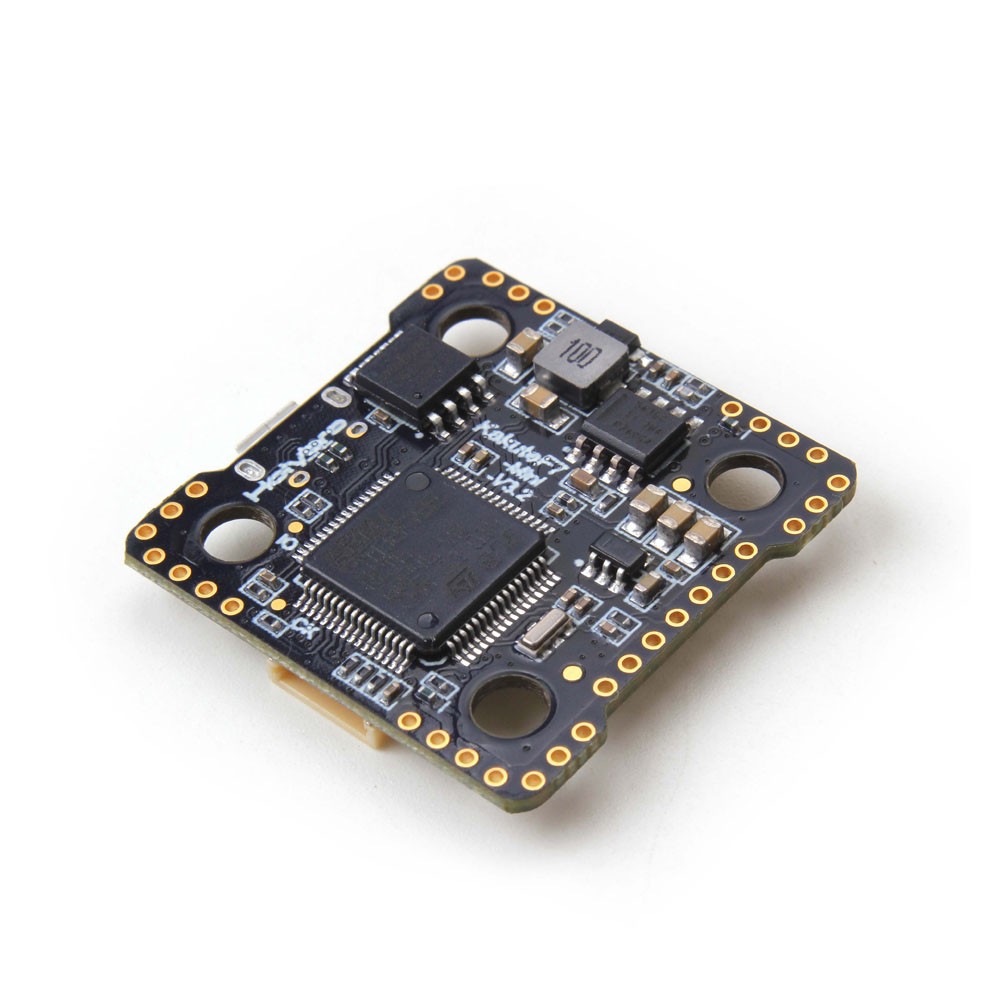

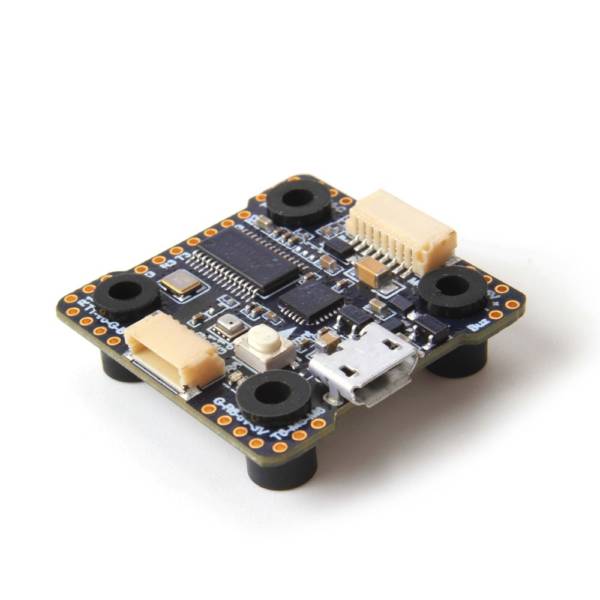

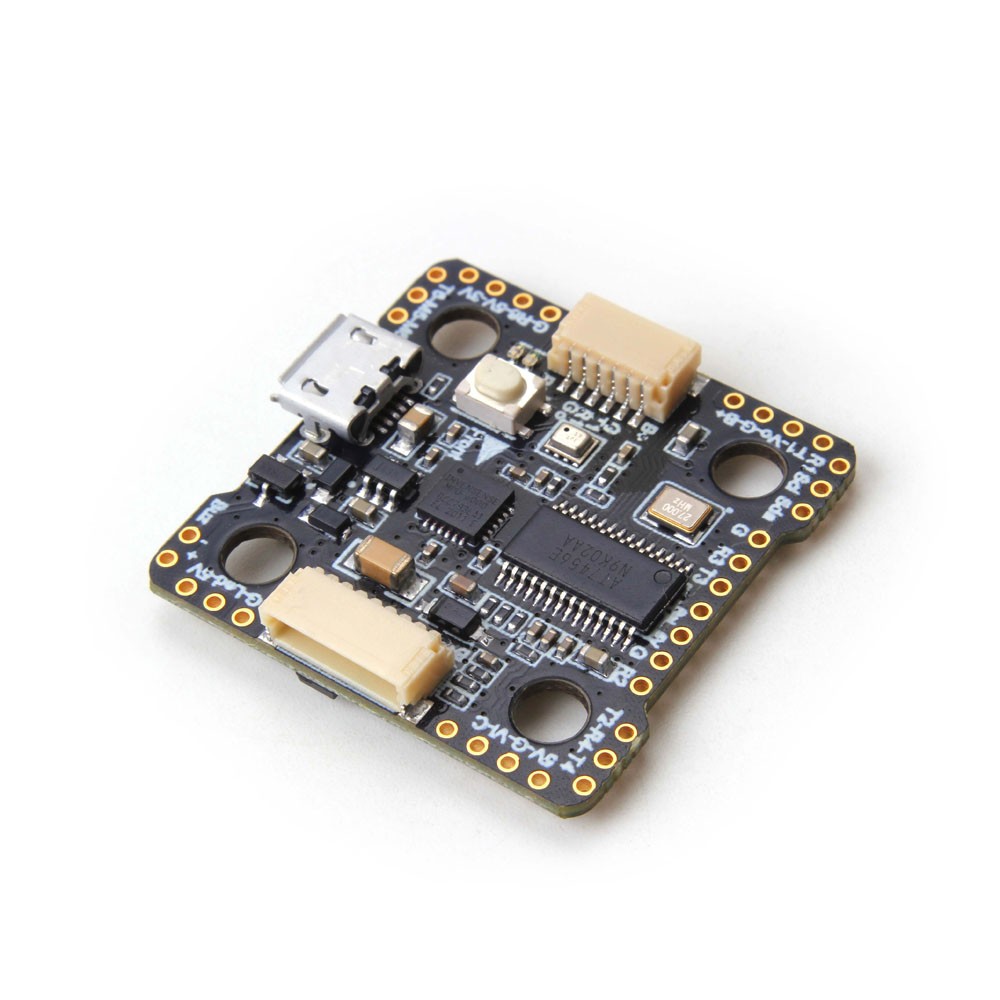

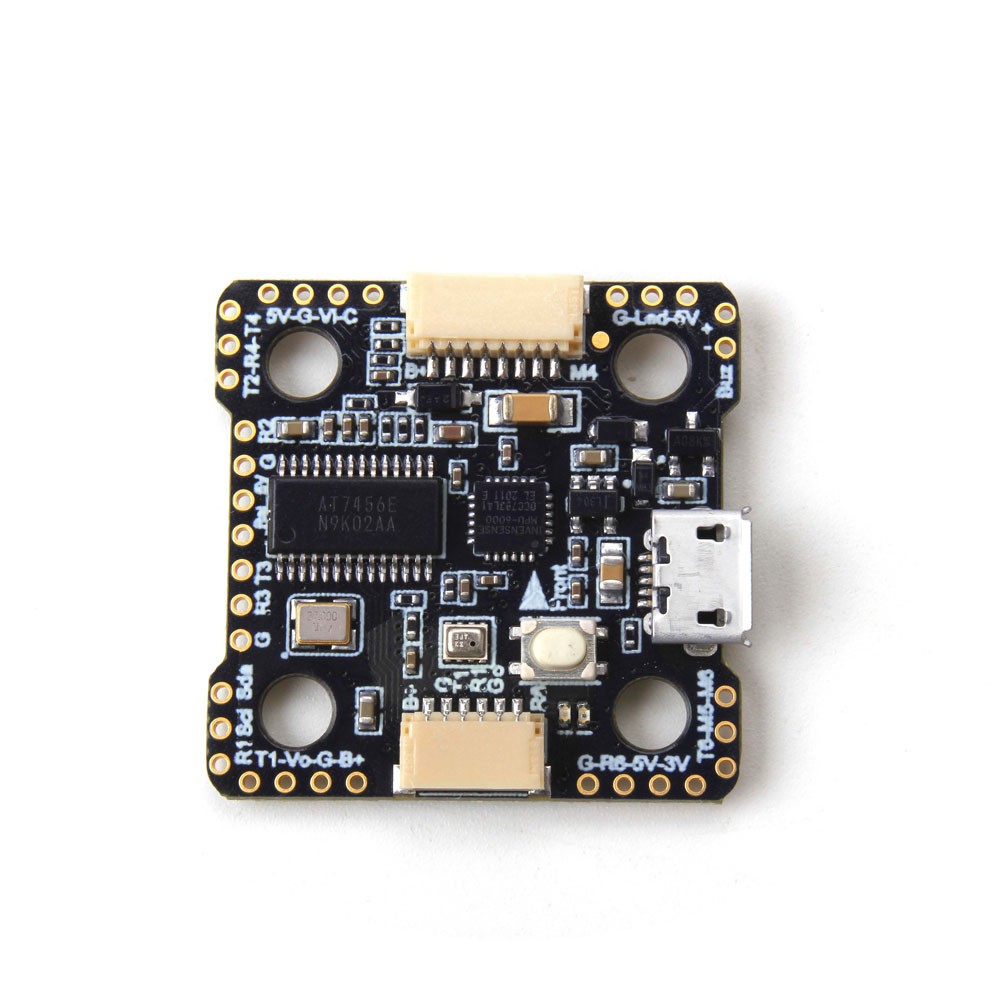

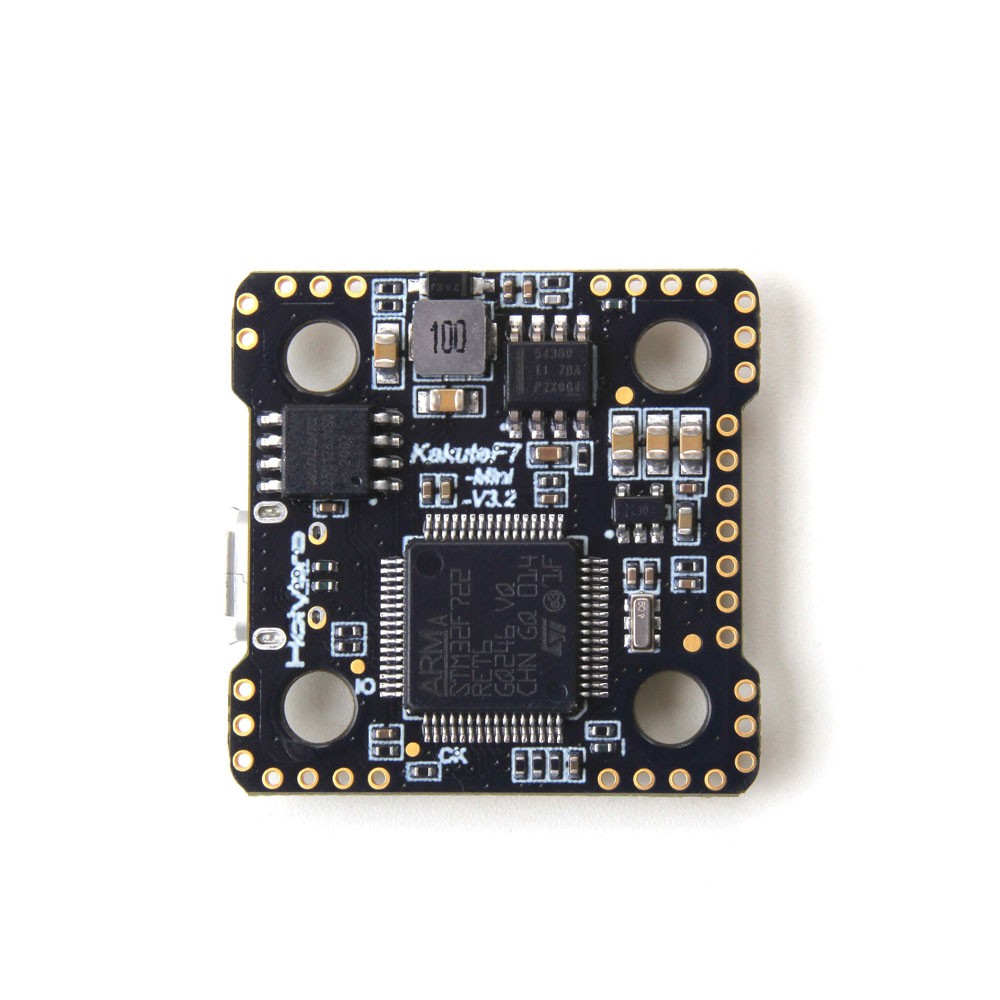

Holybro Kakute F7 Mini V3 Flight Controller
The Kakute F7 Mini V3 Flight Controller by Holybro features 5 UARTS (UART1,2,3,4,6), supports SBUS, iBus, Spektrum, Crossfire receivers ONLY, comes with STM32F722RET6 MCU and MPU6000.
Check out our entire HolyBro line of products.
The Kakute F7 Mini V3 Flight Controller by Holybro features 5 UARTS (UART1,2,3,4,6), supports SBUS, iBus, Spektrum, Crossfire receivers ONLY, comes with STM32F722RET6 MCU and MPU6000.
Specifications
- MCU: STM32F722RET6 32-bit processor,216MHz, 256Kbytes RAM, 512Kbytes Flash
- IMU: MPU6000 (SPI)
- Barometer: BMP280
- USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
- 5hardware UARTS (UART1,2,3,4,6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
- Onbord 16Mbytes for Blackbox logging
- 5V Power Out: 1.0A max
- 3.3V Power Out: 0.2A max
- Dimensions: 30x30mm
- Mounting Holes: Standard 20mm square to center of holes
- Weight: 4g
Pinout Diagram
Includes
- 1 x FC board
- 4 x M3 Anti-Vibration Silicone Grommet Insert
- 1 x JST SH 8pin 150mm cable
- 1 x JST SH 6pin 150mm cable The cable that goes to the CADDX Vista Air Unit is included.)
- 1 x JST SH 6pin to GH 8pin 150mm cable ( The cable that goes to the DJI Air Unit is included.)
- 1 x JST SH 6pin to GH 8pin 80mm cable ( The cable that goes to the DJI Air Unit is included.)
