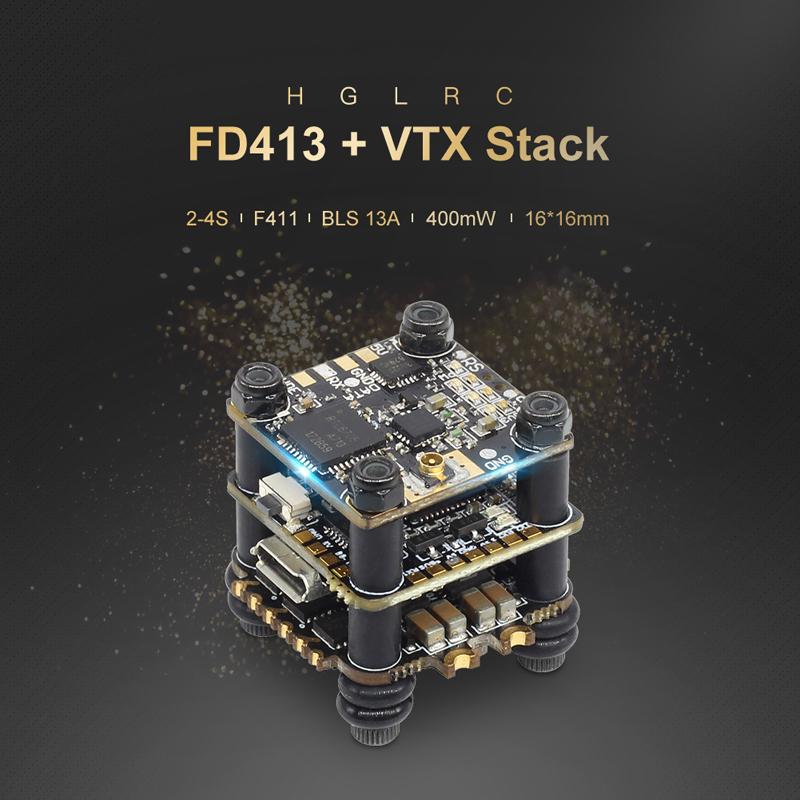

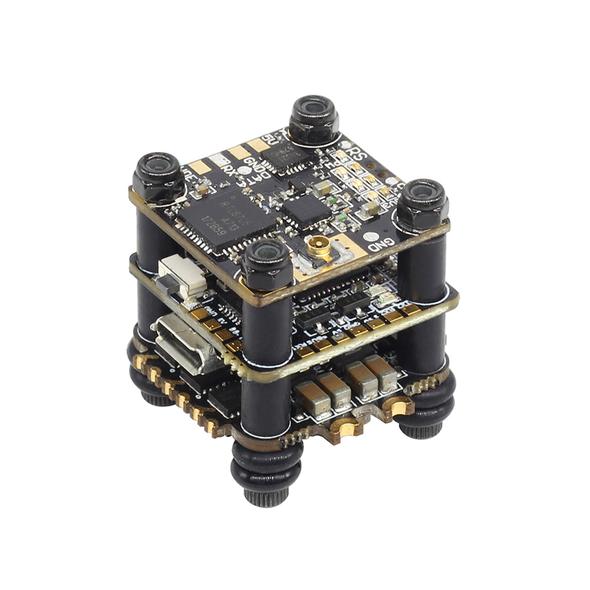

HGLRC FD413 VTX STACK – F4 FC, 13A BLS 4in1 ESC, 400mw VTX For Toothpick
A micro sized stack from HGLRC.
Specifications
HGLRC FD413-VTX STACK 16×16 2-4S F411 Flight Controller 13A BLS 4in1 ESC VTX 400mW

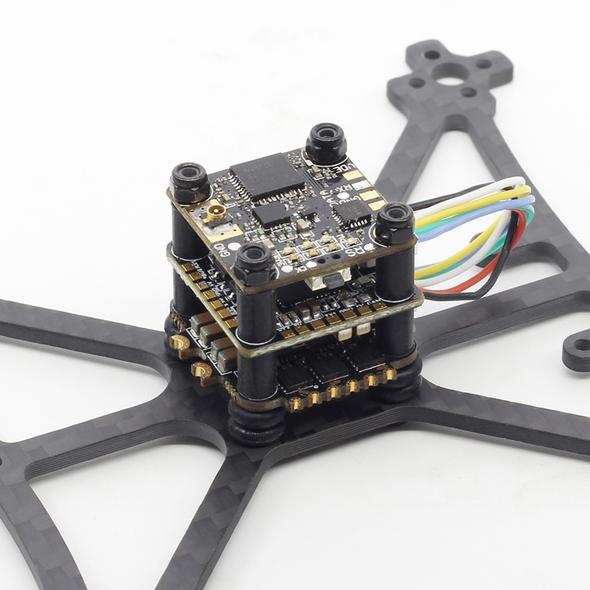

Usage: for 60mm-180mm Frame Kit

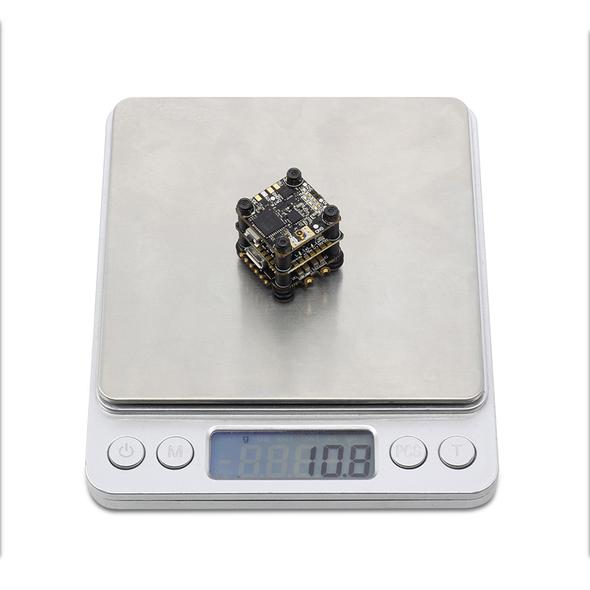

Weight: 10.8g
HGLRC Forward FD411 Flight Controller

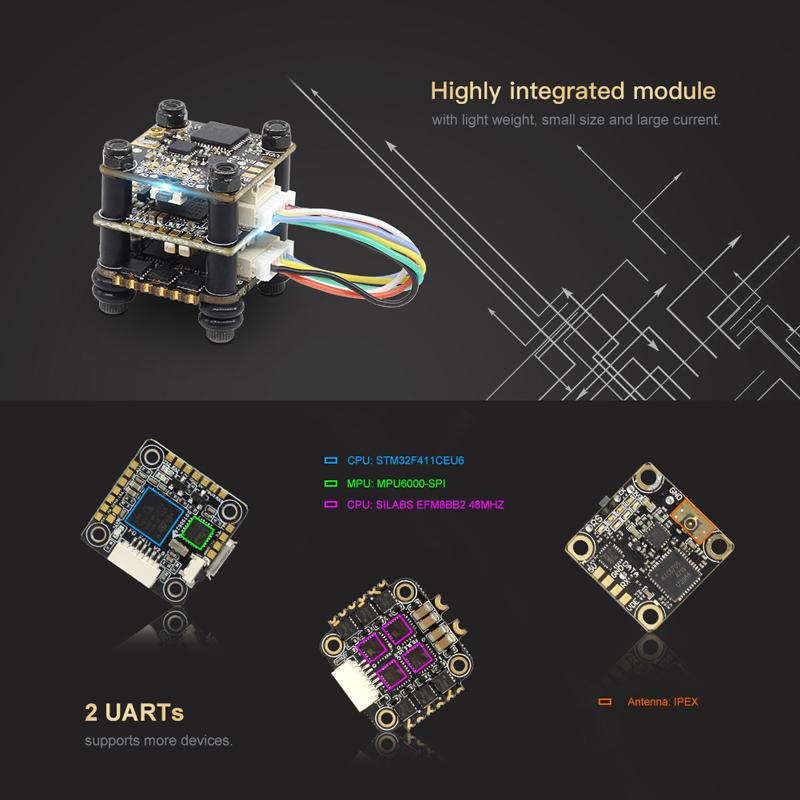

MPU: MPU6000-SPI

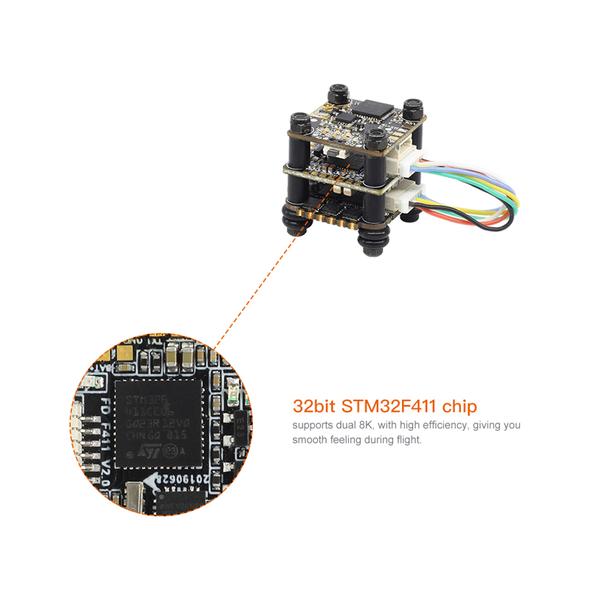

CPU: STM32F411CEU6
Black Box: NO
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V 2A
Size: 21x21mm

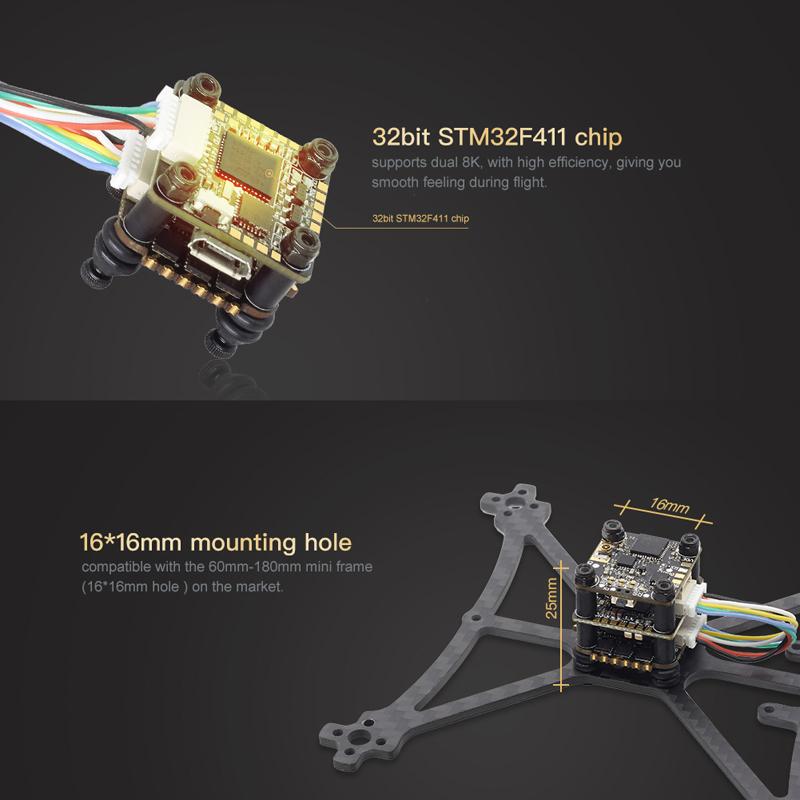

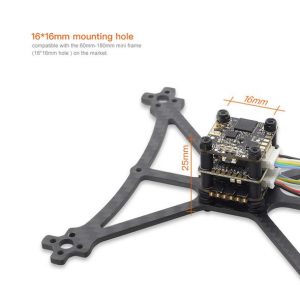

Installing Hole: 16x16mm, M2
Weight:2.7g
Support SBUS/PPM/DSMX/iBUS receiver
HGLRC Forward FD13A 4in1 BLS 2-4S ESC
Input Voltage: 2-4S Lipo
Constant Current: 13A
Peak Current: 15A（5S）
BEC Ouput: NO
Size: 23x24mm
Installing Hole: 16x16mm, M2
Weight: 3.2g
CPU: SILABS EFM8BB2 48MHZ
MOS Tube: TOP QUALITY MOSFET
Support Damped Mode：DSHOT600/300/150/Oneshot125/42,MultiShot,PWM
HGLRC FD VTX Micro 400mW
Output Power: PIT/25mW/100mW/200mW/400mW Switchable
Input Voltage: DC 5V
PIT———0dBm——70mA
25mW—–14dBm—–150mA
100mW—-20dBm—–210mA
200mW—-23dBm—–280mA
400mW—-26dBm—–360mA
Installing Hole: 16x16mm, M2
Size: 20x20mm

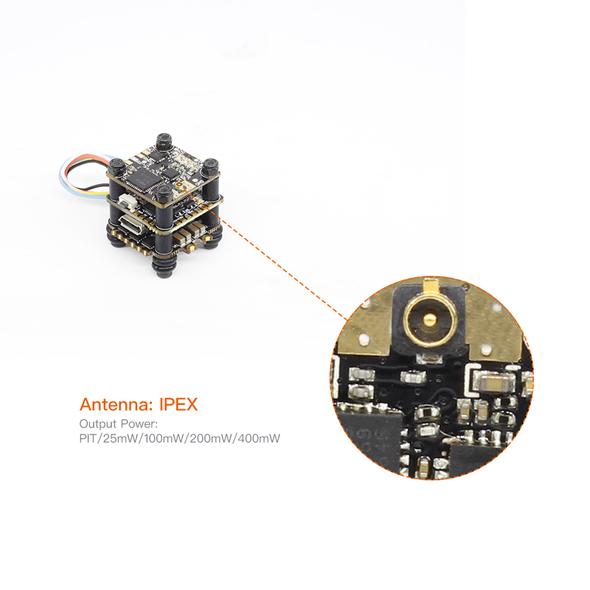

Antenna: IPEX
Weight: 1.5g

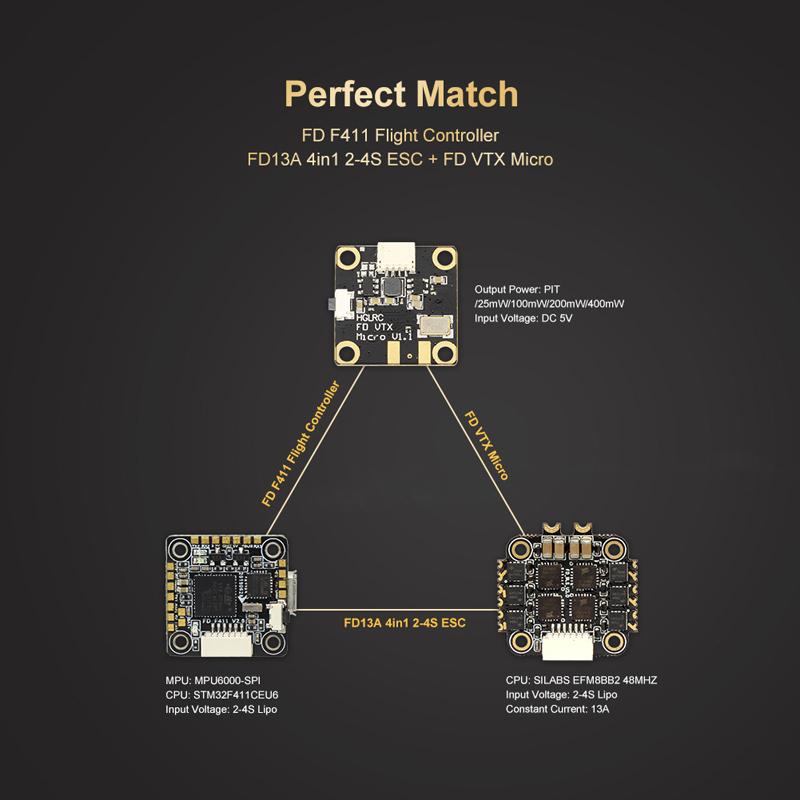

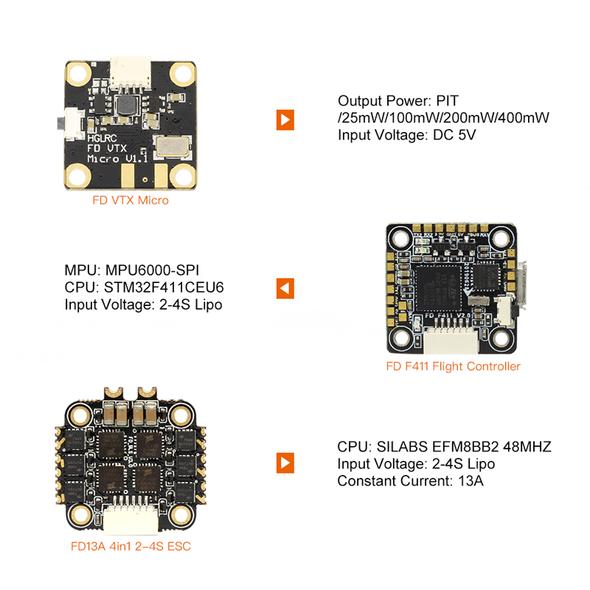

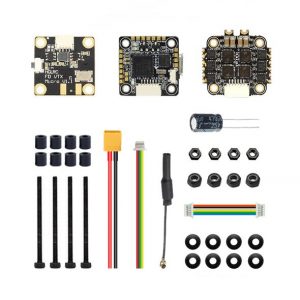

Package Includes:
1x FD411 Flight Controller
1x FD13A 4in1 BLS ESC
1x FD VTX Micro
