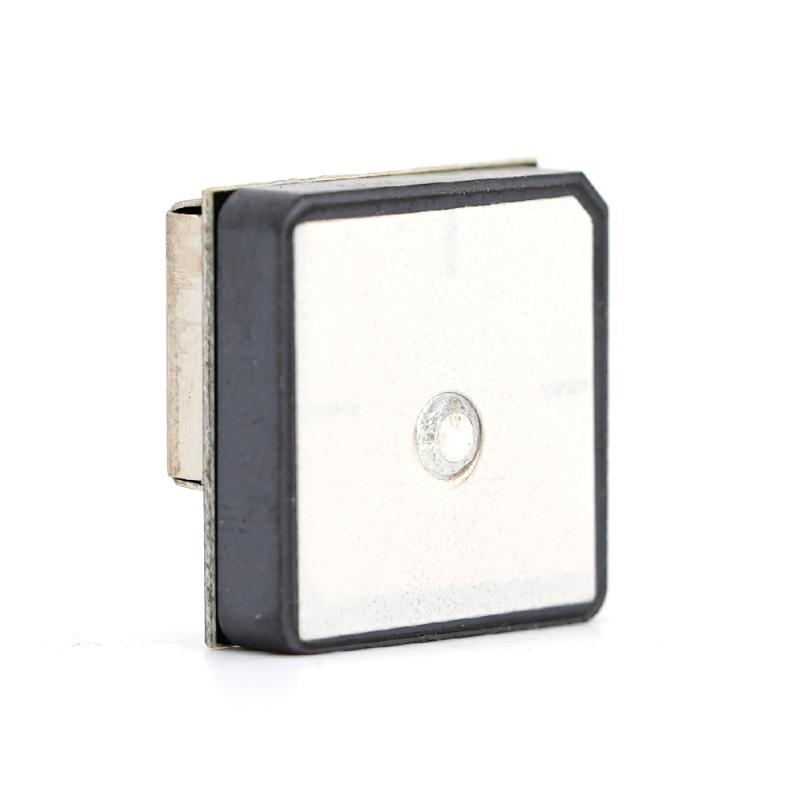

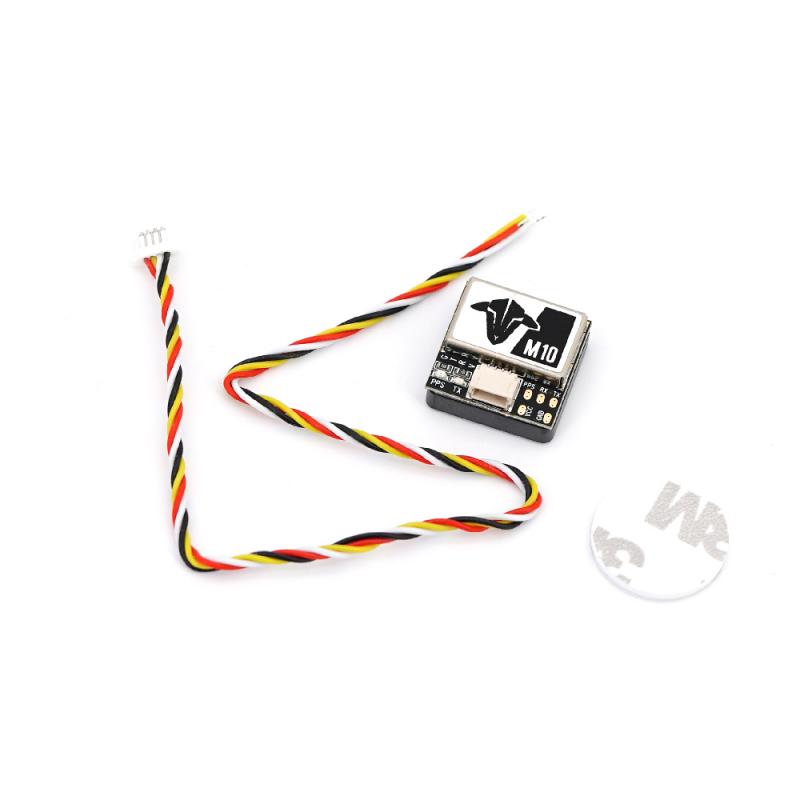

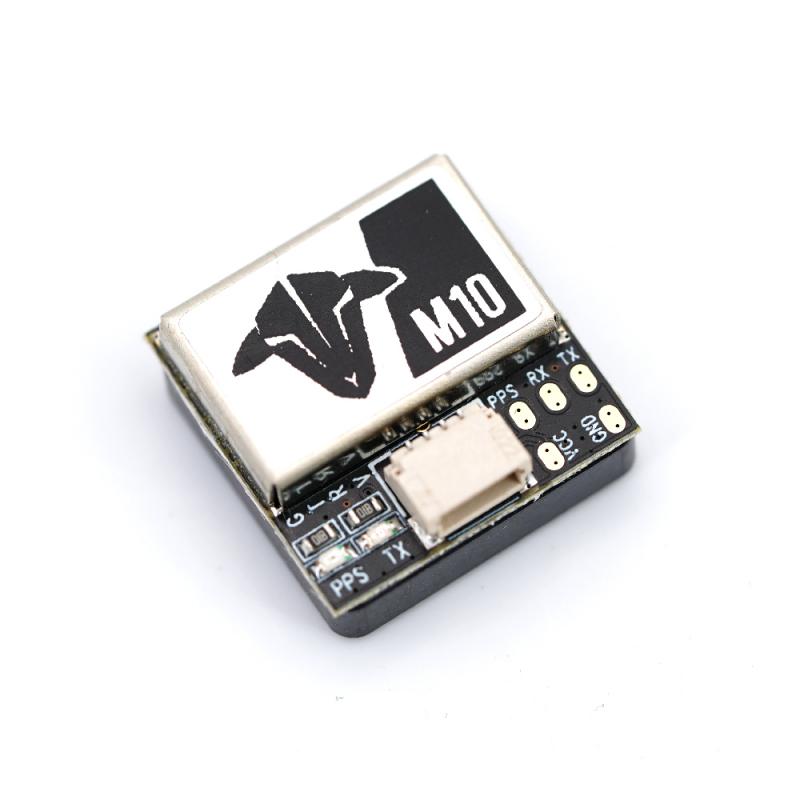

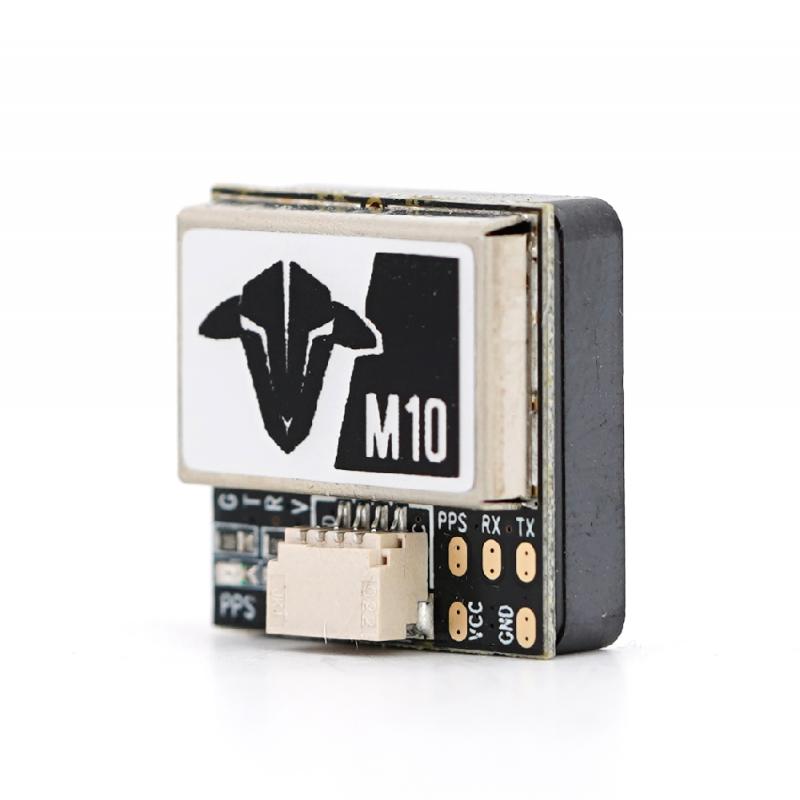

TBS M10 GPS Glonass
The TBS M10 GPS Glonass is a compact and efficient GPS module equipped with the ublox UBX-M10050 chipset, designed for high precision and fast location tracking in drone and RC applications. It features multi-frequency tracking on L1, L2, and L3 bands, ensuring accurate and reliable positioning. With a default baud rate of 38400bps and a refresh rate configurable up to 18Hz, this GPS module delivers real-time location data efficiently. It boasts impressive sensitivity levels for tracking, capture, and cold starts, ensuring rapid satellite lock even in challenging conditions. The module’s small size, lightweight design, and 5V input voltage requirement make it an ideal choice for a wide range of applications requiring precise navigation and timing solutions.
Specification
Chipset – ublox UBX-M10050
Flash memory for saving configuration.
Frequency – L1, 1575.42MHz ; L2,1561.10MHZï¼›L3,1602.00MHZ
Baud Rate – 4800bps-921600bps, default 38400bps
Channel – N/a
Sensitivity – (Tracking: -166dBm) | (Capture: -160dBm) | (Cold Start – 148dBm)
Cold start – Average 26 seconds
Warm start – Average 24 seconds
Hot start – Average 1 second
Accuracy – (HorizontalPosition:Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
Maximum height – 50000m
Maximum speed – 500 m/s
Maximum acceleration – ≦ 4G
Refresh Rate – 0.25Hz-18Hz, default 1Hz
Size – 18 x 18 x 6.1 mm
Weight – 4.9g
Input Voltage – 5V
